Volt VAL-2043-LI-ABK User manual

VOLT®Line Voltage Landscape Lighting

VOLT®Max All-Star 120V Integrated Spotlight

VAL-2043-LI-ABK

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 1 -

VOLT®Line Voltage Landscape Lighting

VOLT®Max All-Star 120V Integrated Spotlight

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 2 -

Important: Please Read Before Installation

Important Safety Instructions

1. This LED Floodlight uses the latest in solid state lighting technology for

long life, low maintenance, and high efciency.

2. An internal power-factor-corrected switch mode supply allows this

xture to be used from any nominal 100V-277V, 60Hz AC supply without

any variation in light output.

3. Suitable for use in:

a. Ambient Temperatures of: -20~+40°C (-4~+104°F)

a. Wet Locations

Note: Save these instructions for future reference.

To avoid the risk of re, explosion, or electric shock, this product should

be installed, inspected, and maintained by a qualied electrician only, in

accordance with all applicable electrical codes.

To avoid electric shock:

1. Be certain electrical power is OFF before and during installation and

maintenance.

2. Luminaire must be connected to a wiring system with an equipment-

grounding conductor.

To avoid explosion:

1. Make sure the supply voltage is the same as the rated luminaire voltage.

2. Do not install where the marked operating temperatures exceed the

ignition temperature of the hazardous atmosphere.

3. Do not operate in ambient temperatures above those indicated on the

luminaire.

For supply connections use wire rated for at least 90°C (194°F)

Warning: these luminaire should ONLY be installed by a qualied electrician.

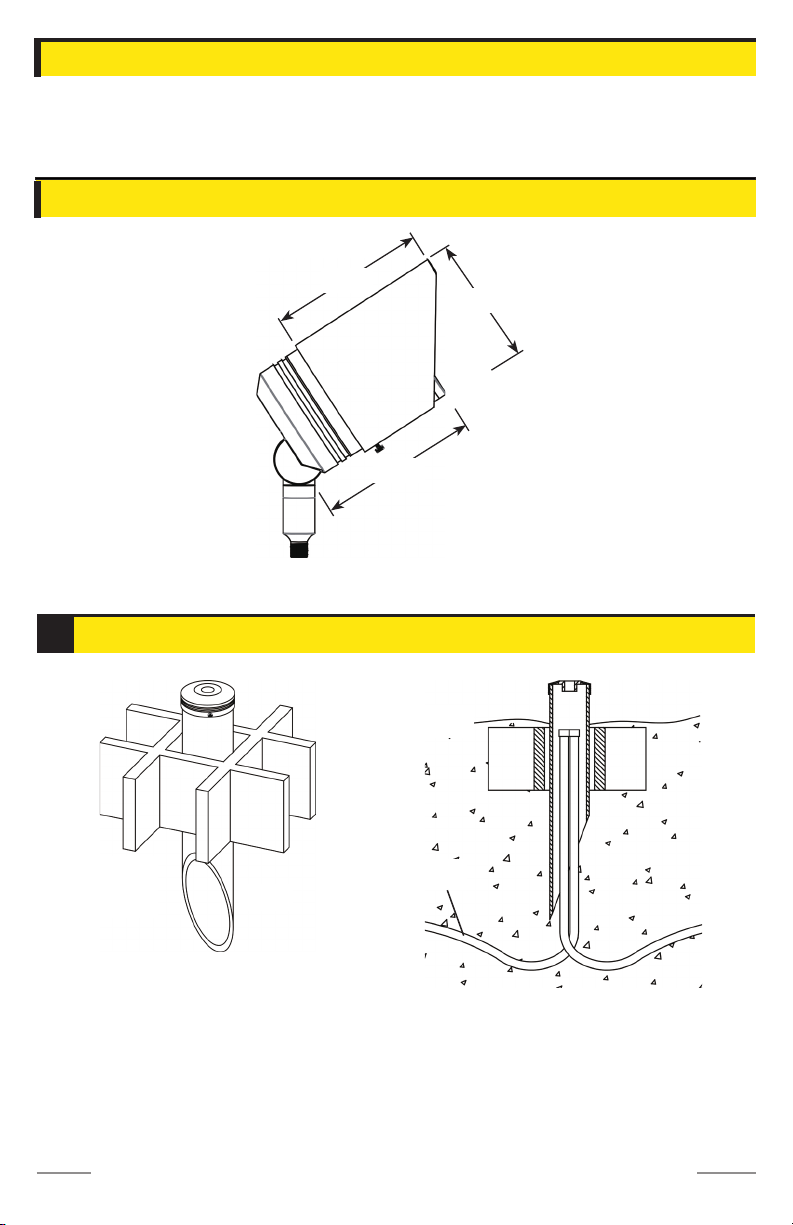

Package Contents

Product Dimensions

A. (1) Stake

[email protected] • 813.978.3700

6.25”

7.75”

B. (1) Fixture

7.75”

- 3 -

Install Stake and Conduit

Dig a hole in the ground for the conduit runs and the stake. Install

the conduit. Slide the stabilizer grid onto the stake and secure with

the screws. Place the stake over the conduit runs. Backll against the

mounting stake.

Stake

Stabilizer

Grid

Conduit

Ground Level

www.voltlighting.com

INSTALLATION INSTRUCTIONS

- 4 -

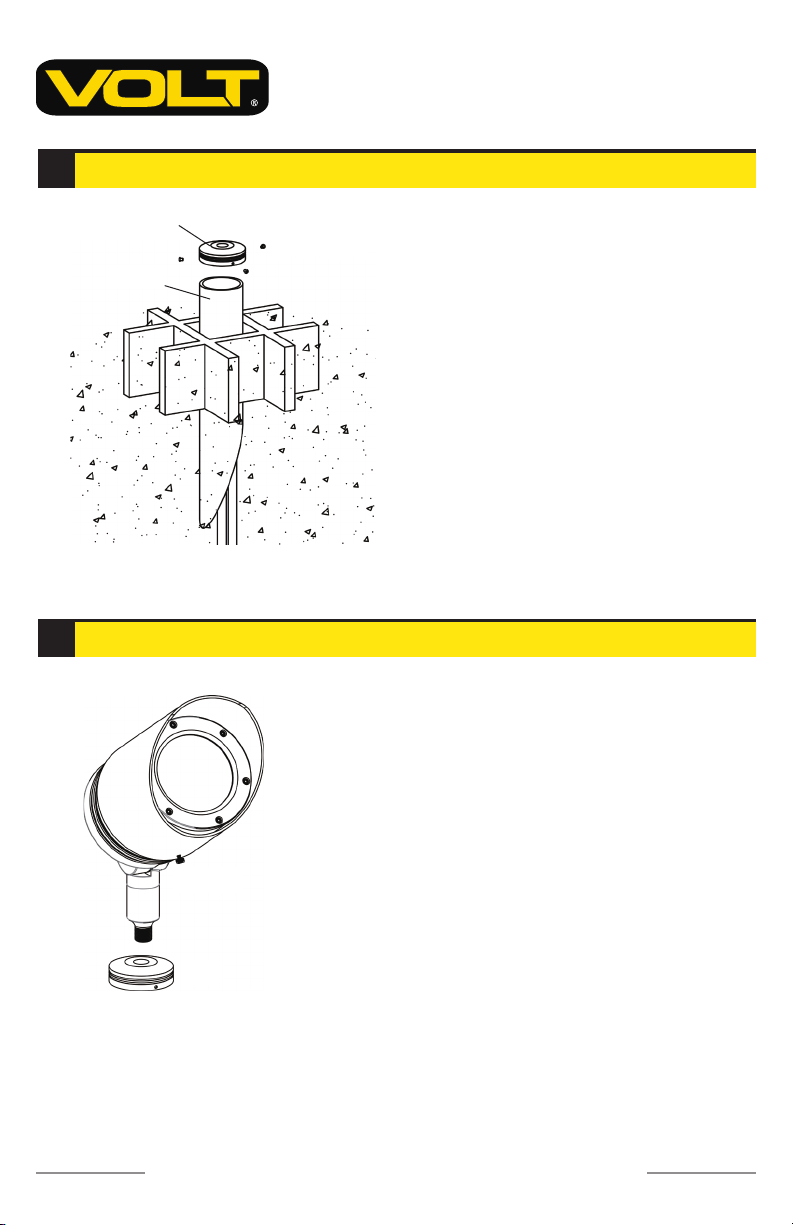

Remove the cap from the stake

by loosening the set screws.

Remove Cap from Stake

Set Screw

Cap

Stake

Thread the cap onto the xture

body and hand tighten until

snug.

Install Cap to Fixture

Fixture

Cap

VOLT®Line Voltage Landscape Lighting

VOLT®Max All-Star 120V Integrated Spotlight

[email protected] • 813.978.3700

- 5 -

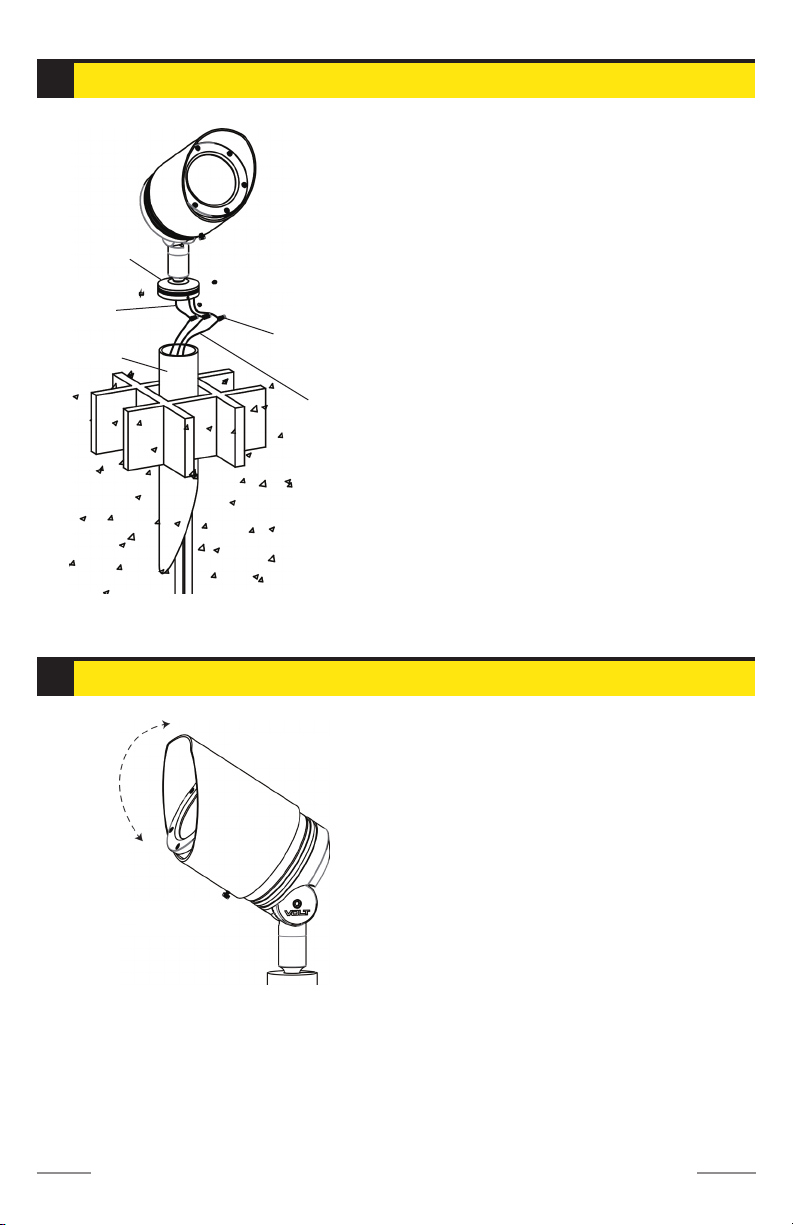

Wire Connection and Fixture Installation

Allow enough wire from the

xture for adjustment purposes.

Connect the wires from

the xture into the wiring

terminal. The white wire goes

to the “Neutral” terminal; the

black wire goes to the “Live”

terminal; and the green wire

goes to the “Ground” terminal.

Fix them in place with the

connector screws.

Loosen the set screw at the joint

and adjust the xture body to

the desired direction. When the

desired direction is achieved,

tighten the set screw until snug.

Adjust Lamp Direction

Fixture Body

Set Screw

Cap

Stake

Wire

Connector

Supply

Wires

Fixture

Wires

www.voltlighting.com

- 6 -

INSTALLATION INSTRUCTIONS

VOLT®Line Voltage Landscape Lighting

VOLT®Max All-Star 120V Integrated Spotlight

After installation,

A. Double check whether the lighting xture is rmly xed.

B. Double check the wires are connected correctly.

Lastly, turn on the power and check if the lighting xture is working properly. If

not, turn off the power and contact us at 813-978-3700.

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 7 -

IS-VAL-2043-LI.ver4

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 8 -
