Volt Fat Boy Mini Spotlight User manual

INSTALLATION INSTRUCTIONS

VOLT®LOW VOLTAGE LANDSCAPE LIGHTING

VOLT®

Fat Boy Mini Spotlight

ITEM: VAL-2014-X-XXX

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT®Fat Boy Mini Spotlight - VAL-2014-X-XXX

INSTALLATION INSTRUCTIONS

IMPORTANT: PLEASE READ BEFORE INSTALLATION

IMPORTANT SAFETY INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation, opera-

tion maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing

this luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M)

or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that

are suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or

tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

PACKAGE CONTENTS

PRODUCT DIMENSIONS

INSTALL STAKE

A. (1) Fixture Body

Determine the desired location

for mounting the stake mount.

Hammer the stake into the

ground until ange of stake is

ush to grade. To avoid damage

to the stake, place a board on top

of the stake while hammering.

Note: If the ground is hard and

the stake is difcult to install,

make a crosscut in the ground

using a at shovel.

Board

GroundSoil

Stake

813.978.3700 • [email protected] • www.voltlighting.com

4.59”

2.2”

1.0”

INSTALL FIXTURE BODY TO STAKE

Wire Connections

VOLT® Fat Boy Mini Spotlight - VAL-2014-X-XXX

INSTALLATION INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

Clear away an area in the ground

at the wireway slot on top of the

stake. Lay the supply wires into

the wireway slot and attach the

xture on to the stake. Tighten

until snug.

Fixture

Body

Supply

Wires

Ground

Stake

Wireway

Slot

Strip both the leads from the luminaire pigtail. Using two UL listed wire

connectors (sold separately), connect the leads from the luminaire to

the main supply cable leads.

Pigtail

Wire Connectors

Main Supply Cable

Install MR11 Bulb

813.978.3700 • [email protected] • www.voltlighting.com

Remove Glare Guard and Lens

Loosen the set screw and

remove the glare guard

and lens from the xture.

Glare Guard

Fixture

Lens

Set Screw

Insert MR16 bulb with the cor-

rect wattage and type marked

on the xture label and secure

into place.

CAUTION: Do not exceed

maximum wattage marked on

luminaire label.

MR16 Lamp

Socket

Fixture

VOLT® Fat Boy Mini Spotlight - VAL-2014-X-XXX

INSTALLATION INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com

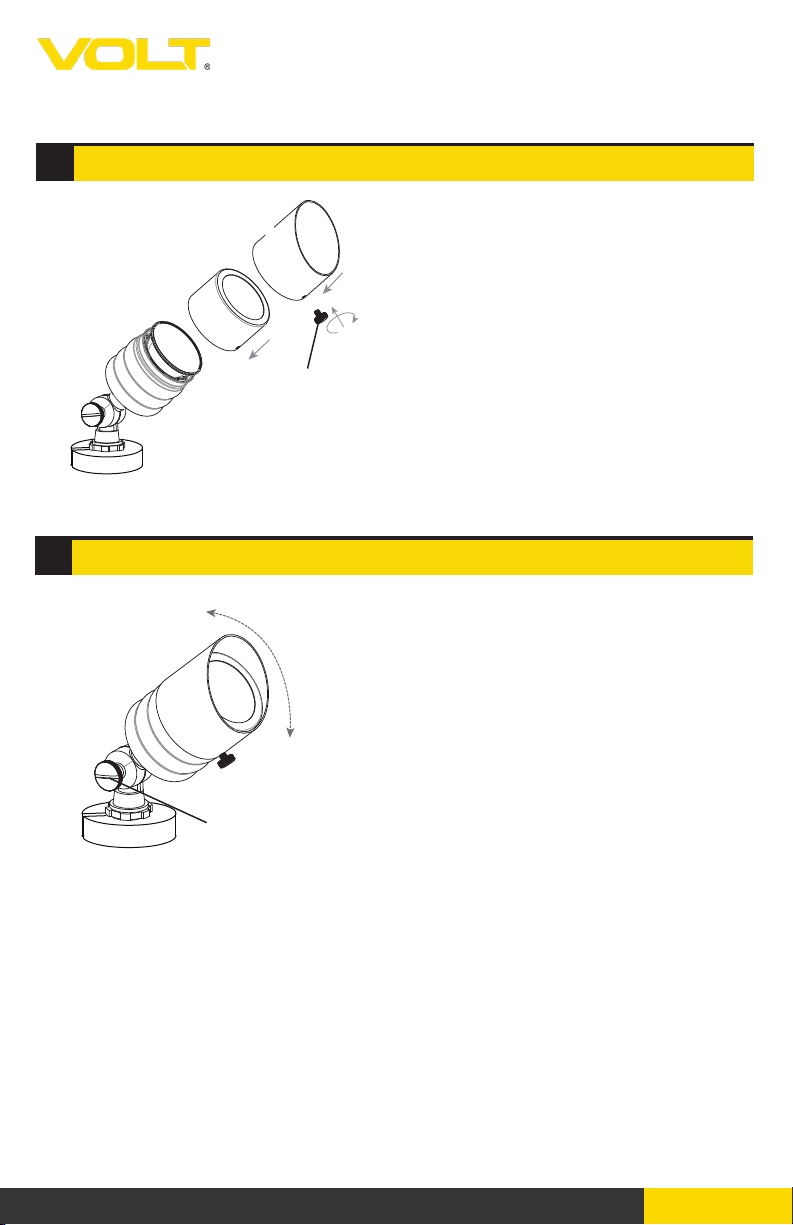

Install Lens

Place the lens and the glare

guard back onto the xture.

Align holes on both of them and

secure with previously removed

set screw. Hand tighten until

snug.

Glare

Guard

Lens

Fixture

Set

Screw

Adjust Luminaire Direction

Loosen the adjustment screw at

the joint and adjust the lumi-

naire to the desired direction.

Once the desired direction is

achieved, tighten the adjustment

screw.

ROTATE

Luminaire

Adjustment

Screw

VOLT® Fat Boy Mini Spotlight - VAL-2014-X-XXX

INSTALLATION INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

Install/Replace Lamp

Remove the glare guard and the lens to expose the MR16 lamp

and replace it with the correct wattage and type marked on the

xture label. Then, reinstall the lens and the glare guard.

IMPORTANT: MR16 lamp must be protected from moisture and

dust at all times. Always reinstall the lens and the glare guard

when removed.

Specications and product details subject to change without notice.

[email protected] • www.voltlighting.com

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
