INSTALLATION & MAINTENANCE GUIDE

www.voltlighting.com

–2–

Important Safety Instructions: Read Before Installation

This luminaire is intended for installation in accordance with local codes and

the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situation.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. Warning: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with wire connectors that is suitable for

outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminare, or tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm)

7. If additional lengths of low voltage cable is required, please contact www.

voltlighting.com or call 1-813-978-3700.

SAVE THESE INSTRUCTIONS

[email protected] • 813.978.3700

–3–

–2–

Package Contents

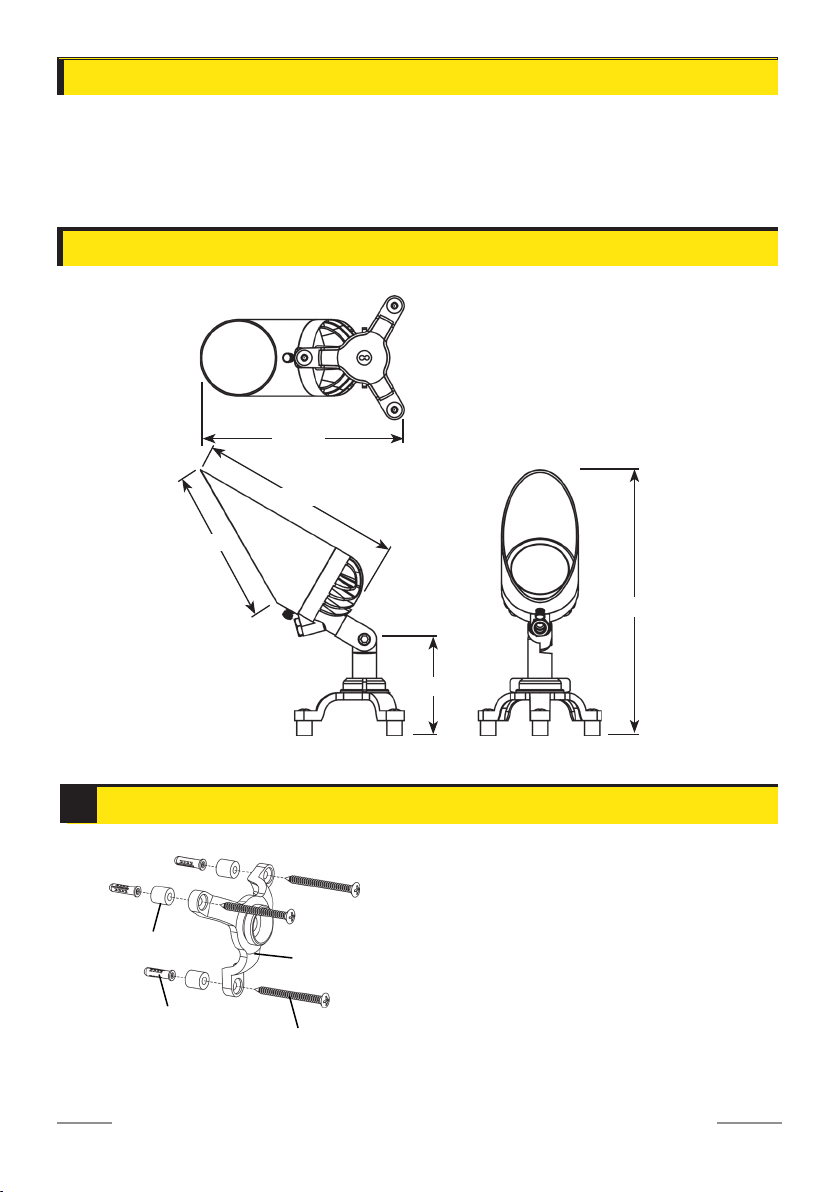

Product Dimensions

A. (1) Luminaire

B. (1) Base

C. (3) Spacer

Install Base

Determine the desired location for

mounting the luminaire. Pass self-tapping

screws through the holes on the base and

spacers. Thread the self-tapping screws

into the surface to secure the base.

NOTE: Wall anchors (not supplied) are

required for brick walls or concrete walls.

To determine locations for wall anchors

place the base onto your desired location

and mark points from holes on base.

6 1/2”

6 3/4”

8 3/4”

3 1/4”

5”

D. (3) Self-tapping Screw

E. (1) Optic*

Base

Self-tapping

Screw

Wall Anchor

(not supplied)

Spacer

* Ships with a 60° installed.

VOLT®Cast Brass Integrated LED Downlight

VAL-91xx Series

INSTALLATION & MAINTENANCE GUIDE

www.voltlighting.com

–4–

Install Luminaire to Base

Wire Connections

Place the luminaire on top of the base

and secure with lock collar. Tighten

until snug.

Luminaire

Pigtail

Base Lock Collar

Strip both of the leads from the luminaire pigtail. Using two wire

connectors (sold separately), connect the leads from the luminaire to

the main low voltage supply cable leads.

Pigtail

Main Low Voltage Supply Cable

Wire Connectors

[email protected] • 813.978.3700

–5–

–4–

Install/Replace Optic

Remove Glare Guard

Remove Outer Ring

Replace Optic

Unscrew the lock screw and remove

the glare guard from the luminaire.

Glare Guard

Lock Screw

Luminaire

Unscrew the lens and remove it from

the luminaire.

Lens

Luminaire

Remove the plug at the center of the

optic. Unscrew the screw and remove

the optic from the luminaire.

Install the new optic in the luminaire.

Reverse Steps 6 and Step 4 to reinstall

removed parts.

Optic Plug

Screw

Luminaire
