Vivo MOUNT-VW03G User manual

Silver Pneumatic Arm TV Wall Mount

Scan the QR code with your mobile device or follow the link



Instruction Manual

https://vivo-us.com/products/mount-vw03g

SKU: MOUNT-VW03G

  309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

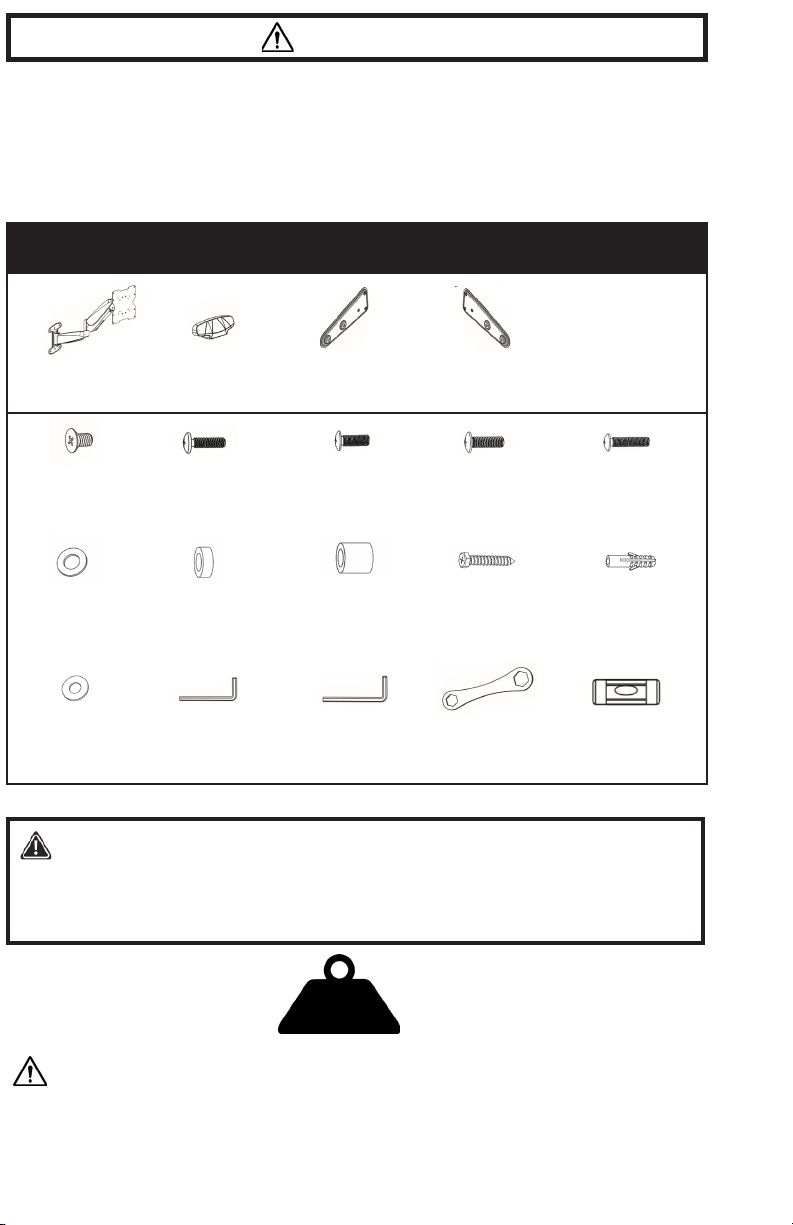

PACKAGE CONTENTS

17 - 66 lbs

(8 -30 kg)

(1949.96kg)

DO NOT EXCEED WEIGHT CAPACITY.



WARNING!

B(x2)

Cover

M-E x4)

D8 Washer

M-F (x8)

Small Spacer

M-A (x4)

M5x14mm Screw

M-B (x4)

M6x14mm Screw

M-C (x4)

M6x30mm Screw

M-D (x4)

M8 x30mm Screw

If you do not understand these directions, or if you have any doubts about the safety of the











NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

W-C (x5)

Washer

W-B (x5)

Anchor

CAUTION!







T-A (x1)

4mm Allen Wrench

T-B (x1)

6mm Allen Wrench

T-D (x1)

Bubble Level

M-G (x8)



A (x1)

Mount

S-A (x8)

M6x8mm Screws

D(x2)

VESA Adapter

E(x2)

VESA Adapter

T-C (x1)

Wrench

WARNING: CHOKING HAZARD



W-A (x5)



ASSEMBLY STEPS

STEP 1

Remove VESA plate from the Mount (A) (T-C) 



TOOLS NEEDED

Phillips

Screwdriver

Drill

STEP 2

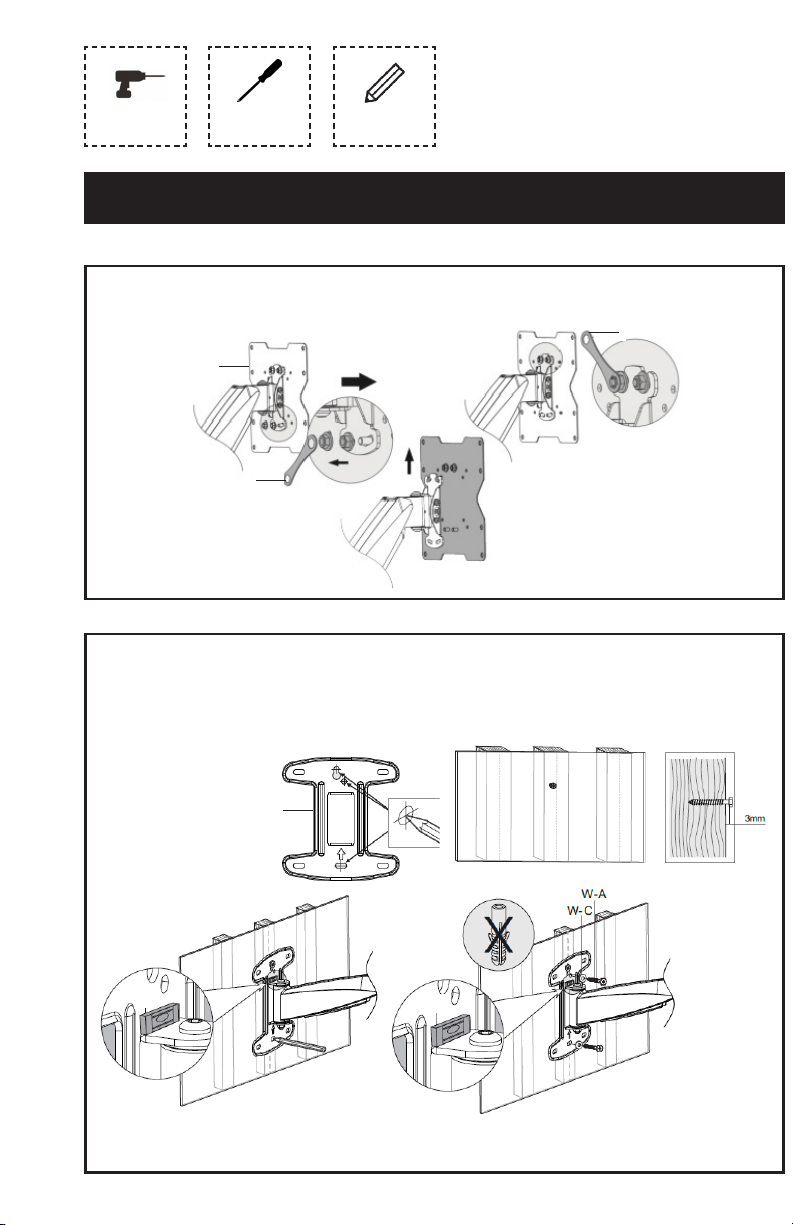

OPTION A: Wood Wall

Use Mount (A) (T-D) to ensure



(W-A)

(W-A) with Washers (W-C)



Pencil

NOTE: Do not use concrete anchors

(W-B) 

T-C

T-D

STEP 2 (Continued)

STEP 3

Attach Covers (B) to Mount (A).

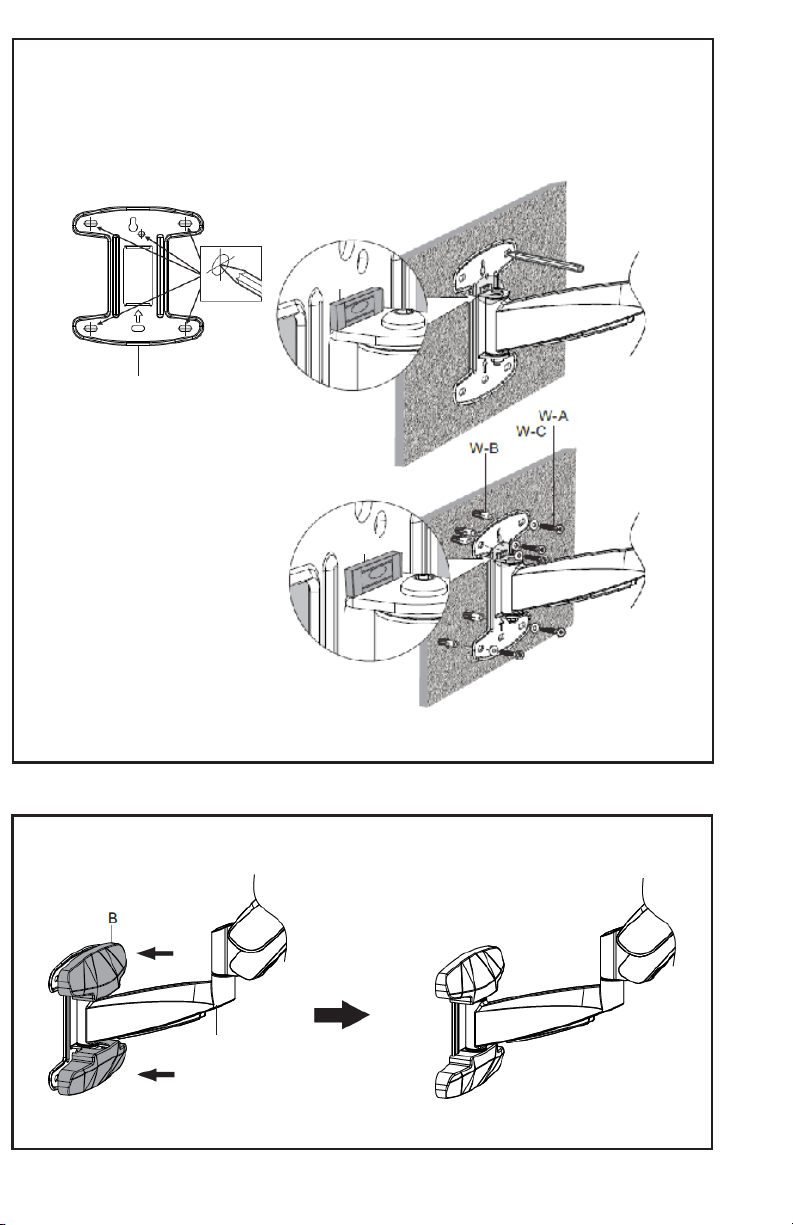

OPTION B: Concrete/Brick Wall

Use Mount (A) (T-D) 

(W-B) into holes,

(W-A)

(W-A) with Washers (W-C)



T-D

STEP 4

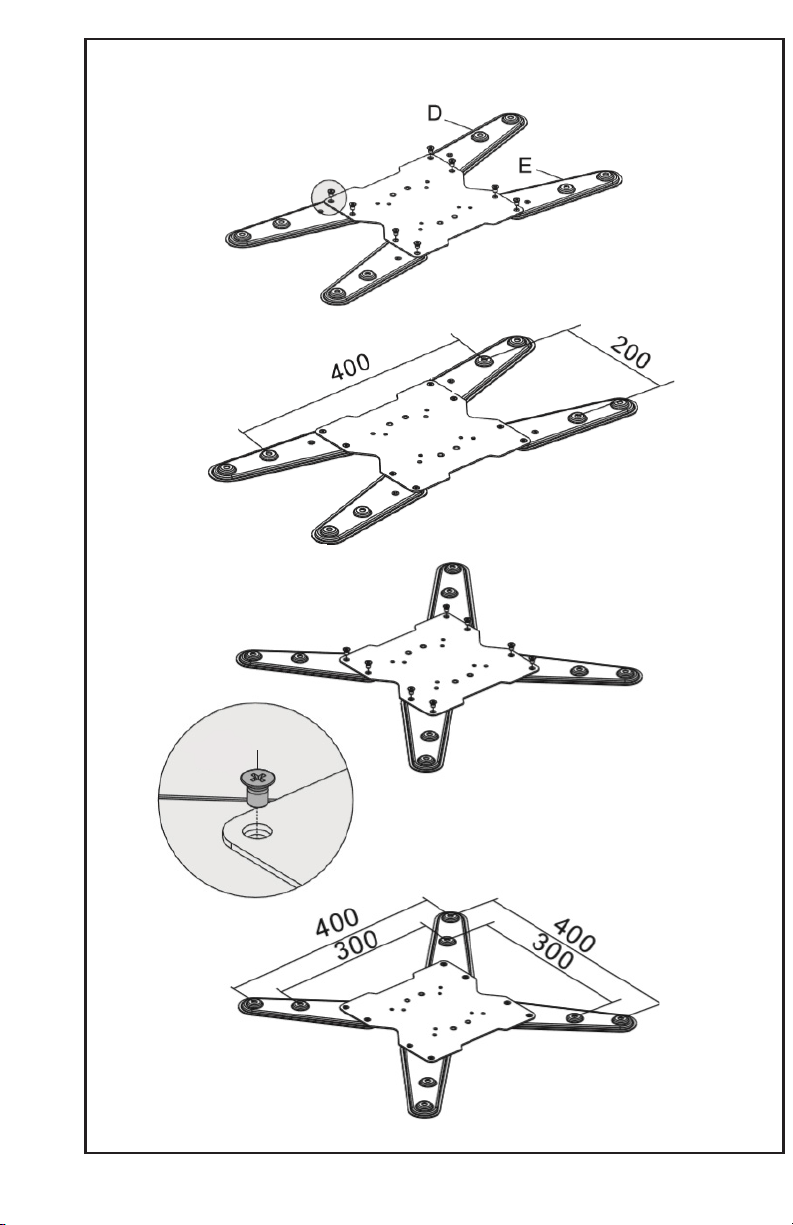

Secure VESA Adapters (D, E)  (S-A) in the appropriate

NOTE: VESA adapters are not required for



S-A

STEP 5

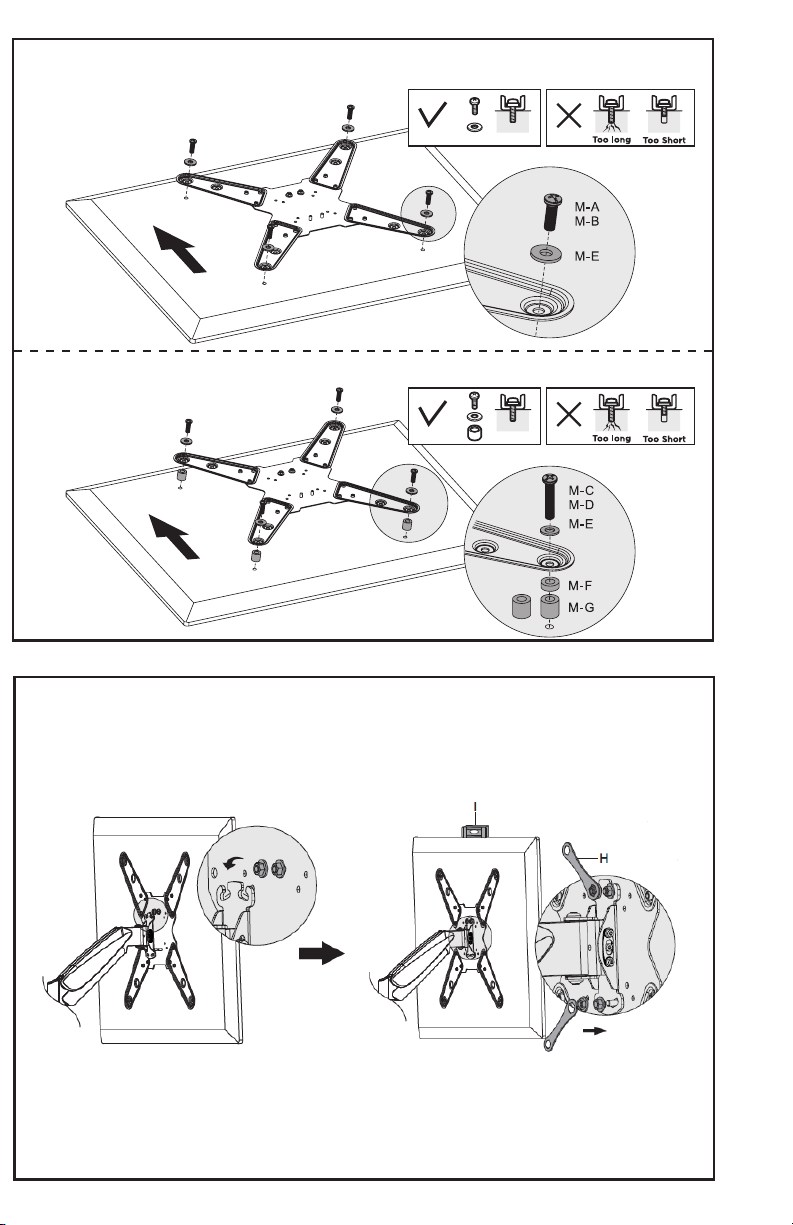

For curved monitors, use Screws (M-C, M-D) with M8 Washers (M-E) and Spacers (M-F, M-G)

(M-C, M-B) for your

monitor and D8 Washers (M-E)

STEP 6

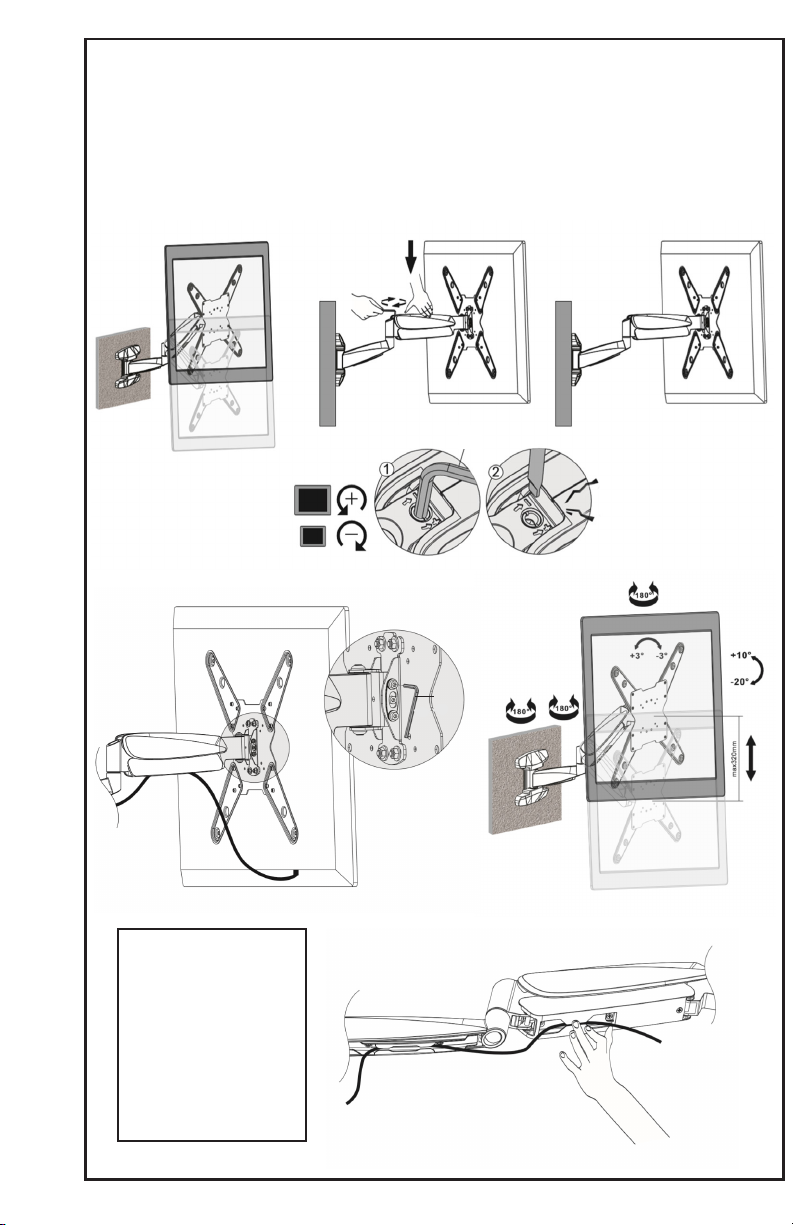

Attach VESA plate with monitor to Mount (A)(H) as



Adjust as Desired



Wrench (T-B)





(T-A)

NOTE:



T-B

T-A

WARNING:

Monitor must be installed



tension adjustments to the













FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: 

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected] (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

(within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

 (within oice hrs): 5M 4S

309-278-5303

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.
