Instruction Manual

Email: help vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371-5654

-' '*+, )&

-. /

2

/ 0

*  & &

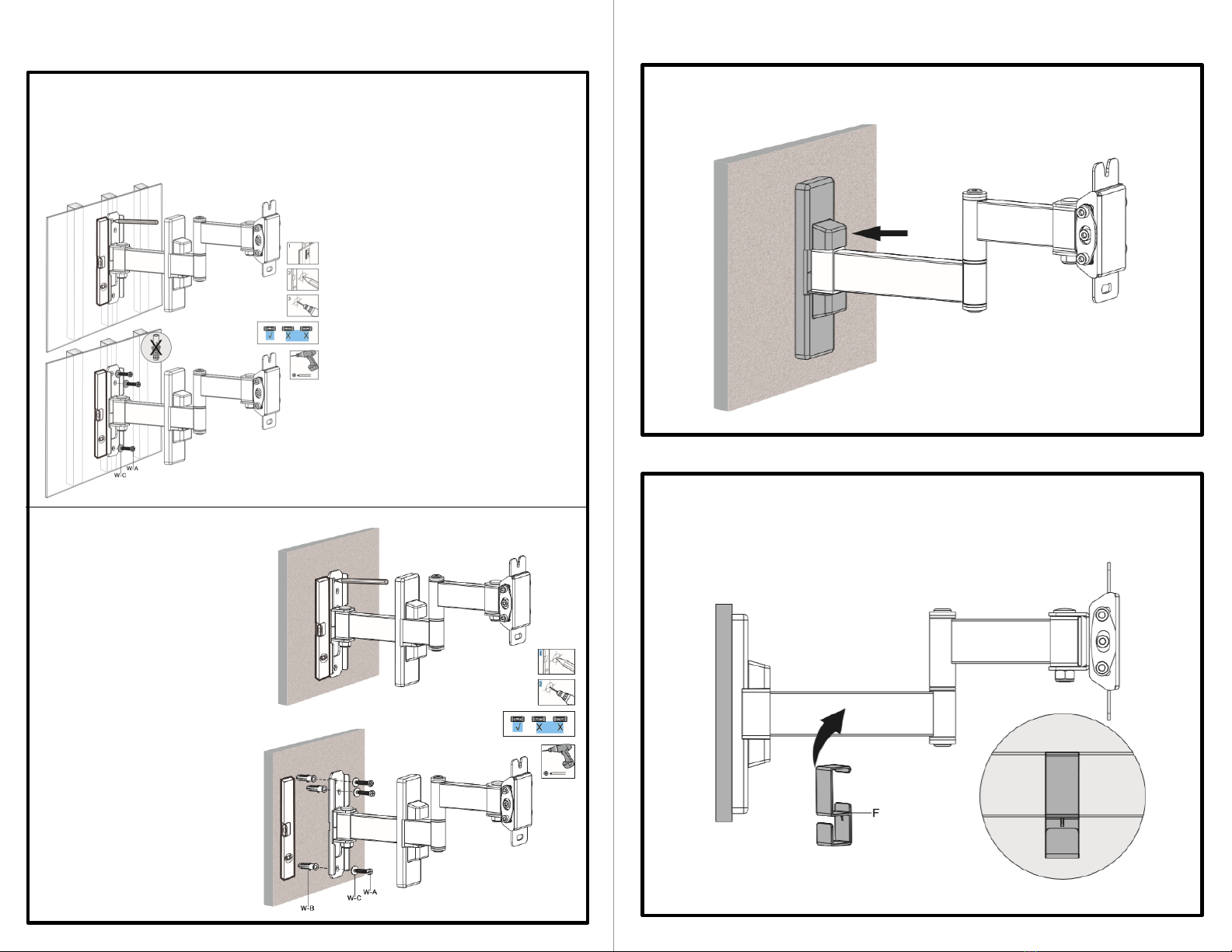

Use mount (A) to mark mounting holes on wall where stud is located.

Using a 3/16” bit, drill approximately 2.2” into marked locations.

Secure mount (A) to wall using bolts (W-A) and washers (W-C).

*   &

Use mount (A) to

mark mounting

holes on wall. Using

a 3/8” bit, drill

approximately 2.4”

into marked

locations. Secure

mount (A) to wall

using anchors (W-B)

bolts (W-A) and

washers (W-C).

/ 1

Attach plastic cover to mount (A).

/ 2

Attach cable management clip (F) as shown in diagram.

/ 3 45

If bolts are too long, spacers (M-G) may be required as shown in

diagram.

/ 

Attach TV to mount (A) using nuts (J).

/ 6

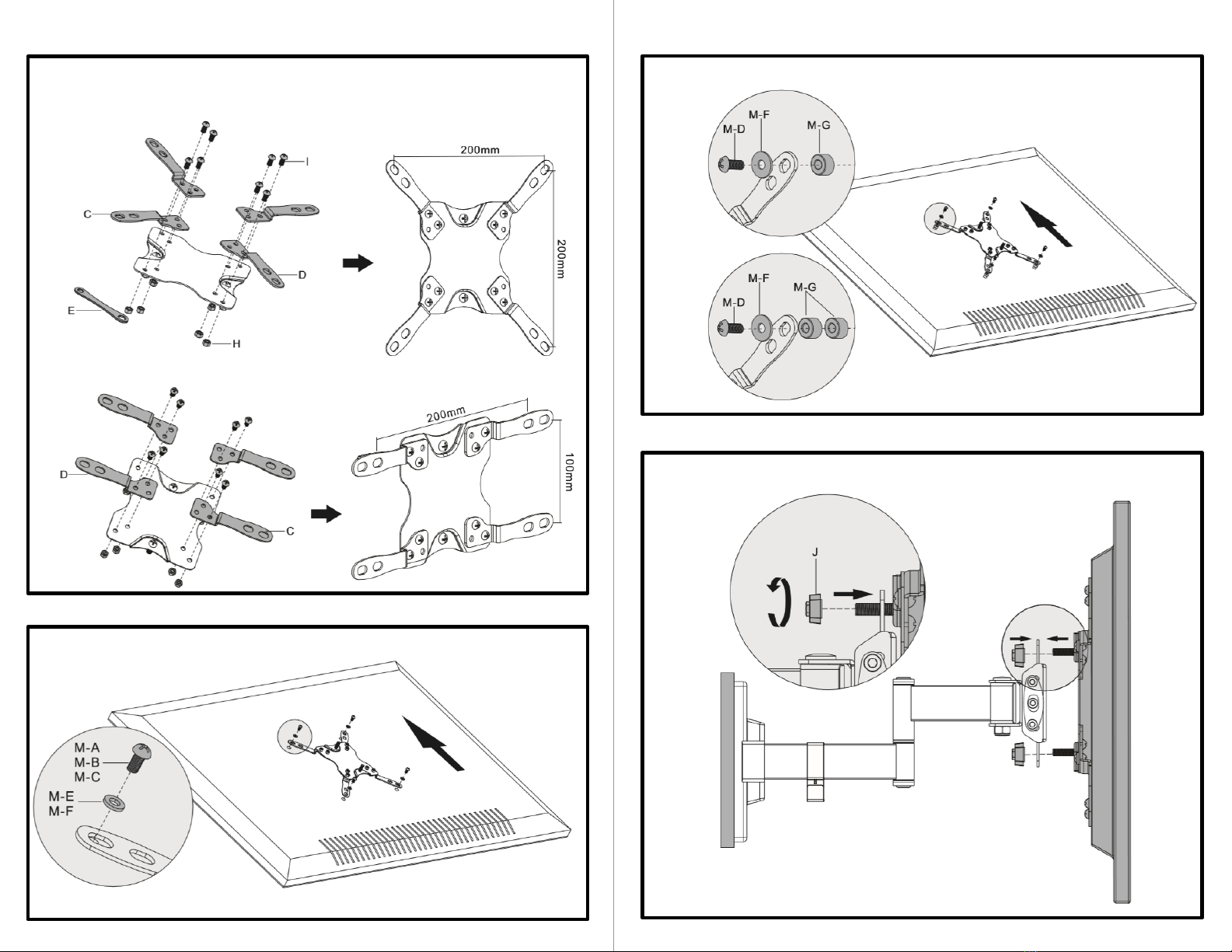

Mount VESA adapters (C) and (D) to VESA plate (B) using bolts (I) and

nuts (H) in the appropriate configuration to match your television’s

mounting holes.

/ 3

Mount VESA plate (B) to back of TV using bolts (M-A, M-B, M-C) and

washers (M-E, M-F).

3

/ 7

Adjust mount (A) using allen key (G) and wrench (E).

8  

If you do not understand these directions, or if you have any

doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no

missing or defective parts. Improper installation may cause

damage or serious injury. Do not use this product for any

purpose that is not explicitly specified in this manual. We

cannot be liable for damage or injury caused by improper

mounting, incorrect assembly, or inappropriate use.

Email: help vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371-5654

For more VIVO products, check out our

website at

www.vivo-us.com.

If any parts are received damaged or defective, please contact

us. We are happy to replace parts to ensure you have a fully

functioning product.

/9. &

  
