Vivo STAND-SIT1K User manual
Sit to Stand Single Monitor Wall Mount Workstation
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-sit1k
SKU: STAND-SIT1K
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
PACKAGE CONTENTS
WARNING!
A (x1)
Arm
B(x1)
Keyboard Tray
C (x1)
Wall Mount
S-F (x3)
M6x25mm Screw
S-C (x1)
M5x18mm Screw
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED
H(x3)
Cap
D(x1)
Swivel Arm
E(x1)
Mount Fitting
F (x1)
Keyboard Tray
Assembly
G(x1)
Arm
S-A (x4)
M4x12mm Screw
S-B (x2)
M6x15mm Screw
S-E (x1)
Washer
S-D (x4)
M5 Nut
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR
STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
S-G (x5)
Velcro Pad
S-H(x3)
Anchor
S-I (x3)
M6x50mm Screw
T-A (x1)
3mm Allen
Wrench
T-C (x1)
5mm Allen
Wrench
T-B (x1)
4mm Allen
Wrench
I(x2)
Wall Mount
Cap
S-J (x4)
M5x10mm Screw
3
ASSEMBLY STEPS
OPTION A: Wood Stud Mounting
Find the stud in wall where stand will be
attached. Use the Wall Mount (C) to mark
mounting location. Using a 3mm bit, drill
approximately 1.2” into stud. Using M6x50mm
Screws (S-I), secure the Wall Mount (C) in place.
Insert Wall Mount Caps (I) into either side of Wall
Mount (C).
TOOLS NEEDED
17.5lbs
(7.94kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
Phillips
Screwdriver
STEP 1
OPTION B: Concrete Wall Mounting
For concrete walls, use the Wall Mount (C) to
mark the mounting location. Using a 8mm bit,
drill approximately 2.6” into wall. Use Concrete
Anchors (S-H) and Using M6x50mm Screws (S-I),
secure the Wall Mount (C) in place. Insert Wall
Mount Caps (I) into either side of Wall Mount (C).
CAUTION!
DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO
MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.
S-I
I
C
S-I
I
S-H
C
4
STEP 2
Using M5x10mm Screws (S-J) and M6 Nuts (S-D), attach Keyboard Tray (B) to Keyboard Tray
Assembly (F) as shown.
STEP 3
Use the 4mm Allen Wrench (T-B) to attach M5x18mm Screw (S-C) to Keyboard Tray Assembly (F) as
shown (do not tighten).
F
S-C T-B
B
F
S-J
S-D
5
Attach Mount Fitting (E) to Arm (A) using M6x15mm Screws (S-B) and Washer (S-E). Use Washer
(S-E) with top screw inserted through slot. Tighten the M6x15mm Screws (S-B) using the 4mm
Allen Wrench (T-B).
Attach Keyboard Tray Assembly (F) to Arm (A). Use 4mm Allen Wrench (T-B) to tighten the screw on
the bracket.
STEP 4
E
A
S-B
S-E
T-B
F
A
T-B
6
STEP 5
Attach Arm (A) to Swivel Arm (D) using M6x25mm Screw (S-F) and Cap (H). Adjust using 3mm Allen
Wrench (T-A). Secure to Wall Mount (C) using the M6x25mm Screw (S-F) and Cap (H).
NOTE: Turn clockwise to reduce tension for lighter keyboards and counter-clockwise to increase
tension for heavier keyboards using 5mm Allen Wrench (T-C).
A
D
S-F
H
T-C
7

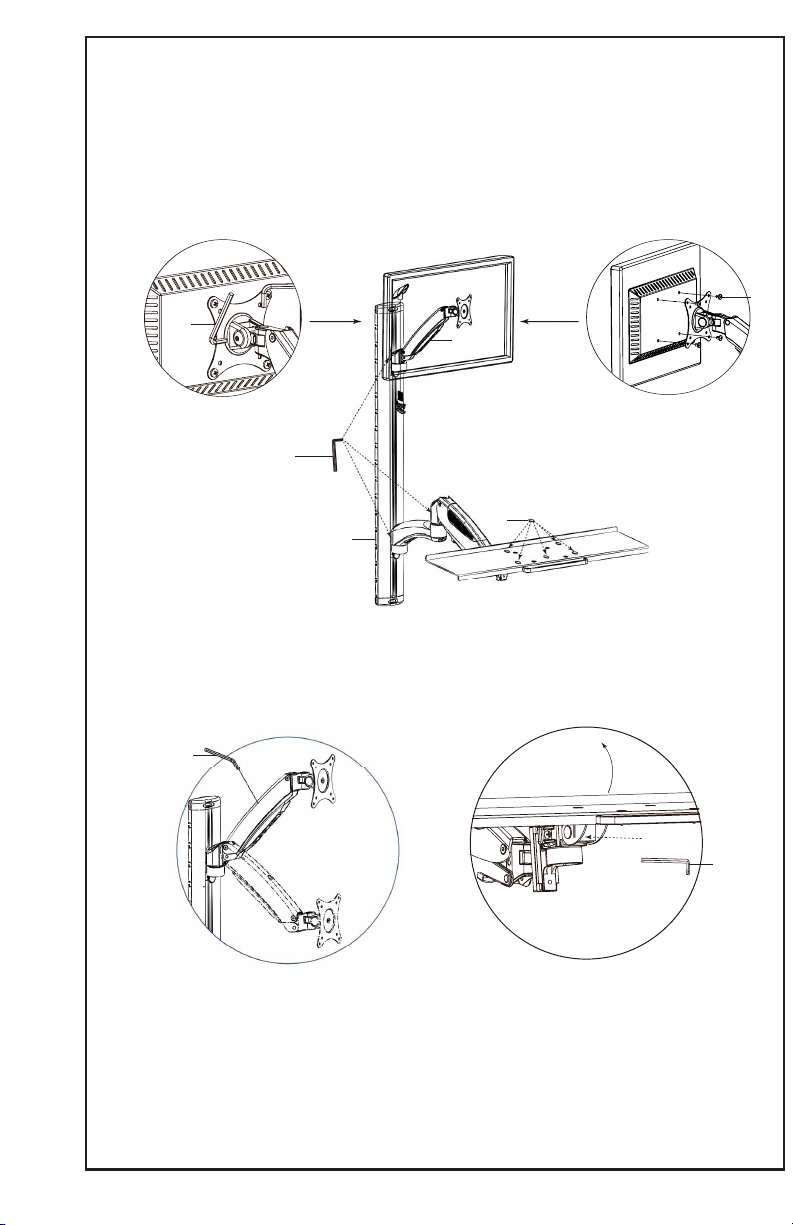

STEP 6
Mount monitor to Arm (G) using M4x12mm Screw (S-A). Attach Arm (G) to Wall Mount (C). Adjust to
proper tension. Mount monitor to Arm (G) using M4x12mm Screws (S-A). Attach Velcro Pads (S-G)
to keyboard tray. Use 5mm Allen Wrench (T-C) to adjust the tension of the Arm (G). Adjust keyboard
tray minimum tilt angle by turning the set screw under the joint counter-clockwise with the 3mm
Allen Wrench (T-A).
G
S-A
C
T-C
S-G
T-C
T-A
T-A
LAST UPDATED: 05/20/2022
REV1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
