Vivo MOUNT-VWRV1 User manual
Scan the QR code with your mobile device or follow the link
for helpful videos and specications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-vwrv1
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
RV TV Mount
SKU: MOUNT-VWRV1
2
INSTALLATION LOCATIONS
TV mount can be installed on the inside or outside of an RV or camper wood stud walls.
If mounting on an RV, locate the designated mounting location which should be pre-labled by
manufacturer as TV BACKER or TV MOUNTING LOCATIONS. Refer to RV maufacturer for more
information.

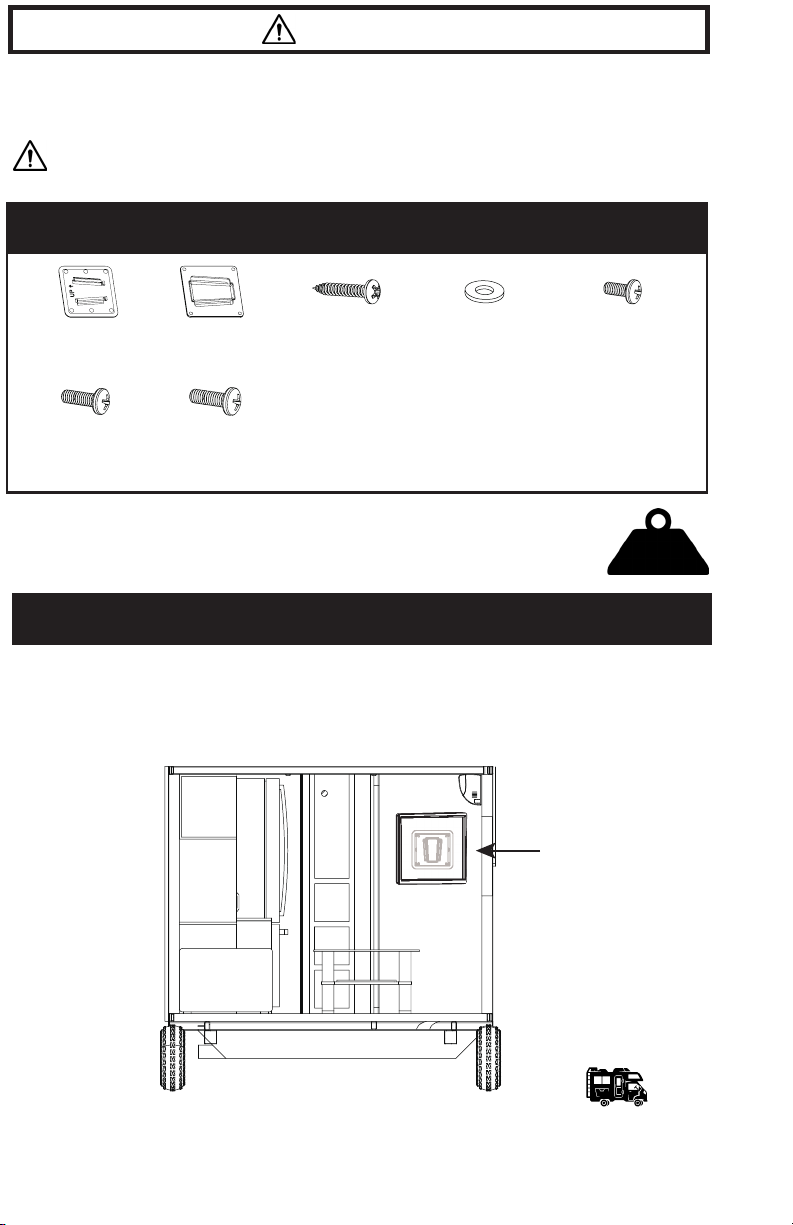

PACKAGE CONTENTS
30lbs
(13.6kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualied technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specied in this manual. Do
not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly
or inappropriate use.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
A (x1)
Wall Plate
B (x1)
VESA Plate
S-A (x6)
ST6x30mm
Stainless Steel
Screw
M-C (x4)
M5x12mm
Screw
M-D (x4)
M6x12mm
Screw
M-A (x4)
M4 Washer
M-B (x4)
M4x12mm Screw
DESIGNATED
MOUNTING
LOCATION
IMPORTANT NOTE: TV should be ALWAYS
be removed from wall and securely stowed
away while RV/camper is in motion.
3
ASSEMBLY STEPS
STEP 1
STEP 2
STEP 3
Hold Wall Plate (A) up to the desired mounting
location and mark hole locations using a
pencil. Use of a level is highly recommended. If
mounting in an RV make sure the trailer is level
before leveling the mount.
Drill marked holes 1.2” (30mm) deep using
a ⅛” (3mm) drill bit. Install Wall Plate (A)
using ST6x30mm Screws (S-A) and a Phillips
screwdriver.
Secure VESA Plate (B) to TV using appropriate Screws (M-B thru M-D), M4 Washers (M-A), and a
Phillips screwdriver. Ensure “UP” callout is in the correct orientation.
Because of low-prole of mount, any needed cables should be plugged in prior to mounting the TV.
Once cables are plugged in, slide TV with VESA Plate (B) onto Wall Plate (A).
3mm
30mm(1.2)
(0.12)
- OR -
A
S-A
BB
M-C
M-D
M-B
M-A
B
A
LAST UPDATED: 11/22/2022
REV1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
