Vivo MOUNT-VW03G User manual
T Wall Mount
Instruction Manual
Email: [email protected]
Live chat: www.vivo-us.com
Call: 1-800-371- 6 4
-Model MOUNT W03G
Tool Required
phillips screwdriver

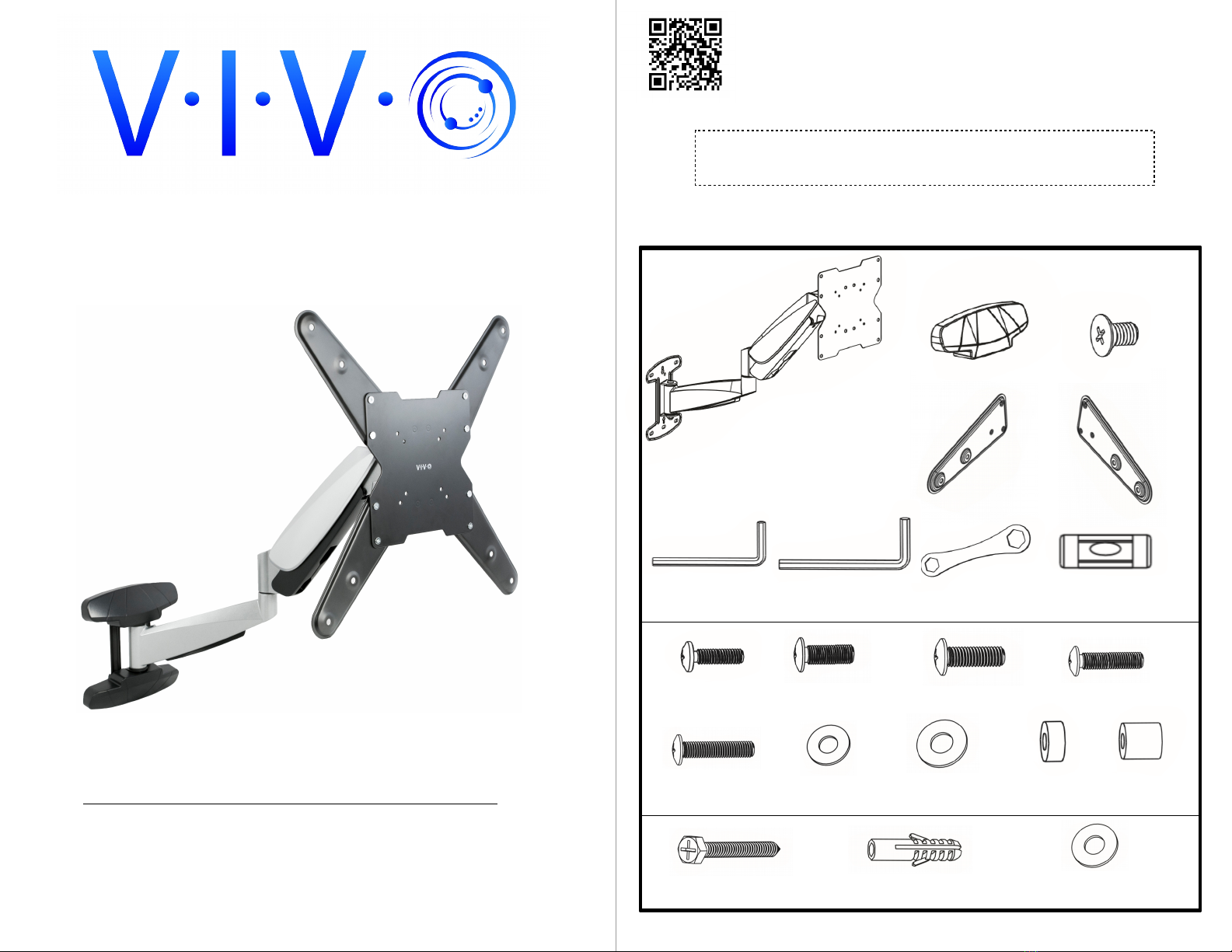

Package Content
1
Scan the QR code with your mobile device or follow the link
to helpful videos and specifications related to this product.
- -http vivo u.com product mount vw03g
A
(x1)
B
(x2)
C
(x8)
D
(x2)
E
(x2)
F
(x1)
G
(x1)
H
(x1)
I
(x1)
-W A
(x5)
-W B
(x5)
-W C
(x5)
-M A
M5x1 (x)
-M B
M6x1 (x)
-M C
M8x2 (x)
-M D
M6x3 (x)
-M E
D5 (x)
-M F
D8 (x)
-M G
(x8)
-M H
(x)
-M I
(x)
Aembl- Step

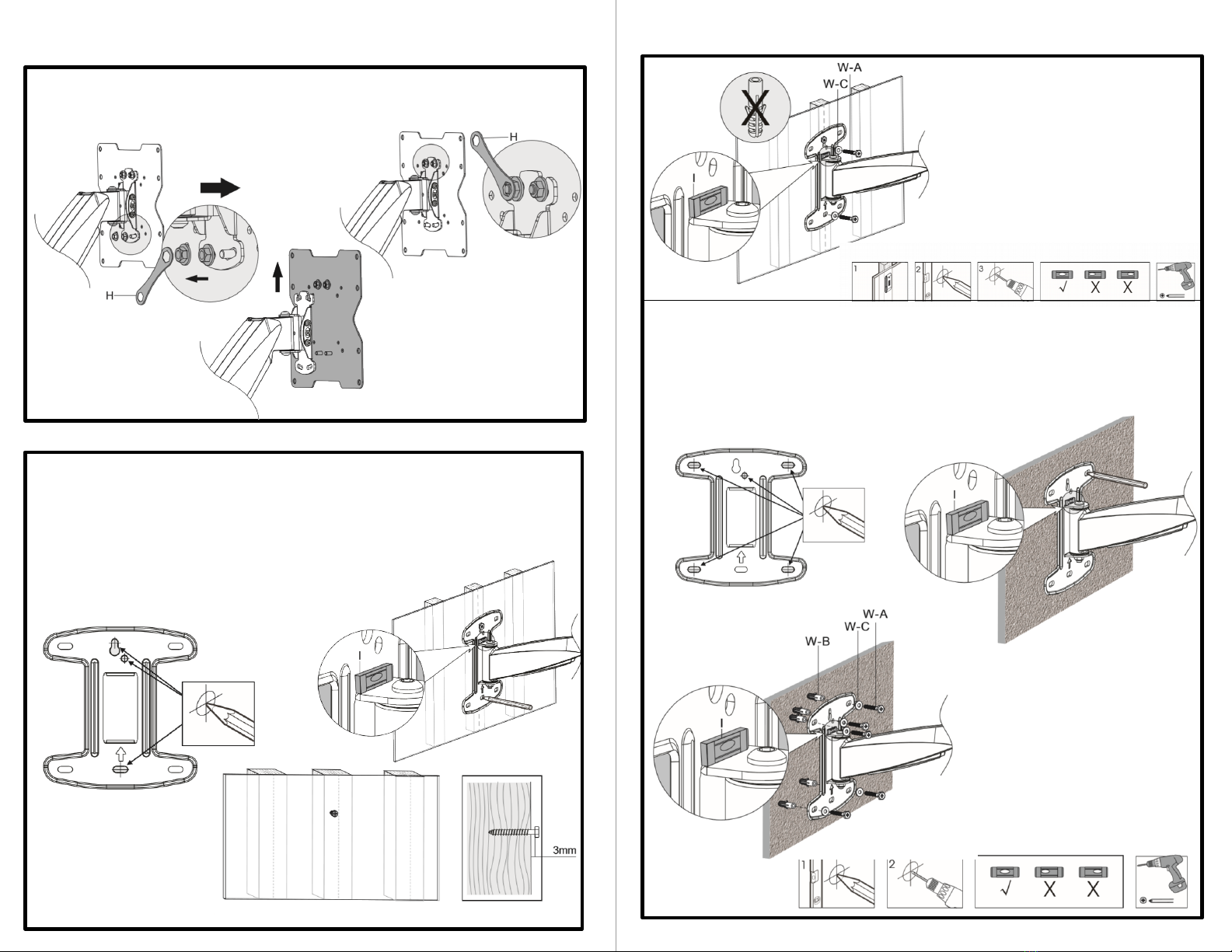

Step 1
Remove VESA plate from the mount (A) by removing two bottom nuts with
wrench (H) and loosening top two nuts. The plate will lift out from the slots
on the top of the bracket.
Step 2a
Use mount (A) to mark mounting holes on wall where stud is located. Using
a 3/16" drill bit, drill holes at least 2.2" deep into marked locations. Insert
bolt (W-A) into top hole, leaving 3mm of thread exposed. Hang top hole in
mount over the bolt, and secure using two more bolts (W-A) with washers
(W-C). Tighten all bolts.
Option A Wood Wall
2
Step 2 (Continued)
Option B Concrete Brick Wall
NOTE: Do not use concrete
anchors (W-B) with wood studs.
Use mount (A) to mark mounting holes on wall. Using a 3/8" drill bit, drill
holes at least 2.4" deep into marked locations. Press anchors (W-B) into
holes, then insert bolt (W-A) into top hole, leaving 3mm of thread exposed.
Hang top hole in mount over the bolt, and secure using four more bolts (W-
A) with washers (W-C). Tighten all bolts.
3

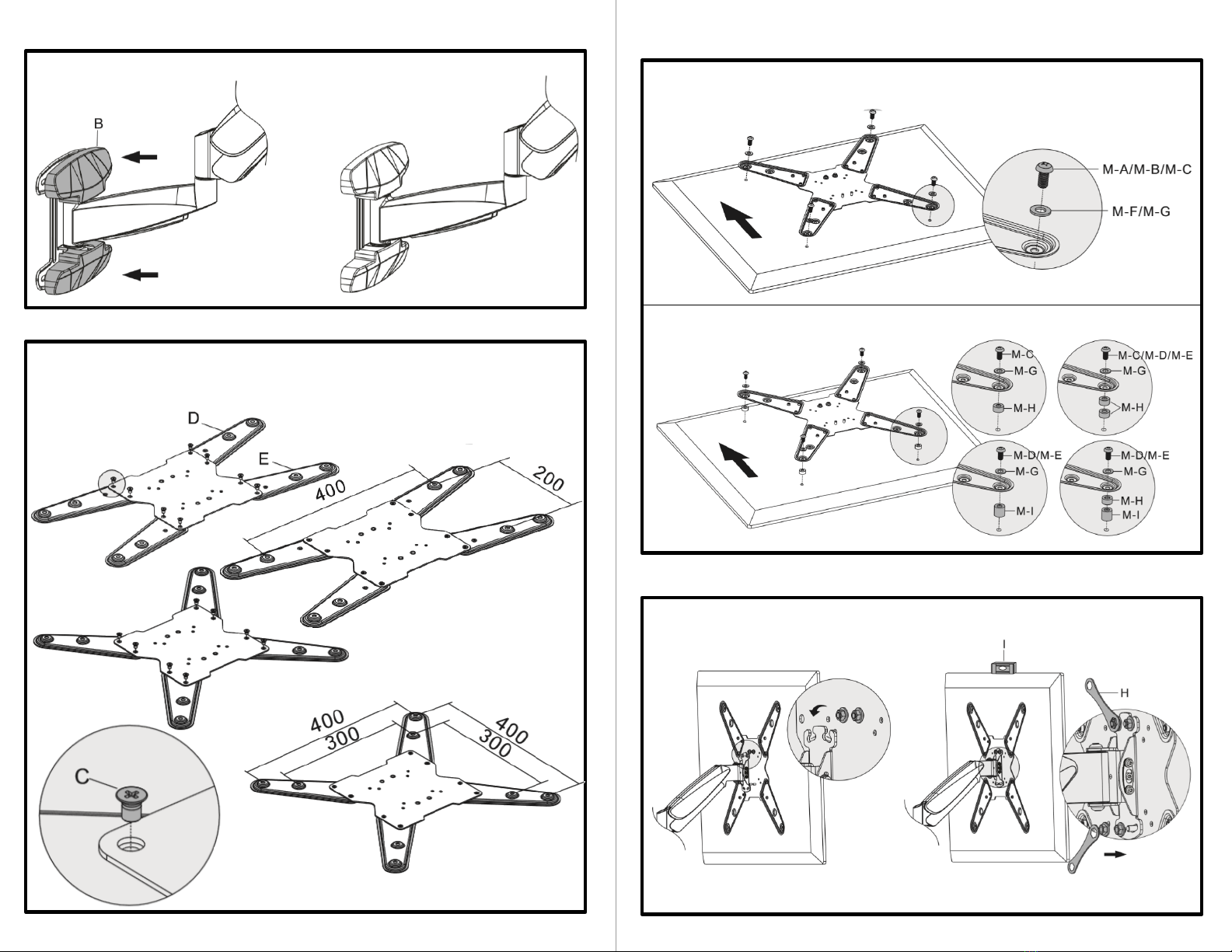

Step 5
Attach VESA plate assembly to back of monitor using bolts (M-C, M-D, M-E)
and washers (M-G).
If bolts are too long, spacers (M-H, M-I) may be required.
Step 6
Attach VESA plate to mount (A) using previously remove nuts and wrench (H)
as shown in diagram.
Step 3
Attach covers (B) to mount (A).
Secure VESA adapters (D, E) to VESA plate using bolts (C) in the appropriate
configuration to match your televisions mounting holes. NOTE: VESA
adapters are not required for VESA patterns 200mm and smaller.
Step 4
If you do not understand these directions, or if you have any
doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no
missing or defective parts. Improper installation may cause
damage or serious injury. Do not use this product for any
purpose that is not explicitly specified in this manual. We
cannot be liable for damage or injury caused by improper
mounting, incorrect assembly, or inappropriate use.
Email: help@vivo-us.com
Live chat: www.vivo-us.com
Call: 1-800-371- 6 4
For more VIVO products, check out our
website at
www.vivo-us.com.
If any parts are received damaged or defective, please contact
us. We are happy to replace parts to ensure you have a fully
functioning product.
Safet- Warning
Contact u at
Last updated: 04.24.18
Adjut a Deired
To adjust gas spring lift strength, turn the screw on the top of the center
joint using the large Allen key (G). Clockwise will reduce strength, and
counter-clockwise will increase. NOTE: If the mount makes a popping noise
when raising or lowering, tighten the socket set screw on top of the
adjustment screw. Adjust tilt joint using the smaller Allen key (F). Organize
cables using the built-in cable management clips.
4
