Vivo STAND-TV00M2 User manual

Table of contents

Popular TV Mount manuals by other brands

Ergotron

Ergotron Neo Flex Cantilever UHD user guide

StarTech.com

StarTech.com FPCEILBTB user manual

VonHaus

VonHaus 05/038 instruction manual

Techlink

Techlink ECHO TV manual

Sandstrom

Sandstrom SSTVMC12X instruction manual

Sony

Sony SU-WL700 Additional information for Using

ICW

ICW SCACC18 installation instructions

LG

LG WM-L640V owner's manual

Gembird

Gembird WM-65ST-01 user manual

ERARD

ERARD FiTUP XXL 035320 quick start guide

PEERLESS

PEERLESS PLCK-1 Installation and assembly

Kanto

Kanto RCF180 user manual

GEM

GEM GEM GP001 instructions

Gladiator Joe

Gladiator Joe GJ0A0053 quick start guide

Vivotek

Vivotek AM-105 installation guide

AmazonBasics

AmazonBasics B07QG3LMG4 manual

Secura

Secura QLF210 instruction manual

Marquant

Marquant 929-083 Operating instructions in original

Bolt-Down TV Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-tv00m2

SKU: STAND-TV00M2

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2

PACKAGE CONTENTS

TOOLS NEEDED

110lbs

(49.90g)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

M-F (x4)

D8 Washer

M-G (x8)

Spacer

M-E (x4)

D5 Washer

M-A (x4)

M4x14

M-B (x4)

M5x14

M-C (x4)

M6x14

M-D (x4)

M8x20

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

A (x1)

Pole

B(x1)

VESA Plate

C(x4)

M6 Nut

D(x4)

M6x25

E(x4)

M6x30

F (x1)

Wrench

G(x1)

Allen Wrench

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF TV OR TV STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

Drill

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

3

ASSEMBLY STEPS

STEP 1

STEP 2

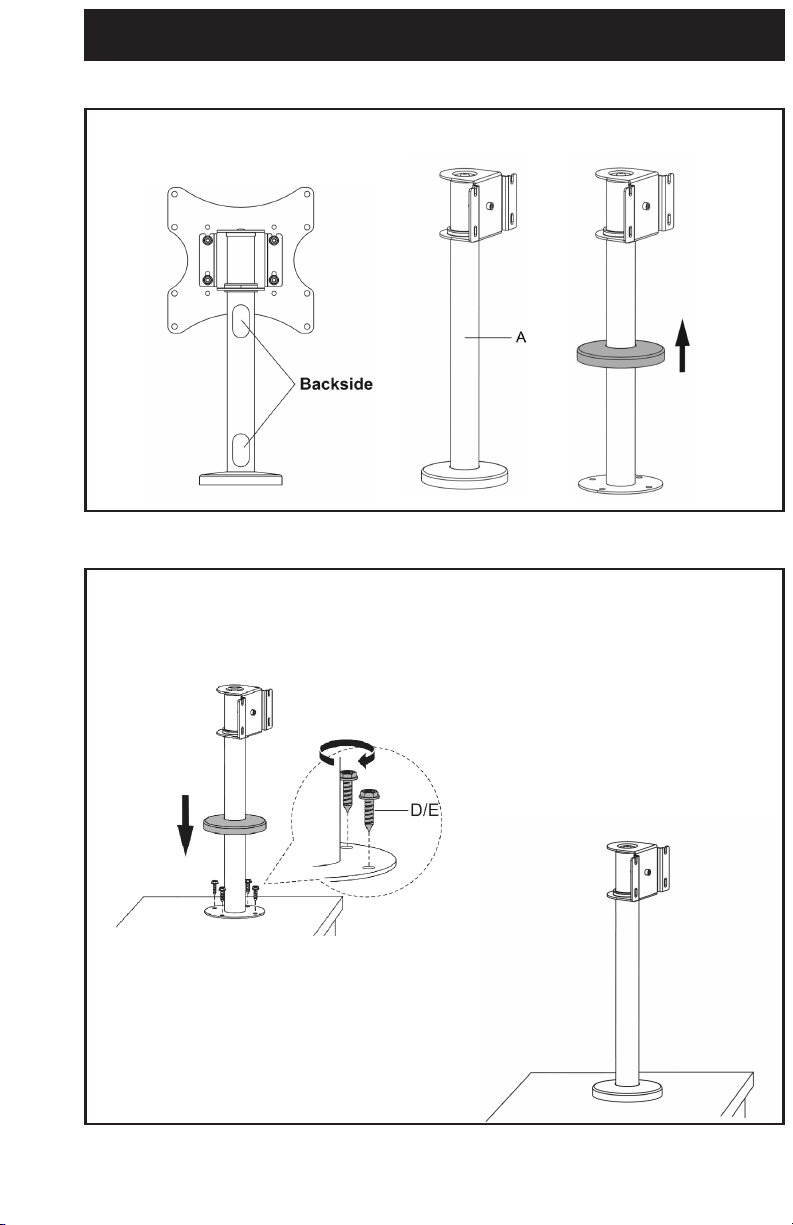

Position the pole on the desktop and drill small pilot holes. Secure M6x25 screws (D) or M6x30 screws

(E) and slide the base cover down.

Please note that the cable holes are positioned on the back side of the pole (A). Slide the base cover

up to reveal mounting holes on the base.

4

STEP 3

OPTION A: Flat Back Monitor

Position the VESA plate (B) on the back of the TV, making sure the long curved side is facing

up. Secure using screws (M-A, M-B, M-C or M-D) with washers (M-E or M-F).

OPTION B: Curved Back Monitor

Position the VESA plate (B) on the back of the TV, making sure the long curved side is facing

up. Secure using screws (M-D) with washers (M-F) and spacers (M-G).

5

STEP 4

Screw M6 nuts (C) onto top two screws of the VESA plate, leaving 4mm of thread exposed.

STEP 5

Hang TV with VESA plate (B) over slots in mounting head on pole.

6

STEP 6

Install M6 nuts (C) to lower two screws of the VESA plate, and tighten all nuts with the wrench (F).

7

STEP 7

Adjust swivel tension using the Allen wrench (G). Manage cables using cable holes in pole.

LAST UPDATED: 03/06/2020
