Vivo MOUNT-PLAY1W User manual

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

https://vivo-us.com/products/mount-play1w

SKU: MOUNT-PLAY1W

White Dual Wall Mount Designed for Sonos One, One

SL, Play 1

Instruction Manual

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2

ASSEMBLY STEPS

STEP 1

Separate the mount (A) into the wall

bracket and support.

PACKAGE CONTENTS

WARNING!

B (x2)

Support

Bracket

C(x2)

Cover

D(x4)

Anchor

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please call a qualified technician. Check carefully to make sure there are no missing or defective parts.

Improper installation may cause damage or serious injury. Do not use this product for any purpose that is

not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or

injury caused by improper mounting, incorrect assembly or inappropriate use.

TOOLS NEEDED

Phillips

Screwdriver

Drill

E(x4)

Wall Screw

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected], or call us at 309-278-5303.

6.6lbs

(3kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

F (x2)

Pan Head Bolt

G(x2)

Flat Head Bolt

H(x1)

Allen Wrench

A (x2)

Mount

3

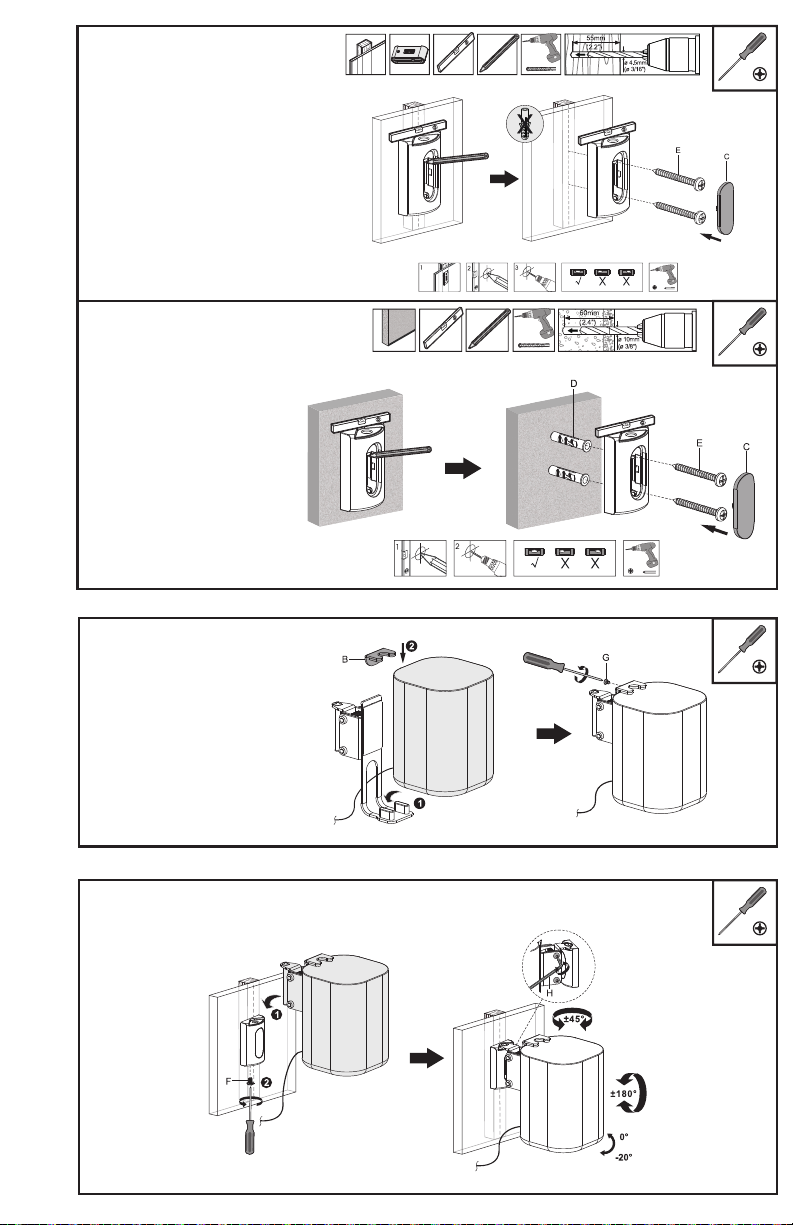

STEP 2

OPTION A: Wood Stud Installation

Use the wall bracket to mark

mounting holes on the wall where a

stud is located. Use of a stud finder

and level is recommended. Drill 2.2”

(55mm) deep holes using a 3/16”

(4.5mm) drill bit. Secure the wall

bracket using wall screws (E) and

press the cover (C) into place.

OPTION B:Brick/Concrete Wall

Installation

Use the wall bracket to mark

mounting holes on the wall

where a stud is located. Use of

a level is recommended. Drill

2.4” (60mm) deep holes using a

3/8” (10mm) drill bit and press

anchors (D) into the holes.

Secure the wall bracket using

wall screws (E) and press the

cover (C) into place.

STEP 3

STEP 4

Route the speaker power cable

through the slot in the support.

Place the speaker on the support,

then secure using the support

bracket (B) and flat head bolt (G)

with a Phillips screwdriver.

Place the support with speaker on the wall bracket, and secure using the pan head

bolt (F) and a Phillips screwdriver. Adjust tilt support using the Allen wrench (H).

LAST UPDATED: 03/05/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
