Vivo MOUNT-MINI1 User manual

VESA Mount Designed for the Mac Mini

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-mini1

SKU: MOUNT-MINI1

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or

inappropriate use.

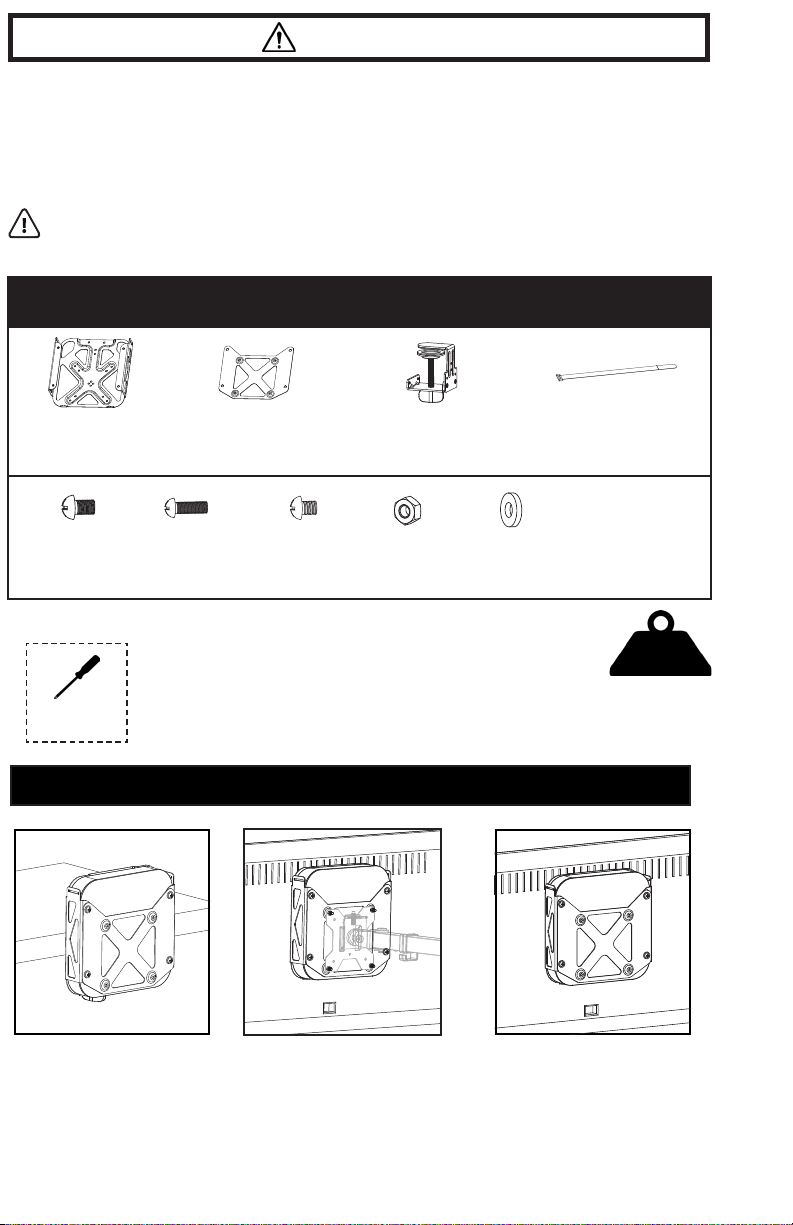

PACKAGE CONTENTS

WARNING!

A (x1)

Mounting Plate

TOOLS NEEDED

Phillips

Screwdriver

B (x1)

Locking Plate

D (x1)

Velcro Strap

C (x1)

Clamp

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

S-A (x4)

M4x6mm

Screw

S-B (x8)

M4x12mm

Screw

S-C (x4)

M5x6mm

Screw

S-D (x4)

M4 Nut

S-E (x4)

M5 Washer

ASSEMBLY OPTIONS:

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

4.4lbs

2kg

Desk Clamp

pg. 3-4

Allows the Mac Mini Mount

to clamp to a desktop

surface with a thickness of

10mm to 50mm.

VESA Plate

Monitor Arm

pg. 5-6

Mount installs between

monitor and monitor

mount arm.

VESA Plate

Freestanding Monitor

pg. 7

Utilizes VESA holes in

freestanding monitor to hold

Mac Mini Mount.

ASSEMBLY OPTION A: Desk Clamp

STEP 2

STEP 1

STEP 3

For Desktops with a 10mm to 40mm Thickness:

Dissemble Clamp (C) using a Phillips screwdriver. Turn Lower Clamp (C1) upside and reassemble

Clamp (C) as shown below.

For Desktops with a 15mm to 50mm Thickness:

Proceed to Step 2.

Connect Mounting Plate (A) to back side of Clamp (C) at desired height using M4x6mm Screws (S-A)

and a Phillips screwdriver.

Secure Locking Plate (B) to back side of Mounting Plate (A) using M5x6mm Screws (S-C),

M5 Washer (S-E), and a Phillips screwdriver.

S-C

S-E

S-A

STEP 4

STEP 5

STEP 4

Place assembly onto desktop and tighten hand bolt to secure.

Place Mac Mini into assembly and feed Velcro Strap (D) through loops on Mounting Plate (A) to

secure, as shown below.

ASSEMBLY OPTION B: VESA Plate - Monitor Arm

STEP 1

STEP 2

STEP 3

Secure Mounting Plate (A) to VESA holes on the back of the monitor using M4x12mm Screws (S-B)

and a Phillips screwdriver.

Attach Locking Plate (B) to the front side of

the VESA Plate from your monitor mount using

M4x12mm Screws (S-B), M4 Nuts (S-D) and a

Phillips screwdriver.

S-B

S-D

Secure Locking Plate (B) to

Mounting Plate (A) using M5x6mm

Screws (S-C), M5 Washers (S-E),

and a Phillips screwdriver.

S-C

S-E

S-B

STEP 4

STEP 5

Place Mac Mini into assembly and feed Velcro Strap (D) through loops on Mounting Plate (A)

to secure, as shown below.

Secure VESA plate to monitor mount using manufacturer guidelines.

ASSEMBLY OPTION C: VESA Plate - Freestanding Monitor

STEP 1

STEP 2

Secure Locking Plate (B) to Mounting

Plate (A) using M5x6mm Screws (S-C),

M5 Washers (S-E), and a Phillips

screwdriver.

S-C

S-E B

Place Mac Mini into assembly and feed Velcro Strap (D) through loops on Mounting Plate (A)

to secure.

S-B

Secure Mounting Plate (A) to VESA holes on the back of the monitor using M4x12mm Screws (S-B)

and a Phillips screwdriver.

LAST UPDATED: 06/30/2023

REV1.1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
