Vivo MOUNT-KB05EL User manual

Black Clamp-on Keyboard Tray with RGB Lights

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-kb05el

SKU: MOUNT-KB05EL

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

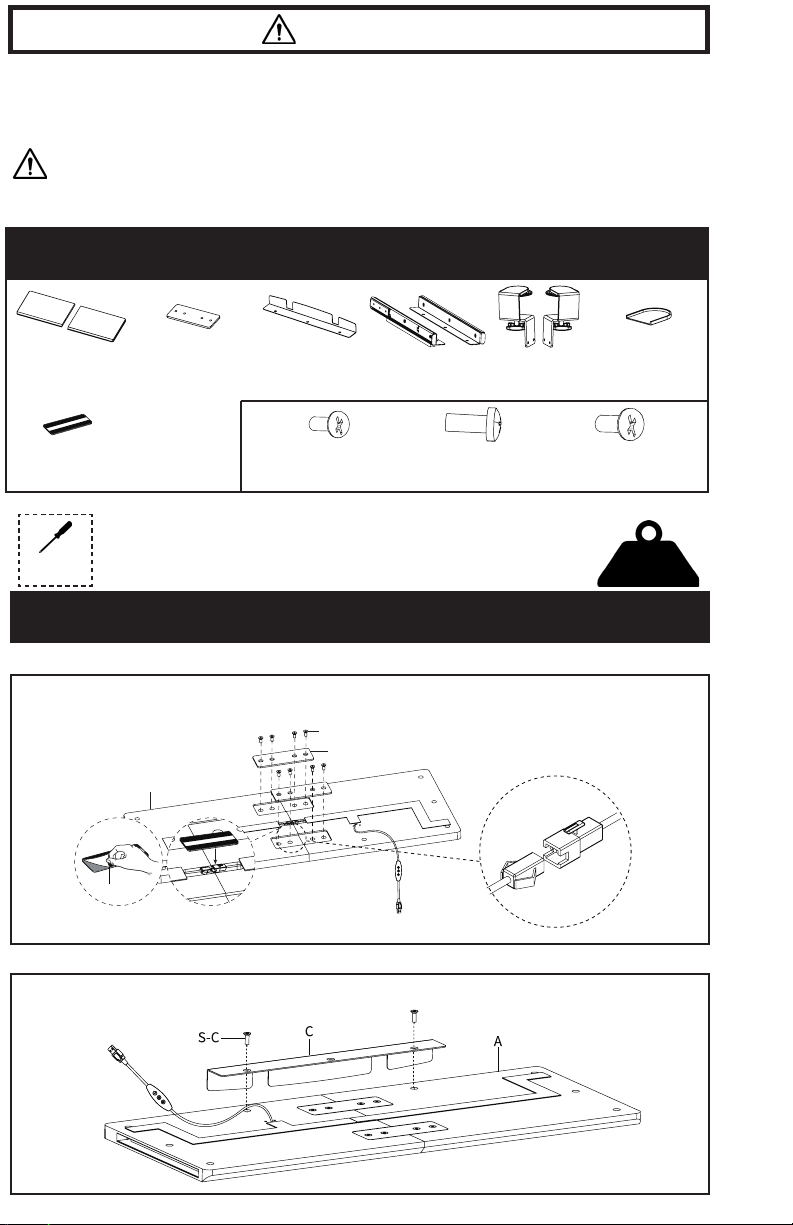

ASSEMBLY STEPS

STEP 1

Assemble Keyboard Tray (A) using Connecting Plates (B) and M5x12mm Flat Head Screws (S-C).

Tighten with a Phillips screwdriver. Connect cables in Keyboard Tray (A) and then apply Tape (G) over

exposed area.

PACKAGE CONTENTS

WARNING!

TOOLS NEEDED

Phillips

Screwdriver

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do

not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly

or inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

A(x1)

Keyboard Tray

G(x1)

Tape

B(x2)

Connecting Plate

E (x1)

Clamps

C(x1)

Keyboard Stop

D(x1)

Slider Brackets

F(x2)

Pad

S-A (x6)

M4x7mm Flat Head Screw

S-B (x8)

M5x12mm Screw

S-C (x12)

M5x12mm Flat Head Screw

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

11lbs

(5kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

STEP 2

Attach Keyboard Stop (C) to the back of Keyboard Tray (A) using M5x12mm Flat Head Screws (S-C) and

a Phillips screwdriver.

S-C

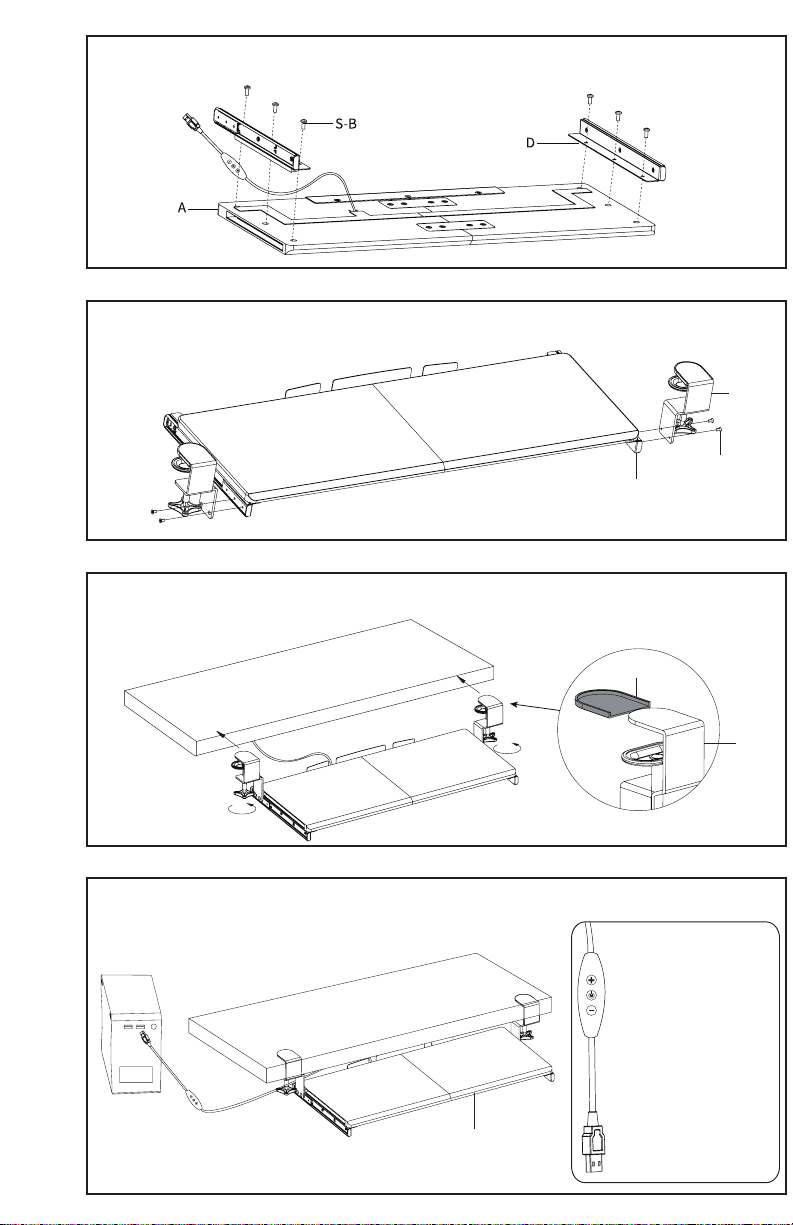

STEP 3

Assemble Slider Brackets (D) to Keyboard Tray (A) using M5x12mm Screws (S-B), and tighten with a

Phillips screwdriver. Slider Brackets (D) should protrude from the back of the keyboard tray assembly.

STEP 4

Assemble Clamps (E) to the Slider Brackets (D) using M4x7mm Flat Head Screws (S-A). Tighten with a

Phillips screwdriver.

STEP 5

STEP 6

Place Pads (F) on the underside of each Clamp (E). Place assembled keyboard mount on the edge of

the desktop and tighten Clamps (E).

S-A

Desktop

“+”

“M”

“-”

Increase Brightness

Quick press: Cycle

through color modes

Hold for 3 seconds:

Powers o lights

Decrease Brightness

Plug Keyboard Tray (A) into a 5V USB power supply. Follow the diagram below for operation.

LAST UPDATED: 11/30/2022

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
