Vivo MOUNT-RAIL02W User manual

White Clamp and Rail Set for Custom Wood Tray

- 2 Pack

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-rail02w

SKU: MOUNT-RAIL02W

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

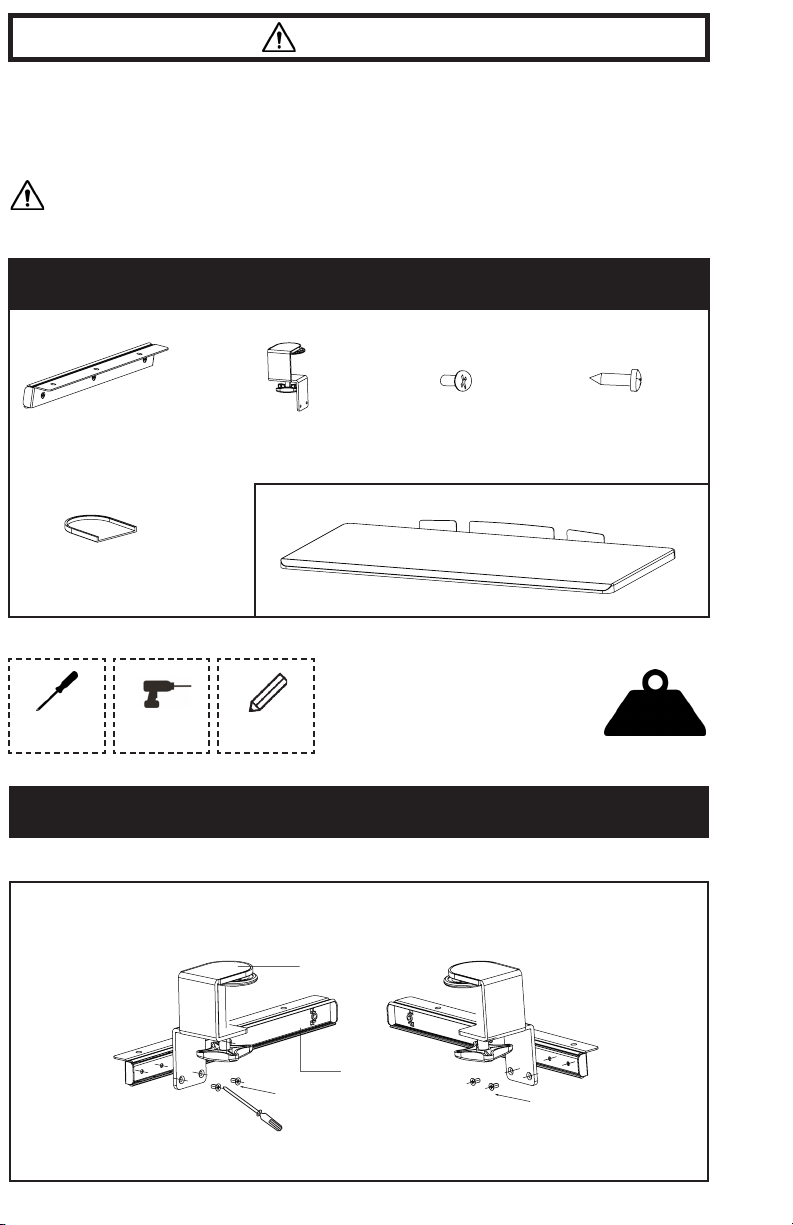

ASSEMBLY STEPS

STEP 1

Assemble the slider brackets (A) to the clamps (B) using M4x7 screws (C). Tighten with a

Phillips screwdriver.

PACKAGE CONTENTS

WARNING!

Phillips

Screwdriver

A (x2)

Slider Track

B(x2)

Clamp

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please call a qualified technician. Check carefully to make sure there are no missing or defective parts.

Improper installation may cause damage or serious injury. Do not use this product for any purpose that is

not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or

injury caused by improper mounting, incorrect assembly or inappropriate use.

Drill

11lbs

(5kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

C(x6)

M4x7

D(x8)

ST5x12

E (x2)

Clamp Pad

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

Pencil

NOT INCLUDED

TOOLS NEEDED

LeRight

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED.

NOTE: Rails (A) and Clamps (B) should be paired with the corresponding "L" and "R" stickers.

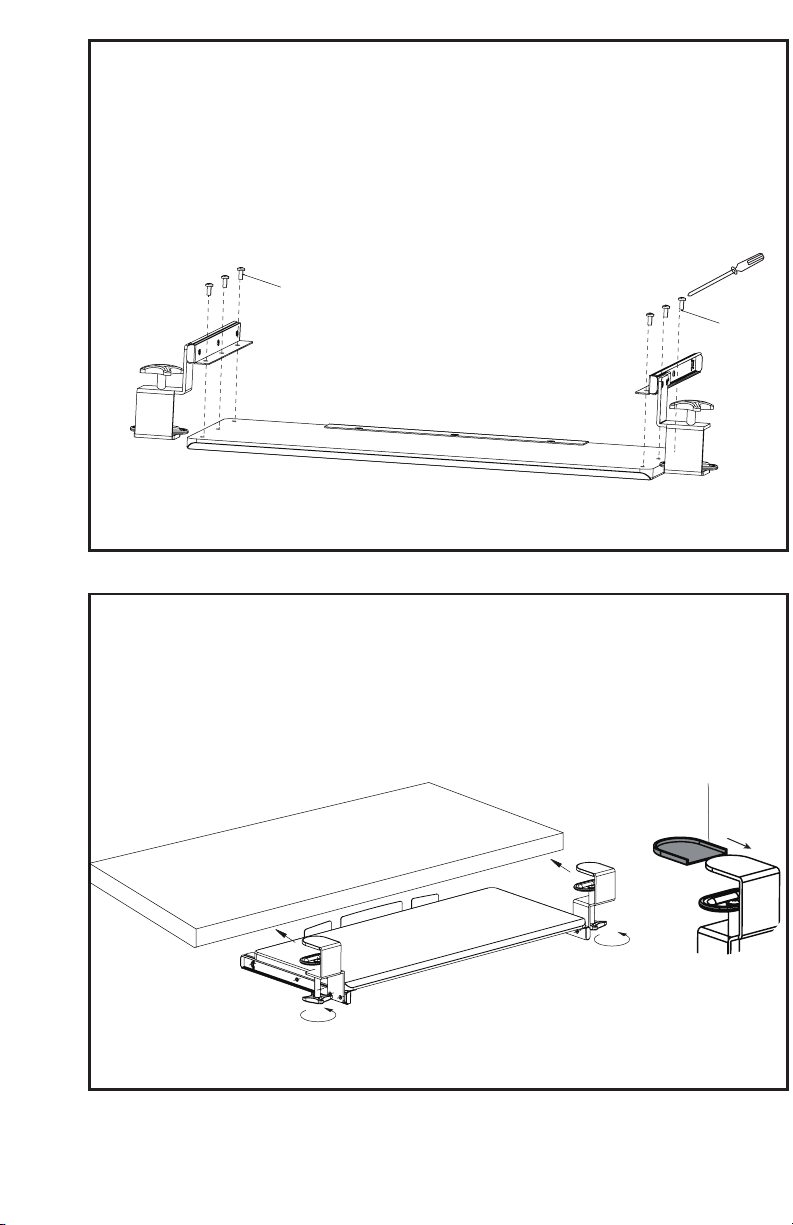

STEP 2

Place the slider rails (A) on the underside of the keyboard tray, making sure the front of the rails are

flush with the front edge of the keyboard tray, and mark drilling locations. Drill 3/8” (10mm) deep

holes using a 1/8” (3mm) drill bit, then mount the slider rails to the keyboard tray using ST5x12

screws (D). Tighten with a Phillips screwdriver.

NOTE: We recommend using a tray with a depth of no less than 10.5”, and a thickness of at least 5/8”.

STEP 3

Place the clamp pads (E) on the underside of each clamp (B) as shown. Place assembled keyboard

mount on edge of desk and tighten clamps.

NOTE: To ensure keyboard tray is level, do not over-tighten clamps.

Slide keyboard tray forward/back to desired position.

Le

Right

NOTE: Rails (A) and Clamps (B) should be paired with the corresponding "L" and "R" stickers.

LAST UPDATED: 01/18/2022

REV1.1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
