Swisher POL 14560 User manual

60” UNIVERSAL

Front/Rear Mount

TRAILMOWER

OWNER’S

MANUAL

P.O. BOX 6 , WARRENSBURG, MISSOURI 64093 PHONE 660- 4 -8183 FAX 660- 4 -8650

MODEL NO.

POL 14560

Manufacturing quality lawn care equipment since 1945

Assembly

Operation

Service and Adjustment

Repair Parts

Made In The

USA

Rev. 04-296

Read and follow all

Safety Precautions and

Instructions before

operating this

equipment.

IMPORTANT

ONPOL14560

LIMITED WARRANTY

The manufacturer’s warranty to the original consumer purchaser is: This product

is free from defects in materials and workmanship for a period of one (1) year

from the date of purchase by the original consumer purchaser. We will repair or

replace, at our discretion, parts found to be defecti e due to materials or

workmanship. This warranty is subject to the following limitations and

exclusions:

1) Engine Warranty All engines utilized on our products ha e a separate

warranty extended to them by the indi idual engine

manufacturer. Any engine ser ice difficulty is the

responsibility of the engine manufacturer and in no

way is Swisher Mower Co., Inc. or its agents

responsible for the engine warranty. The Briggs &

Stratton Engine Ser ice Hot-Line is 1-800-233-

3723. The Tecumseh Engine Ser ice Hot-Line is 1-

800-558-5402.

2) Commercial Use The warranty period for this product used for

commercial or rental is limited to ninety (90) days

from the date of original purchase.

3) Limitations This warranty applies only to products which ha e

been properly assembled, adjusted, and operated in

accordance with the instructions contained within

this manual. This warranty does not apply to any

product of Swisher Mower Co., Inc., that has been

subject to alteration, misuse, abuse, improper

assembly or installation, shipping damage, or to

normal wear of the product.

4) Exclusions Excluded from this warranty are normal wear,

normal adjustments, and normal maintenance.

In the e ent you ha e a claim under this warranty, you must return the product to

an authorized ser ice dealer. All transportation charges, damage, or loss incurred

during transportation of parts submitted for replacement or repair under this

warranty shall be borne by the purchaser. Should you ha e any questions

concerning this warranty, please contact us toll-free at 1-800-222-8183. The

model number, serial number, date of purchase, and the name of the authorized

Swisher dealer from whom you purchased the mower will be needed before any

warranty claim can be processed.

SAFETY PRECAUTIONS

• Read the manual. Learn to operate this machine safely.

• Always disconnect the spark plug wire and place the wire where it cannot contact

the spark plug, to pre ent accidental starting the engine when setting up,

transporting, adjusting or making repairs.

• Keep all shields and guards in place.

• Understand the speed, steering and stability of this machine. Know the positions

and operations of all controls before you operate this machine. Check all of the

controls in a safe area before starting to work with this machine.

• Allow only responsible adults who are familiar with these instructions to operate

this machine. Ne er allow children to operate this machine.

• Clear the area of objects such as rocks, toys, wire, etc. that can be picked up and

thrown by the blade.

• Be sure the area is clear of other people before mowing. Be aware of the mower

discharge direction and do not point at anyone. Stop the machine if anyone enters

the mowing area. Children are often attracted to the machine and the mowing

acti ity. Never assume that children will remain where you last saw them.

Keep children under the watchful care of another responsible adult.

• No riders!

• Do not put hands or feet near or under rotating parts. Keep clear of the discharge

opening at all times.

• Do not mow in re erse. Always look down and behind before and while backing.

This Safety Alert Symbol indicates important messages in this

manual. When you see this symbol, carefully read the message that

follows and be alert to the possibility of personal injury.

Read this manual completely. This machine can amputate hands, feet, and throw

objects. Failure to observe the following safety instructions could result in serious

injury or death.

SAFETY DECALS

Replace decals immediately if damaged.Order by part number from Swisher Mowers

OD45- Warning Decal

OD11- No step Decal

OD55- Danger Decal

OD33- Speed Decal

OD29- Danger Decal

OD43- Flying Debris Decal

•

T u r n o f f t h e b la d e s w h e n n o t m o w i n g . B e fo r e le a in g th e m a c h in e , tu r n o f f th e b la d e s a n d

s t o p th e e n g in e .

• W a tc h f o r tr a ff ic w h e n o p e ra tin g n e a r o r c ro s s in g r o a d w a y s .

• D o n o t o p e ra te th e m o w e r i f i t h a s b e e n d ro p p e d o r d a m a g e d i n a n y m a n n e r o r i f t h e m o w e r

ib r a te s e x c e s s i e ly . E x c e s s i e i b r a t i o n i s a n in d i c a ti o n o f d a m a g e . R e p a i r m o w e r a s

n e c e s s a r y .

• D r e s s p r o p e rl y . D o n o t o p e ra te th e m o w e r w h e n b a re f o o t o r w e a r in g o p e n s a n d a l s . W e a r

o n ly s o li d s h o e s w i th g o o d tra c tio n w h e n m o w i n g .

• D o n o t o p e ra te th e m a c h i n e w h ile u n d e r t h e in f lu e n c e o f a lc o h o l o r d r u g s .

• D o n o t o p e ra te o n s lo p e s g re a t e r t h a n 1 5 d e g r e e s .

• N e e r ta m p e r w ith s a fe t y d e i c e s . C h e c k t h e ir p ro p e r o p e r a ti o n r e g u l a rl y .

• S to p a n d in s p e c t t h e e q u i p m e n t if y o u s tr ik e a n o b je c t . R e p a ir , if n e c e s s a ry , b e f o r e re s t a rt in g .

• N e e r m a k e a d ju s t m e n ts o r r e p a i r s w it h th e e n g in e ru n n i n g .

• M o w e r b l a d e s a r e s h a rp a n d c a n c u t. W r a p th e b l a d e s o r w e a r g lo e s , a n d u s e e x tr a c a u ti o n

w h e n s e r i c i n g th e m .

REQUIRED ASSEMBLY

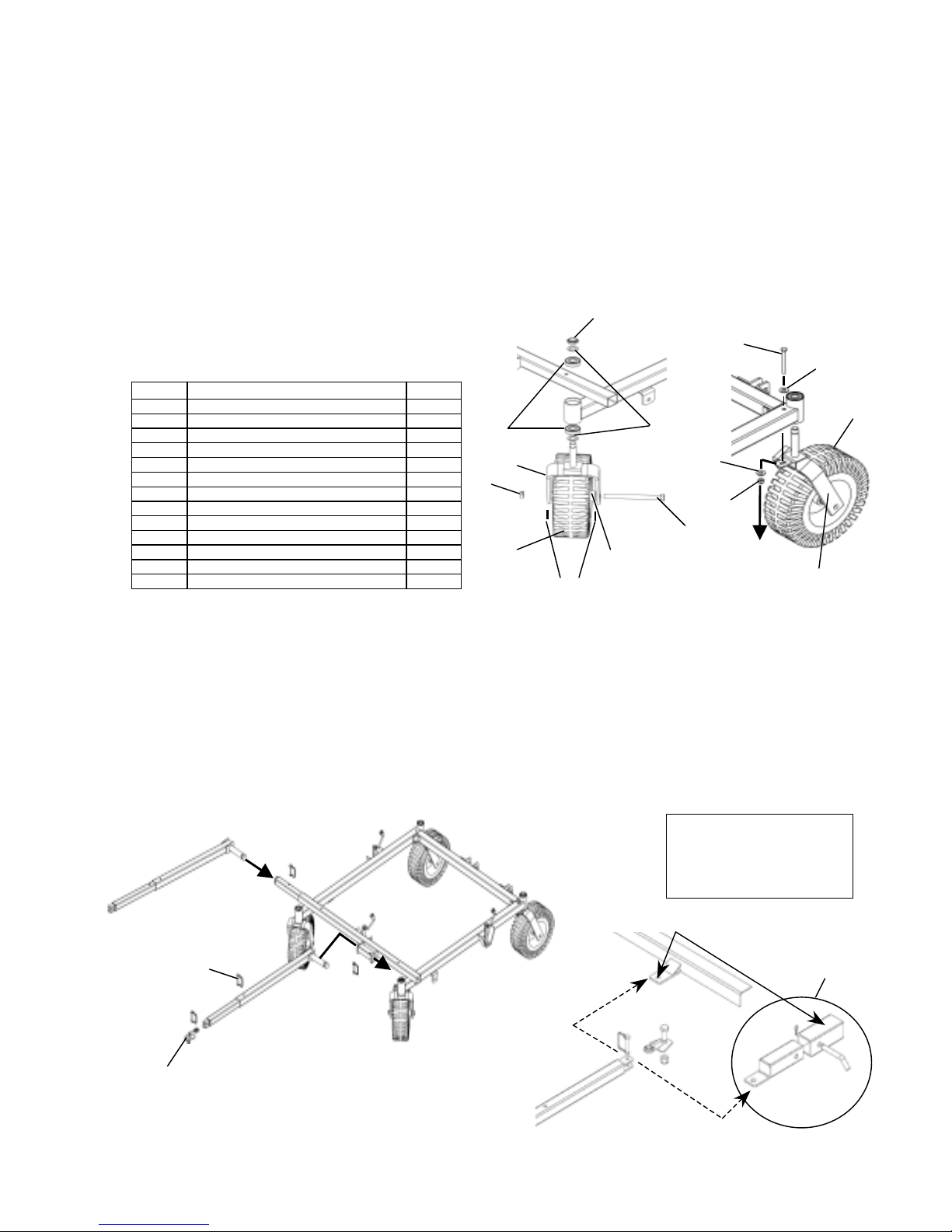

FRONT WHEEL CASTER ASSEMBLY

1. Remo e single nut (1) and washers (2) from caster shaft.

2. Place one washer (2) on the shaft of the caster/wheel sub-assembly. (4)

3. Slide same shaft through the bearing (3) in the frame with wheel towards the ground.

4. Place the other washer (2) on the shaft; it should be resting on the top bearing.

5. Thread nyloc jam nut onto shaft.

6. Tighten nut snuggly, making sure shaft threads enter the nyloc of the nut. Over-

tightening of this nut will bind caster.

7. Repeat process for all four casters.

OFFSET & CENTER TOW HITCH BAR ASSEMBLY

1. Lay out parts according to the diagram.

2. Insert part 661A into part 662 and pin with the hitch pin (H11).

3. Insert part 661 into part 661A. Choose from the 3 holes to set the desired hitch length.

Pin with a hitch pin.

4. Part 662 slides into the front tube of the frame. Again, choose from the 3 holes to

arrange desired offset. Pin with a hitch pin (H11).

5. Eliminate step 3 for hitching from the center bracket. Only one method can be used at a

time.

Item No. Description Part #

1 3/4-16 JAM NYLOK NUT NB122

2 WASHER NB195

3 BEARING B98

4 CASTER FORK 665

5 5/8-11X 7 BOLT NB624

6 5/8-11 2-WAY LOCK NUT NB595

7 WHEEL SPACER 663L

8 WHEEL/TIRE/BEARING F4157W

9 3/8-18 x 3.5 BOLT NB649

10 WASHER NB271

11 3/8-18 NYLOK NUT NB182

12 REAR CASTER 6710

13 5/8 ID X 1 OD 10 GA Washer NB178

Bent Pin, Hair Pin

and Recei er

supplied by others.

Existing Rear Hitch.

ATV or Utility

Vehicle Attachment

Instructions

661

661A

662

H10

H11

OPERATING YOUR TRAILMOWER

INTENDED USE

This TrailMower is designed to produce a quality finish cut on lawns, golf courses, etc.

It is not designed to clear brush or cut saplings. Your TrailMower should be towed

behind an ATV, a golf cart, lawn tractor, or similar appro ed ehicle. It is not meant for

speeds exceeding 5 MPH.

ATTACHING TRAILMOWER TO TOW VEHICLE

• Place mower behind ehicle and back ehicle up to desired attaching position.

• When offsetting TrailMower do so to side opposite the discharge of the tow

ehicle.

• Bolt swi el hitch (H10) to ehicle tow recei er.

• Attach tow hitch (661) to the swi el hitch with hitch pin (H11). Make certain

hitch pin goes completely through each piece and is clipped to pre ent accidental

separation.

• Attach red safety tether (H9C) to both the towing ehicle and to the TrailMower

toggle switch (685SP), located on the throttle housing (6013). Its purpose is to

manually stop mower engine or to stop mower engine in case the two machines

become separated. (See Motor Base Detail #22).

• It is extremely important the safety tether is secured properly to both the

toggle switch and the towing vehicle.

STARTING THE ENGINE

See engine manufacturer’s instructions for the type and amount of oil and fuel used.

TrailMowers with electric start engines will need a battery (sold separately). Swisher

recommends using a standard “U 1 R” lawn & garden battery.

• Engine must be le el to accurately check and fill oil. Do not o erfill.

The operation of any mower can produce foreign objects to be thrown into the

eyes, resulting in se ere eye damage. Always wear certified safety glasses or

wide- ision safety goggles o er spectacles before staring any cutting machine and

while operating such a machine.

The operation of any cutter produces sound wa es that are damaging to the

human ear. Ear protection is recommended.

CAUTION!

Tragic accidents can occur if the operator is not alert to the presence of

children. Children are often attracted to the machine and the mowing

acti ity. Never assume that children will remain where you last saw them.

•

Make sure the tow ehicle parking brake is set, mower is le el, and blades are

disengaged.

• Check spark plug wire, oil, and fuel.

• Check all electrical connections (See Schematics).

• Make sure toggle switch is turned “ON” and the red tether is properly attached.

• Set engine idle to “CHOKE” position.

• With feet clear of mower deck, turn key switch to the “START” position; [ if unit is

equipped with 12 olt system ] release when engine begins to run.

• For units NOT equipped with electric start turn key to “ON” position and pull starter

Rope until engine starts.

• Set engine idle at desired RPM.

BREAKING IN YOUR MOWER

• Set ehicle parking brake or chock wheels to pre ent accidental rolling.

• Start engine properly.

• Slowly, engage blade control.

• In a safe en ironment, i.e. no children, allow blades to rotate and engine to idle for 5

minutes. This breaks in the belts and the engine.

• Stop mower properly.

MOWER HEIGHT ADJUSTMENT

• Adjust while mower is not running.

• The cutting range is approximately 1.5” to 4.5”. The height has been measured from the

ground to the blade tip without the engine running.

• Rotate height adjust crank handles (H7N) in a clockwise direction to lift the mower deck.

A counter-clockwise direction is used to lower the mower deck.

• Make sure the height adjustment is the same at side crank handles. For best results, see

“SUGGESTED PRACTICE” section. Graduated scales are for reference only, not the

actual cutter height.

• Place crank handle in a retracted position to maintain height adjustment.

STARTING TO MOW

• Adjust the cutting height.

• Double check ehicle to mower attachment.

• Start mower engine properly.

• Slowly, acti ate the blade engage le er (6008) by rotating it forward and left until the

le er locks into place.

• Carefully mount tow ehicle and start mowing slowly.

STOPPING THE MOWING SESSION

• Pull safety tether to shut toggle switch “OFF”. If the engine fails to stop or if the safety

tether has become inoperable, then use Alternati e Stopping Method.

CAUTION!

SHUT OFF MOWER ENGINE AND REMOVE SPARK PLUG WIRE FROM

SPARK PLUG BEFORE MAKING ANY ADJUSTMENTS TO THE MOWER.

ALTERNATIVE STOPPING METHOD

• Bring ehicle to complete stop, shut off engine, and set parking brake.

• Disengage blade engage le er (6008).

• Manually shut toggle and key switches to their “OFF” positions.

• Always remember to remo e keys to a oid irresponsible usage.

TRANSPORTING MOWER

• Stop mower properly.

• Place mower deck in its highest position.

• If transporting unattached from tow ehicle, then remo e spark plug wire and

place where it cannot contact the spark plug.

SUGGESTED MOWING PRACTICES

• Operate mower engine at full throttle to assure the best cutting performance and

maximum material discharge.

• Allow wet grass to dry. Clumps of wet grass will collect under the mowing deck.

• Mowing should be started with tow ehicle in low gear and increased only as safe

mowing conditions permit. This speed should not exceed 5 MPH.

• The a erage lawn should be cut to approximately 2.5” during the cool season and

to o er 3” during the hot months.

• For a healthier lawn and better aesthetics, your lawn should be mowed often and

after moderate growth.

• When cutting high or dense grass areas go slowly. Some areas may need to be

mowed twice. The second cut should be at 90 degrees to the first, if possible.

• Mowing thick or high grass. Raise rear height crank handles to .5”-.75” abo e

the other two handles.

• Creating a manicured lawn. Lower rear height crank handle to .25”-.5” below

front of deck. This allows grass blades to be cut twice. It also continually cuts

clippings to produce a mulching effect.

GENERAL TROUBLE SHOOTING

• The mower is not cutting le el.

o Le el deck, making sure the side crank-handles are equal.

o Check air pressure of all tires; make sure they are equal (about 15-18 psi).

o Examine blades for damage, while mower engine is not running.

• The engine will not start.

o Disengage blades, turn toggle switch to “ON” position, check battery and

all other electrical connections, and inspect spark plug and wire.

o Check for fuel in the engine.

• Engine runs poorly.

o See engine manual.

o Check throttle adjuster.

o Replace fuel, clean fuel filter and fuel line.

IF PROBLEMS PERSIST HAVE A QUALIFIED MECHANIC SERVICE THE

MOWER. NEVER ATTEMPT TO MAKE AN ADJUSTMENT THAT YOU ARE

NOT SURE IS CORRECT. DOING SO CAN CAUSE OTHER PROBLEMS.

MOWER MAINTENANCE

GENERAL RECOMMENDATIONS

The warranty on this Trailmower does not co er items that ha e been subjected to operator abuse or negligence.

To recei e full alue from the warranty, operator must maintain unit as instructed in this manual.

Some adjustments will need to be made periodically to maintain your unit properly.

All adjustments in this manual should be checked at least once each season.

BEFORE EACH USE

• Check engine oil le el on a le el surface. (Check twice to insure an accurate reading.)

• Check condition of air filter; clean and replace as necessary.

• Check blade operation; keep blades in good condition.

• Check for loose fasteners and tighten them as needed.

AFTER EACH USE

• Keep blades sharp.

• Remo e fresh grass clippings with garden hose.

• Grass clippings can harden to the underside should be scraped out with a putty knife.

• Keep fluids at proper le els.

• Co er unit to pre ent rain or other debris build-up. Definitely co er the engine.

BEFORE AND/OR AFTER EACH SEASON

• Replace the spark plug.

• Clean or replace the air filter.

• A new spark plug and clean air filter assure proper air-fuel mixture and help your engine run better and

last longer.

• Check blades and belts for wear. Replace as necessary.

STORAGE RECOMMENDATIONS

CAUTION! Do not store engine indoors or other poorly entilated area. Keep engine away from gas

appliances where fumes could contact open flame, pilot lights, or sparks.

If engine is to be stored for 30 or more days, prepare unit as follows:

• Drain fuel outside into an appro ed container.

• Start engine properly and run until unit is out of fuel.

• Let engine cool.

• Remo e remaining gasoline from carburetor and fuel tank to pre ent gum deposits from forming

within the engine. Gum deposits can cause malfunction in the engine.

• Store mower with blades disengaged to pre ent belts from being permanently stretched.

BLADE CARE AND SERVICE

For best results cutter blades must be kept sharp. The blades can be sharpened with a few strokes of a file or

grinding wheel. Do not attempt to sharpen blades while they are on the cutter. Disconnect spark plug wire

before servicing unit.

Important: Replace blades that have been damaged or deeply nicked.

Important: Check blade and spindle hardware on a regular basis to make sure nuts are tight.

Only a qualified mechanic should be used for any

adjustments, disassembly or other kind of repairs.

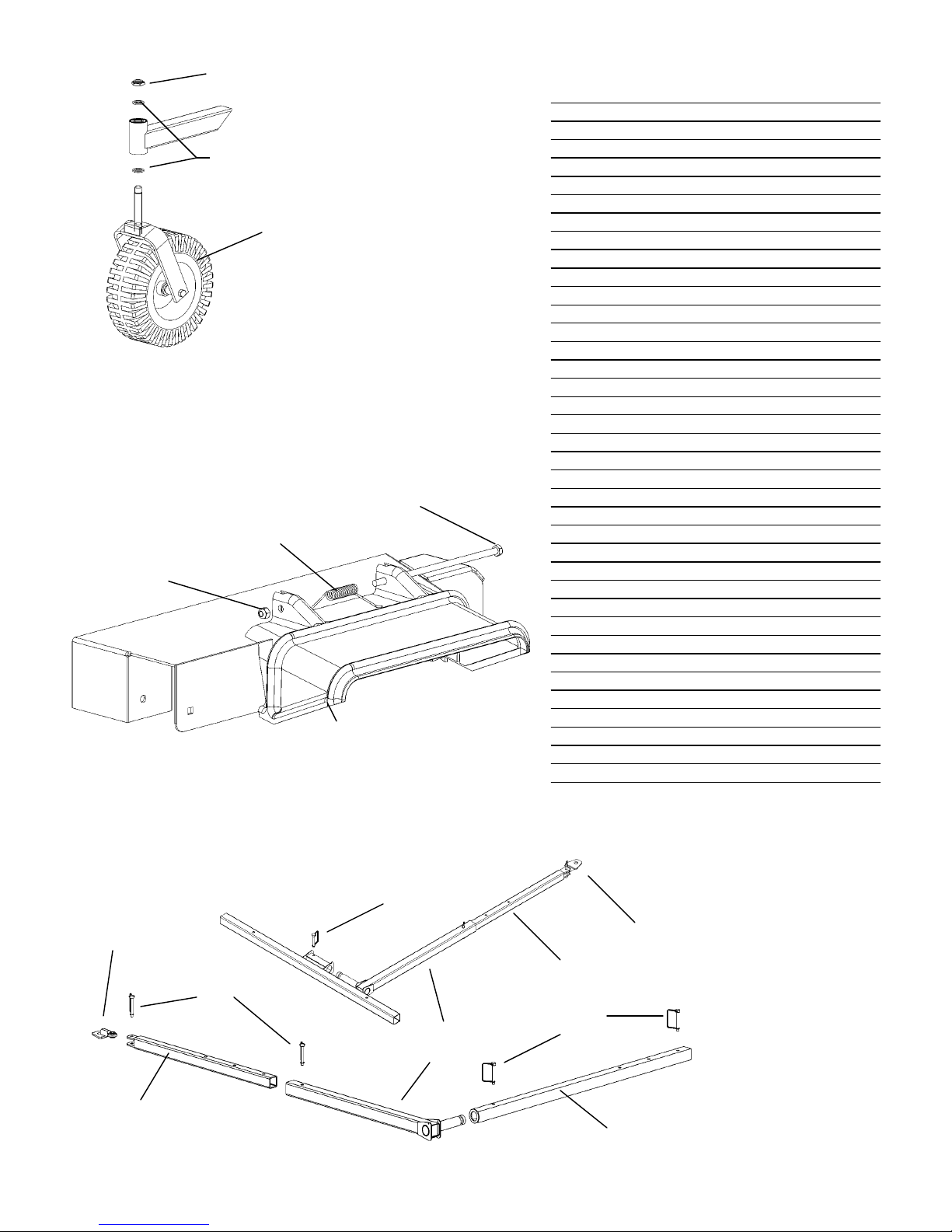

Figure 01

Figure 02

Figure 03

Figure 04

NB195

NB122

F4157WF

NB181

CH55

NB136

6031TK steel chute

replaces plastic chute

shown

661AS

661S

H10TK

662S

H11

661S

H10TK

H11

Item # Description Part #

1 Grass Chute 6031TK

Bolt/Nut NB136/NB181

Spring (2) CH5S

2 Rear Caster Assembly (2) 7055

Tire/Wheel/Bearing F4157W

3 Right Belt Guard 6155RN

Acorn Nut NB120

4 No Step Decal OD11

5 Height Adjust Assembly H7N

Plastic Bushing T2PB

Eye Bolt 6599

Knob H7K

5/16 Pal Nut NB276

6 Left Belt Guard 6155LN

Acorn Nut NB120

7 Gas Tank 6772

Gas Cap 6102NC

Gas Tank Mount 6102NTK

Rubber Bushing AS119

Fuel Shutoff Valve AS120

Fuel Line Hose Clamp 6FLC

Fuel Line AS140

8 Height Adjust Assembly H7N

Eye Bolt 6599

Stabilizer Arm 6696

Plastic Bushing T2PB

Knob H7K

9 Engine Plate 6155NFTK

10 Front Caster Assembly 6774S

Tire/Wheel/Bearing F4157WF

Bolt/Nut NB624/NB593

Spacer (Exterior) 663L

Washer NB178

Caster Fork 665S

Caster Nut NB122

Washer NB195

11 Throttle Plate 7032TK

Other manuals for POL 14560

Other Swisher Lawn Mower manuals

Swisher

Swisher QUADBOSS QBRT11544 User manual

Swisher

Swisher WB11542F User manual

Swisher

Swisher ZT2766KP User manual

Swisher

Swisher ZT1436B, ZT18542, ZT2250 User manual

Swisher

Swisher QUADBOSS QBT1360 User manual

Swisher

Swisher WB11524BS User manual

Swisher

Swisher FT1150 User manual

Swisher

Swisher T11544A User manual

Swisher

Swisher T14560A User manual

Swisher

Swisher ZT2760 BP User manual

Swisher

Swisher PST5022 User manual

Swisher

Swisher ZT2866A-CA User manual

Swisher

Swisher Trim-Max STD4422HO User manual

Swisher

Swisher FC18560BS User manual

Swisher

Swisher QUADBOSS COMMERCIAL PRO QBFC14566CP Use and care manual

Swisher

Swisher T844CH User manual

Swisher

Swisher Predator WB924 User manual

Swisher

Swisher T1260, T1360, T1460 User manual

Swisher

Swisher Z Series User manual

Swisher

Swisher PST67522A User manual

Swisher

Swisher QBT2066 User manual

Swisher

Swisher QUADBOSS QBFC14560-CA User manual

Swisher

Swisher Trim-N-Mow Plus STS67522BS User manual

Swisher

Swisher Trim-N-Mow User manual

Popular Lawn Mower manuals by other brands

RHINO

RHINO 1958 parts manual

Wolf Garten

Wolf Garten Compact plus 40 B instruction manual

Cub Cadet

Cub Cadet LTX 1045 brochure

Craftsman

Craftsman 917.378461 owner's manual

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Operator's manual

Challenge

Challenge CH18V2 Original manual

TALEN TOOLS

TALEN TOOLS AVR HGM30 manual

DEWEZE

DEWEZE ATM-725 Operation and service manual

Weed Eater

Weed Eater 180083 owner's manual

Husqvarna

Husqvarna Poulan Pro PP185A42 Operator's manual

Better Outdoor Products

Better Outdoor Products Quick Series Operator's manual

Cub Cadet

Cub Cadet 23HP Z-Force 60 Operator's and service manual

MTD

MTD 795, 792, 791, 790 Operator's manual

Toro

Toro Groundsmaster 3505-D Service manual

Dennis

Dennis FT 610 instruction manual

AIRFORCE

AIRFORCE F-15 Gen 3 owner's manual

MTD

MTD 126-220-000 owner's guide

Toro

Toro 74806 Operator's manual
