Swisher T844CH User manual

44” FINISH CUT

TRAILMOWER

OWNER’S

MANUAL

1602 CORPORATE DRIVE, WARRENSBURG , MISSOURI 64093 PHONE 660-747-8183

FAX 660-747-8650

MODEL NO.

T844CH

T10544CH

T10544B

T844CH-12V

T1244CH-12V

T8544SP

T12544CH

T10544TSP

T10544BSP

Manufacturing quality lawn care equipment since 1945

Assembly

Operation

Service and Adjustment

Repair Parts

Made In The

USA

Rev.01.12.2002

Read and follow all Safety

Precautions and

Instructions before

operating this equipment.

IMPORTANT

swisherinc.com

SERIAL # AFTER

L100313001

ONT44SPH

FRONT

LEFT RIGHT

REAR

BALL LOCK PINS

TELESCOPING

Left offset shown

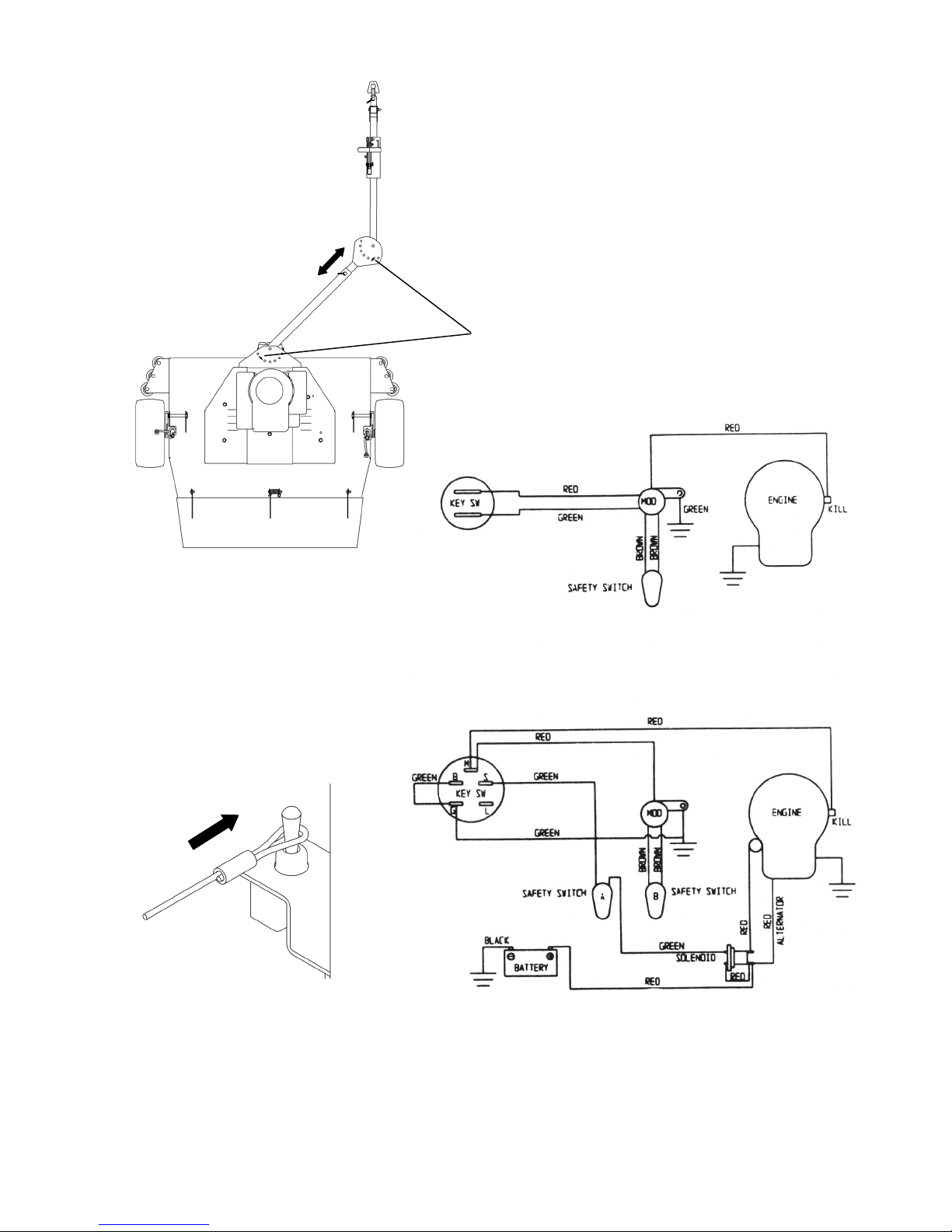

FIGURE TWO

FIGURE ONE

T44 12 VOLT S TART

FIGURE THREE

T44 RECOIL START

Slide plastic tube snug against

toggle switch.

FIGURE FOUR

See Detail

DUAL HEIGHT ADJUST MODELS

See Details

See Detail See Detail

18 20

ITEM # DESCRIPTION PART #

1 BELT BA66

2 RIGHT BELT COVER A44155R*

3 ACORN NUT/WASHER NB120/NB272

4 REAR BELT COVER 4430TK

5 LEFT BELT COVER A44155L*

6 GRASS CHUTE H41ATK

7 5/16 BOLT/NUT NB143/NB181

8 SPRING/BOLT/NUT H41AS/NB106/NB181

9 HEIGHT ADJUSTER H7N

TUBE H7N1TK

KNOB H7K

ARM ES214

RULER DECAL OD41

5/16 PAL NUT NB276

10 THIN WASHER TR150W

11 LEFT AXLE H6L44*

RIGHT AXLE H6R44*

12 5/16 CARRIAGE BOLT NB110

13 COTTER PIN NB126

ITEM # DESCRIPTION PART #

14 TIRE/WHEEL F44157

15 HEIGHT ADJUST BOLT H4

16 ADJUST NUT NB213Z

17 5/16 NUT NB181

18 ANTI-SCALP ROLLER AS001

19 DECK WELDMENT 4496*

20 3/8 BOLT NB575

21 3/8 NUT NB182

22 3/8 BOLT NB221

23 HITCH PIN H11

24 STRAIGHT HITCH 4473*

25 BALL LOCK PIN NB520

26 FAN HITCH 4472*

27 "L" HITCH H1

28 PLUG H1P

29 SWIVEL HITCH H10

BOLT/NUT NB145Z/NB561

30 FRONT HITCH 4470*

31 5/16 BOLT NB138

* = USE PAINT CODE:

C=RED,G=GREEN;S=SLIVER EX: A44155RC; 4473G

FIGURE FIVE

FIGURE SIX

ENGINE SET-UP

BLADE SET-UP32

49 48

ITEM # DESCRIPTION PART #

32 ENGINE NOT AVAILABLE

33 5/16 BOLT NB253

34 5/16 NUT NB170

35 TOGGLE BRACKET 4483TK

36 SAFETY TETHER 6736

37 TOGGLE SWITCH 685SP

38 UPPER ENG. SPACER BB105S

39 1/4 X1KEY STOCK 9031

40 ENG. PULLEY BB105

41 LOWER ENG. SPACER BB105SL

42 BELLEVILLE WASHER 699

43 3/8 BOLT NB238N

OIL DRAIN VALVE &CAP AS122/AS123

MODULE &SCREW MOD1/NB137

ITEM # DESCRIPTION PART #

44 3/4 NUT NB175

45 UPPER BELLEVILLE AS155

46 BLADE PULLEY B4104

47 THIN WASHER NB179

48 BLADE DRIVER 9085

BEARING B98

5" SHAFT 9077

BEARING HOUSING B99TK

49 1/4 BOLT NB250

50 1/4 NUT NB180

51 22" BLADE 9005

52 BLADE MOUNT PLATE 9008

53 3/8 NUT NB216

54 3/8 BOLT NB238

55 LOWER BELLEVILLE NB607

FIGURE SEVEN

64 63

FIGURE EIGHT

T-HANDLE OPTION STANDARD ENGAGE

ITEM # DESCRIPTION PART #

56 T-HANDLE LEVER 4463TK

57 COTTER PIN NB597

58 1/4 BOLT NB180

59 WASHER NB274

60 ENGAGE LINK 4461TK

61 CABLE CLEVIS 9023MOD

62 5/16 NUT NB181

63 CLEVIS PIN NB518

64 1/4 BOLT NB560

65 5/16 TORX BOLT NB591

66 CONSOLE WELDMENT 4464TK

67 KEY SWITCH (RECOIL) KSM

KEY SWITCH (12 VOLT) KS12

68 WING BOLT NB523

T-HANDLE ACCESSORY KIT 4498

BLADE ENGAGE DECAL OD10

ON/OFF DECAL OD99

12 VOLT ON/OFF DECAL OD28

ITEM # DESCRIPTION PART #

69 COTTER PIN NB126

70 ENGAGE LINKAGE 4534*

71 1/2 BOLT NB132

72 ENGAGE LEVER 4537*

73 HANDLE KNOB B19BLACK

74 1/4 NUT NB524

75 1/4 BOLT NB250

76 1/2 NUT NB213Z

77 ENGAGE LEVER BRACKET 4535*

78 1/2 NUT NB121

ON/OFF DECAL OD10

* = USE PAINT CODE:

C=RED,G=GREEN;S=SLIVER

EX: A44155RC; 4473G

FIGURE TEN

FIGURE NINE

9089

ITEM # DESCRIPTION PART #

79 3/8 NUT NB212

80 3/8 BOLT NB231

81 WASHER NB271

82 BRAKE PAD BP370

83 BRAKE PAD CLIP BP370S

84 BRAKE SPRING BT297

85 3/8 NUT NB207

86 3/8 NUT NB280

87 BRAKE CHAIN (9 LINKS) AS080

88 SAFETY SWITCH SSSC

89 BRAKE PIVOT 4097TK

90 #6 SCREW NB259

91 WASHER NB196

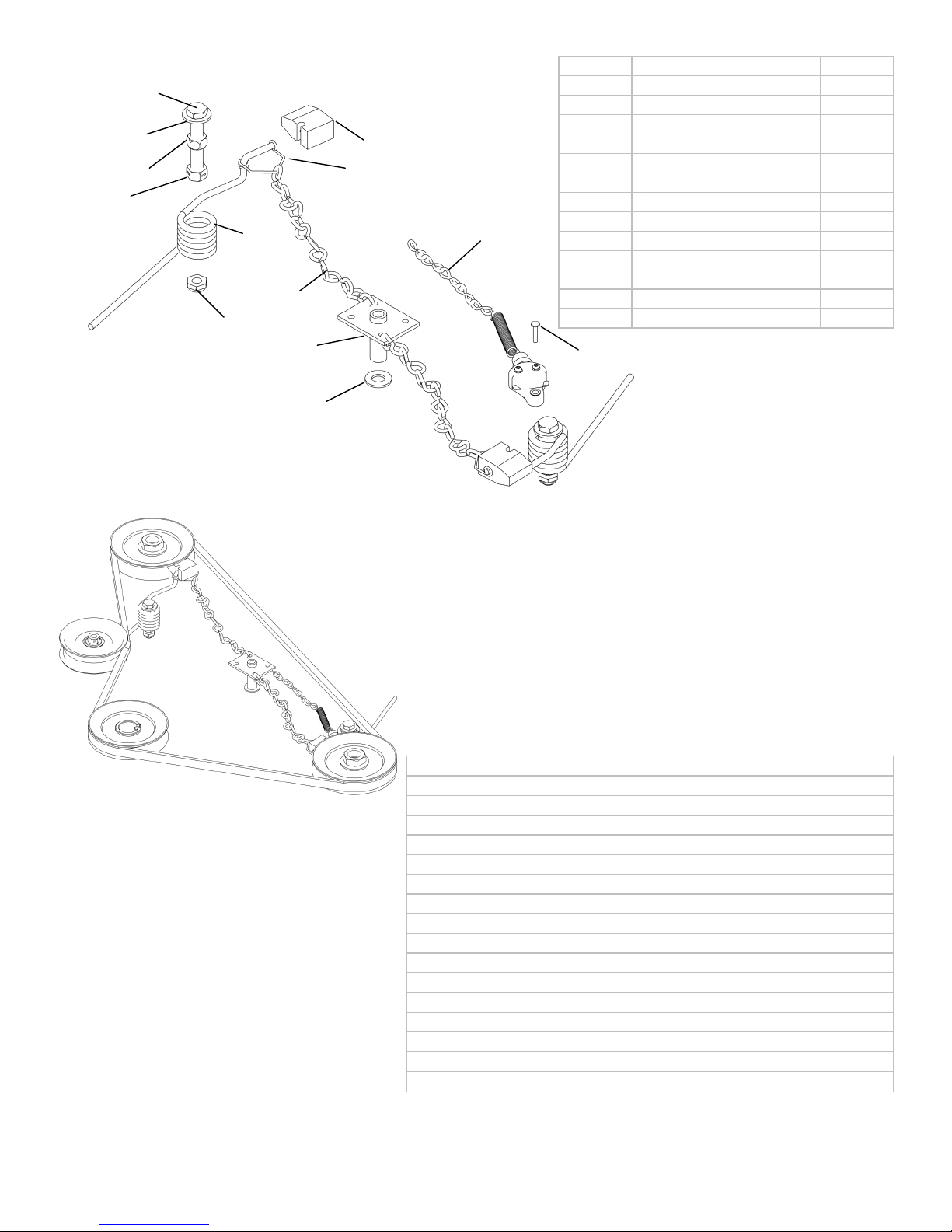

BRAKE ASSEMBLY

BELT CONFIGURATION

WIRING HARNESSES

STANDARD ENGAGE WH44CHNCB

T-HANDLE OPT. W/ B&S ENGINE WH44CHB

T-HANDLE OPT. W/ TEC. ENGINE WH44CHT

T-HANDLE OPT. W/ 12 VOLT START WH44B12V

BLADE ENGAGE CABLE 9074

12 VOLT MODELS

BATTERY (12N12A) RECOMMENDED SOLD SEPARATELY

SOLENOID 9043

BATTERY CABLE -POSITIVE BCSR

BATTERY CABLE -NEGATIVE BCS

EXTRAS

VELCRO STRAPS 7033

SWISHER DECAL OD99116

44" DECAL OD99119

PARTS NOT S HOWN

FIGURE ELEVEN

ENGAGE / TENSION ASSEMBLY

100

101

102

103 104 105

106

107

108

109

110

113

111

112

114

ITEM # DESCRIPTION PART #

92 3/8 LOCK NUT NB280

93 WASHER NB272

94 IDLER PULLEY B527

95 1/2 SHOULDER BOLT NB220

96 IDLER ARM OFFSET 687RTK

97 3/8 JAM NUT NB174

98 WASHER NB271

99 3/8 NYLOK NUT NB182

100 WIRE LINK BRS6H

101 3/8 BOLT NB231

102 CLUTCH ROD SPRING 682S

103 CLUTCH ROD SPRING 682S

104 PULL ROD 3123TK

105 5/16 NUT NB210

106 BRAKE LINKAGE BL370

107 1/2 BOLT NB220

108 ENGAGEMENT ARM 4467TK

109 WASHER NB271

110 3/8 NUT NB182

111 5/16 NUT NB210

112 1/4 NUT NB102

113 CLUTCH CABLE 9023MOD

114 1/4-20 NYLOCK NUT NB180

ITEM # DESCRIPTION PART #

115 CRANK KNOB H7K

116 CRANK HANDLE ES214

117 CRANK ROD 4006

118 SINGLE POINT FRAME 4001TK

119 BUSHING 21008

120 PIVOT BLOCK 4007TK

121 GRASS CHUTE MOUNT 6030TK

122 CHUTE SPRING 9100

123 GRASS CHUTE 4019TK

124 TIRE/WHEEL/BEARING F44157

125 ANTI-SCALP ROLLER 1/2" AS003

126 LEFT ROLLER BRACKET 4015TK

127 ANTI-SCALP ROLLER 3/8" AS001

128 FRONT ROLLER BRACKET 4018TK

129 UNIVERSAL MOUNT DECK 4017*

CENTER HITCH DECK 4025*

130 RIGHT ROLLER BRACKET 4016TK

* ADD PAINT CODE: C=RED;G=GREEN;S=SILVER EX: 4017C;4025G

FIGURE TWELVE

SINGLE POINT HEIGHT ADJUST MODEL

OWNER’S

MANUAL

HOW TO ORDER

REPAIR PARTS:

44” FINISH CUT

TRAILMOWER

Each TrailMower has its own serial number. Each engine has

its own serial number. The serial number for the TrailMower

will be found on the right hand side of the drive belt housing.

The serial number for the engine will be found on the top of

the blower fan housing.

All TrailMower parts listed herein may be ordered directly

from Swisher Mower & Machine Co. Inc., your nearest

Swisher dealer, or from our website. www.swisherinc.com

All engine parts may be ordered from the nearest dealer of the

engine supplied with your mower.

WHEN ORDERING PARTS, PLEASE HAVE THE

FOLLOWING INORMATION AVAILABLE:

* PRODUCT – T-44 FINISH CUT TRAILMOWER

* SERIAL NUMBER - _______________

* MODEL NUMBER - _______________

* ENGINE MODEL NUMBER - _______________

TYPE - _______________

* PART NUMBER

* PART DESCRIPTION

www.swisherinc.com

TELEPHONE - 1-800-222-8183

FAX - 1-660-747-8650

SWISHER MOWER & MACHINE CO. INC.

1602 CORPORATE DRIVE

WARRENSBURG, M O 64093

SWISHER MOWER & MACHINE CO. INC.

MODEL NO.

T844CH

T10544CH

T10544B

T844CH-12V

T1244CH-12V

T8544SP

T12544CH

T10544TSP

T10544BSP
