Snapper 84871 User manual

Not for

Reproduction

Parts Manual fo

28" & 33" Hi-Vac

SERIES 23

REAR ENGINE RIDER

Revision: B 12/6/2010

Briggs & Stratton Yard Power Products Group

Manual No. 7006279

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

Descri

tionModel No.

84871 281023BVE

780010

281123BV

8487

281123BV

8494

281123BV

84874 281123BVE

84883 281123HVE

708494

2811523BV

780064

2811523BV

8562

2812253BVE

708562

2812523BVE

780010

2812523BVE

7800649 2812523BVE

8487

281323BVE

708562

2813523BVE

85624 2813523BVE

8488

331323HVE

8487

331523BVE

7084879 331523KVE

780010

331523KVE

84879 331523KVE

708495

331723BVE

780010

331723BVE

84954 331723BVE

780025

3317523BVE

780065

3317523BVE

84881 W280923BV

84884 W281023BVE

Not for

Reproduction

Not for

Reproduction

Table Of Contents

TP 400-5457-B-RE-N

28" & 33" Hi-Vac

SERIES 23 3

Manual No. 7006279

PAGE GROUP

4 WHEELS, FRONT & REAR

6 FRONT END, STEERING

8 MAIN CASE & L.H. FENDER

12 LEFT HAND FENDER & BEARING

14 DIFFERENTIAL, R. H. FENDER

16 YOKE LIFT COMPONENTS

18 PRIMARY CHAIN CASE & SMOOTH CLUTCH

20 GEAR SHIFTER ASSEMBLY

22 FUEL TANK & SEAT

24 ENGINE, MUFFLER & DRIVE DISC

26 CUTTING DECKS & DEFLECTOR (28" & 33" Hi-Vac)

28 BELTS, BRAKES & INTERLOCK

30 RAILS, LIFT ARMS & CAM LIFT

32 BLADE STOP PEDALS

34 SPINDLE

36 DECALS

38 ELECTRICAL SYSTEMS (Briggs Magneto Ground)

40 ELECTRICAL SYSTEMS (For 9, 11 & 11.5HP Briggs Recoil)

42 ELECTRICAL SYSTEMS (For 10, 11, 12, 12.5 & 13HP Briggs)

44 ELECTRICAL SYSTEMS (For 13.5, 15, 16, 17 & 17.5HP Briggs)

46 ELECTRICAL SYSTEMS (For 11 & 13HP Honda)

48 ELECTRICAL SYSTEMS (For 15HP Kohler)

50 ELECTRICAL SYSTEMS (Kohler Magneto Ground)

52 WIRING SCHEMATIC (9, 11 & 11.5HP Recoil Start Briggs)

54 WIRING SCHEMATIC (10, 11, 12, 12.5 & 13 HP Briggs)

56 WIRING SCHEMATIC (13.5, 15, 16, 17 & 17.5HP Briggs Engines)

58 WIRING SCHEMATIC (11 & 13 HP Honda Engines)

60 WIRING SCHEMATIC (14 & 15 HP Kohler Engines)

62 HARDWARE BAGS

66 ACCESSORIES & ATTACHMENTS

Not for

Reproduction

Manual No. 7006279 28" & 33" Hi-Vac

SERIES 23

WHEELS, FRONT & REAR

Not for

Reproduction

Footnotes:

Manual No. 700627928" & 33" Hi-Vac

SERIES 23 5

WHEELS, FRONT & REAR

Part No Descri

tionItem Qty

1 7058943 2 ASSEMBLY, Front Tire & Rim (Complete) (Includes Items 2, 3, 4, 5 & 6)

2 7073563 1 TIRE, 11 x 4.00-4 (Kenda)

3 7017146 1 RIM (For 4.10/3.50 x 4 Tire)

4 7011807 2 BALL BEARING, Flange (3/4” I.D.)

5 7012234 1 VALVE STEM, Snap In

6 7014669 1 * LUBE Fitting, Straight (for 3/16" hole)

6 7076998 1 * LUBE Fitting, Straight (for 1/4" hole)

6 7010909 1 * LUBE Fitting, 90 Degree, Ball Check (for 1/4" hole)

6 7104428 1 * LUBE Fitting, 90 Degree, Ball Check (for 5/16" hole)

7 7031038 1 CAP, Dust

8 7011032 1 FELT SEAL

9 7010935 3 WASHER, .77 x 1.13 x .06 Flat

10 7011022 1 HUB CAP

11 7091516 1 COTTER PIN, 5/32 x 1”

12 7010821 1 TUBE, Inner (For 4.10/3.50 x 4 Tire)

13 7058951 2 ASSEMBLY, Rear Tire & Rim (28” & 33” Models) (Includes Items 5, 14 & 15)

14 7073584 1 TIRE, 16-6.50 x 8

15 7012163 1 RIM, Extra Wide (For 16/7.50 x 8 Tire) (33” Models) was 7017147

16 7040434 1 HUB, Rear Wheel LH, 3 Hole 3/4" ID

17 7040433 1 HUB, Rear Wheel RH, 3 Hole 1" ID

18 7011035 1 AXLE BOLT, Left Hand (5/16-24 x 1-5/8” Tapered)

19 7092062 1 NUT, Wheel Bolt, 5/16-24 Hex Center Lock was 7011201

20 7023522 1 CAP, Hub, L. H. (Long Axle)

21 7011013 1 WHEEL BOLT, Right Hand (5/16-24 x 2” Tapered)

22 7023895 1 CAP, Hub

23 7011817 1 SEAL, 1.22” ID x 1.875” OD CAP, Seal 1.0” ID x 1.67” OD

24 7031732 1 CAP, Seal 1.0” ID x 1.67” OD, Right Hand (8 & 10 HP)

25 7012332 1 CLAMP, Right Hand 2” (used on 8, 10, 11.5, 12.5, 13 & 17 HP)

25 7014542 1 CLAMP, Right Hand 2.69” (used on 12, 14 & 15 HP)

26 7091502 3 BOLT, 1/2-20 x 3/4” Lug, GR 5

NOTE* Different size holes used, measure hole for proper fit.

Not for

Reproduction

Manual No. 7006279 28" & 33" Hi-Vac

SERIES 23

FRONT END, STEERING

Not for

Reproduction

Footnotes:

Manual No. 700627928" & 33" Hi-Vac

SERIES 23 7

FRONT END, STEERING

Part No Descri

tionItem Qty

1 7058030 1 ASSEMBLY, Steering Wheel (for 5/8” shaft) (Includes item 2)

2 7023781 1 LOGO, Steering Wheel

3 7013862 1 ROLL PIN, 1/4 x 1-1/2”

4 7023667 1 FOAM COVER, Steering Shaft

5 7023671 1 COVER, Steering Shaft

6 7090296 1 PIN, 3/16 x 1” Cotter

7 7090183 2 WASHER, .66 x 1.31 x .09 Flat

8 7046158 1 BUSHING, Nylon

9 7101192 1 CABLE, Brake, Snap-In (replaces 7072648)

10 7022449 1 CABLE, Clutch/Brake (54.32” long) (used on 25” & 28” Decks)

10 7074131 1 CABLE, Clutch/Brake (55” long) (used on 33” Decks)

11 7090372 1 NUT, 1/4-20 Hex Center Lock, GR 5 or B

12 7034174 2 CONNECTOR, Cable

13 7091495 1 SCREW, 1/4-20 x 3/4” Hex Head Cap, GR 5

14 7054378 1 WELDMENT, Front Axle, Narrow (used on 25” & 28” Decks)

14 7053266 1 WELDMENT, Front Axle, Wide (used on 33” Decks)

15 7074561 1 BOTTLE, Water

16 7074560 1 HOLDER, Bottle (Wire)

17 7090913 2 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Torx)

18 7011714 1 HAIR PIN 2-1/4”

19 7038243D 1 LATCH, Parking Brake

20 7015444 1 SPRING, Parking Brake Latch

21 7014049 2 FOOT PAD, Short (5.5” x 4.7”)

21 7014048 2 FOOT PAD, Long (5.5” x 9.5”)

22 7010776 1 RING, 1/2” External Retaining (Heavy Duty)

23 7047888BM 1 WELDMENT, Clutch Pedal

24 7011815 1 PAD, Pedal

25 7010694 1 BUSHING, Nylon

26 7046232 1 WELDMENT, Steering Shaft

27 7091515 1 PIN, 3/16 x 1-1/2” Cotter (Was 7090753)

28 7010746 2 RING, 5/8” External Retaining

29 7010935 6 WASHER, .77 x 1.13 x .06 Flat

30 7010986 4 BEARING, Nylon

31 7091516 2 PIN, 5/32 x 1” Cotter Was 7090364)

32 7090122 4 WASHER, 3/8” Flat SAE

33 7013321 4 BUSHING, Tie Rod

34 7041687 1 WELDMENT, King Pin, Left Hand

35 7041688 1 WELDMENT, King Pin, Right Hand

36 7091598 2 PIN, 1/8 x 3/4” Cotter (Was 7090365)

37 7013023 1 TIE ROD, Left Hand (7.41” long)

37 7012541 1 TIE ROD, Left Hand (9.91” long)

38 7012933 1 TIE ROD, Right Hand (7.41” long)

38 7012540 1 TIE ROD, Right Hand (9.91” long)

Not for

Reproduction

Manual No. 7006279 28" & 33" Hi-Vac

SERIES 23

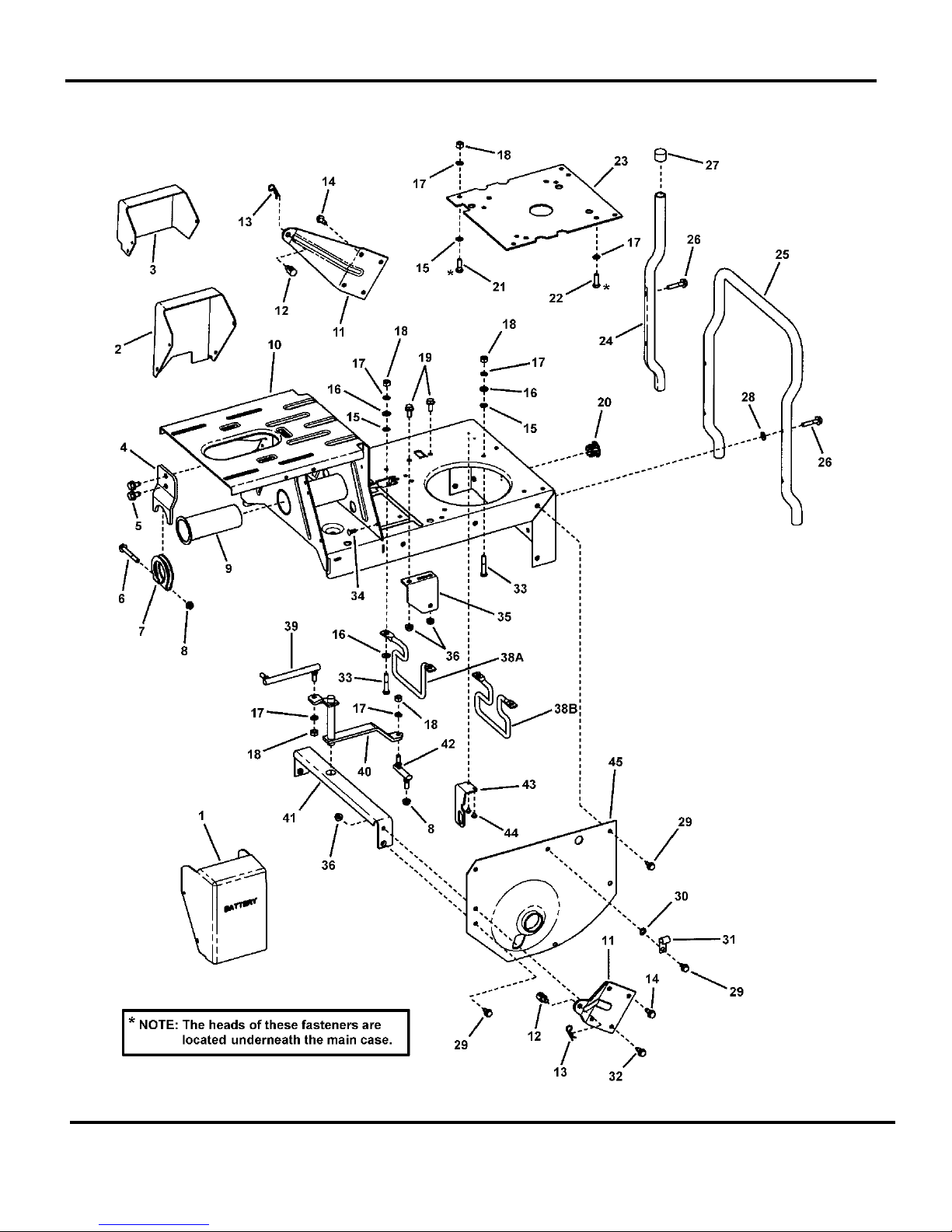

MAIN CASE & L.H. FENDER

Not for

Reproduction

Footnotes:

Manual No. 700627928" & 33" Hi-Vac

SERIES 23 9

MAIN CASE & L.H. FENDER

Part No Descri

tionItem Qty

1 7028990 1 COVER, Battery

2 7028989 1 COVER, Switch

3 7073268 1 COVER, Solenoid

4 7074210 1 BRACKET, Belt Adjuster

5 7091198 2 SCREW, 3/8-16 x 5/8” Hex Washer Self-Tap

6 7090358 1 SCREW, 5/16-24 x 2-1/2” Hex Head Cap, GR 5

7 7031100 1 TUBE CLAMP

8 7010969 2 NUT, 5/16-24 Flange Lock (Large)

9 7074650 1 BUSHING, Pivot (Was 7022509)

10 7053697 1 WELDMENT, Main Case (Standard) (shown)

11 7034299 2 WING, Rear

12 7028200 2 SWIVEL, Adjustable

13 7091503 2 HAIR PIN, 3/32 x 1-1/2”

14 7090793 4 SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap

15 7011791 4 RETAINER, 5/16” Bolt

16 7091296 4 WASHER, 5/16” Flat

17 7091315 7 WASHER, .32 x .58 x .08 Split Lock

18 7091297 7 NUT, 5/16-24 Hex, GR 5

19 7090595 2 BOLT, 5/16-18 x 3/4” Hex Flange Lock, GR 5

20 7024998 3 PLUG, 1” Hole (Used on Euro models only)

21 7090238 4 SCREW, 5/16-24 x 1” Hex Head Cap, GR 5

22 7077692 4 BOLT, M8-1.25 x 25mm, Self-Tap (Kohler)

23 7074946 1 PLATE, Engine (Kohler Engine)

24 7030798 2 BUMPER, Rear

25 7036367 1 BUMPER (1-Piece) (33” Deck)

26 7090484 4 SCREW, 5/16-18 x 1-1/2” Hex Washer Self-Tap

27 7010153 2 CAP, Bumper

28 7090188 2 WASHER, 11/32” Flat

29 7090361 14 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap

30 7090391 1 WASHER, 5/16” Internal Tooth Lock

31 7012652 1 CLIP, Wire

32 7091318 1 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 5 (Was 7090206)

33 7091513 4 SCREW, 5/16-24 x 1-3/4” Hex Head Cap, GR 5

34 7091272 7 FASTENER, 1/4” Ratchet

35 7047189 1 BRACKET, Drive Support

36 7090585 6 NUT, 5/16-18 Hex Flange Lock, GR 5

38A 7017653 1 BELT GUIDE, 25 & 28 (5.74” Bolt Pattern, 4.74” Belt Gap)

38B 7036418 1 BELT GUIDE, 33” (5.74” Bolt Pattern, 5.0” Belt Gap) (used on 7800107 & 7800254 models)

39 7023676 1 SHIFT LINK, Long (5/16-24 both ends)

40 7041384 1 WELDMENT, Shift Arm

41 7033799 1 CROSS BRACE

42 7011018 1 SHIFT LINK, Short (5/16-24 thread)

43 7073735 1 BRACKET, Switch

44 7090981 2 SCREW, #10-32 x 1/4” Hex Washer Self-Tap

Not for

Reproduction

Manual No. 7006279 28" & 33" Hi-Vac

SERIES 23

MAIN CASE & L.H. FENDER
