Snapper LT300 Series User manual

Parts Manual fo

YARD TRACTOR ELECTRIC CLUTCH

LT300 SERIES

HYDRO DRIVE RMO & ACS "RD"

Revision A, TP 400-5273-A-TC-N9/5/2008

Briggs & Stratton Yard Power Products Group

Manual No. 7006469

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

MODEL

RD18S40 (2690624)

RD18VG40 (2690623)

RD2140 (2690763)

Table Of Content

TP 400-5273-A-TC-N

YARD TRACTOR ELECTRIC CLUTCH

LT300 SERIES 3

Manual No. 7006469

PAGE GROUP

4Wheels & Tires Group

6Hood, Grille & Dash Group

8Steering Group - Manual Steering

10 Steering Group

12 Frame & Front Axle Group

16 Controls Group

20 Cruise Control Group

22 Transmission Group - Tuff Torq K-46BF

26 Seat Deck & Fuel Tank Group

28 Engine Group - 18 HP INTEK Single Cyl.

30 Engine Group - 18 HP & 20 HP VANGUARD Twin Cyl.

32 Engine & Electric Clutch Group - 21HP Briggs & Stratton, Vanguard

34 40" Mower Deck - Belt, Idle Arm & Hitch

36 40" Mower Deck - Housing, Arbors & Blade

38 40" Mower Deck - Height Adjustment & Roller Bar

42 Hopper Group

46 Deflector Group

48 Decals Group

50 Electrical Group

TP 400-5273-A-TC-N

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH

LT300 SERIES

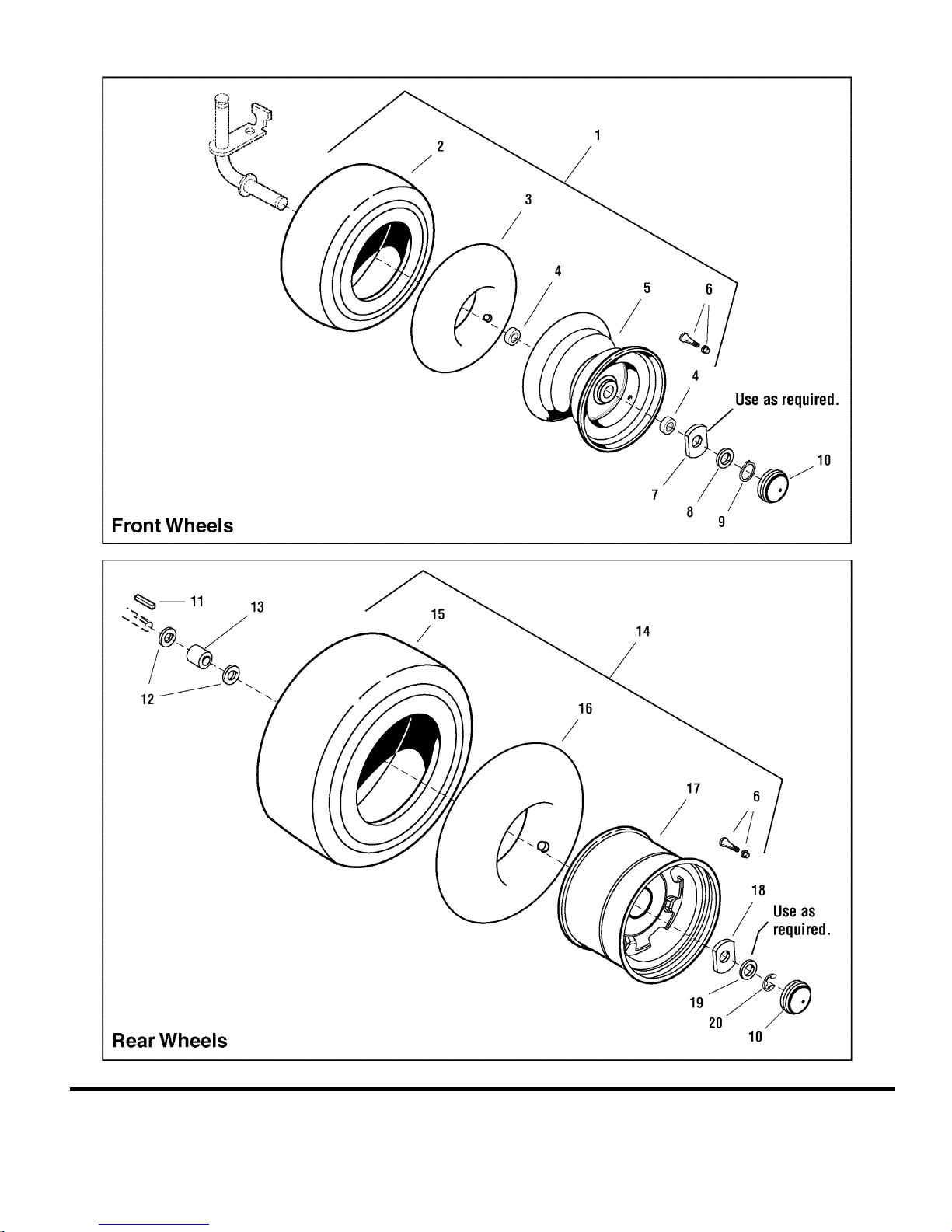

Wheels & Tires Group

Footnotes:

TP 400-5273-A-TC-N

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

LT300 SERIES 5

Part No Descri

tionItem Qt

Note

1 1732202 2 WHEEL & TIRE ASSEMBLY, Front (Includes Ref. Nos. 2, 3, 4, 5)

2 1733882 1 TIRE, 15 x 6, Super Turf

3 1664090 1 TUBE, Tire, Front, 4.10/3.50

4 1717056 2 BEARING, Ball

5 1722837 1 WHEEL, 4-1/2” x 6”

6 2172353 4 VALVE STEM & CAP ASSEMBLY

7 1722726A 4 WASHER, Special, (As Required)

8 1919394 4 WASHER, 1, (As Required)

9 2832577 2 RING, Retaining, External #98

10 1722676 4 CAP, Hub, Gray

11 1729279 2 KEY, Parellel, 3/16 x 3/16 x 1-1/2

12 2960202 4 WASHER, 3/4

13 1709527 2 SPACER

14 1732203 2 WHEEL & TIRE ASSEMBLY (Includes Ref. Nos. 6, 15, 16 &

17)

15 1733881 1 TIRE, 20 x 10, 8 Super Turf

16 2173477 1 TUBE, Tire, 20 x 8, Rear

17 1722835 1 WHEEL, 7 x 7.96, W/ 3/4 OD Shaft

18 1722717A 2 WASHER, Special

19 1960114 2 WASHER, 3/4

20 2827794 2 RING, “E” External

Hood, Grille & Dash Group

TP 400-5273-A-TC-N

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH

LT300 SERIES

Hood, Grille & Dash Group

Footnotes:

TP 400-5273-A-TC-N

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

LT300 SERIES 7

Part No Descri

tionItem Qt

Note

1 1728031D 1 HOOD, W/Scoop

4 1721804D 1 PANEL, R.H. Side

5 1721803D 1 PANEL, L.H. Side

6 1721810 1 HEADLIGHT ASSEMBLY (Includes Ref. Nos. 22, 23 & 24)

7 1721802D 1 GRILLE

8 1930641 12 NUT, Hex Flange 1/4-20 Whiz Lock

9 1726827 1 DASHBOARD (Used only on YT & LT models)

10 1726894 1 DASHBOARD, W/Hydraulic Lift Slot (Used only on GT models)

12 1721808A 1 HINGE, Hood L.H.

13 1721809A 1 HINGE, Hood R.H.

14 1723123 1 ROD, Dash Support

15 1933896 1 NUT, Hex Lock 10-24 w/Nylon Insert

16 1960392 1 SCREW, Pan Head Phillips #10-24 x 1

17 1960295 12 SCREW, Hex Whiz Lock Flange 1/4-20 x 5/8

18 1733457A 1 DUCT, Air Inlet

19 1726895 1 DASHBOARD, w/Buzzer Hole (Used only on Barons models)

20 1722285 1 COVER, Dash (Used only on Barons models)

21 1722607 1 SCREW, Pan Head Torx #8-16 x 1/2 Plastite (Used only on Barons models)

22 1677371 4 BULB, Headlight

23 1723451 4 SOCKET ASSEMBLY, Seal

24 1722902 1 REFLECTOR, Headlight

Steering Group - Manual Steering

TP 400-5273-A-TC-N

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH

LT300 SERIES

Steering Group - Manual Steering

Footnotes:

TP 400-5273-A-TC-N

Manual No. 7006469YARD TRACTOR ELECTRIC CLUTCH

LT300 SERIES 9

Part No Descri

tionItem Qt

Note

1 1722318 1 STEERING WHEEL

2 1725024 1 CAP, Steering

3 1960540 1 ROLL PIN, 5/16 x 2.50

4 1722749 1 BELLOWS

5 2176440 2 BUSHING, Nylon

6 1721736A 1 MOUNTING PLATE, Steering

7 1960114 5 WASHER, 3/4

8 2933260 2 SCREW, Flange Lock, 3/8-16 x 3/4

9 1931211 2 NUT, Whiz, 3/8-16

10 1722459 1 BEARING, Flange

11 1722461 1 SPACER

12 1724470A 1 STEARING GEAR ASSEM

13 1960032 1 SCREW, 3/8-16 x 1 3/4

14 1930645 1 NUT, Flange Lock, 3/8-16

15 1664847 2 SCREW, Taptite, 5/16-18 x 3/4

16 1726304 1 STEER SHAFT

17 1960033 1 HAIRPIN CLIP

18 1960655 2 CARRIAGE BOLT, 5/16-18 x 1 1/4

19 1960636 2 NUT, 5/16-18

20 1611710 1 RING, Klipring

21 1933988 2 PUSHNUT, 5/16

Steering Group

TP 400-5273-A-TC-N

Manual No. 7006469 YARD TRACTOR ELECTRIC CLUTCH

LT300 SERIES
