Snapper 3011523BV (7800103) User manual

Not for

Reproduction

Parts Manual fo

30" STANDARD DEC

SERIES 23

REAR ENGINE RIDER

Revision: C 5/23/2011

Briggs & Stratton Yard Power Products Group

Manual No. 7006278

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

Descri

tionModel No.

84873 301123BV

8487

301123BVE

7084941 3011523BV

780010

3011523BV

780064

3011523BV

84941 3011523BV

708562

3012523BVE

780010

3012523BVE

780065

3012523BVE

85623 3012523BVE

8487

301323BVE

708562

3013523BVE

780069

3013523BVE

8562

3013523BVE

8488

W301023BVE

Not for

Reproduction

Not for

Reproduction

Table Of Content

TP 400-5445-C-RE-N

30" STANDARD DECK

SERIES 23 3

Manual No. 7006278

PAGE GROUP

4Wheels - Front & Rear

6Front End, Steering

8Main Case & L.H. Fender

10 Left Hand Fender & Bearing

12 Differential & R.H. Fender

14 Yoke Lift Components

16 Primary Chain Case & Smooth Clutch

18 Gear Shifter Assembly

20 Fuel Tank & Seat

22 Engine, Muffler & Drive Disc

24 30" Cutting Deck & Deflector

26 30" Deck Recycling Components

28 Belt, Brake & Interlock

30 Rails, Lift Arms & Cam Lift

32 Blade Stop Pedals

34 Spindle

36 Decals

38 Electrical System (Briggs magneto Ground)

40 Electrical System (10, 11 & 12.5HP Briggs)

42 Electrical System (11 & 11.5HP Briggs Recoil Start)

44 Electrical System (13 & 13.5HP Briggs)

46 Wiring Schematic (10, 11 & 12.5HP Briggs)

48 Wiring Schematic (11 & 11.5HP Briggs Recoil Start)

50 Wiring Schematic (13HP Briggs)

52 Wiring Schematic (13.5HP Briggs)

Not for

Reproduction

Manual No. 7006278 30" STANDARD DECK

SERIES 23

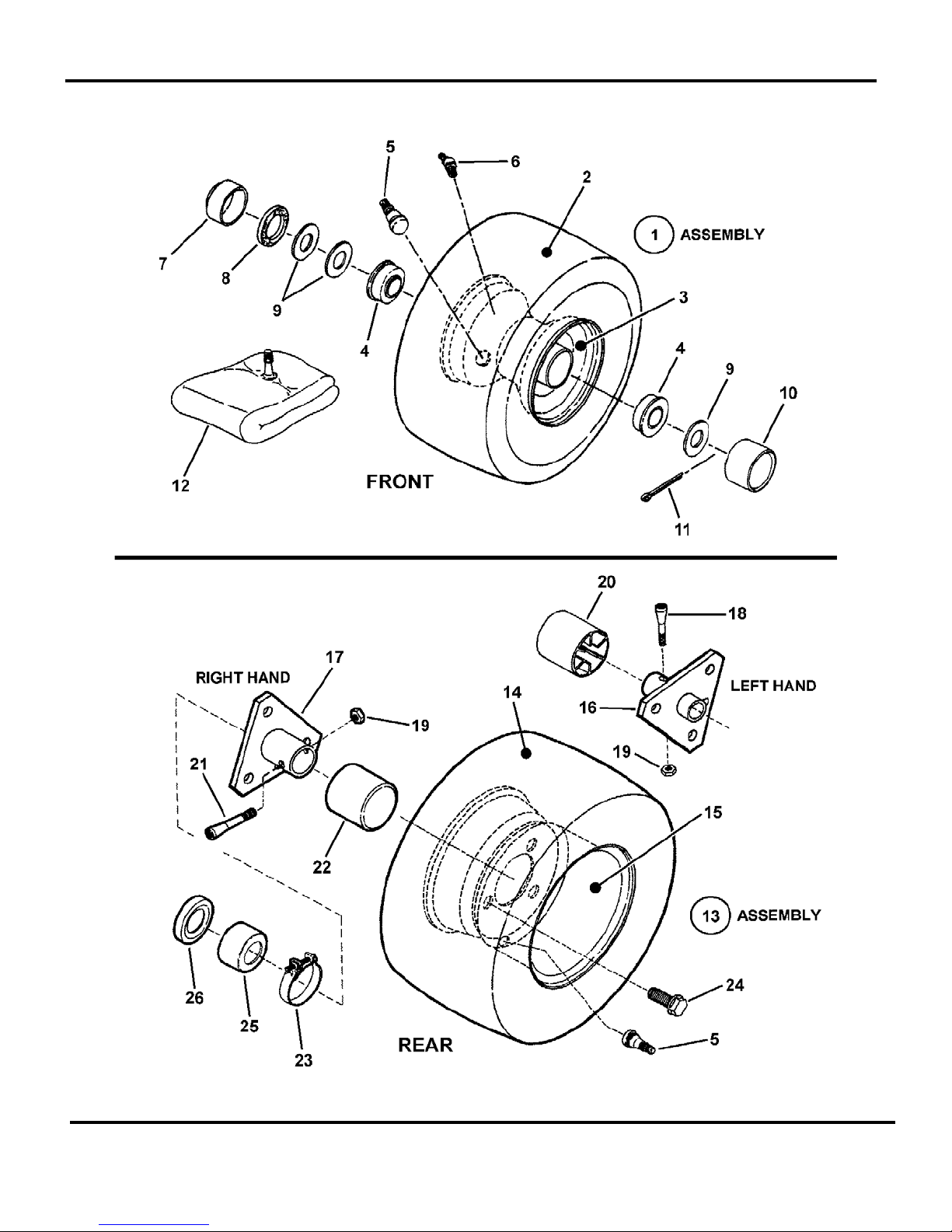

Wheels - Front & Rear

Not for

Reproduction

Footnotes:

Manual No. 700627830" STANDARD DECK

SERIES 23 5

Wheels - Front & Rea

Part No Descri

tionItem Qty

1 7058943 2 ASSEMBLY, Front Tire & Rim (11.0”) (Complete) (Includes items 2, 3, 4, 5 & 6)

2 7073563 1 TIRE, 11 x 4.00-4 (Kenda)

3 7017146 1 RIM (For 11.0 x 4.0 x 4 Tire)

4 7011807 2 BALL BEARING, Flange (3/4” I.D.)

5 7012234 1 VALVE STEM, Snap In

6 7014669 1 * LUBE Fitting, Straight (for 3/16" hole)

6 7076998 1 * LUBE Fitting, Straight (for 1/4" hole)

6 7010909 1 * LUBE Fitting, 90 Degree, Ball Check (for 1/4" hole)

6 7104428 1 * LUBE Fitting, 90 Degree, Ball Check (for 5/16" hole)

7 7031038 2 CAP, Dust

8 7011032 2 SEAL, Felt

9 7010935 8 WASHER, .77 x 1.13 x .06 Flat

10 7011022 2 HUB CAP

11 7091516 2 COTTER PIN, 5/32 x 1”

12 7010821 2 INNER TUBE (For 4.10/3.50 x 4 Tire)

13 7058951 2 ASSEMBLY, Rear Tire & Rim (Includes Items 5, 14 & 15)

14 7073584 1 TIRE, 16 x 6.50-8 (Kenda)

15 7017147 1 RIM, Extra Wide (For 16/7.50 x 8 Tire)

16 7040434 1 HUB, Rear Wheel LH, 3 Hole 3/4" ID

17 7040433 1 HUB, Rear Wheel RH, 3 Hole 1" ID

18 7011035 1 AXLE BOLT, 5/16-24 x 1-5/8” Tapered (Left Hand)

19 7011201 2 NUT, Wheel Bolt 5/16-24 Hex Center Lock

20 7023522 1 CAP, Hub, L. H. (Long Axle)

21 7011013 1 WHEEL BOLT, 5/16-24 x 2” Tapered (Right Hand)

22 7023895 1 CAP, Hub

23 7012332 4 CLAMP, Right Hand (for 2” Hose)

24 7091502 6 BOLT, 1/2-20 x 3/4” Lug, GR 5

25 7031732 1 CAP, Seal RH 1.0” ID x 1.67” OD (8 & 10 HP)

26 7011817 1 SEAL, 1.22” ID x 1.875” OD

NOTE* Different size holes used, measure hole for proper fit.

Not for

Reproduction

Manual No. 7006278 30" STANDARD DECK

SERIES 23

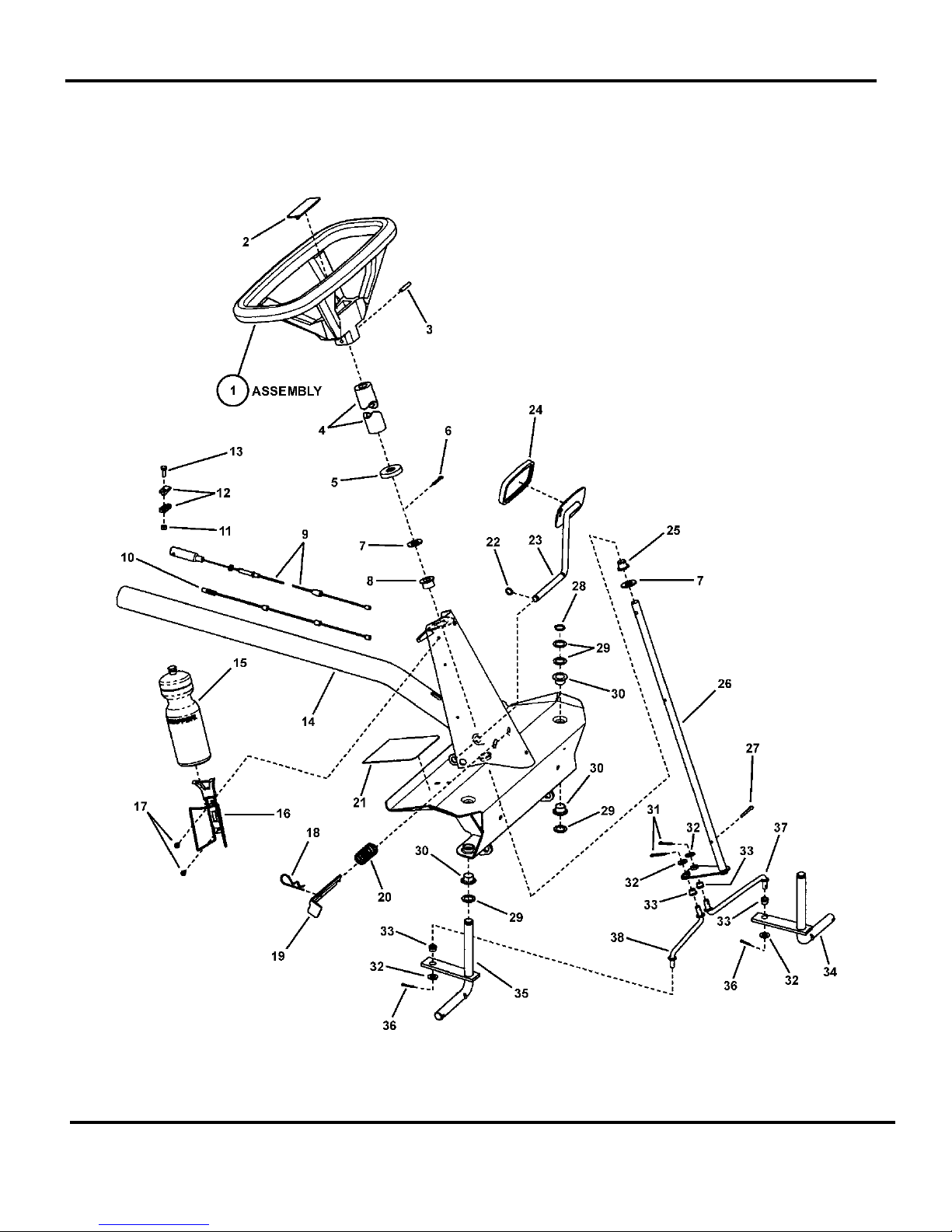

Front End, Steering

Not for

Reproduction

Footnotes:

Manual No. 700627830" STANDARD DECK

SERIES 23 7

Front End, Steering

Part No Descri

tionItem Qty

1 7058030 1 ASSEMBLY, Steering Wheel (for 5/8” shaft) Includes item 2

2 7023781 1 LOGO, Steering Wheel

3 7013862 1 ROLL PIN, 1/4 x 1-1/2”

4 7023667 1 FOAM COVER, Steering Shaft

5 7023671 1 COVER, Steering Shaft

6 7090296 1 PIN, 3/16 x 1” Cotter

7 7090183 2 WASHER, .66 x 1.31 x .09 Flat

8 7046158 1 BUSHING, Nylon

9 7101192 1 CABLE, Brake (29” long)

10 7022449 1 CABLE, Clutch/Brake (54.32” long)

11 7090372 1 NUT, 1/4-20 Hex Center Lock, GR 5 or B

12 7034174 2 CONNECTOR, Cable

13 7091495 1 SCREW, 1/4-20 x 3/4” Hex Head Cap, GR 5

14 7054378 1 WELDMENT, Front Axle, Narrow

15 7074561 1 BOTTLE, Water

16 7074560 1 HOLDER, Bottle (Wire)

17 7090913 2 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Torx)

18 7011714 1 HAIR PIN 2-1/4”

19 7038243D 1 LATCH, Parking Brake

20 7015444 1 SPRING, Parking Brake Latch

21 7014049 2 FOOT PAD, Short (5.5” x 4.7”)

22 7010776 1 RING, 1/2” External Retaining (Heavy Duty)

23 7047888BM 1 WELDMENT, Clutch/Brake Pedal

24 7011815 1 PAD, Pedal

25 7010694 1 BUSHING, Nylon

26 7046232 1 WELDMENT, Steering Shaft

27 7091515 1 PIN, 3/16 x 1-1/2” Cotter or 7090753

28 7010746 2 RING, 3/4” External Retaining

29 7010935 6 WASHER, .77 x 1.13 x .06 Flat

30 7010986 4 BEARING, Nylon

31 7091516 2 PIN, 5/32 x 1” Cotter or 7090364

32 7090122 4 WASHER, 3/8” Flat or 7091514

33 7013321 4 BUSHING, Tie Rod

34 7041687 1 KING PIN Weldment, Left Hand

35 7041688 1 KING PIN Weldment, Right Hand

36 7091598 2 PIN, 1/8 x 3/4” Cotter or 7090365

37 7013023 1 TIE ROD, Left Hand (7.41” long)

38 7012933 1 TIE ROD, Right Hand (7.41” long)

Not for

Reproduction

Manual No. 7006278 30" STANDARD DECK

SERIES 23

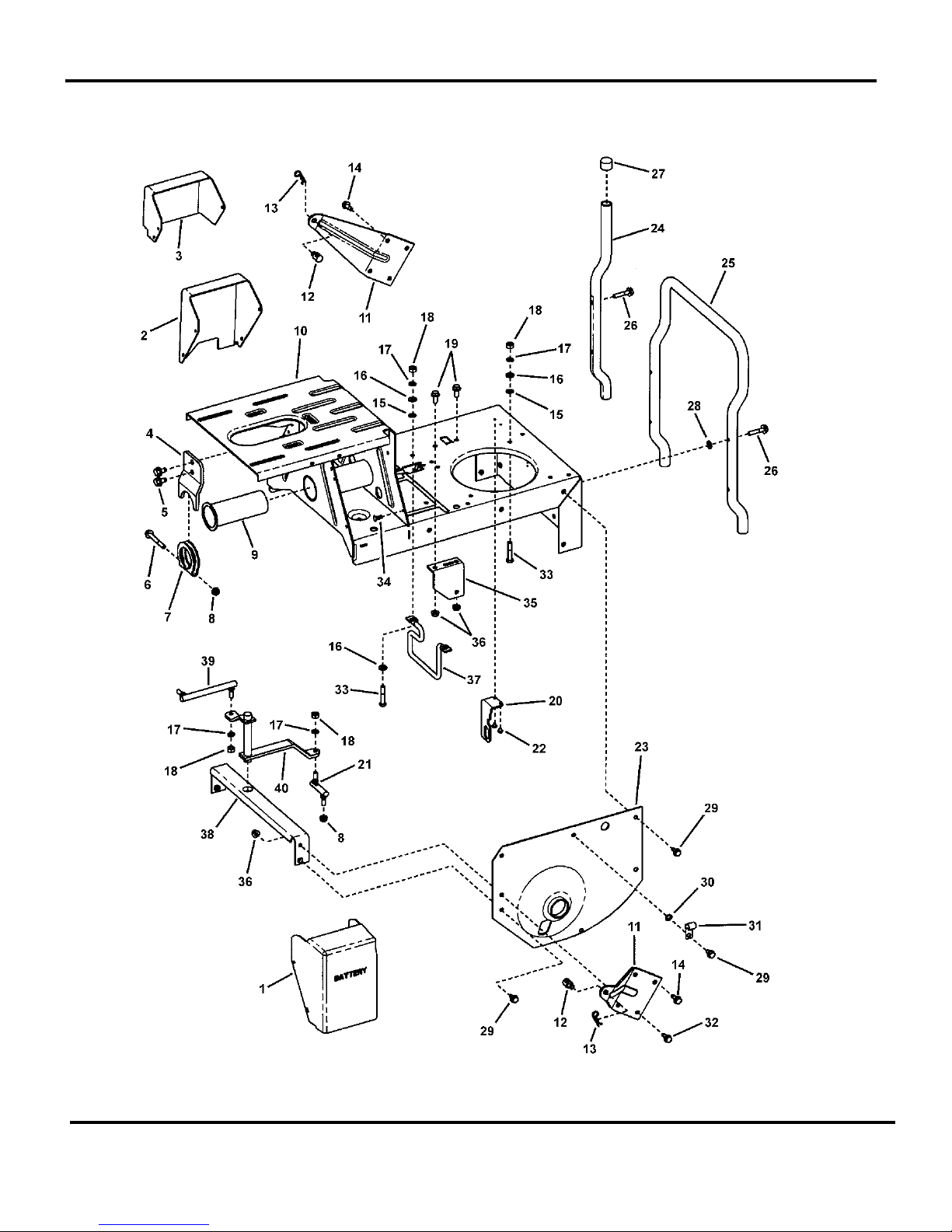

Main Case & L.H. Fender

Not for

Reproduction

Footnotes:

Manual No. 700627830" STANDARD DECK

SERIES 23 9

Main Case & L.H. Fende

Part No Descri

tionItem Qty

1 7028990 1 COVER, Battery

2 7028989 1 COVER, Switch

3 7073268 1 COVER, Solenoid

4 7074210 1 BRACKET, Belt Adjuster

5 7091198 2 SCREW, 3/8-16 x 5/8” Hex Washer Self-Tap

6 7090358 1 SCREW, 5/16-24 x 2-1/2” Hex Head Cap, GR 8

7 7031100 1 TUBE CLAMP

8 7010969 2 NUT, 5/16-24 Flange Lock (Large)

9 7074650 1 BUSHING, Pivot

10 7053697 1 WELDMENT, Main Case (Standard)

11 7034299 2 WING, Rear

12 7028200 2 SWIVEL, Adjustable

13 7091503 2 HAIR PIN, 3/32 x 1-1/2”

14 7090793 2 SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap

15 7011791 4 RETAINER, 5/16” Bolt

16 7090188 4 WASHER, 34 x .69 x .08 Flat

17 7091315 7 WASHER, .32 x .58 x .08 Split Lock

18 7091297 7 NUT, 5/16-24 Hex, GR 5

19 7090595 2 BOLT, 5/16-18 x 3/4” Hex Flange Lock, GR 5

20 7073735 1 BRACKET, Switch

21 7011018 1 SHIFT LINK, Short (5/16-24 thread)

22 7090981 2 SCREW, #10-32 x 1/4” Hex Washer Self-Tap

23 7037285 1 FENDER, Left Hand (1.628” I. D. Hole)

24 7030798 2 BUMPER, Rear

25 7036367 1 BUMPER (1-Piece)

26 7091506 4 SCREW, 5/16-18 x 1-1/2” Hex Washer Self-Tap

27 7010153 2 CAP, Bumper

28 7090188 2 WASHER, 34 x .69 x .08 Flat

29 7091867 14 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap

30 7090391 1 WASHER, 5/16” Internal Tooth Lock

31 7012652 2 CLIP, Wire

32 7090206 1 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 5

33 7091513 4 SCREW, 5/16-24 x 1-3/4” Hex Head Cap, GR 5

34 7091272 7 FASTENER, 1/4” Ratchet

35 7047189 1 BRACKET, Drive Support

36 7090585 6 NUT, 5/16-18 Hex Flange Lock, GR 5

37 7017653 1 BELT GUIDE

38 7033799 1 CROSS BRACE

39 7023676 1 SHIFT LINK, Long (5/16-24 both ends)

40 7041384 1 WELDMENT, Shift Arm

Not for

Reproduction

Manual No. 7006278 30" STANDARD DECK

SERIES 23

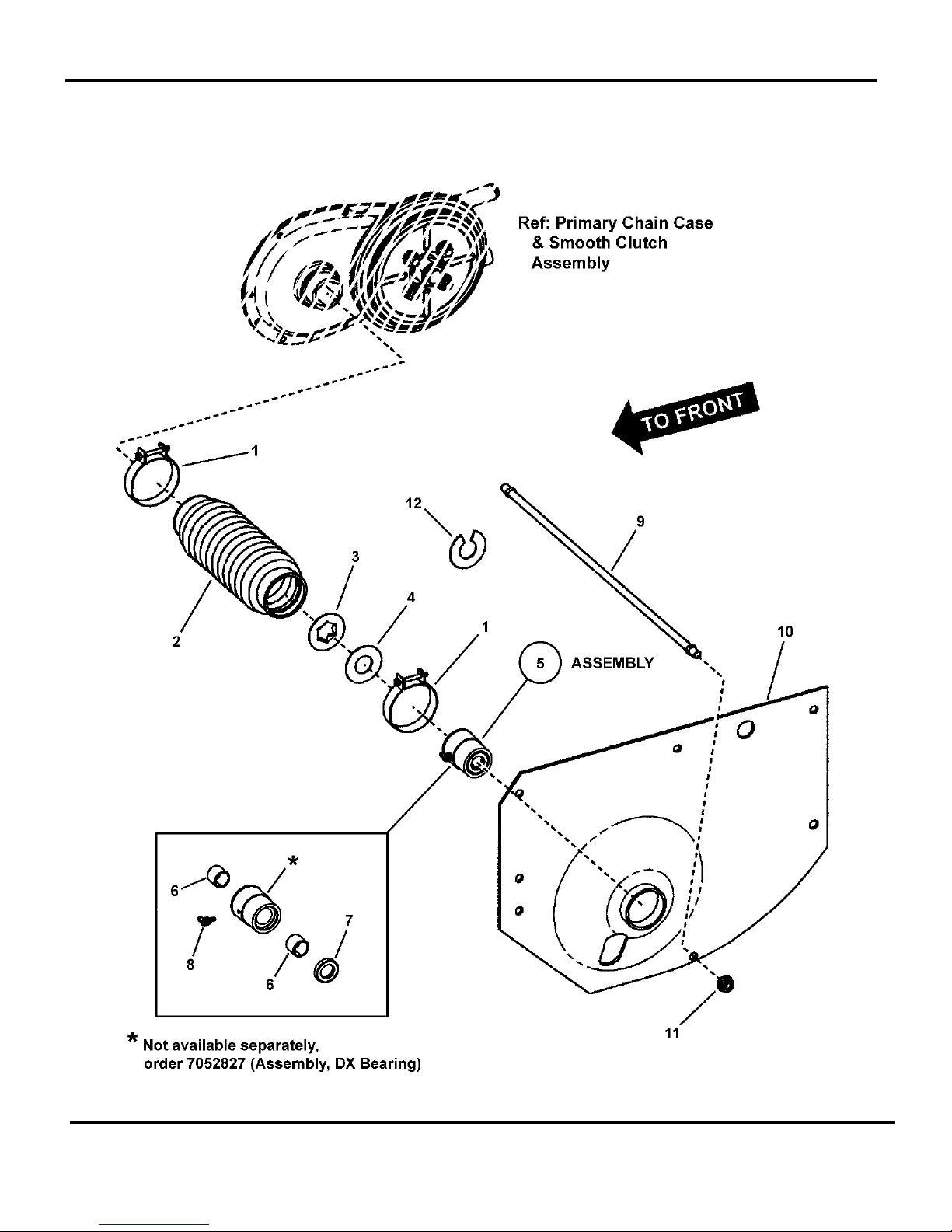

Left Hand Fender & Bearing
