Snapper LT1840 (1694808) User manual

Parts Manual fo

Revision 1,

LAWN TRACTOR ELECTRIC CLUTCH

SERIES 0

McDonough, GA, 30253 U.S.A.

TP 400-5079-1-TC-N

5/30/2007 Manual No. 7006458

HYDRO DRIVE RMO

Briggs & Startton Yard Power Products Group

Briggs & Startton Corporation

MODEL

LT1840

(

1694808

)

LT18400

(

2690404

)

LT2040

(

2690500

)

LT20440

(

2690283

)

YT2050

(

1694637

)

Table Of Content

TP 400-5079-1-TC-N

Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH

SERIES 0 3

PAGE GROUP

4Wheels & Tires Group

6Hood, Grille & Dash Group

8Steering Group - Manual Steering

10 Frame & Front Axle Group

14 Controls Group

18 Cruise Control Group

20 Transmission Group - Tuff Torq K-57

24 Transmission SERVICE PARTS - Tuff Torq K-57A

30 Seat & Seat Deck Group

32 Engine & Electric Clutch Group - 18HP & 20HP B&S, Vanguard

34 Lift Group - Manual Lift

36 Lift Group - Manual Lift with Cruise Control

38 40" Mower Deck - Housing, Arbors & Blades

42 40" Mower Deck - Housing, Arbors & Blades

46 40" Mower Deck - Belt, Idler Arm & Hitch

48 40" Mower Deck - Height Adjustment & Roller Bar

52 44" Mower Deck - Housing, Arbors & Blades

56 44" Mower Deck - Housing, Arbors & Blades

60 44" Mower Deck - Belt, Idler Arm & Hitch

62 44" Mower Deck - Height Adjustment

66 Decals Group

68 Electrical Group

Wheels & Tires Group

TP 400-5079-1-TC-N

Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH

SERIES 0

Wheels & Tires Group

Footnotes:

TP 400-5079-1-TC-N

Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH

SERIES 0 5

Part No Descri

tionItem Qt

Note

1 1722065 2 WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 2, 3, 4,

5, & 6)

2 1722838 1 TIRE, 15 x 6, Super Turf

3 1664090 1 TUBE, Tire, Front, 4.10/3.50

4 1717056 2 BEARING, Ball

5 1722837 1 WHEEL, 4-1/2" x 6"

6 2172353 4 VALVE STEM & CAP ASSEMBLY

7 1722726 2 WASHER, Special

8 1919394 4 WASHER, 1

9 2832577 2 RING, Retaining, External #98

10 1722676 4 CAP, Hub, Gray

11 1729279 2 KEY, Parellel, 3/16 x 3/16 x 1-1/2

12 2860202 8 WASHER, 3/4

13 1709527 2 SPACER

14 1726491 2 WHEEL & TIRE ASSEMBLY, Rear, (Includes Ref. Nos. 6, 15, 16

& 17)

15 1727136 1 TIRE, 22 x 10, 10 Super Turf

16 2173477 1 TUBE, Tire, 20 x 8, Rear

17 1726492 1 WHEEL, 7 x 9.97 Dia. 3/4 ID, Hub

18 1722717 2 WASHER, Special

19 1960114 2 WASHER, 3/4 x 1-1/16 x 5/64

20 2827794 2 RING, "E" External

Hood, Grille & Dash Group

TP 400-5079-1-TC-N

Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH

SERIES 0

Hood, Grille & Dash Group

Footnotes:

TP 400-5079-1-TC-N

Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH

SERIES 0 7

Part No Descri

tionItem Qt

Note

1 1728031D 1 HOOD, W/Scoop

4 1721804D 1 PANEL, R.H. Side

5 1721803D 1 PANEL, L.H. Side

6 1721810 1 HEADLIGHT ASSEMBLY (Includes Ref. Nos. 22, 23 & 24)

7 1721802D 1 GRILLE

8 1930641 12 NUT, Hex Flange 1/4-20 Whiz Lock

9 1726827 1 DASHBOARD (Used only on YT & LT models)

10 1726894 1 DASHBOARD, W/Hydraulic Lift Slot (Used only on GT models)

12 1721808A 1 HINGE, Hood L.H.

13 1721809A 1 HINGE, Hood R.H.

14 1723123 1 ROD, Dash Support

15 1933896 1 NUT, Hex Lock 10-24 w/Nylon Insert

16 1960392 1 SCREW, Pan Head Phillips #10-24 x 1

17 1960295 12 SCREW, Hex Whiz Lock Flange 1/4-20 x 5/8

18 1733457A 1 DUCT, Air Inlet

19 1726895 1 DASHBOARD, w/Buzzer Hole (Used only on Barons models)

20 1722285 1 COVER, Dash (Used only on Barons models)

21 1722607 1 SCREW, Pan Head Torx #8-16 x 1/2 Plastite (Used only on Barons models)

22 1677371 4 BULB, Headlight

23 1723451 4 SOCKET ASSEMBLY, Seal

24 1722902 1 REFLECTOR, Headlight

Steering Group - Manual Steering

TP 400-5079-1-TC-N

Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH

SERIES 0

Steering Group - Manual Steering

Footnotes:

TP 400-5079-1-TC-N

Manual No. 7006458LAWN TRACTOR ELECTRIC CLUTCH

SERIES 0 9

Part No Descri

tionItem Qt

Note

1 1722318 1 STEERING WHEEL, Straight, Shaft

2 1725024 1 CAP, Steering Wheel, Plain

3 1960540 1 PIN, Spring, 5/16 x 2-1/2

4 1722749 1 COVER, Rubber, Upper Steering Shaft

5 1960114 5 WASHER, 3/4

6 2176440 2 BUSHING, 15/32 x 7/8 x 7/8, Nylon

7 1960636 2 NUT, Hex KEPS 5/6-18

8 1721736A 1 PLATE, Mounting Steering

9 1933988 2 NUT, Push

10 1960655 2 CARRIAGE BOLT, 5/16-18 x 1-1/4

11 1724470A 1 GEAR & SHAFT ASSEMBLY, Steering

12 1960032 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black

13 1930645 1 NUT, Hex Flange Two-Way Lock, 3/8-16

14 1664847 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4

15 1721626 1 SHAFT & PINION ASSEMBLY, Steering Manual

16 1611710 1 RING, Clipring Extension

17 1722459 1 BEARING, 3/4 x 1-11/16 x 13/16, 3” Long Housing

18 1722461 1 SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal

19 1931211 2 NUT, Hex Flange Whiz Lock, 3/8-16, Small

20 1933260 2 CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 3/4, Black

21 1919314 1 PIN, Cotter, 1-1/4, Black

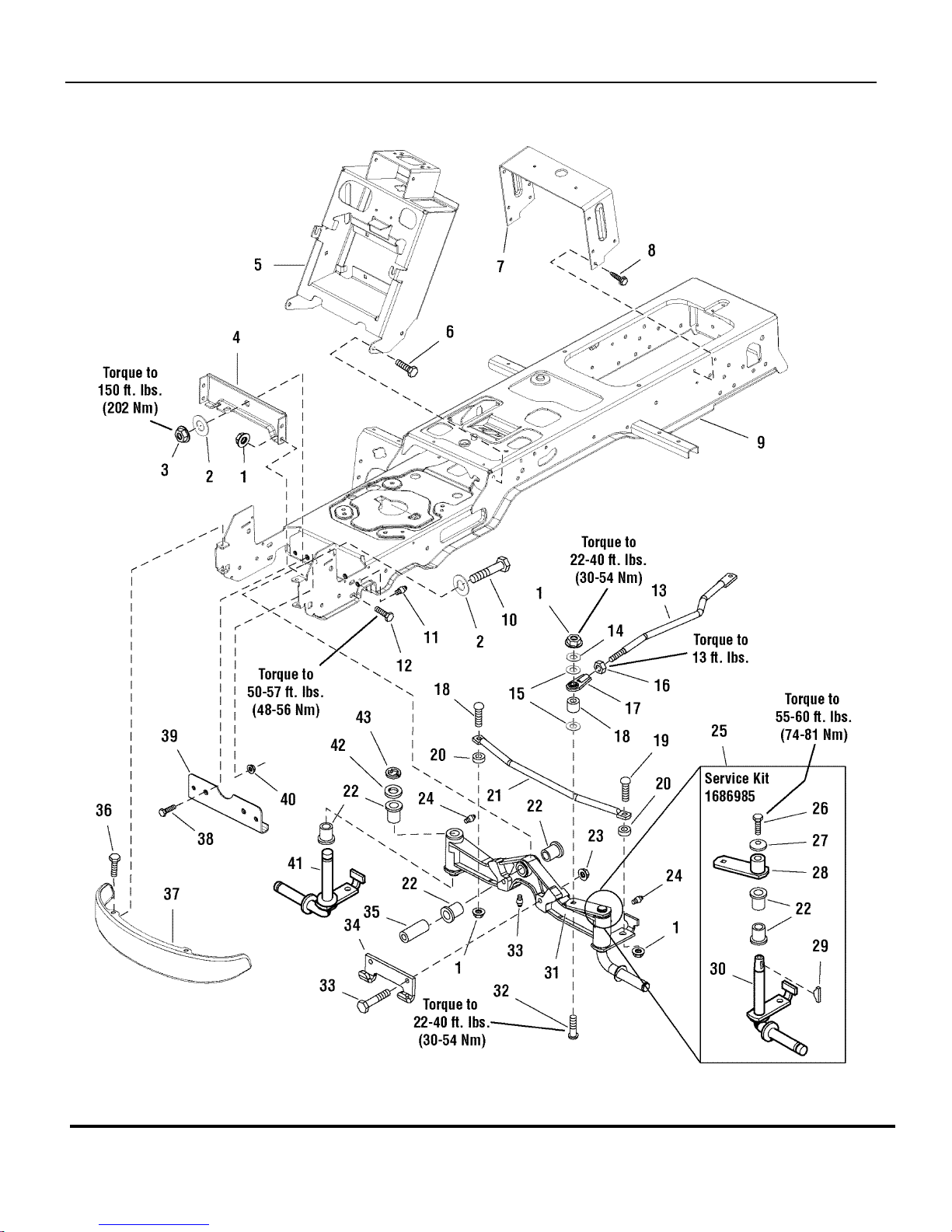

Frame & Front Axle Group

TP 400-5079-1-TC-N

Manual No. 7006458 LAWN TRACTOR ELECTRIC CLUTCH

SERIES 0
