Snapper FB13250BS User manual

Parts Manual fo

Revision 1,

FIELD & BRUSH MOWER

SERIES 0

2005

McDonough, GA, 30253 U.S.A.

TP 400-5009-1-CW-N

8/30/2005 Manual No. 7006933

SNAPPER PRODUCTS, INC.

MODEL

FB13250B

FB15250KW

Table Of Content

TP 400-5009-1-CW-N

Manual No. 7006933FIELD & BRUSH MOWER

SERIES 0 3

PAGE GROUP

4HANDLE PARTS GROUP

8ENGINE DECK GROUP

12 MOWER DECK PARTS GROUP

14 DECALS GROUP

16 ELECTRICAL & MISC. GROUP

18 WIRING HARNESS GROUP

20 WIRING SCHEMATIC

22 Hardware Identification & Torque Specifications

HANDLE PARTS GROUP

TP 400-5009-1-CW-N

Manual No. 7006933 FIELD & BRUSH MOWER

SERIES 0

HANDLE PARTS GROUP

Footnotes:

TP 400-5009-1-CW-N

Manual No. 7006933FIELD & BRUSH MOWER

SERIES 0 5

Part No Descri

tionItem Qt

Note

1 1719965 1 GRIP, Handle

2 7058960 1 LEVER, Blade Clutch Engage (weldment) replaces 1723595

3 7027802 1 CABLE, Throttle, Kawasaki part number stamped on cable

3 7027394 1 CABLE, Throttle, Briggs part number stamped on cable

4 7014871 2 LUBE FITTING, 3/16” hole

5 7091686 2 SCREW, 1/4-20 x 3/4” Hex Washer Self-Tap

6 7029167 1 DECAL, Throttle, Brush Cutter see Decals group

7 1723550 1 BRACKET, Blade Engage Lock

8 7091318 10 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 5

9 7028200 1 SWIVEL, Adjustable, 5/16-18 thread

10 7059204 1 LEVER, Transmission Drive (weldment) replaces 1723573

11 7091601 15 NUT, 5/16-18 Hex Flange Lock, GR 5

12 7090913 2 SCREW, #10-24 x 1/2” Hex Washer Self-Tap

13 1723553 1 CONTROL DECK & DASH PANEL (weldment)

14 7091813 4 SCREW, 1/4-20 x 1-3/4 Hex Head Cap, GR 5

15 7091298 8 NUT 5/16-18 Hex Nyloc

16 7011791 3 RETAINER, 5/16” Bolt

17 7072487 1 BRACKET, Handle Pivot, RH

18 7023354 1 SWITCH, Seat NC

19 1723569 2 HANDLE, Lower

20 1723564 1 SPRING, Safety Return

21 1723561 1 WELDMENT, Safety Bar

22 7044927 1 BRACKET, Safety Bar Pivot, LH replaces 1723566

23 7033736 1 HANDLE, Upper was 1723572

24 1719968 1 COVER, Foam was 1723568

25 7090209 6 SCREW, 5/16-18 x 1” Hex Head Cap, GR 2

26 7091540 4 SCREW, 5/16-18 x 1-1/2” Hex Head Cap, GR 5

27 1723570 2 BEARING, 3/4 I.D.

28 1725232 1 WELDMENT, Drive Engagement Bar

29 1725233 1 GRIP, Reverse Handle

30 7090122 2 WASHER, 3/8 SAE Flat

31 7091518 2 NUT, 3/8-24 Hex Nyloc

32 7091294 8 WASHER, .28 x .63 x .06 Flat

33 7091310 2 HAIR PIN, #13

34 1723554 2 BALL JOINT, Type R (5/16-24 thread)

35 1723556 1 NUT, 3/8-24LH Hex Jam

36 1723557 1 BALL JOINT LH (3/8-24 LH thread)

HANDLE PARTS GROUP

TP 400-5009-1-CW-N

Manual No. 7006933 FIELD & BRUSH MOWER

SERIES 0

HANDLE PARTS GROUP

Footnotes:

TP 400-5009-1-CW-N

Manual No. 7006933FIELD & BRUSH MOWER

SERIES 0 7

Part No Descri

tionItem Qt

Note

37 7092031 1 NUT, 5/16-24 Hex Jam

38 1723555 1 ROD, Trans. Engage, Lower (3/8-24 LH & 5/16-24 threads)

39 1723351 1 BRACKET, Deck Safety Switch

40 1723552 1 SWITCH, Deck Safety

41 1723662 1 BOLT, 1/2 x 1-3/16 to 3/8-16 Shoulder

42 7041868 1 SPACER, Transmission, Express

43 7090188 1 WASHER, 5/16” SAE Flat

44 1723596 1 BRACKET, Clutch Engage Lever

45 7091908 4 SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5

46 7091603 4 NUT, 1/4-20 Hex Nyloc

47 7010745 1 BALL JOINT, 3/8-24 Thread

48 1725231 1 ROD, Trans. Engage, Upper (3/8-24 thread)

49 7076938 1 SCREW, 5/16-18 x 2-1/4” Hex Head Cap, GR 5

50 7029495 2 CAP, Push Plastic

51 7012080 3 CABLE TIE, 7”

52 1723616 1 BRACKET, Fuel Tank

53 7091619 1 NUT, 3/8-16 Hex Flange Lock

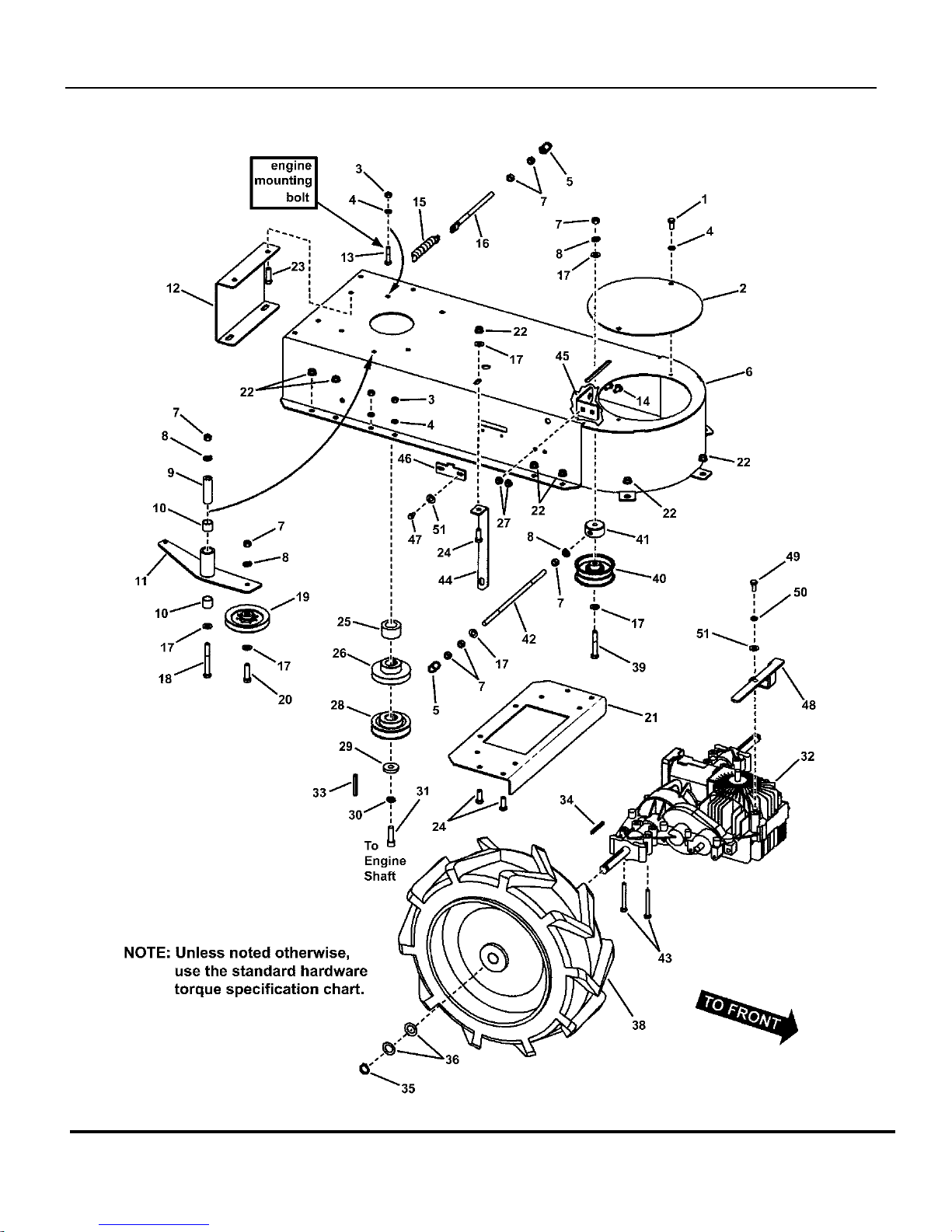

ENGINE DECK GROUP

TP 400-5009-1-CW-N

Manual No. 7006933 FIELD & BRUSH MOWER

SERIES 0

ENGINE DECK GROUP

Footnotes:

TP 400-5009-1-CW-N

Manual No. 7006933FIELD & BRUSH MOWER

SERIES 0 9

Part No Descri

tionItem Qt

Note

1 7091318 10 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 5

2 1723549 1 PLATE, Clutch Cover

3 7091511 4 NUT, 5/16-18 Hex, GR 5 or B

4 7090187 18 WASHER, 5/16” Split Lock

5 1704723 2 CAP, Black

6 1723803 1 DECK, Engine (weldment)

7 7091302 24 NUT, 3/8-16 Hex, GR 5 or B

8 7091320 22 WASHER, .38 x .68 x .09 Split Lock

9 1723806 1 BOSS, Idler Arm Pivot

10 1723805 2 SLEEVE BUSHING, 3/4 ID

11 1723804 1 IDLER ARM, Transmission (weldment)

12 1723592 1 COVER, Engine Back

13 7091540 4 SCREW, 5/16-18 x 1-1/2” Hex Head Cap, GR 5 engine mount bolts

14 7090001 2 BOLT, 5/16-18 x 3/4” Short Neck Carriage, GR 5

15 1723807 1 SPRING, Idler

16 1723808 1 ROD, Idler Tension (3/8-16 thread)

17 7090122 9 WASHER, 3/8 SAE Flat

18 7092055 1 SCREW, 3/8-16 x 3-1/4” Hex Head Cap, GR 5

19 1723583 1 PULLEY, Idler

20 7091497 1 SCREW, 3/8-16 x 1-1/2” Hex Head Cap, GR 5 was 91553 (1-3/4” long)

21 1723591 1 PLATE, Lower Handle Mount

22 7091619 12 NUT, 3/8-16 Hex Flange Lock or 90613

23 7076941 2 SCREW, 3/8-16 x 1-1/4” Hex Head Cap, GR 5

24 7091304 7 SCREW, 3/8-16 x 1 Hex Head Cap, GR 5

25 1723585 1 SPACER, Engine Shaft

26 1723586 1 PULLEY, Blade Clutch Drive

27 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5

28 1723588 1 PULLEY, Trans. Drive

29 7091807 1 WASHER, 7/16” Flat (heavy duty)

30 7091301 1 WASHER, 7/16” Split Lock

31 1723589 1 CAPSCREW, 7/16-20 x 1-12” Socket Head

32 1723620 1 TRANSAXLE

33 1723590 1 KEY, 1/4” Square x 2-1/8” (engine shaft)

34 7072386 2 KEY, 3/16” Square x 2-3/16”

35 7029738 2 RETAINING RING, 3/4” External

36 7031965 4 WASHER, 3/4” I. D. Thrust

37 1723580 1 DRIVE WHEEL, Left not shown

**Purchase engine & engine parts other than those listed from engine service outlets.

ENGINE DECK GROUP

TP 400-5009-1-CW-N

Manual No. 7006933 FIELD & BRUSH MOWER

SERIES 0
