Snapper 5900731 User manual

Not for

Reproduction

Parts Manual fo

26 & 27 HP HYDRO DRIV

500

MID-MOUNT ZTR

Revision: K 3/11/2011

Briggs & Stratton Yard Power Products Group

Manual No. 5101455

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

Descri

tionModel No.

5900731 500ZB2648

5900982 500ZB2748

Not for

Reproduction

Not for

Reproduction

Table Of Content

TP 400-5348-K-MZ-N

26 & 27 HP HYDRO DRIVE

500Z 3

Manual No. 5101455

PAGE GROUP

4Wheel & Tire Group

6Main Frame & Front Casters Group

8Seat Mount & Floor Group

10 Fuel Tank & Mount Group

12 Evap Canister Group

14 Engine & PTO Group

16 Motion Control Group

18 Parking Brake Group

20 Pump Drive Group

22 Hydraulic Group

24 Rear Bumper Group

26 Decals - Brand & Model

28 Decals - Safety & Operational

30 Deck Lift Group

32 48" Mower Deck Group - Pulleys, Belts & Idler Arm

34 48" Mower Deck Group - Housing, Covers, Spindles & Blades

36 48" Mower Deck Group - Hanger Chains

38 48" Mower Deck Group - Rollers

40 Instrument & Control Panel Group

42 Wiring Schematic - 26HP & 27HP Briggs & Stratton

Not for

Reproduction

Manual No. 5101455 26 & 27 HP HYDRO DRIVE

500Z

Wheel & Tire Group

Not for

Reproduction

Footnotes:

Manual No. 510145526 & 27 HP HYDRO DRIVE

500Z 5

Wheel & Tire Group

Part No Descri

tionItem Qty

1 5101418 2 WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO

2 2172353 2 VALVE STEM & CAP ASSEMBLY (SV)

3 5101418X1 4 BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV) (Two per wheel)(Service Part for #

5101418)

4 5021043 4 BEARING, RETAINER (SV) (Two per wheel)

5 5045996 2 CASTER AXLE DDSH

6 5025158 2 WASHER, 1/2 SAE

7 5025017X52 2 BOLT, 1/2-13 X 6-1/2 GD8 YZ

8 5025396 2 NUT, 1/2-13 HEX NYLOCK FLANGE

9 5101375 2 TIRE ASSEMBLY, REAR, 20 X 10.0 X 10

10 5020601 8 NUT, 1/2-20, FOR WHEEL BOLT SILVER

11 5101418X2 2 WHEEL FOR 11X4.0-5 TIRE ASSM (SV) (Service Part for # 5101418)

12 5101345X1 2 TIRE, 20 X 10 - 10 TURFMASTER (SV) (Service Part for # 5101375)

13 5023095X2 2 WHEEL ASSEMBLY 20 X 8.0 X 10 (SV) (Service Part for # 5101375)

Not for

Reproduction

Manual No. 5101455 26 & 27 HP HYDRO DRIVE

500Z

Main Frame & Front Casters Group

Not for

Reproduction

Footnotes:

Manual No. 510145526 & 27 HP HYDRO DRIVE

500Z 7

Main Frame & Front Casters Group

Part No Descri

tionItem Qty

1 5025457 2 BOLT, 1/4-28 X 1/2, GD5 YZ

2 5402539D 2 WELD, CASTER YOKE, IS500Z

3 5020884 4 BEARING, TAPERED ROLLER, 1"

4 5021072 2 SEAL, GREASE

5 5025449 4 WASHER, BELLEVILLE - 1.500 X .755

6 5025448 2 NUT, 3/4-16, HEX JAM NYLON LOCK

7 5100882 2 CAP, CASTER SPINDLE, LOW PROFILE

8 5402841D 1 WELD, MAINFRAME, SNAPPER PRO 38-44 - RED

9 5100716 1 GROMMET, 2" ID

10 5021379 1 GROMMET, 7/8

11 5020883 1 CUP, BEARING (SV)

12 5020095 2 GREASE FITTING, 1/4-28 STRAIGHT

Not for

Reproduction

Manual No. 5101455 26 & 27 HP HYDRO DRIVE

500Z

Seat Mount & Floor Group

Not for

Reproduction

Footnotes:

Manual No. 510145526 & 27 HP HYDRO DRIVE

500Z 9

Seat Mount & Floor Group

Part No Descri

tionItem Qty

1 5025155 3 WASHER, 5/16 SAE

2 5025011X8 4 BOLT, 5/16-18 X 1 GD5 YZ

3 5025392 10 NUT, 5/16-18 HEX NYLOCK FLANGE

4 5025127 1 NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)

5 5025011X10 1 BOLT, 5/16-18 X 1-1/4 GD5 YZ

6 5021878 1 SPACER, .25 X .37 X .25

7 5025144X6 1 BOLT, 1/4-20 X 3/4", CARRIAGE

8 5025391 1 NUT, 1/4-20 HEX NYLOCK FLANGE

9 5044617 2 WASHER, .34 X 1.25 X 10 GA

10 5025394 10 NUT, 3/8-16 HEX NYLOCK FLANGE

11 5403706D 1 PLATE, SIO FLOOR MOUNT - RED

12 5100909 1 SEAT, NO ARM REST

13 5403015D 1 SEAT PLATE, STOP - RED

14 7078299 2 SPRING, SEAT SUPPORT

15 5402859D 1 MOUNT, SEAT STOP - RED

16 5403555D 1 PLATE, FOOT REST - RED

17 5403574D 1 WELD, PLATE, SEAT MOUNT - RED

18 5023263 1 VINYL CLAMP

19 5101374 1 SAFETY WALK, FLOOR REST, 16.00 X 6.00

20 5101333 1 SAFETY WALK, FLOOR PLATE, S50X, 10X17.13

21 5101004 1 SAFETY WALK, 4.00 X 7.50

22 5025013X8 6 BOLT, 3/8-16 X 1 GD5 YZ

23 5025156 6 WASHER, 3/8 SAE

24 1686907 1 ARM REST, (SET OF TWO) (SV)

25 5100636 1 SPRING, SEAT ADJUSTMENT (SV)

26 5061599X1 1 KIT, SEAT RAILS (COMPLETE)(SV)

27 35097 4 MOUNT, VIBRATION, RUBBER

28 197546 2 BUMPER, ROPS

29 5025481 4 BOLT, 3/8-16 X 5/8, SERRATED UNDER HEAD

30 5025480 4 WASHER, 3/8" ID, INTERNAL TOOTH

31 5025011X6 1 BOLT, 5/16-18 X 3/4 GD5

32 5041930 2 SPACER, .38 X .50 X .27

Not for

Reproduction

Manual No. 5101455 26 & 27 HP HYDRO DRIVE

500Z

Fuel Tank & Mount Group

This manual suits for next models

Table of contents

Other Snapper Lawn Mower manuals

Snapper

Snapper ELP21702BV Operation and maintenance manual

Snapper

Snapper 7-5122 Manual

Snapper

Snapper 2167520B (7800428) User manual

Snapper

Snapper ELP216752BV Operation and maintenance manual

Snapper

Snapper 285Z Series User manual

Snapper

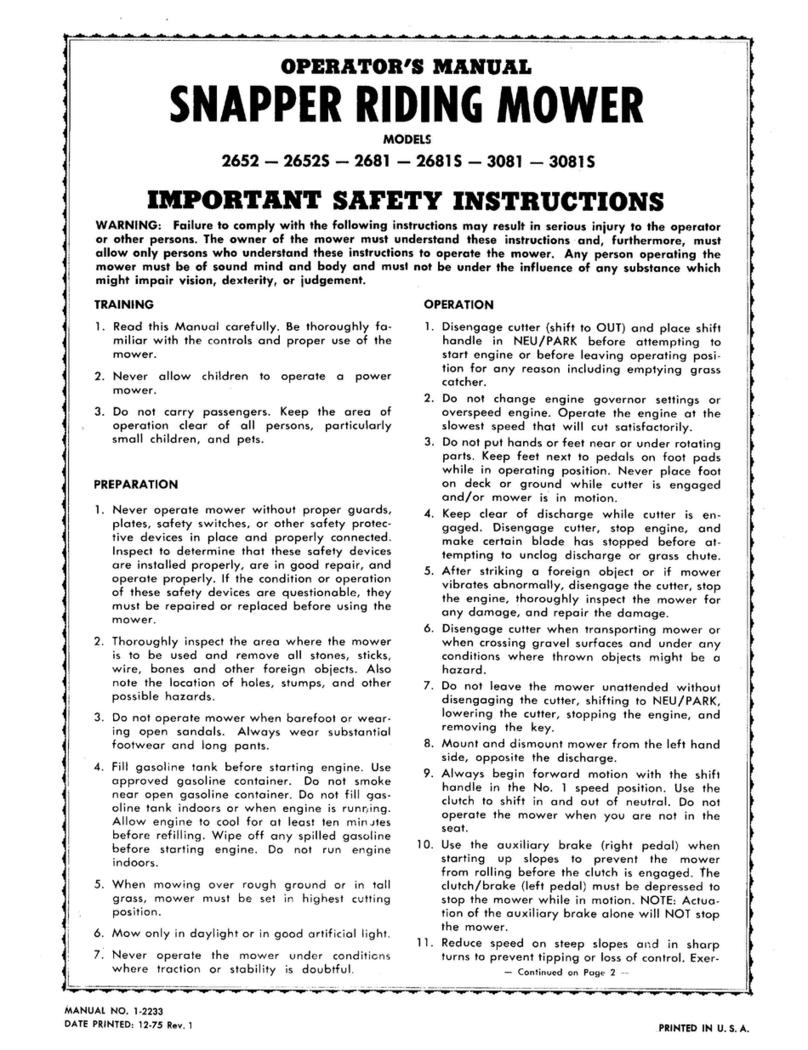

Snapper 2652 User manual
