Snapper FRP216012E User manual

Parts Manual fo

Revision 3,

1" STEEL DECK WALK BEHIND MOWERS

"FR" SERIES 12 & 15

McDonough, GA, 30253 U.S.A.

TP 400-5138-3-WB-N

8/15/2007 Manual No. 7006060

ELECTRIC STAR

Briggs & Startton Yard Power Products Group

Briggs & Startton Corporation

MODEL

FRP216012E (82401)

FRPS216015E (84287)

NFRP216012E (82431)

NFRP216012E (82549)

Table Of Content

TP 400-5138-3-WB-N

Manual No. 700606021" STEEL DECK WALK BEHIND MOWERS

"FR" SERIES 12 & 15 3

PAGE GROUP

4Handles & Controls (Non-Swivel Wheel Models)

8Handles & Controls (Swivel Wheel Model)

12 Cutting Deck, Blade

14 Front Wheel Bracket (Non-Swivel Wheel Models)

16 Front Wheel Bracket (Swivel Wheels Model)

18 Rear Wheel Brackets, Latches

20 Front Wheels (Non-Swivel Wheel Models)

22 Front Wheels (Swivel Wheels Model)

24 Rear Wheels (Non-Swivel Wheel Models)

26 Rear Wheels (Swivel Wheel Model)

28 Drive System Self-Propelled

32 Transmission (Differential)

34 Decals I

36 Decals II

38 Electric Start Components

40 Side Chute, Adapter

42 Grass Bag - Accessory

44 Thatcherizer - Accessory

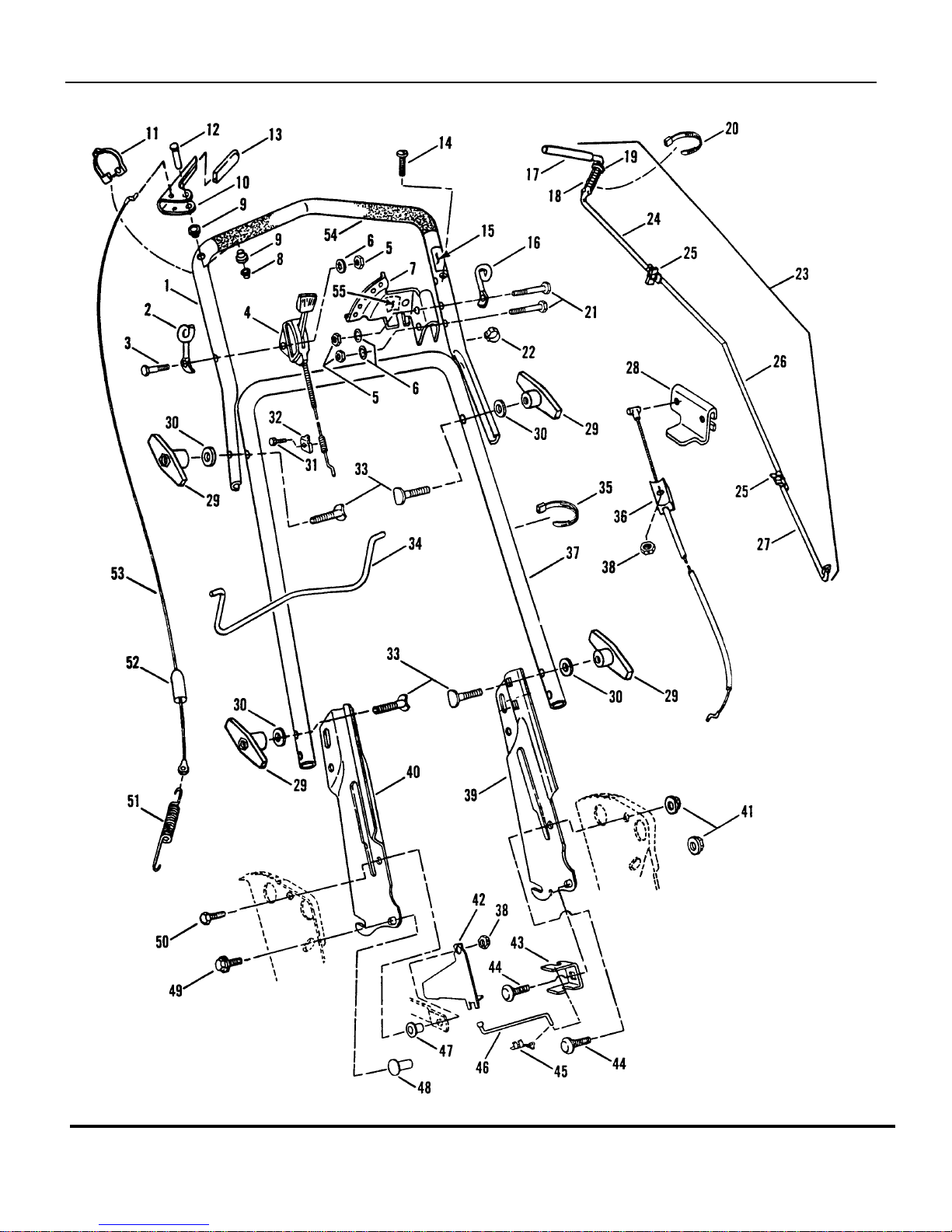

Handles & Controls (Non-Swivel Wheel Models)

TP 400-5138-3-WB-N

Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS

"FR" SERIES 12 & 15

Handles & Controls (Non-Swivel Wheel Models)

Footnotes:

TP 400-5138-3-WB-N

Manual No. 700606021" STEEL DECK WALK BEHIND MOWERS

"FR" SERIES 12 & 15 5

Part No Descri

tionItem Qt

Note

1 7046914 1 HANDLE, Upper Was 24889

2 7026141 1 GUIDE, Pull Rope (Right Side)

3 7090505 1 SCREW, 1/4-20 x 2 Hex Head Cap, Grade 5

4 7029036 1 CONTROL, Throttle 48.0" (Briggs 6 HP California Model) (Model: NFRP216012E)

4 7024136 1 CONTROL, Throttle 49.75" (Briggs 6 HP OHV (Over Head

Valve) Model)

(Model: FRP216012E)

5 7091576 3 NUT, 1/4-20 Hex Was 91100

6 7090053 3 WASHER, 1/4 Internal Tooth Lock Was 91023

7 7038478 1 SECTOR, Speed

8 7091020 1 PUSH-NUT

9 7014343 2 BUSHING

10 7032826 1 HANDLE, Wheel Drive

11 7026219 1 CLAMP, 7/8 Double Cable

12 7023792 1 PIN, Clutch Cable

13 7014307 1 GRIP, Wheel Drive Handle

14 7090545 1 SCREW, 5/16-24 x 1-1/2 Machine, Grade 5

15 7024211 1 DECAL, Blade Control (Left Side)

16 7022779 1 GUIDE, Pull Rope (Left Side)

17 7023801 1 GRIP, Speed Control Handle

18 7012093 1 SPRING, Speed Control

19 7090188 1 WASHER, 3/8" Flat

20 7024649 1 TIE, Wire

21 7079577 2 SCREW, 1/4-20 x 1-1/2 Hex Head Cap, Grade 5

22 7023813 4 CLIP, Cable Wiring

23 7029217 1 ASSEMBLY, Speed Control Lever (Includes items 24 thru 27)

24 7029217 1 ROD, Upper Was 29153

25 7029161 2 WING-NUT, 1/4-20

26 7029217 1 ROD, Intermediate Was 29154

27 7029217 1 ROD, Lower Was 29155

28 7033904 1 CLIP, Blade Control

29 7035744 4 T-KNOB, 5/16-18 Thread

30 7090391 4 WASHER, 5/16 Internal Tooth Lock

31 7023154 1 SCREW, #10-32 x 5/8" Hex Head Cap

32 7023153 1 CLAMP, Casing

33 7091740 4 SCREW, 5/16-18 x 1-7/8 Curved Head, Grade 2 Was 91189

34 7024978 1 CONTROL, Blade

35 7024641 3 TIE, Wire

36 7025036 1 CABLE, Blade Control

Handles & Controls (Non-Swivel Wheel Models)

TP 400-5138-3-WB-N

Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS

"FR" SERIES 12 & 15

Handles & Controls (Non-Swivel Wheel Models)

Footnotes:

TP 400-5138-3-WB-N

Manual No. 700606021" STEEL DECK WALK BEHIND MOWERS

"FR" SERIES 12 & 15 7

Part No Descri

tionItem Qt

Note

37 7024890 1 HANDLE, Middle

38 7091606 2 NUT, 5/16-24 Hex Center Lock, Grade 5 Was 91074

39 7033985 1 BRACKET, Middle Handle (Left Side)

40 7033986 1 BRACKET, Middle Handle (Right Side)

41 7091601 2 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070

42 7032408 1 GUIDE, Lower V-Belt

43 7034892 1 ANCHOR, Speed Control

44 7090799 1 BOLT, 5/16-18 x 5/8 Carriage, Grade 5 Was 91026

45 7010937 1 CLIP, Transfer Rod

46 7023790 1 ROD, Transfer

47 7012114 1 BUSHING, Differential

48 7090895 1 TEE-NUT, 5/16-18 Thread

49 7090595 1 BOLT, 5/16-18 x 3/4 Hex Flange Lock, Grade 5

50 7090238 1 SCREW, 5/16-24 x 1" Hex Head Cap, Grade 5

51 7012122 1 SPRING, Clutch

52 7012121 1 COVER, Vinyl

53 7025013 1 CABLE, Clutch Pull (Z-Bend)

54 7022460 1 GRIP, Foam

55 7024087 1 DECAL, Speed Select

Handles & Controls (Swivel Wheel Model)

TP 400-5138-3-WB-N

Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS

"FR" SERIES 12 & 15

Handles & Controls (Swivel Wheel Model)

Footnotes:

TP 400-5138-3-WB-N

Manual No. 700606021" STEEL DECK WALK BEHIND MOWERS

"FR" SERIES 12 & 15 9

Part No Descri

tionItem Qt

Note

1 7046914 1 HANDLE, Upper

2 7046465 1 GUIDE, Pull Rope (Right Side)

3 7091813 1 SCREW, 1/4-20 x 1-3/4 Hex Head Cap, Grade 5 Was 91222

4 7029036 1 CONTROL, Throttle 48.0"

5 7091576 4 NUT, 1/4-20 Hex Was 91100

6 7090053 2 WASHER, 1/4 Internal Tooth Lock Was 91023

7 7038478 1 SECTOR, Speed

8 7091020 1 PUSH-NUT

9 7014343 2 BUSHING

10 7032826 1 HANDLE, Wheel Drive

11 7026219 1 CLAMP, 7/8" Double Cable

12 7023792 1 PIN, Clutch Cable

13 7014307 1 GRIP, Wheel Drive Handle

14 7090545 1 SCREW, 5/16-24 x 1-1/2" Machine, Grade 5

15 7024211 1 DECAL, Blade Control (Left Side)

16 7022779 1 GUIDE, Pull Rope (Left Side)

17 7023801 1 GRIP, Speed Control Handle

18 7012093 1 SPRING, Speed Control

19 7090188 1 WASHER, 3/8" Flat

20 7024649 1 TIE, Wire

21 7079577 2 SCREW, 1/4-20 x 1-1/2" Hex Head Cap, Grade 5

22 7023813 4 CLIP, Cable Wiring

23 7029217 1 ASSEMBLY, Speed Control Lever (Includes items 24 thru 27)

24 7029217 1 ROD, Upper Was 29153

25 7029161 2 WING-NUT, 1/4-20

26 7029217 1 ROD, Intermediate Was 29154

27 7029217 1 ROD, Lower Was 29155

28 7033904 1 CLIP, Blade Control

29 7035744 4 T-KNOB, 5/16-18 Thread

30 7090391 4 WASHER, 5/16 Internal Tooth Lock

31 7023154 1 SCREW, #10-32 x 5/8" Hex Head Cap

32 7023153 1 CLAMP, Casing

33 7091740 4 SCREW, 5/16-18 x 1-7/8" Curved Head, Grade 2 Was 91189

34 7024978 1 BAIL, OPC Control (16.6" Wide)

35 7024641 3 TIE, Wire

36 7025036 1 CABLE, Blade Control

37 7024890 1 HANDLE, Middle

Handles & Controls (Swivel Wheel Model)

TP 400-5138-3-WB-N

Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS

"FR" SERIES 12 & 15
