Snapper 216518B User manual

Parts Manual fo

Revision 1,

21" STEEL DEC

SERIES 18

2005

McDonough, GA, 30253 U.S.A.

TP 400-5047-1-WB-N

9/9/2005 Manual No. 7006139

SNAPPER PRODUCTS, INC.

WALK BEHIND MOWERS

PUSH MODELS PROPELLED

MODELS

216518B EP217018BV

ERP217018BV

P216018KWV

P216518B

P217018BV

RP216018KWV

RP217018BV

RP217018BVE

Table Of Content

TP 400-5047-1-WB-N

Manual No. 700613921" STEEL DECK

SERIES 18 3

PAGE GROUP

4HANDLES & CONTROLS

8CUTTING DECK, BLADES

12 FRONT WHEEL BRACKET

14 REAR WHEEL BRACKETS, LATCHES

16 FRONT WHEELS

18 REAR WHEELS

20 DRIVE SYSTEM SELF-PROPELLED

24 TRANSMISSION (DIFFERENTIAL)

26 THROTTLE CONTROLS/ENGINE SPECS

28 SIDE CHUTE ADAPTER

30 ACCESSORY GRASS BAG

32 ELECTRIC START COMPONENTS

34 DECALS

36 SNAPPERIZER ACCESSORY

38 THATCHERIZER ASSEMBLY

40 RECYCLING KITS ACCESSORY

HANDLES & CONTROLS

TP 400-5047-1-WB-N

Manual No. 7006139 21" STEEL DECK

SERIES 18

HANDLES & CONTROLS

Footnotes:

TP 400-5047-1-WB-N

Manual No. 700613921" STEEL DECK

SERIES 18 5

Part No Descri

tionItem Qt

Note

1 7074411 1 HANDLE, Upper All

2 7074156 1 HANDLE, Middle All

3 7033985 1 HANDLE, Lower LH (Adjustable) All

4 7033986 1 HANDLE, Lower RH (Adjustable) All

5 7074418 1 BAIL, OPC Control All

6 7034872 1 CLIP, Zone Control All

7 7034608 1 *CABLE, Zone Control (52-63/64” Long)

7 7078078 1 CABLE, Zone Control (50-31/64” Long) P217018BVE & RP217018BVE

7 7074141 1 CABLE, Zone Control (56-5/16” Long) P216018KWV & RP216018KWV

8 7074473 1 HANDLE, Clutch Self-Propelled Models

9 7028407 1 GRIP, International Symbol Self-Propelled Models

10 7034604 1 CABLE, Clutch Control (41-1/4” Long) Self-Propelled Models

11 7012121 1 COVER, Vinyl Self-Propelled Models

12 7012122 1 SPRING, Clutch- 21S Self-Propelled Models

13 7074003 1 BRACKET, Shift All

14 7024641 2 TIE, Wire, 1.29 long, black Self-Propelled Models

15 7073822 1 BRACKET, Bell Crank Self-Propelled Models

16 7013849 1 SPACER, .33 x .63 x .156 Self-Propelled Models

17 7073913 1 BELL CRANK Self-Propelled Models

18 7073826 1 CONTROL PANEL (w/o Ground Drive Slot) 216518B

18 7074140 1 **CONTROL PANEL (w/o Electrical Switch Hole)

18 7074469 1 CONTROL PANEL (w/Electrical Switch Hole) P217018BVE & RP217018BVE

19 7091200 4 SCREW, 1/4-20 x 1/2” Pan Head Self-Tap (Torx) All

20 7091130 1 WASHER, .33 x .88 x .09 Flat Self-Propelled Models

21 7091904 1 SCREW, 5/16-18 x 7/8” Hex Head Cap, GR 5 Self-Propelled Models

22 7090895 1 TEENUT, 5/16-18 Self-Propelled Models

23 7012114 1 BUSHING, Differential, .328 x .625 x .41 Self-Propelled Models

24 7090595 3 BOLT, 5/16-18 x 3/4” Hex Flange Lock GR 5 All

25 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5 was 7090585 (All)

26 7091575 1 NUT, 5/16-18 Hex Center Lock was 7091067 (S-P Models)

27 7074113 1 LEVER, Shift Self-Propelled Models

28 7091606 1 NUT, 5/16-24 Hex Center Lock GR 5 was 7091074 (All)

29 7023813 1 CLIP, Wiring Harness All

30 7091740 4 SCREW, 5/16-18 x 1-7/8” Curved Head GR 2 was 7091189 (All)

31 7035744 4 KNOB, 5/16-18 Wing (Black) All

32 7079577 2 SCREW, 1/4-20 x 1-1/2 Hex Head Cap GR 5 All

33 7090053 3 WASHER, 1/4” Internal Tooth Lock was (All)

Note* used on 216518B, P216518B, P217018BV, RP217018BV, EP217018BV & ERP217018BV

Note** used on P217018BV, P216518B, P216018KWV, RP217018BV, RP216018KWV, EP217018BV & ERP217018BV

Note* See also Throttle Control Page

ref Decal Page

HANDLES & CONTROLS

TP 400-5047-1-WB-N

Manual No. 7006139 21" STEEL DECK

SERIES 18

HANDLES & CONTROLS

Footnotes:

TP 400-5047-1-WB-N

Manual No. 700613921" STEEL DECK

SERIES 18 7

Part No Descri

tionItem Qt

Note

34 7091576 3 NUT, 1/4-20 Hex was 7091100 (All)

35 7090505 1 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5

36 7014343 2 BUSHING, .27 x .35 x .4 Flange Self-Propelled Models

37 7023792 1 PIN, 1/4 x 1-1/2” Self-Propelled Models

38 7091020 1 PUSH-NUT, 1/4” Self-Propelled Models

39 7015753 2 BALL JOINT, 1/4-28 Self-Propelled Models

40 7090095 4 NUT, 1/4-28 Hex Self-Propelled Models

41 7022458 1 FOAM GRIP, 15” long All

42 7091305 1 SCREW, 3/8-16 x 2” Hex Head Cap, GR 5 Self-Propelled Models

42 7091553 1 SCREW, 3/8-16 x 1-3/4” Hex Head Cap, GR 5 Push Models

43 7091585 1 NUT, 3/8-16 Hex Center Lock All

44 7090391 4 WASHER, 5/16” Internal Tooth Lock All

45 7031961 8 WASHER, 7/16” Flat Self-Propelled Models

46 7028465 2 WASHER, Nylon Self-Propelled Models

47 7074133 1 ROD, Speed Control (1/4-28 thread) Self-Propelled Models

48 7028488 1 GUIDE, Rope (1/4-20 thread) All

49 7076978 1 NUT, 1/4-28 Hex GR 5 or B All

50 7012080 2 CABLE-TIE, 7” Self-Propelled Models

51 7074460 1 *THROTTLE CONTROL, .48 x .61 Briggs models

51 7074138 1 *THROTTLE CONTROL, 6.0 KWV Kawasaki models

52 7075308 1 THROTTLE KNOB All

53 7075182 1 KNOB, Shift Self-Propelled Models

54 7026219 1 CLAMP, 7/8” Double Cable Self-Propelled Models

55 7091167 1 SCREW, #8-32 x 1/2” Cross Recess Filister Head Machine Self-Propelled Models

56 7091018 1 NUT, #8-32 Hex Self-Propelled Models

57 7032408 1 BELT GUIDE, Lower Self-Propelled Models

58 7028568 1 WASHER, Belleville Self-Propelled Models

59 7090053 4 WASHER, 1/4” Internal Tooth Lock Self-Propelled Models

60 7090188 1 WASHER, 3/8” Flat Self-Propelled Models

61 7034162 1 COTTER PIN, 5/16 Self Lock Self-Propelled Models

62 7029365 1 DECAL, Easy Walk All

63 7023153 1 CLAMP, Casing models with Briggs Engine

64 7023154 1 SCREW,#10-32 x 5/8” Self-Tap models with Briggs Engine

65 7090238 1 SCREW, 5/16-24 x 1” Hex Head Cap GR 5 All

Note* used on 216518B, P216518B, P217018BV, RP217018BV, EP217018BV & ERP217018BV

Note** used on P217018BV, P216518B, P216018KWV, RP217018BV, RP216018KWV, EP217018BV & ERP217018BV

Note* See also Throttle Control Page

ref Decal Page

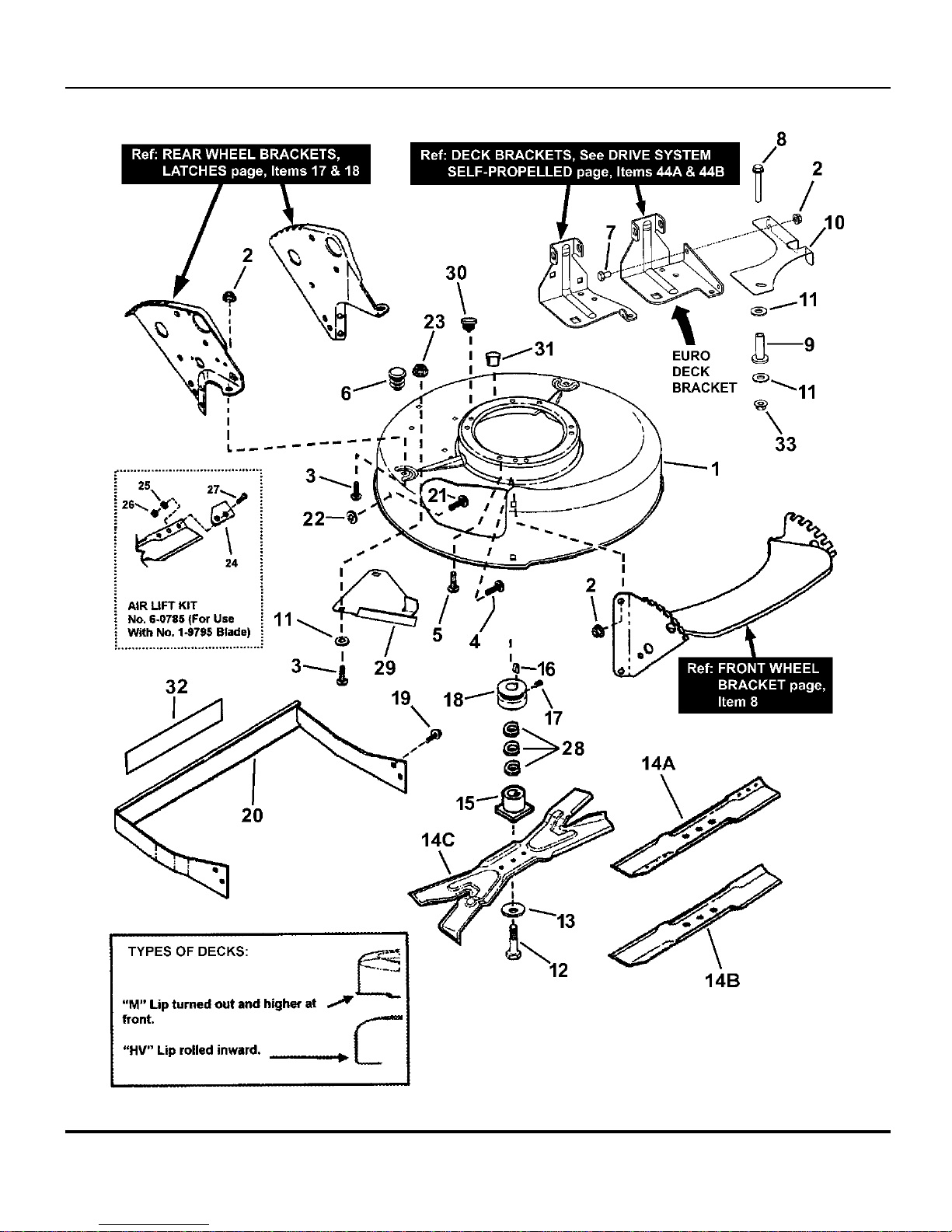

CUTTING DECK, BLADES

TP 400-5047-1-WB-N

Manual No. 7006139 21" STEEL DECK

SERIES 18

CUTTING DECK, BLADES

Footnotes:

TP 400-5047-1-WB-N

Manual No. 700613921" STEEL DECK

SERIES 18 9

Part No Descri

tionItem Qt

Note

1 7057663 1 DECK, Mower (incl. painted “HV” Deck with Decals) Non-Recycler models

1 7072716 1 DECK, Mower, 21” Hi-Vac (HV) 216518B

1 7074949 1 DECK, Mower (Includes painted “Euro M” Deck with No Decals) RP217018BVE

1 7057884 1 * DECK, Mower, 21” Non-Adj Air (was 7041857 or 7057784) Recycler models

2 7091601 10 NUT, 5/16-18 Hex Flange Lock, GR 5 was 7090585

3 7090731 3 BOLT, 5/16-18 x 1/2”, Short Neck Carriage, GR 5

4 7091169 1 BOLT, 5/16-18 x 1-1/8” Short Neck Carriage, GR 5

5 7090324 3 SCREW, 3/8-16 x 1” Self-Tapping engine mount bolts

6 7046780 2 PLUG, Hole, Polyethylene

7 7090534 1 SCREW, 5/16-18 x 1/2” Hex Head Cap, GR 5

8 7090702 1 BOLT, 5/16-18 x 2-1/4”, Hex Flange Lock

9 7013320 1 BUSHING, .388 x .625 x 1.62

10 7033863 1 COVER, Belt European models

11 7031961 3 WASHER, 7/16” Flat

12 7090167 1 SCREW, 3/8-24 x 2” Hex Head Cap, GR 5

13 7012063 2 WASHER, Cone

14A 7019795 1 BLADE, Cutter, 21” Air Lift (European) EP217018BV

14B 7026691 1 BLADE, Cutter (Standard Lift) Domestic Push & S.P.models

14C 7026407 1 BLADE, 21” Ninja (Quad Edge) Recycler models

15 7015626 1 HUB, Blade Drive 25mm I.D.

16 7091214 1 KEY, Woodruff #HP-506 Hi-Pro

17 7090201 1 SET SCREW, 5/16-18 x 5/16” Hex Socket

18 7015780 1 PULLEY, Engine (25mm I. D. x 2-1/8” O.D.)

19 7091122 6 SCREW, 1/4-20 x 1/2” Hex Flange Self-Tap (was 90539) EP217018BV & ERP217018BV

20 7041400 1 WELDMENT, Fender European models

21 7091508 2 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR 5 was 7090001

22 7011791 1 RETAINER, 5/16” Bolt

23 7091601 3 NUT, 5/16-18 Hex Flange Lock, GR 5 was 7091070

-- 7060785 -- KIT, Air Lift (Incl. items 24 thru 27)

24 7032558 2 AIR LIFT

25 7090391 4 WASHER, 5/16” Internal Tooth Lock

26 7091297 4 NUT, 5/16-24 Hex, GR 5 was 7090223

27 7090228 4 SCREW, 5/16-24 x 21/32” Machine

28 7044770 3 SPACER, .06 Thick for blade hub

29 7074568 1 COVER, Belt

30 7046471 3 PLUG, 5/16” Square Hole Push Models

31 7045264 2 PLUG, 5/16” Round Hole qty. 3 on Push Models

Note* Same deck as 7074949 except w/o battery bracket holes.

Note* Purchase engine parts from engine manufacturer dealer.

CUTTING DECK, BLADES

TP 400-5047-1-WB-N

Manual No. 7006139 21" STEEL DECK

SERIES 18
