Simplicity 1694399 Setup guide

Attachment

Illustrated

Parts List

Rev. 04/2007

500 N. Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

MANUFACTURING, INC.

. No. Descri

tion

Attachment

1694399 540 RPM P.T.O.

1731106

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Tuff Torq PTO Group - 540 RPM ......................................................................................................................... 4

Tuff Torq PTO Group - 540 RPM

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1694399

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694399 - 540 RPM P.T.O.

TP 400-3901-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Tuff Torq PTO Group - 540 RPM

Footnotes

CAPSCREW, Hex Head, 1/4 - 20 x 7/81 1960666SM 1

HANDLE, 540 PTO2 1726043SM 1

NUT, Nylock, 1/4 - 203 1920397SM 1

SWITCH, Ball4 1654634SM 2

NUT, Hex Washer, 3/8 -165 1960680SM 1

BUSHING6 1676148SM 2

SPACER7 1669105SM 1

HANDLE ASSEMBLY8 1724225SM 1

WASHER9 1919326SM 2

PIN, Quick10 1722460SM 2

BOLT, Carriage, 3/8 - 16 x 2-1/211 1960615SM 1

PTO, 540 RPM, Tuff Torq12 1725790SM 1

ARM & HUB ASSEMBLY13 1724216SM 1

ROLL PIN14 1725010SM 1

CAPSCREW, Hex Washer Head, 5/16 - 18 x 3/415 1664847SM 2

SHIELD & DECAL ASSEMBLY16 1725944SM 1

CAPSCREW, Hex Head, M12 - 1-3/4 x 25mm17 1960677SM 2

ROD18 1724229SM 1

DECAL, 540 PTO Lever Control19 1725574SM 1

CAPSCREW, 8mm x 90mm20 1726291SM 4

COVER, 540 PTO21 1726474SM 1

RING, Snap22 1726249SM 1

WIRE HARNESS23 1724963SM 1

O-RING24 1726283SM 1

O-RING25 1726106SM 1

SOLENOID GASKET26 1726169SM 1

CAPSCREW, 8mm x 30mm27 1718122SM 10

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694399 - 540 RPM P.T.O.

TP 400-3901-00-AT-SMA

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs in/lbs

in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

2.1

3.4

4.6

8-36

2.3

3.5

4.9

10-24

3.1

4.9

6.8

10-32

3.5

5.5

7.7

1/4-20

7.6 810.9 12 16.3

1/4-28

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 27 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding: locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

Hardware Identification & Torque Specifications

Common Hardware Types

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside

Diameter

Nut, 1/2”

Marks

3/8” Bolt or Nut

Wrench—9/16”

3/8

5/16” Bolt or Nut

Wrench—1/2”

5/16

1/4” Bolt or Nut

Wrench—7/16”

1/4

1/2” Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16

DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

, meaning the

inside diameter

is 1/2 inch; if a

second number is present it represent the

threads per inch

When bolt or capscrew is identified as 1/2 - 16 x 2”, this

means the

Nominal size

, or

body diameter

is 1/2 inch; the

second number represents the

threads per inch

(16 in this

example, and the final number is the

body length

of the

bolt or screw (in this example 2 inches long).

The guides and ruler furnished below are designed to

help you select the appropriate hardware and tools.

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2

Table of contents

Other Simplicity Lawn Mower manuals

Simplicity

Simplicity 1500 Series User manual

Simplicity

Simplicity 990002 Datasheet

Simplicity

Simplicity 2690810 User manual

Simplicity

Simplicity Regent Hydro-Gear 0650 Series Installation and operating manual

Simplicity

Simplicity 18.5HP User manual

Simplicity

Simplicity 2691481-00 User manual

Simplicity

Simplicity Citation 2690445 Citation User manual

Simplicity

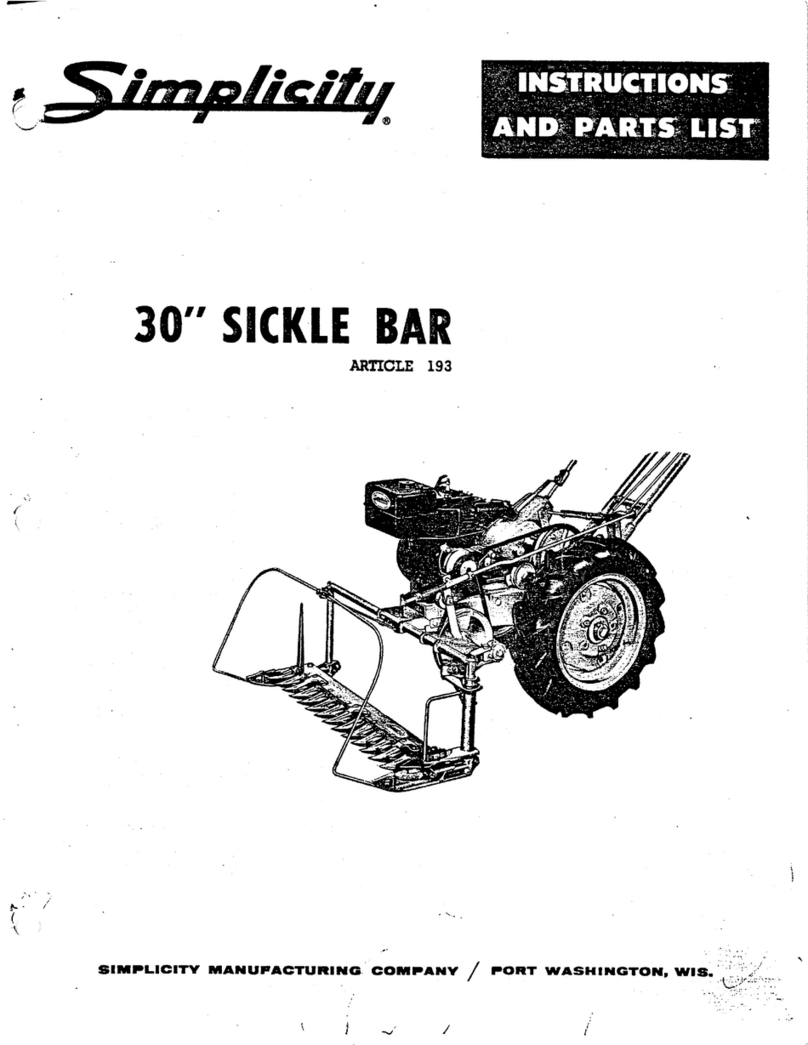

Simplicity 193 Datasheet

Simplicity

Simplicity 4111 User manual

Simplicity

Simplicity 1691423 User manual

Simplicity

Simplicity CFC SERIES User manual

Simplicity

Simplicity WONDER BOY SPECIAL 606 User manual

Simplicity

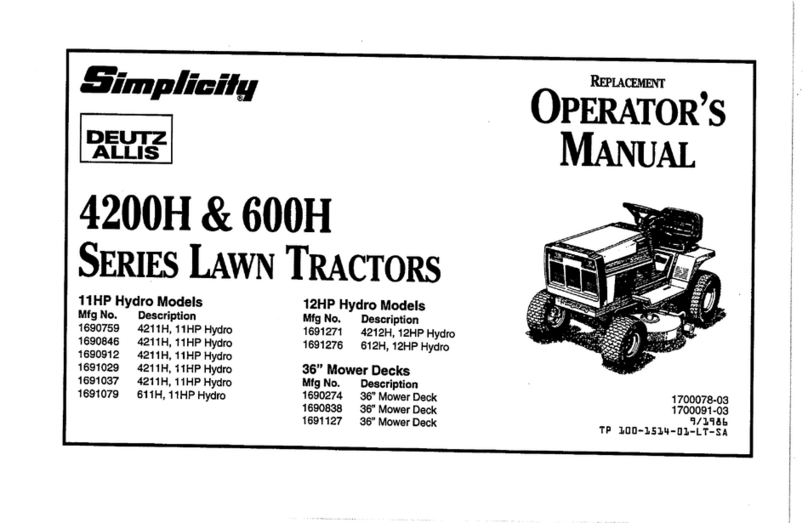

Simplicity 4200H Series User manual

Simplicity

Simplicity 300 Series User manual

Simplicity

Simplicity Regent Series User manual

Simplicity

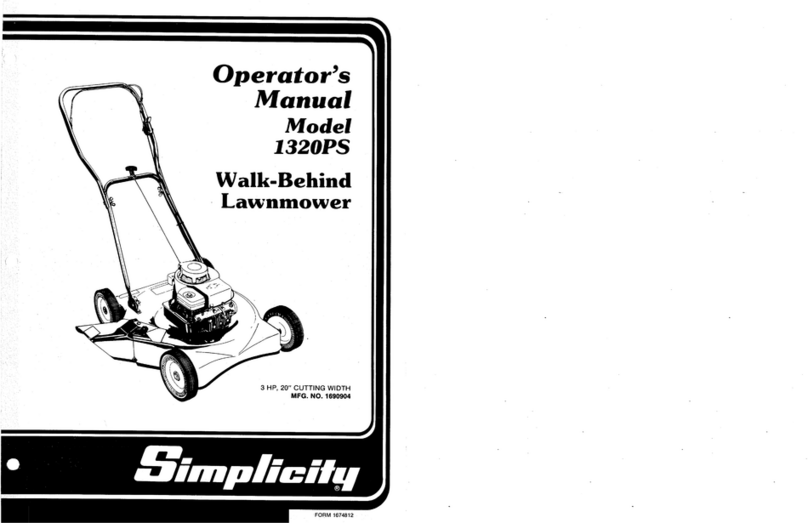

Simplicity 1320PS Mower User manual

Simplicity

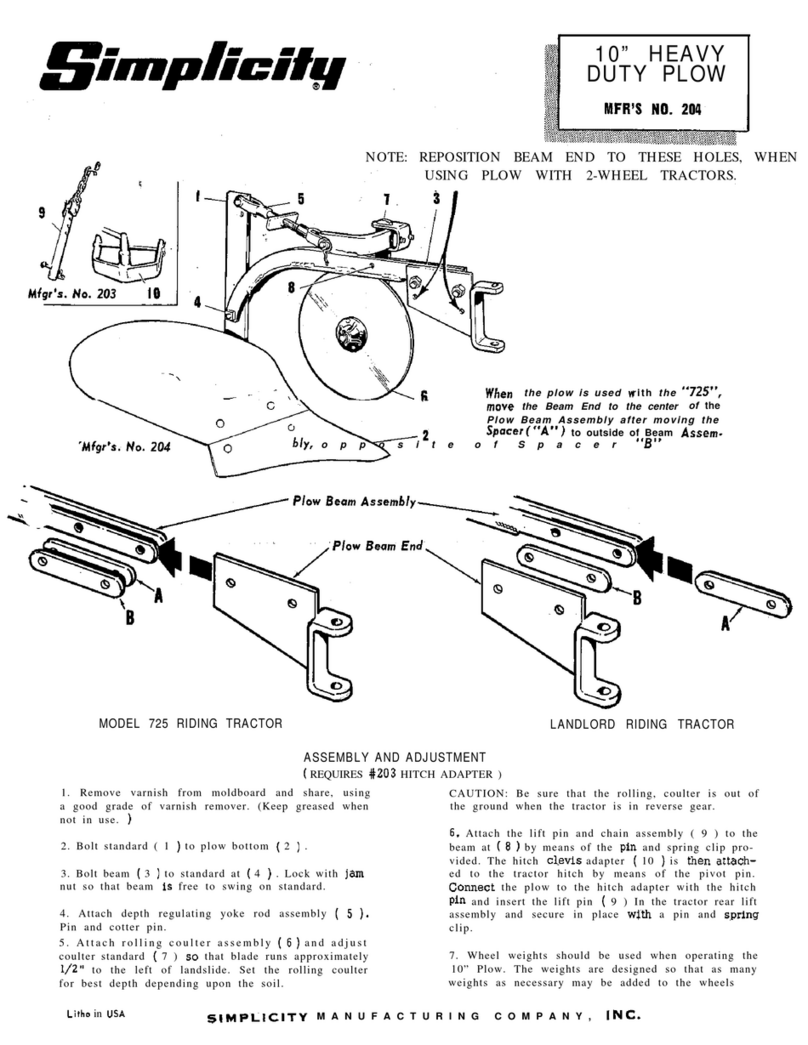

Simplicity 204 User manual

Simplicity

Simplicity Conquest Series User manual

Simplicity

Simplicity 2500 Series User manual

Simplicity

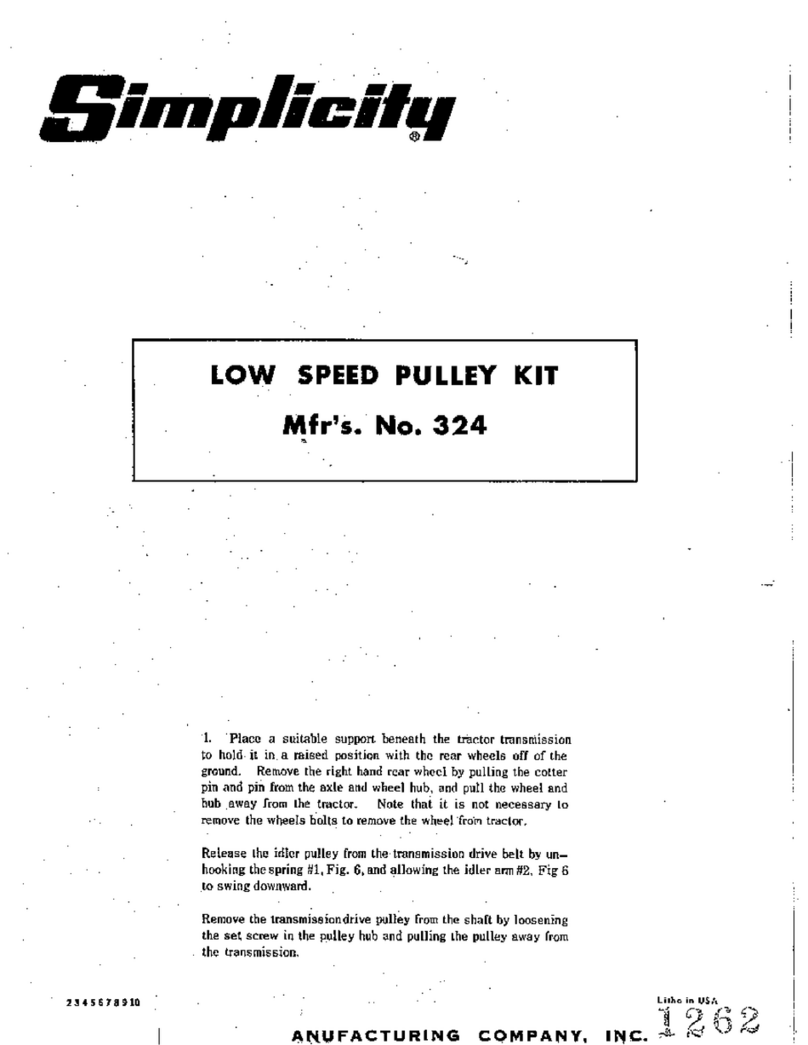

Simplicity 324 User manual
