RHINO XM500 User manual
R
© 2009Alamo Group Inc.
RHINO®
1020 S. SangamonAve.
Gibson City, IL60936
800-446-5158
Email: [email protected]
®
®
PART'S MANUAL
An Operator's Manual was shipped with the equipment in the
Manual Canister. This Operator's Manual is an integral part of
the safe operation of this machine and must be maintained
with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual
before operating the equipment. If the Operator's Manual is
not with the equipment, contact your dealer or Servis-Rhino
(800-446-5158) to obtain a Free copy before operating the
equipment.
XM500, XM600,
Pub 04-09 Part No. 5077P
Rear Discharge Finishing Mowers
XM750
TO THE OWNER/OPERATOR/DEALER
Allimplementswithmovingpartsare potentiallyhazardous. Thereisno substituteforacautious, safe-mindedoperatorwho
recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to
be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFOREYOUSTART!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
Readand understand the complete Warranty Statementfound inthis Manual. Fill outthe WarrantyRegistration Form
in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card
andontheWarrantyFormthatyouretain.Theuseof"will-fit"partswillvoidyourwarrantyandcancausecatastrophic
failure with possible injury or death.
PARTS
SECTION
Parts Section – 1
Parts Section – 2
©2007 Alamo Group Inc.
Formaximumsafetyandtoguaranteeoptimumproductreliability,alwaysuse
genuineServis-RhinoParts. Theuseofinferiorreplacementpartsmaycause
prematureorcatastrophicfailurewhichcouldresultinseriousinjuryordeath.
Directanyquestionsregardingparts to:
Thefollowinginstructionsareofferedtohelpeliminateneedlessdelayanderrorinprocessing
purchaseordersfor the equipmentinthissection.
1. ThePartsSectionispreparedinlogicalsequenceandgroupingofpartsthatbelongtothe
basic machine featured in this manual. Part Numbers and Descriptions are given to help
locatethepartsand quantities required.
2. The Purchase Order must include the name and address of the person or organization
orderingtheparts,whoshouldbecharged,andifpossible,theserialnumberofthemachine
forwhichtheparts are ordered.
3. ThePurchaseOrdermustclearlylistthequantityofeachpart,thecompleteandcorrectpart
number (be sure to include all periods), and the basic name of the part.
4. TheManufacturerreservestherighttosubstitutepartswhereapplicable.
5. Somepartsareunlisteditemswhicharespecialproductionitemsnotnormallystockedand
are subject to special handling. Request a quotation for such parts before sending a
PurchaseOrder.
6. TheManufacturer reservestherighttochangepriceswithoutpriornotice.
NOTE: PleaserefertoTheSafetySectioninthefrontof this Manual for the proper
PartNumberwhenorderingReplacementSafetyDecals.
PARTS ORDERING GUIDE
RHINORHINO
RHINORHINO
RHINO®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]
PART NAME INDEX
ASSEMBLY XM500 XM600.............................................................................................................................................................................4
ASSEMBLY XM750........................................................................................................................................................................................8
DRIVELINE XM500 XM600 A......................................................................................................................................................................12
DRIVELINE XM750 A...................................................................................................................................................................................14
GEARBOX......................................................................................................................................................................................................16
ROLLER OPTION..........................................................................................................................................................................................18
SOLID WHEEL KIT.......................................................................................................................................................................................20
©2009 Alamo Group Inc. Parts Section -3
XM500 XM600 XM750

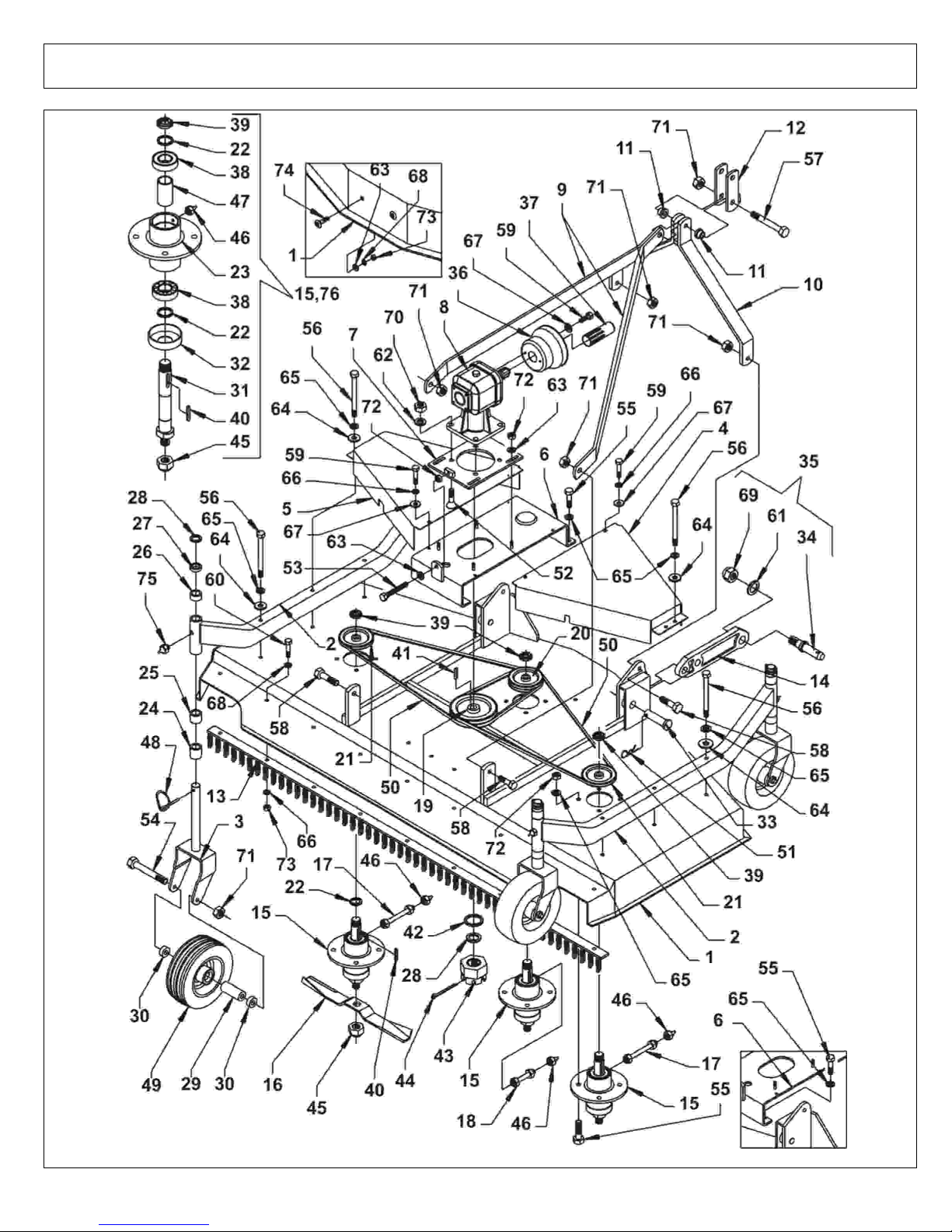

ASSEMBLY XM500 XM600
©2009 Alamo Group Inc. Parts Section -4
XM500 XM600 XM750
ASSEMBLY XM500 XM600
Continued...
ITEM PART NO. QTY. DESCRIPTION
1 3690306 1 DECK, XM500
3690307 - DECK, XM600
2 3690308 2 WHEEL AXLE, XM500
3690309 - WHEEL AXLE, XM600
3 3690310 4 WHEEL SUPPORT
4 3690311 1 BELT COVER, RH, XM500
3690313 - BELT COVER, RH, XM600
5 3690312 1 BELT COVER, LH, XM500
3690314 - BELT COVER, LH, XM600
6 3690315 1 GEARBOX SUPPORT
7 3690316 1 SLIDING PLATE
8 3696405 1 GEARBOX
9 3697551 2 ARM, REAR, XM500
3697552 - ARM, REAR, XM600
10 3690317 1 A-FRAME ARM, FRONT
11 3697553 2 SPACER, A-FRAME HITCH
12 3690318 1 HITCH
13 3690107 1 ASY, REAR CHAINGUARD, XM500
3690108 - ASY, REAR CHAINGUARD, XM600
14 3697554 2 LOWER LINKARM
15 3690109 3 ASY, SPINDLE
16 3698725 3 BLADE, XM500
3698726 - BLADE, XM600
17 3690112 2 ASY, GREASE LINE M8 X 82 OAL
18 3690113 1 ASY, GREASE LINE M8 X 62 OAL
19 3696300 1 PULLEY, XM500
3696301 - PULLEY, XM600
20 3696302 1 PULLEY
21 3696303 2 PULLEY
22 8 SHIM
23 3697555 3 HUB
24 3696903 4 SHIM, 32MM - 1.26"
25 3696904 4 SHIM, 25MM - 1"
26 3696902 4 SHIM, 12MM - .47"
27 3698402 4 SHIM, 6MM - .24"
28 3696905 5 SHIM, 2MM - .08"
29 3697556 4 SPACER
30 3696906 8 SHIM
31 3697557 3 PIN, SPINDLE
32 3 BEARING COVER
33 3698419 2 PIN, CLEVIS
©2009 Alamo Group Inc. Parts Section -5
XM500 XM600 XM750
ASSEMBLY XM500 XM600
Continued...
ITEM PART NO. QTY. DESCRIPTION
34 3698420 2 PIN, CAT I HITCH METRIC M22X1.5
35 3698421 2 ASY., CAT I HITCH METRIC M22X1.5
36 3696775 1 SAFTEY, SHIELD
3696778 1 SAFTEY, SHIELD PIN
37 3696777 1 GUARD
38 6 BEARING 6205 Z - SHIELD ONE SIDE
39 3 LOCKING RING NUT - M25X1.5
40 3 KEY, RND
41 710840 1 KEY, RND
42 3698423 1 WASHER
43 4840 1 NUT, CASTLE M24X2
44 70497 1 PIN, COTTER
45 3 NUT, TOPLOCK M18X1.5
46 3 GREASE NIPPLE M8
47 3 SPACER
48 3698426 4 LINCH PIN, M8X56
49 3697803 4 WHEEL
50 3696100 2 BELT, XM500
3696101 - BELT, XM600
51 3638400 2 CLIP
52 61387C8 4 SCREW, M14X40
53 613620C8 1 SCREW, M10X80
54 610713C8 4 SCREW, M12X110
55 61368C8 18 SCREW, M10X25
56 613620C8 6 SCREW, M10X80
57 610711C8 1 SCREW, M12X90
58 754565 4 SCREW, M12X35
59 61354C8 6 SCREW, M8X16
60 61358C8 8 SCREW, M8X25 (QTY. 9 FOR XM600)
61 701618C 2 SPRING WASHER, Ø23
62 702010C 4 SPRING WASHER, Ø14.5
63 701512C 7 WASHER, Ø10.5
64 3698425 6 LARGE WASHER, Ø10.5
65 00755954 24 SPRING WASHER, Ø10.5
66 701611C 12 SPRING WASHER, Ø8.5 (QTY. 13 FOR XM600)
67 70234C 6 LARGE WASHER, Ø8.5
68 701511C 10 WASHER, Ø8.5 (QTY. 11 FOR XM600)
69 700234C 2 NUT, M22X1.5
70 70096C 4 NUT, M14
71 00772648 9 NUT, M12
72 00755949 17 NUT, M10
©2009 Alamo Group Inc. Parts Section -6
XM500 XM600 XM750
ASSEMBLY XM500 XM600
Continued...
ITEM PART NO. QTY. DESCRIPTION
73 00755934 10 NUT, M8 (QTY. 11 FOR XM600)
74 70621C4 2 SCREW, M8X20 CARRIGE
©2009 Alamo Group Inc. Parts Section -7
XM500 XM600 XM750
75 001465 4 GREASE NIPPLE M
76 3690411 1 KIT, BEARING & SPACER ( Contains items 22, 32, 34, 38, 39, 40, 45, 46, & 47)

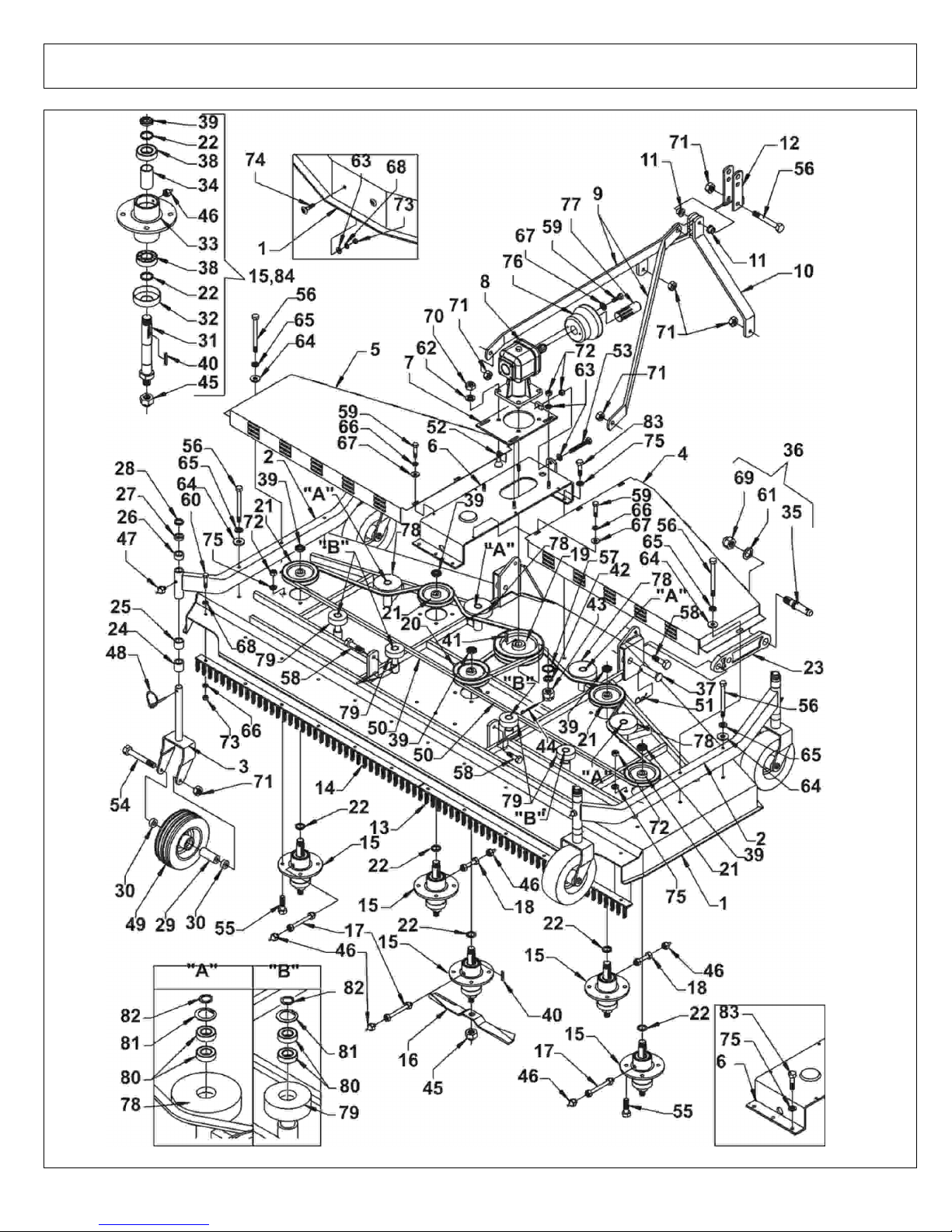

ASSEMBLY XM750
©2009 Alamo Group Inc. Parts Section -8
XM500 XM600 XM750
