Installing the LI-200R Pyranometer in

Biomet Systems

The LI-200R Pyranometer (part number 7900-195) measures

hemispherical solar radiation. Here we provide basic install-

ation and operation instructions for using the LI-200R

Pyranometer in a LI-COR biomet data acquisition system.

LI-200R Specifications:

Spectral response: 400 to 1100 nm

Energy range: 0 to 1000 W/m2

Absolute calibration: ±5%

Output signal: 0 to 100 µA

Linearity: Maximum deviation of 1% up to 3,000

W/m2

Cosine correction: up to 80° angle of incidence

Azimuth error: <1% over 360° at a 45° elevation angle

Cable lengths: 5 and 50 meters

Siting the pyranometer

Position the LI-200R so it will never be under a shadow,

either from the surrounding landscape elements or from the

tower itself. Mount the sensor on the tower to minimize

reflected radiation that is visible to the sensor.

Mounting the pyranometer

Mount the LI-200R in the mounting and leveling fixture

(2003S). Attach the 2003S to the 7900-350 radiation sensor

bracket and level the 2003S. Secure the cable to the tower

using zip-ties.

Wiring the pyranometer

The bare leads connect directly to the DAqM.

Description Color Terminal

Signal (-) Brown A17

Signal (+) Blue G9

Shield Bare G9

If you want to connect the LI-200R to a channel other than

A17 or A18, a millivolt adapter is required.

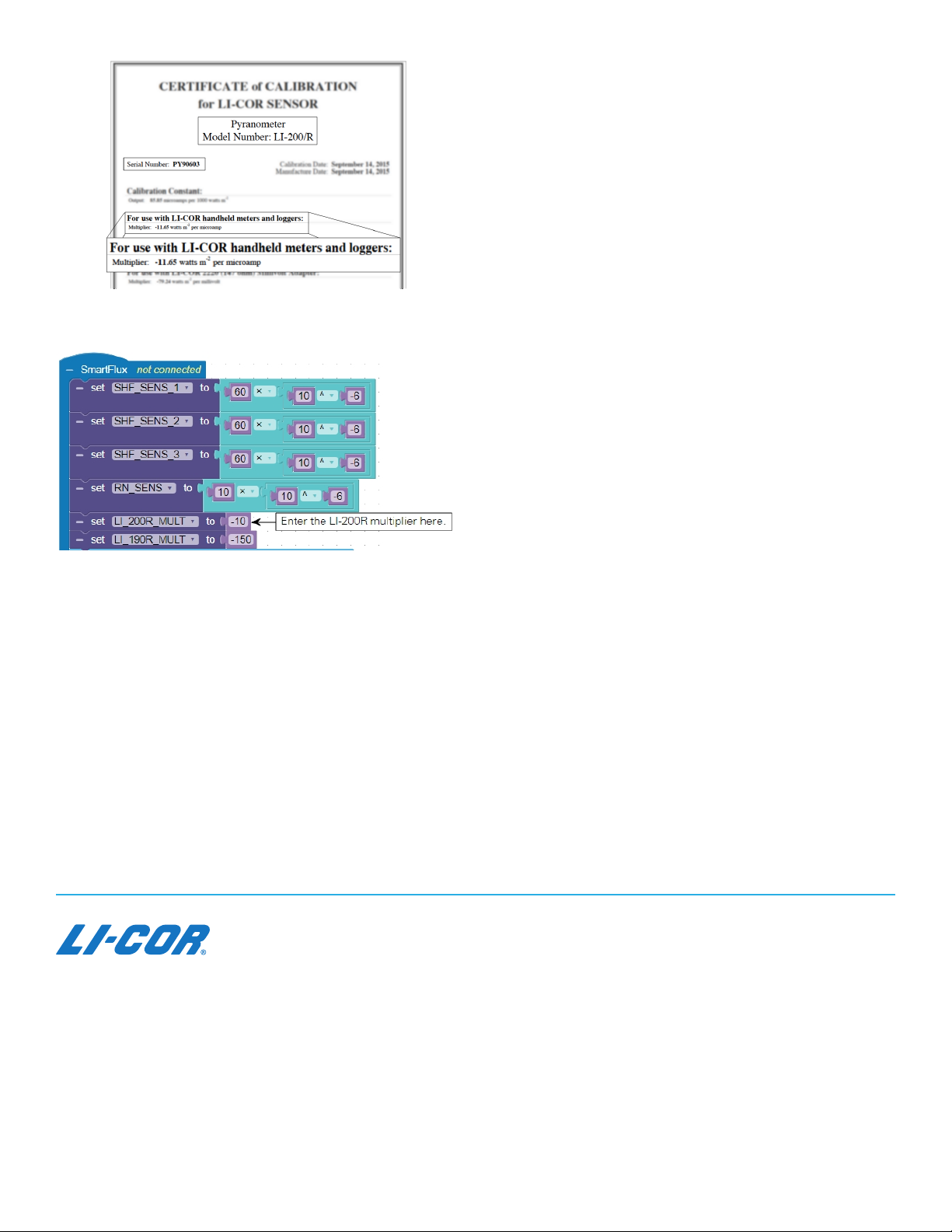

Entering calibration data

Enter the calibration multiplier in the Blueprint Utility soft-

ware. The multiplier on the calibration certificate is under

For use with LI-COR handheld meters and loggers: (units are watts

m-2 per microamp).

Installation Guide

1

Select a program (Biomet Library) and then enter the cal-

ibration multiplier from the calibration sheet.

Save the configuration and push the file to the data acquis-

ition system after entering the remaining calibration inform-

ation.

Retrieving data

The SmartFlux System will log these data in compressed

files for processing by EddyPro Software and evaluation by

Tovi Software. Data are stored on the USB drive on the

SmartFlux System. Refer to the Data Acquisition System

instruction manual for details.

Maintenance

Keep the surface and vertical edge of the acrylic diffuser

clean. As needed, clean the diffuser sensor with water, mild

detergent, or vinegar dilute using a soft, lint-free cloth. DO

NOT use alcohol, organic solvents, strong detergents, abras-

ive solvents, or abrasive cloth on the diffuser. Return the

sensor to LI-COR for factory recalibration every two years.

Contact technical support for more information.

Copyright © 2020 LI-COR, Inc. All rights reserved.

988-12677 Rev 3•10/2020
