Kichler®Lighting

7711 East Pleasant Valley Road

P.O. Box 318010

Cleveland, Ohio 44131-8010

Customer Service

866.558.5706

8:30 AM to 5:00 PM EST,

Monday - Friday

Instruction Manual

SaxonTM Premier

A Kichler®Select™

ceiling fan

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualified licensed

electrician.

3. WARNING: Suitable for use with solid-

state speed controls.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting fixtures are not acceptable for fan

support and may need to be replaced,

consult a qualified electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

7. To operate the reverse function on this fan,

press the reverse button while the fan is

running.

8. Avoid placing objects in the path of the

blades.

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After making the electrical connections,

spliced conductors should be turned

upward and pushed carefully up into outlet

box. The wires should be spread apart with

the ground wire and white (common) wire

to one side with the black (load) wire to the

other side of the outlet box.

12. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK

OR PERSONAL INJURY, MOUNT FAN TO OUTLET

BOX MARKED "ACCEPTABLE FOR FAN

SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE BRACKETS (ALSO

REFERRED TO AS FLANGES) DURING ASSEMBLY

OR AFTER INSTALLATION. DO NOT INSERT

OBJECTS IN THE PATH OF THE BLADES.

1. SAFETY RULES

Special Notice

This appliance is equipped with a "Wattage

Limiting Device" required by the United

States Department of Energy. The device

has been installed at the factory and can not

be removed.

Installing Lamps in excess of 190 total watts

will disable the unit's light fixture. If this

should happen, you will need to reset the

lighting fixture by turning the power off to

the ceiling fan and/or light fixture,

reinstalling lamps totaling less that 190

watts and then turning the power back on.

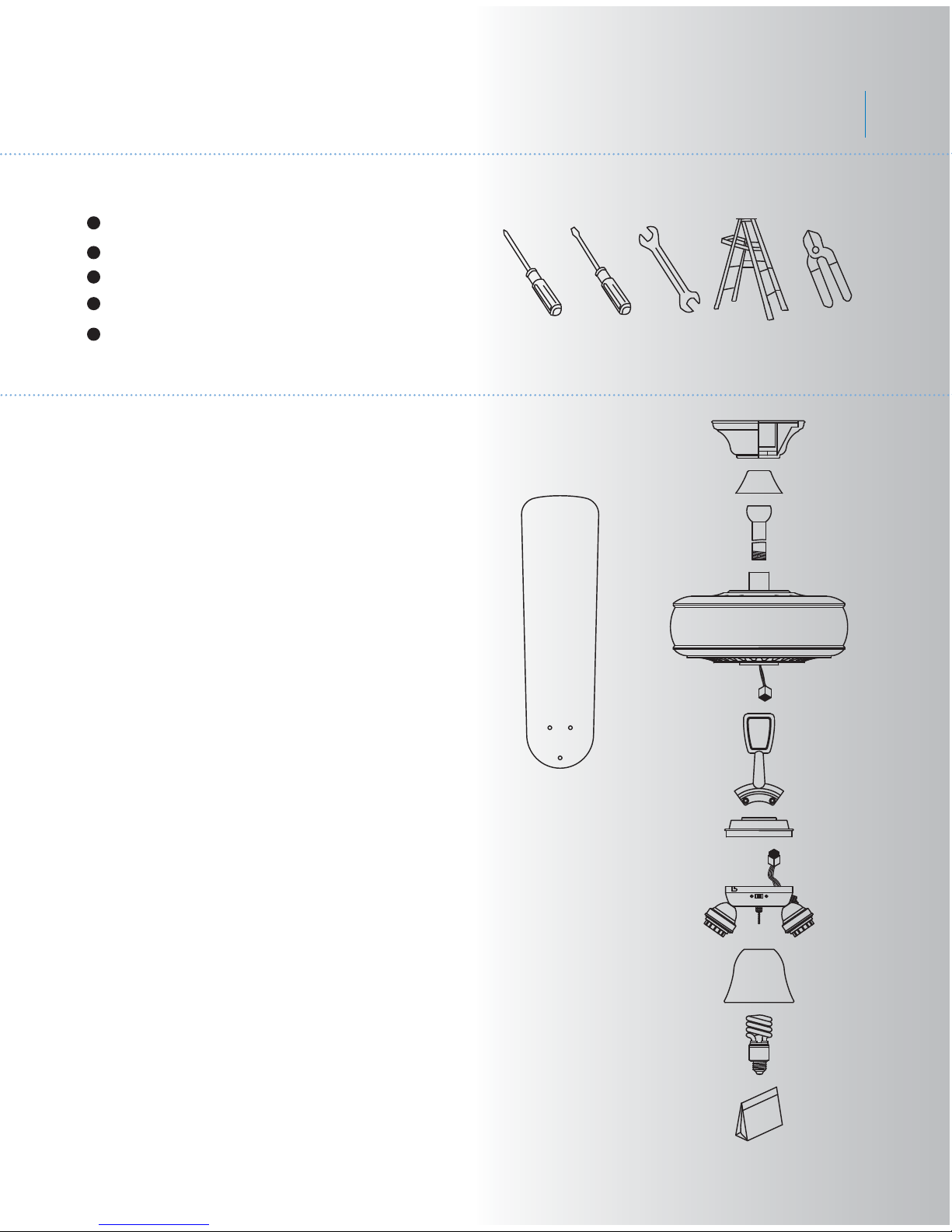

3. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Fan blades (5)

b. Canopy & Ceiling mounting bracket

c. Ball/downrod assembly

d. Coupling cover

e. Fan motor assembly

f. Set of 5 blade brackets and Pre-Installed

mounting screws (5)

g. Mounting plate

h. Light ﬁxture

i. Glass shade

j. GU24, 13W compact ﬂuorescent bulsb (4)

k. Part bag contents

1) Mounting hardware :

wood screws (2), ﬂat washers (2),

star washers (2), wire nuts (3),

screws (2)

2) Blade attachment hardware:

screws (17), ﬁber washers (17)

3) Safety cable hardware:

wood screw, lock washer, ﬂat washer

4) Pull chains and fobs (2)

5) Socket nut wrench

6) Balance Kit

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

SaxonTM Premier

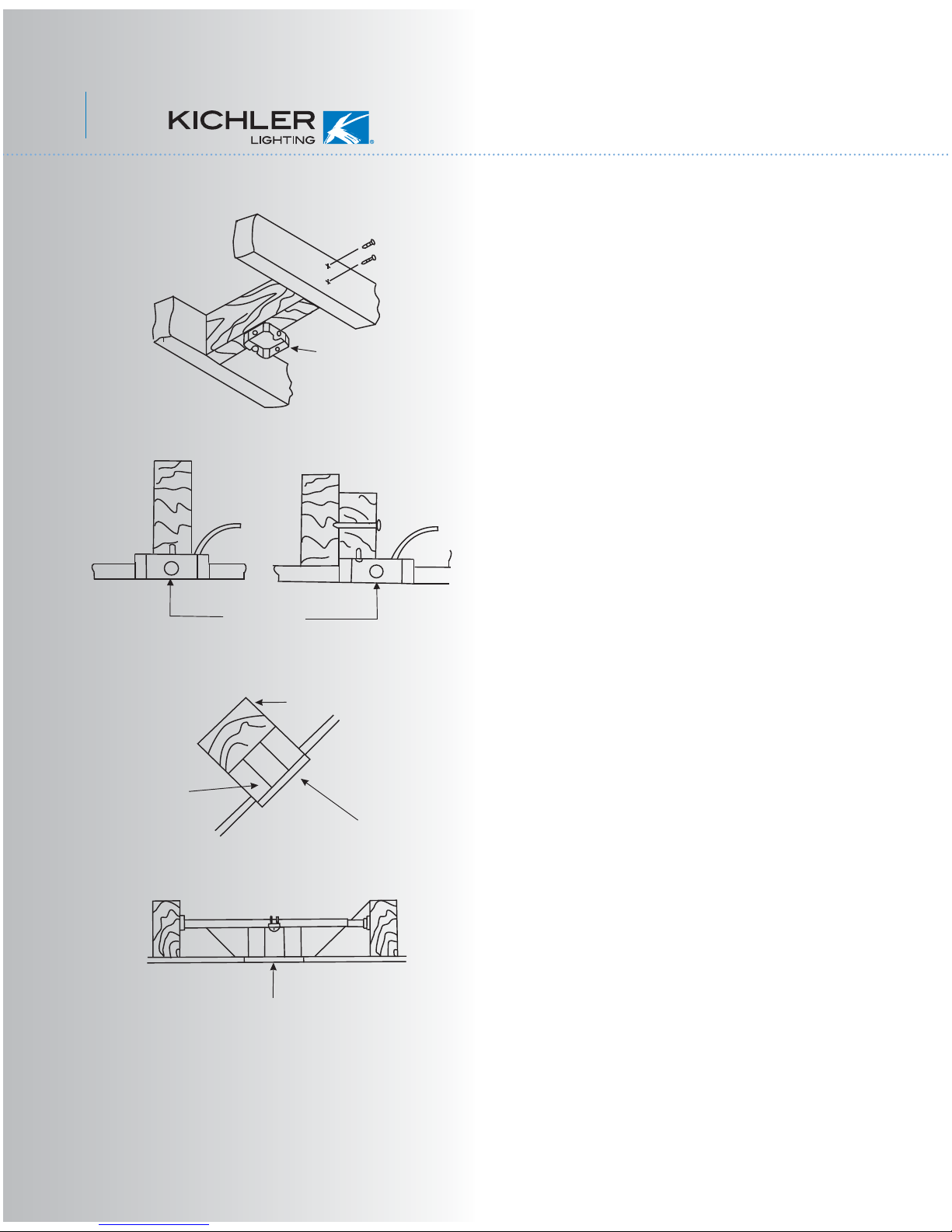

4. MOUNTING OPTIONS

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

Fig. 1

Fig. 3

Fig. 4

Outlet box

Fig. 2

ANGLED CEILING

MAXIMUM 30°ANGLE

If there isn't an existing UL (cUL for Canadian

Installation) listed mounting box, then read the

following instructions. Disconnect the power by

removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of different

ways to mount the outlet box.

NOTE: If you are installing the ceiling fan on a

sloped (vaulted) ceiling, you may need a

longer downrod to maintain proper clearance

between the tip of the blade and the ceiling. A

minimum clearance of 12" is suggested for

optimal operation.

NOTE: Depending on the location you have

selected for installation, you may need to

purchase and install a "Joist Hanger" for the

support of the outlet box. Make sure the joist

hanger you purchase has been designed for

use with ceiling fans. (Fig. 4)

Fig. 7

Fig. 8

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

bracket

UL Listed

outlet box

120V Wires

Washers

Downrod

Cross pin

Hanger

ball Set screw

Fig. 6

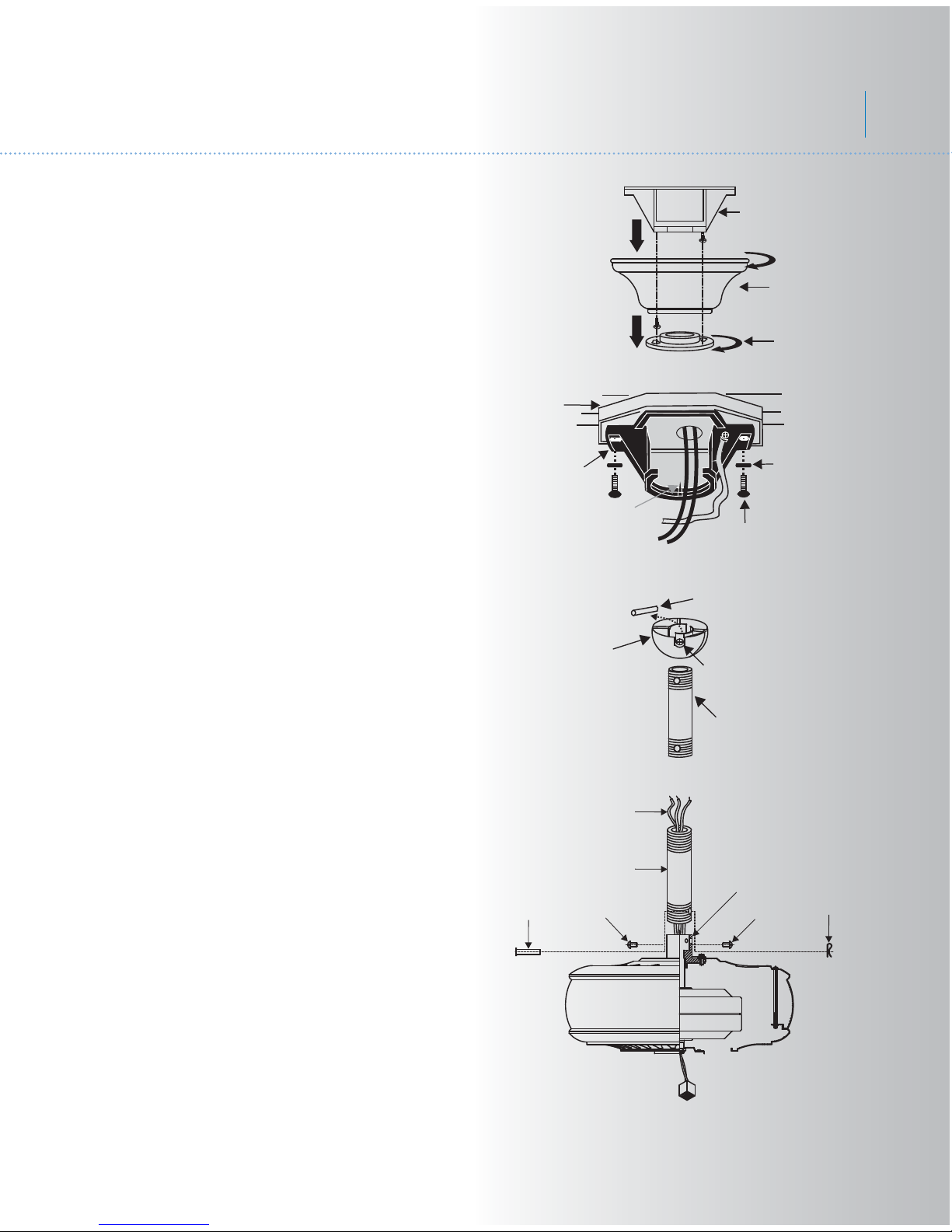

5. HANGING THE FAN

Supply wires

Downrod

Hitch pin Retaining clip

Set screws

Coupling

Set screws

REMEMBER to turn off the power before you

begin.

To properly install your ceiling fan, follow the

steps below.

Step 1. Remove the decorative canopy

bottom cover from the canopy by turning the

cover counter clockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket

from the canopy by removing (and save) one

of the two screws. Loosen the remaining

screw by a half turn. (Fig. 5)

Step 3. Pass the 120 volt supply wires from

the ceiling outlet box through the center of the

ceiling mounting bracket. (Fig.6)

Step 4. Attach the ceiling mounting bracket to

the outlet box using the screws and washers

included with the outlet box. (Fig. 6)

Step 5. Remove the hanger ball from the

downrod assembly by loosening the set

screw, removing the cross pin and sliding the

ball off the rod. (Fig.7)

Step 6. Loosen the two set screws and

remove the hitch pin and retaining clip from

the coupling on top of the motor assembly.

(Fig. 8)

Step 7. Carefully feed the electrical lead wires

from the fan up through the downrod. Thread

the downrod into the coupling until the Hitch

pin holes are aligned.

Next, replace the hitch pin and retaining clip.

Tighten both set screws. (Fig. 8)

Fig. 5

Ceiling mounting

bracket

Canopy

cover

SaxonTM Premier

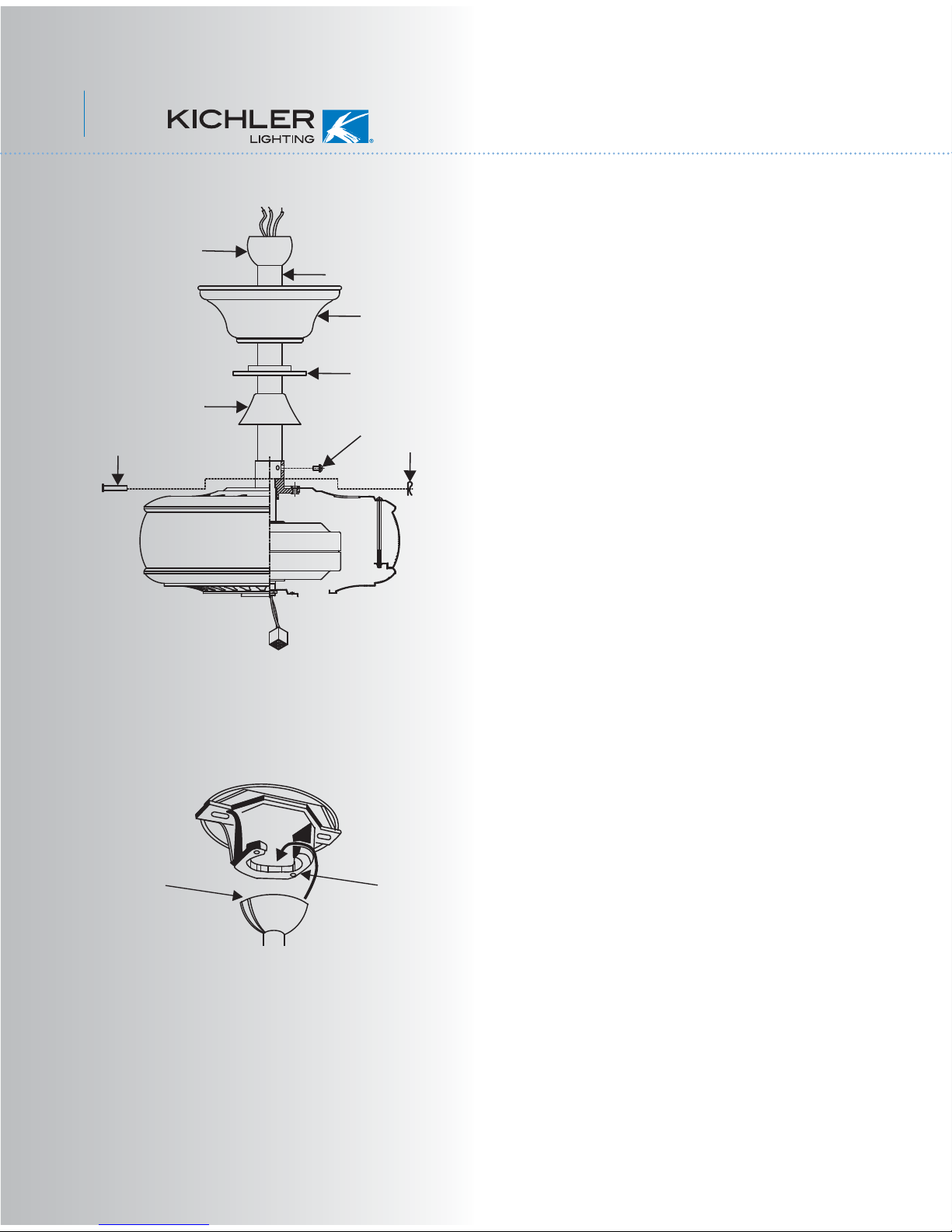

Fig. 9

Fig. 10

Registration slot Check tab

Hanger ball

Canopy

Downrod

Canopy cover

Set screws

Hitch pin Retaining clip

Coupling cover

Step 8. Slip the coupling cover, canopy cover

and canopy onto the downrod.

Thread the hanger ball onto the downrod,

insert the cross pin through the downrod and

tighten. Now tighten the set screw. (Fig. 9)

Step 9. Lift the motor assembly into position

and place the hanger ball into the ceiling

mounting bracket.

Rotate the entire assembly until the "Check

Tab" has dropped into the "Registration Slot"

and seats ﬁrmly. (Fig. 10)

The entire motor assembly should not rotate

(left or right) when seated properly.

WARNING: Failure to reattach the cross pin

and seat the "Check Tab" can cause the fan

to fall from the ceiling during operation. Take

special care to make sure this pin is

reattached.

7. ELECTRICAL CONNECTIONS

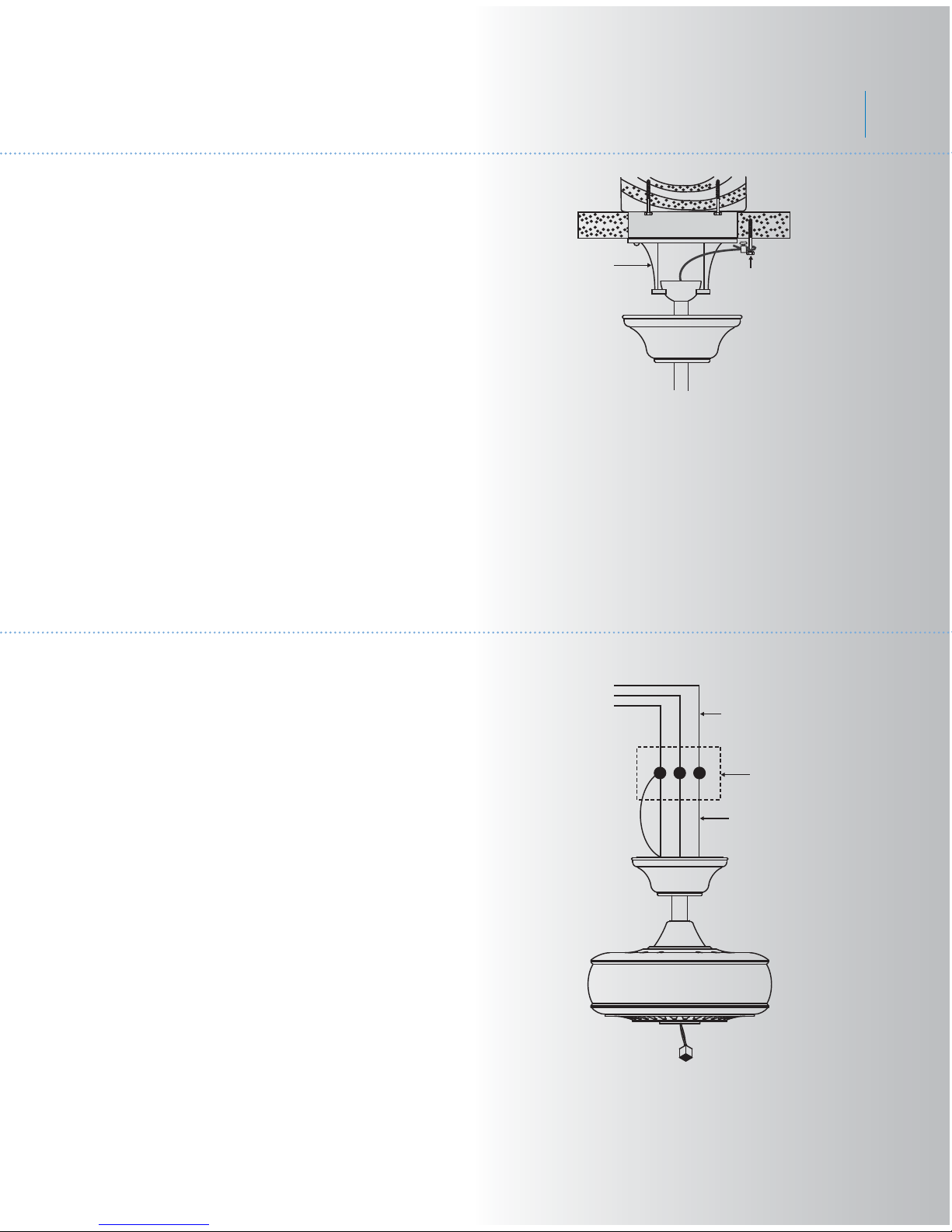

6. INSTALLATION OF SAFETY SUPPORT

(required for Canadian installation ONLY)

A safety support cable is provided to help

prevent the ceiling fan from falling.

Step 1. Attach the provided wood screw and

washers to the ceiling joist next to the

mounting bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to

reach the screw and washers by pulling the

extra cable through the cable clamp until the

overall length is correct, put the end of the

cable back through the cable clamp, forming a

loop at the end of the cable. Tighten the cable

clamp securely. Now, put the loop in the end

the safety cable over the wood screw and

under the washer. Tighten the wood screw

securely.

NOTE: Although the safety support cable is

required for Canadian installations only. It's a

good idea to make the attachment with any

installation.

Fig. 12

WARNING: To avoid possible electrical

shock, be sure you have turned off the power

at the main circuit panel.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts suppled with your fan.

Secure the connectors with electrical tape.

Make sure there are no loose wire strands or

connections.

Step 1. Connect the fan supply (black) wire

and light supply (blue) to the black household

supply wire as shown in Figure 12.

Step 2. Connect the neutral fan (white) wire to

the neutral household (white) wire.

Step 3. Connect the fan ground wire (green)

to the household ground wire.

Step 4. After connecting the wires, spread

them apart so that the green and white wires

are on one side of the outlet box and the

black wires is on the other side.

Step 5. Turn the connecting nuts upward and

push the wiring into the outlet box.

BLK

BLUE

BLK

GRN

Wiring

box

Ground to

mounting

bracket

or downrod

Power lines 120v

Green ground

Fig. 11

Ceiling mounting

bracket Attach

safety cable

to ceiling joist

with screw and

washer

SaxonTM Premier

Step 1. Tuck all the connections neatly into

the ceiling outlet box.

Step 2. Slide the canopy up to the mounting

bracket and place one of the key hole slots

over the mounting screw on the mounting

bracket. Rotate the canopy until the screw

head locks in place at the narrow section of

the key hole. See ﬁgure 13.

Step 3. Align the remaining circular hole on

the canopy with the remaining hole on the

Ceiling Mounting Bracket. Insert and tighten

the mounting screw you removed earlier and

the mounting screw from Step 2 above. Now,

attach the canopy cover to the mounting

screw heads by inserting the screw heads into

the bottom side of the canopy cover and

rotating the cover clockwise.

NOTE: Adjust the canopy screws as

necessary until the canopy and canopy cover

are snug. (Fig. 13)

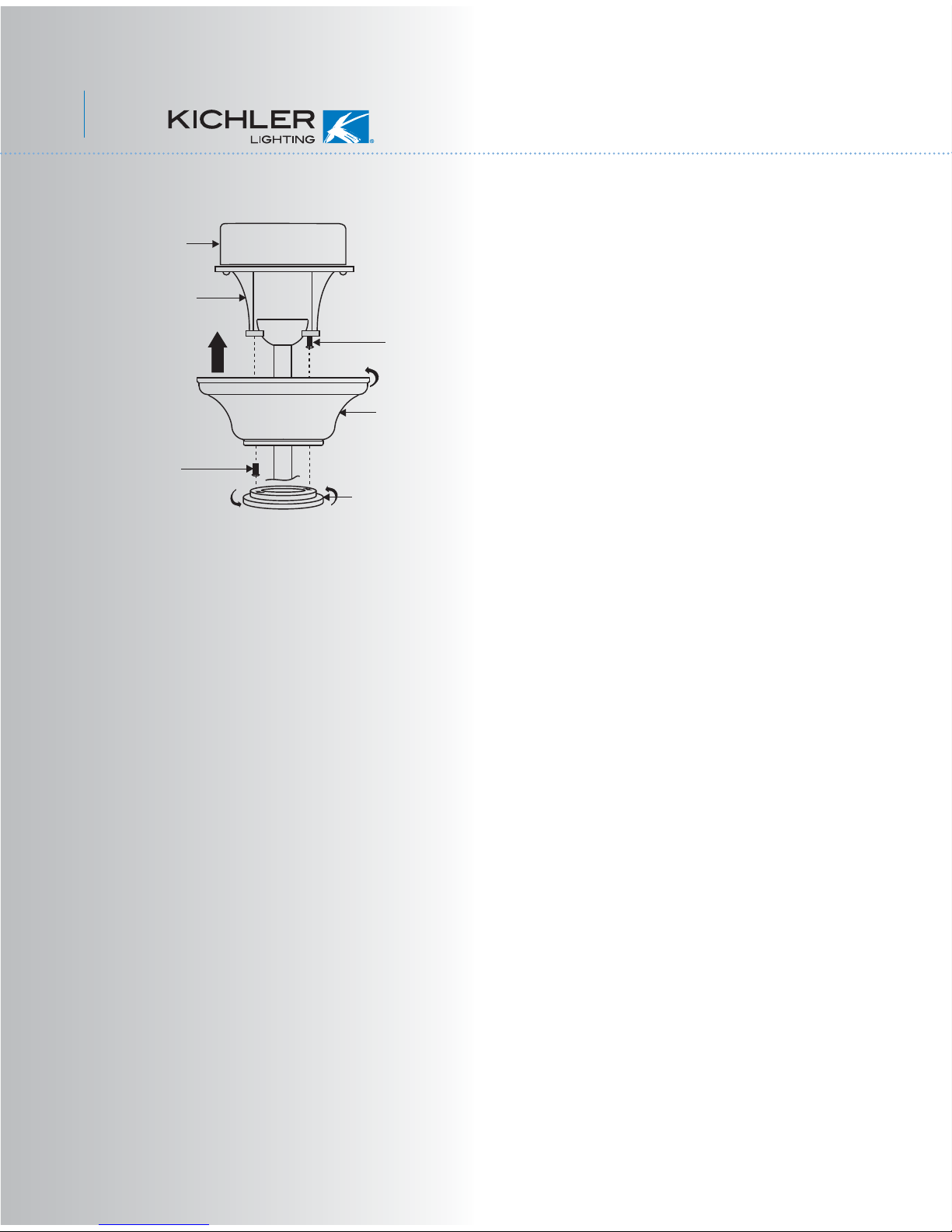

8. FINISHING THE INSTALLATION

Fig. 13

Outlet box

Ceiling mounting

brackrt

Canopy

Screw

Canopy cover

Screws

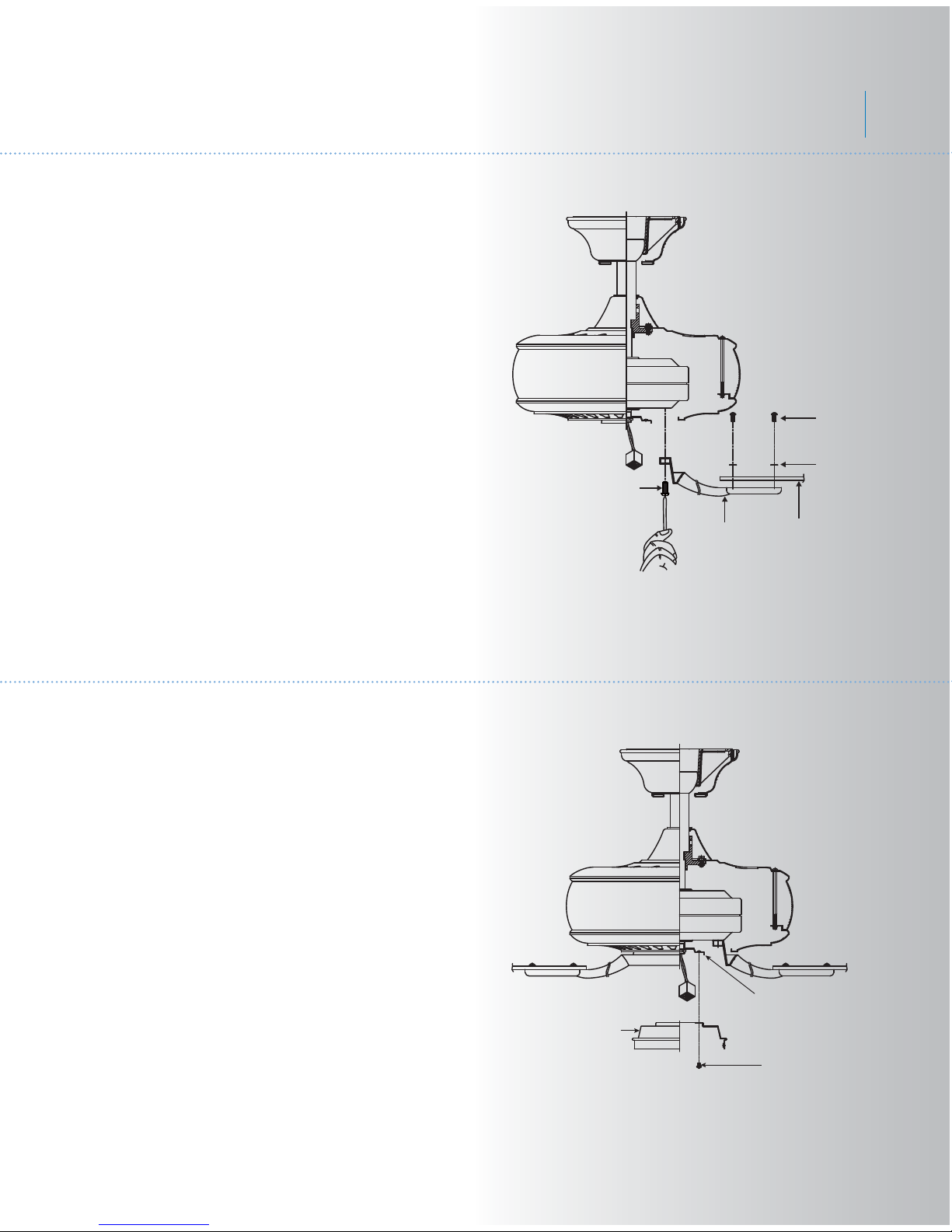

9. ATTACHING THE FAN BLADES

Fig. 14

Fig. 15

10. INSTALLING THE MOUNTING PLATE

CAUTION: Remove the ﬁve rubber shipping

blocks attached to the face of the motor.

These blocks keep the motor from shifting

during shipping and MUST be removed during

installation.

Step 1. Attach a blade to a blade bracket

using the screws and ﬁber washers provided.

(Fig. 14)

Make sure the blade is straight when set on

the blade bracket. Tighten each mounting

screw until the ﬁber washer is slightly

compressed. Repeat this procedure for each

blade.

Step 2. Attach each blade assembly to the

motor using the "Pre-Installed" mounting

screws in the blade bracket. (Fig 14)

Step 1. Loosen the two screws on the

mounting ring attached to the motor shaft and

"remove" and save the third screw. (Fig. 15)

Step 2. Place the key hole slots on the

mounting plate over the two screws

previously loosened on the mounting ring.

Turn the mounting plate until is locks in place

at the narrow section of the key hole slots.

Tighten both key hole screws and replace the

third screw previously removed and tighten

securely.

Screws

Blades

Blade brackets

Screws

Fiber

washers

Mounting plate

Mounting ring

Screws

SaxonTM Premier

Fig. 16

Fig. 17

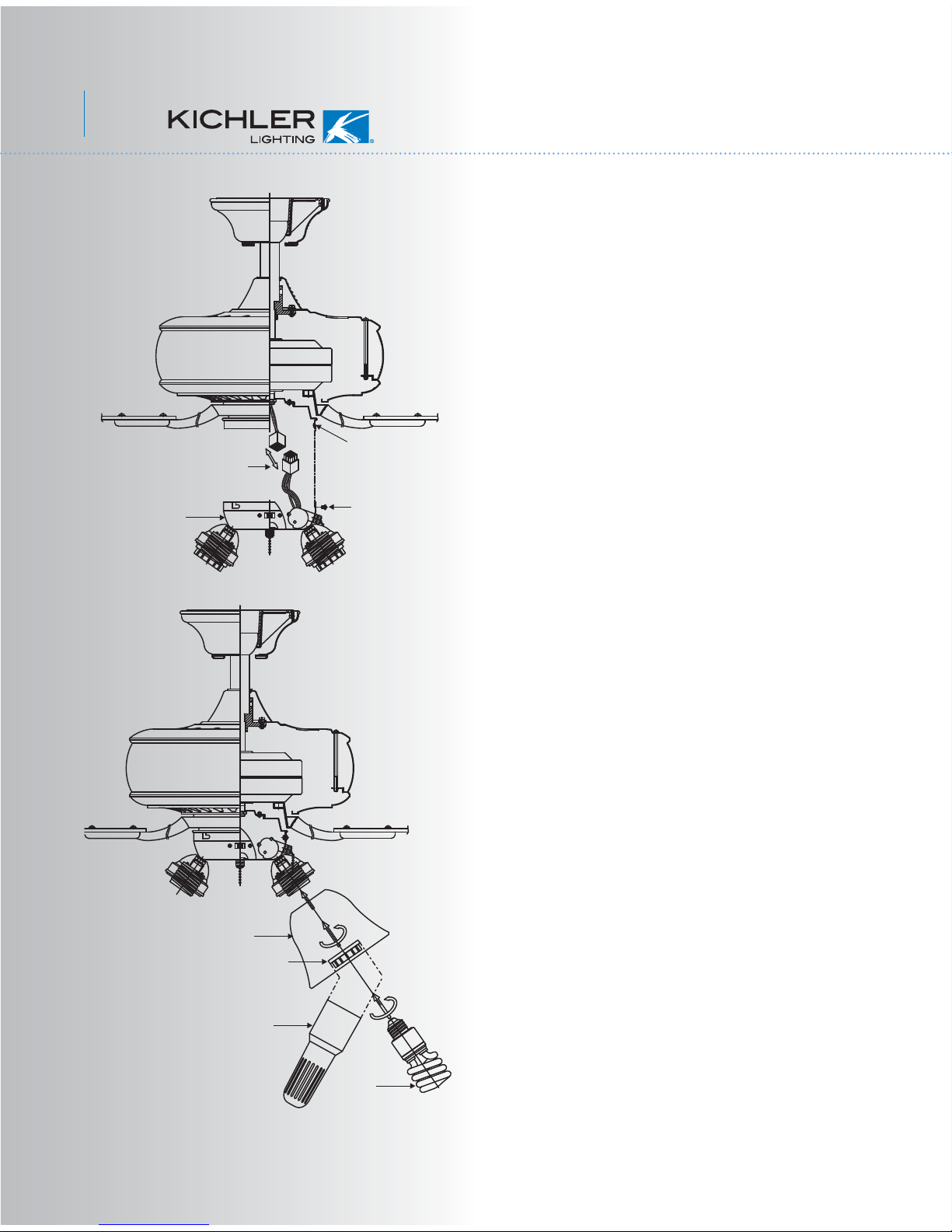

11. INSTALLING THE LIGHT FIXTURE

Light fixture

Lamps

Glass shade

Socket nut

Socket nut wrench

Switch house

mounting plate

Wire connector

Screws

1. While holding the light light ﬁxture under

your ceiling fan, push the square wire

connectors together. One from the fan and

one from the light ﬁxture. (Fig.18)

NOTE: These connectors are color coded and

will ONLY engage when the colored strips are

matched (aligned).

2. Carefully push all the wires into the switch

housing assembly.

Attach the light ﬁxture assembly to the Switch

Housing Mounting Plate with the screws

provided. Make sure each screw is tight.

(Fig. 16)

3. Remove the socket nuts from each socket.

Insert a glass shade into the glass holder,

then replace and tighten the socket nut until it

is tighten ﬁrmly. Repeat this procedure for the

remaining glass shades. (Fig. 17)

NOTE: A Socket Nut Wrench has been

provided to help in this installation.

4. Install 4, 13 Watt compact ﬂuorescent

lamps (included). (Fig. 17)

5. Attach two pull chain fobs to each of the

beaded pull chains.

Table of contents

Other Kichler Lighting Fan manuals

Kichler Lighting

Kichler Lighting Emerson HIGH COUNTRY User manual

Kichler Lighting

Kichler Lighting 310125 User manual

Kichler Lighting

Kichler Lighting Sola 330151 Instruction Manual

Kichler Lighting

Kichler Lighting Lehr II User manual

Kichler Lighting

Kichler Lighting Jace LED User manual

Kichler Lighting

Kichler Lighting Canfield User manual

Kichler Lighting

Kichler Lighting Eris User manual

Kichler Lighting

Kichler Lighting 300457 User manual

Kichler Lighting

Kichler Lighting Lucian II 330241 User manual

Kichler Lighting

Kichler Lighting Cadence User manual

Kichler Lighting

Kichler Lighting Industrial Fan User manual

Kichler Lighting

Kichler Lighting Cameron 310204WH User manual

Kichler Lighting

Kichler Lighting Cottage Grove User manual

Kichler Lighting

Kichler Lighting Deckard User manual

Kichler Lighting

Kichler Lighting 330163 User manual

Kichler Lighting

Kichler Lighting Rana 310155 User manual

Kichler Lighting

Kichler Lighting 35156 User manual

Kichler Lighting

Kichler Lighting FRYST User manual

Kichler Lighting

Kichler Lighting Hatteras Bay Patio User manual

Kichler Lighting

Kichler Lighting Bronson User manual

Kichler Lighting

Kichler Lighting Porters Lake User manual

Kichler Lighting

Kichler Lighting Kittery Point User manual

Kichler Lighting

Kichler Lighting Riggs 300143 User manual

Kichler Lighting

Kichler Lighting Crystal Bay User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
