Kichler Lighting Windham User manual

1. SAFETY RULES

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualified licensed

electrician.

3. WARNING: Suitable for use with solid-

state speed controls.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting fixtures are not acceptable for fan

support and may need to be replaced,

consult a qualified electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

7. To operate the reverse function on this fan,

press the reverse button while the fan is

running.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN TO

OUTLET BOX MARKED "ACCEPTABLE FOR FAN

SUPPORT".

8. WARNING: Use only with light kit marked

"Suitable for Use in Damp Locations".

9. Avoid placing objects in the path of the

blades.

10. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

11. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

12. After marking electrical connections,

spliced conductors should be turned

upward and pushed carefully up into outlet

box. The wires should be spread apart with

the grounded conductor and the

equipment-grounding conductor on one

side of the outlet box.

13. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE BRACKETS (ALSO

REFERRED TO AS FLANGES) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT

INSERT OBJECTS IN THE PATH OF THE BLADES.

3. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Fan blades (5)

b. Mounting plate

c. Fan motor assembly

d. Motor housing

e. Set of blades brackets (5)

f. Mounting plate

g. Light kit

h. Glass shade

i. Part bag contents

1) Mounting hardware :

wood screws (2), flat washers (2),

star washers (2), wire nuts (3)

2) Blade attachment hardware:

screws (17), washers (17),

rubber washers (17)

3) Blade brackets hardware:

screws (10)

4) Safety cable hardware:

wood screw, lock washer, flat washer

5) Close mount hardware:

screw with lock washers (3)

6) Pull chain and fobs (2)

7) Balance Kit

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

WindhamTM

4. MOUNTING OPTIONS

If there isn't an existing UL (CUL for Canadian

Installation) listed mounting box, then read the

following instructions. Disconnect the power

by removing fuses or turning off circuit

breakers

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

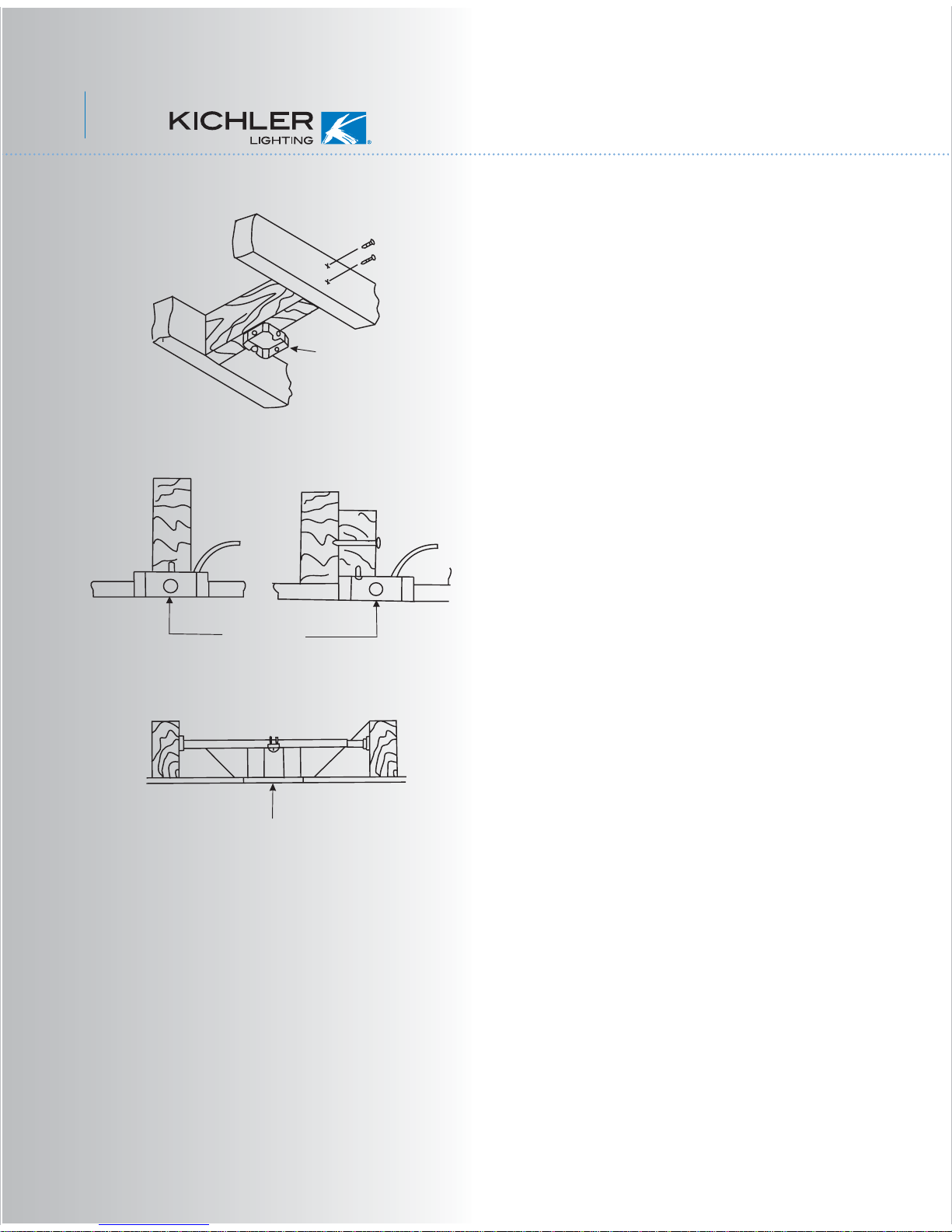

Figures 1 and 2 are examples of different ways

to mount the outlet box.

NOTE: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. (Fig. 3)

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Fig 3.

Outlet box

Fig. 1

Fig. 3

Outlet box

Fig. 2

WindhamTM

Fig. 5

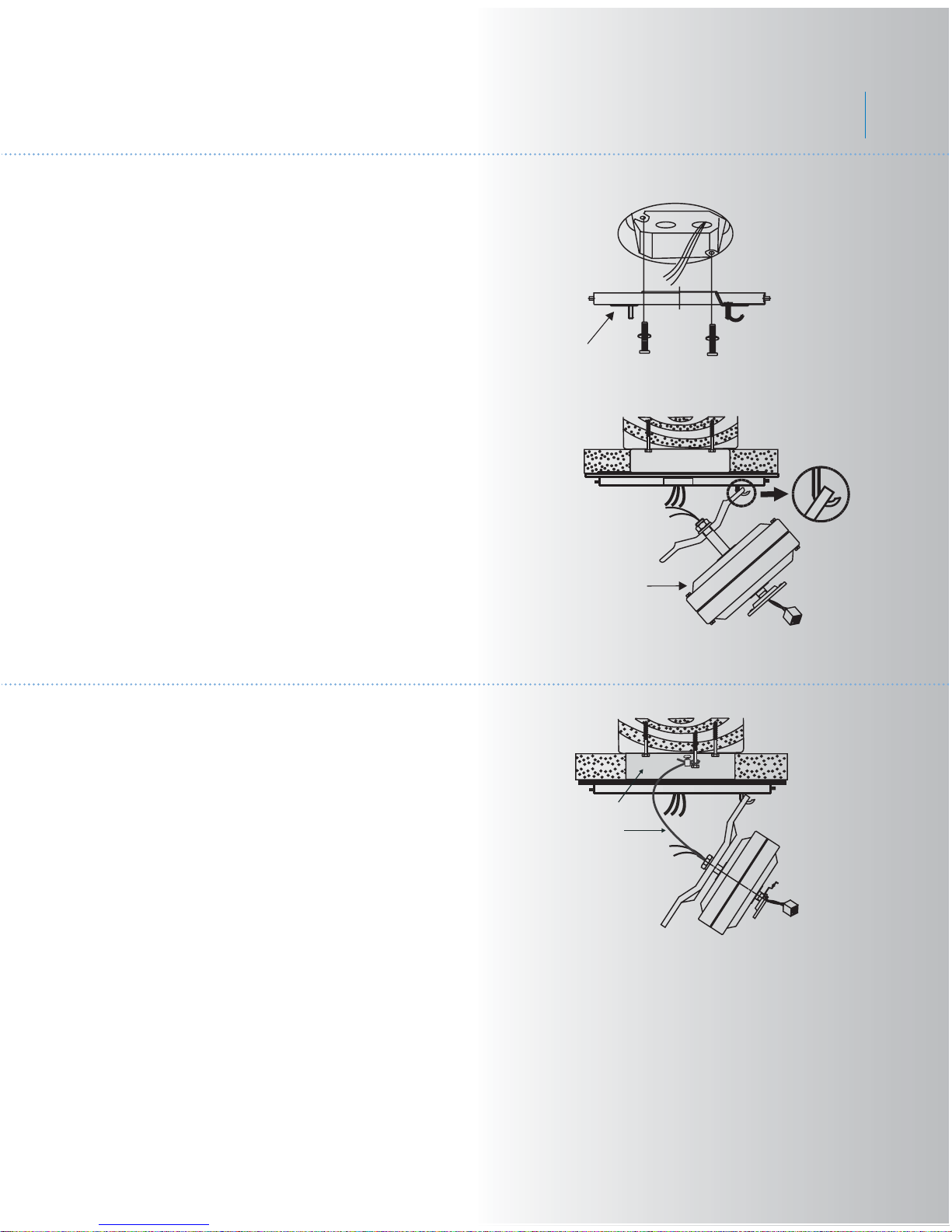

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

Step 1. Attach the mounting plate to the outlet

box with two screws and washers provided

with the outlet box. Make sure the mounting

plate is tight and secured. (Fig. 4)

Step 2. Lift fan into position by hanging the

motor assembly onto the hook from the ceiling

mounting plate allowing it to hang freely. (Fig. 5)

Fig. 4

5. HANGING THE FAN

CUL Listed

electrial

box

Mounting plate

Motor

Fig. 6

6. INSTALLATION OF SAFETY SUPPORT

(for Canadian Installation ONLY)

Outlet box

An additional safety support is provided to

prevent the fan from falling fan). Place the end

of cable through the loop of ceiling support

cable. Pull as much cable through loop as

possible. Feed end of cable into clamp hole

and fi rmly tighten screw (Fig. 6). Cut off

excess safety cable. Secure the safety cable

to the ceiling joist with screw and washer.

Attach safety cable

to ceiling joist with

screw and washer

Fig. 7

Fig. 8

Fig. 9

7. MAKE THE ELECTRIC CONNECTIONS

Remember to disconnect the power.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts supplied with your fan.

Secure the connectors with electrical tape.

Make sure there are no loose strands or

connections.

Step 1 Connect the fan supply (black) wire and

light supply (blue) wire to the black household

supply wire as shown in Figure 7.

Step 2. Connect the neutral fan (white) wire to

the white neutral household wire.

Step 3 Connect the fan ground wire (green) to

the household ground wire.

Step 4 After connecting the wires, spread

them apart so that the green and white wires

are on one side of the outlet box and the black

and the blue wires are on the other side.

Step 5 Turn the connecting nuts upward and

push the wiring into the outlet box.

Wiring

box

Ground to

mounting

bracket

or downrod

Power lines 120v

BLUE

BLK BLK

FAN

LIGHT

BLK

BLUE WH

Light

switch

Green ground

BLUE

BLK BLK

GRN

Wiring

box

Ground to

mounting

bracket

or downrod

BLUE

BLK WH

FAN

LIGHT

Power lines 120v

Green ground

Figures 8 and 9 illustrate the wiring

connections for optional wall control (The wire

color out of wall control may vary, see wall

control's installation manual for correct wire

connections.)

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK, OR OTHER PERSONAL

INJURY. MOUNT FAN ONLY ON AN

OUTLET BOX OR SUPPORTING SYSTEM

MARKED ACCEPTABLE FOR FAN

SUPPORT.

GROUND TO

MOUNTING

BRACKET

OR DOWNROD

POWER LINES 120V

GREEN

GROUND

WIRING

BOX

BLUE

BLK BLK

FAN

LIGHT

BLUE

BLK

LIGHT FAN

Fig. 10

Fig. 11

WindhamTM

8. FINISHING THE INSTALLATION

Step 1. Move fan into position over the four

mounting studs and secure with the provided

washers and nuts. (Fig. 10)

Step 2. Raise the motor housing up against

the mounting plate, the four supports inside

the housing should be placed against the four

studs on mounting plate, twist the housing

clockwise until snug. (Fig. 11)

Washers

Studs

Motor

housing

Nuts

Screws

Fig. 12

Fig. 13

9. ATTACHING THE FAN BLADES

Step 1 Attach the blade to the blade bracket

using the screws, washers and rubber

washers as shown in Figure 12. Start screw

into bracket. Repeat for the two remaining

screws.

Step 2 Make sure the blade is straight and

tighten each screw.

Step 3 Fasten blade assembly to motor using

"Pre-Installed" mounting screws in the blade

bracket.

Screws Blade

Blades bracket

Screws

Washers

Rubber

washers

10. INSTALLING THE MOUNTING PLATE

1. Remove 1 of the 3 screws from the

mounting ring and loosen the other 2 screws.

(Do not remove)

2. Place the key holes on the mounting plate

over the 2 screws previously loosened from

the mounting ring, turn mounting plate until it

locks in place at the narrow section of the key

holes. Secure by tightening the 2 screws

previously loosened and the one previously

removed. (Fig. 13)

Mounting

plate

Mounting ring

Screws

WindhamTM

11. INSTALLING THE LIGHT KIT

Fig. 14

Fig. 15

NOTE: Before starting installation, disconnect

the power by turning off the circuit breaker or

removing the fuse at fuse box. Turning power

off using the fan switch is not sufficient to

prevent electric shock.

1. While holding the light kit under your fan,

snap together the wire connection plugs .

2. Carefully push all wires back into the

mounting plate, then install the light kit onto

the mounting plate with 3 screws provided. Be

sure to tighten all screws. (Fig. 14)

12. NSTALLING THE LIGHT BULBS &

GLASS SHADE

Light kit

Mounting plate

Screws

Wire connector

1. Install 3, 40W candelabra bulbs (not

included).

2. Remove the decorative nut, glass cap and

metal nut from the light kit. Place glass shade

over the light kit stem, secure with the metal

nut (rubber side on the top), glass cap and

decorative nut. Do not overtighten. (Fig. 15)

3. insert 3 pull chains through the eyelets in

the shade and cap. Secure the glass cap and

decorative nut provided. (Fig. 15)

4. Restore power and your light kit is ready for

operation.

Note: Make sure to leave enough space

between the fan pull chain and the bulbs so

the chain doesn't rub against any of the bulbs.

Light kit

Bulbs

Glass shade

Glass cap

Decorative nut

Metal nut

Fig. 16

Fig. 17

13. OPERATING INSTRUCTIONS

Turn on the power and check the operation of

your fan. The pull chain controls the fan speed

as follows:

1. 3-speed pull chain- it controls the fan speed

as follows: 1 pull- High, 2 pulls- Medium,

3 pulls- Low, and 4 pulls- Off.

Speed settings for warm or cool weather

depend on factors such as the room size,

ceiling height, number of fans, and so on.

2. Light kit pull chain- it controls the light kit in

"ON" or "OFF".

The pull chain controls directions: it controls

the forward or reverse.

NOTE: Tthis ceiling fan has a "REVERSE

PULL CHAIN".

NOTE: Wait for fan to stop before changing

the setting of the slide switch.

Warm weather - (Forward) A downward airflow

creates a cooling effect as shown in Fig. 16.

This allows you to set your air conditioner on a

warmer setting without affecting your comfort.

Cool weather - (Reverse) An upward airflow

moves warm air off the ceiling area as shown

in Fig.17. This allows you to set your heating

unit on a cooler setting without affecting your

comfort.

Table of contents

Other Kichler Lighting Fan manuals

Kichler Lighting

Kichler Lighting Emerson HIGH COUNTRY User manual

Kichler Lighting

Kichler Lighting 300457 User manual

Kichler Lighting

Kichler Lighting Riggs 300143 User manual

Kichler Lighting

Kichler Lighting Maeve LED 52 User manual

Kichler Lighting

Kichler Lighting Highland Manor User manual

Kichler Lighting

Kichler Lighting Cottage Grove User manual

Kichler Lighting

Kichler Lighting Canfield 300117WH User manual

Kichler Lighting

Kichler Lighting Maor 310136 User manual

Kichler Lighting

Kichler Lighting Kimberley User manual

Kichler Lighting

Kichler Lighting 300260/60-GENT Series User manual

Kichler Lighting

Kichler Lighting Renew Select User manual

Kichler Lighting

Kichler Lighting KLF-SOLA-34-WHT-BN User manual

Kichler Lighting

Kichler Lighting Spyn User manual

Kichler Lighting

Kichler Lighting 65" GENTRY User manual

Kichler Lighting

Kichler Lighting Starkk 330174OZ User manual

Kichler Lighting

Kichler Lighting 300044 User manual

Kichler Lighting

Kichler Lighting RIED User manual

Kichler Lighting

Kichler Lighting Lija 330140NI User manual

Kichler Lighting

Kichler Lighting Terna 300230 User manual

Kichler Lighting

Kichler Lighting KAPONO User manual

Kichler Lighting

Kichler Lighting Cadence User manual

Kichler Lighting

Kichler Lighting XETY LED User manual

Kichler Lighting

Kichler Lighting sterling manor select User manual

Kichler Lighting

Kichler Lighting ERIS 337060 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
