Kichler Lighting 35156 User manual

Français p. 17

Español p. 33

ITEM #0803773

MODEL #35156

CEILING FAN

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-554-6504, 8 a.m. - 4:30 p.m, EST, Monday - Friday.

Kichler® is a registered trademark of

PACKAGE CONTENTS

Hanging Bracket

Down Rod

Canopy

Blade

Motor Coupling Cover

PART DESCRIPTION QTY

Motor Assembly

Light Kit Housing

Light Kit

Blade Iron

LED Bulb

PART DESCRIPTION QTY

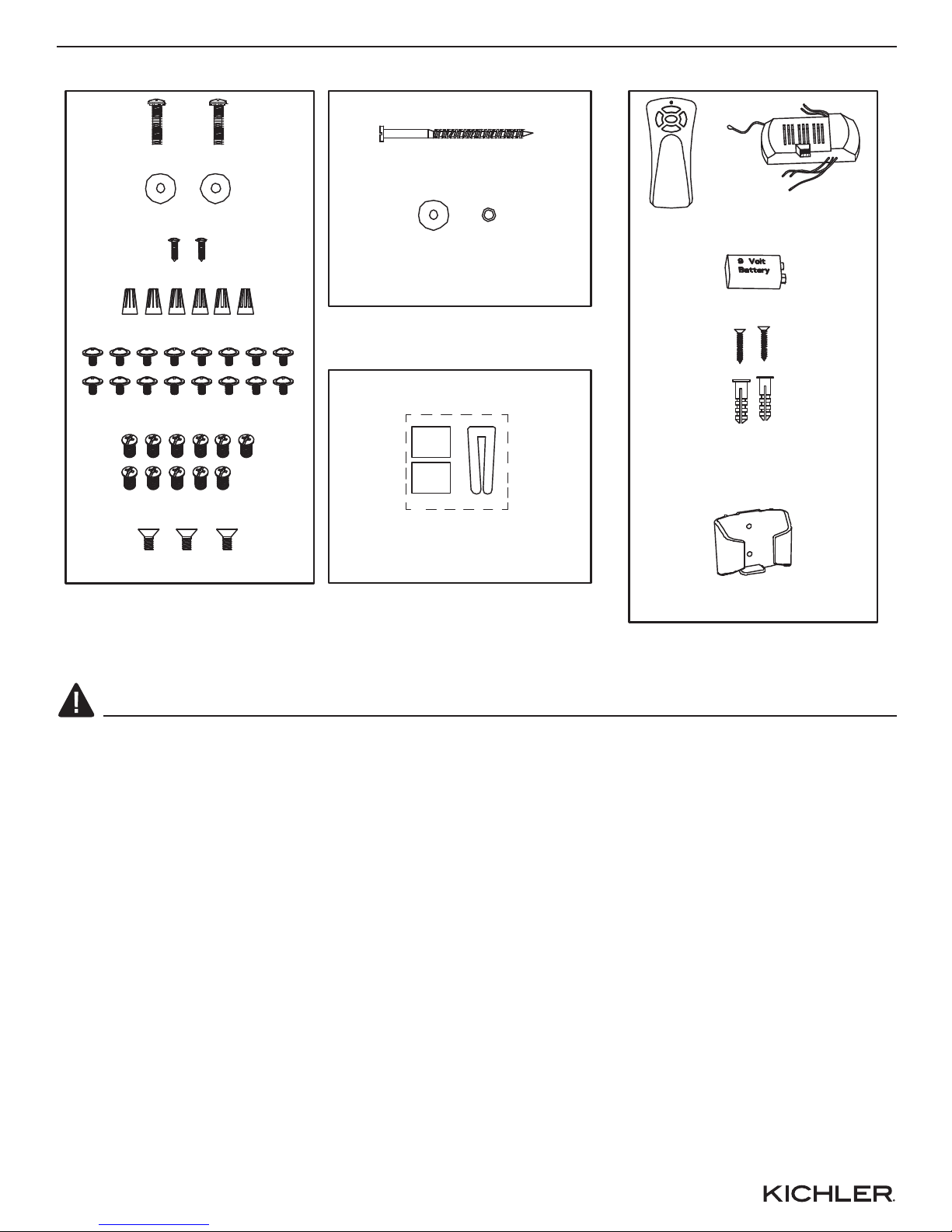

HARDWARE CONTENTS

SAFETY INFORMATION

Hanging bracket Screw

Hanging bracket Washer

Wire Connector

Blade Screw

HARDWARE BAG REMOTE CONTROL

Remote Control and Receiver

Remote Control Holder

Battery

Anchor and Screws

Wood Screw

Lag Screw

Blade Iron Screws

Shade Screws

Flat Washer + Spring Washer

Please read and understand this entire manual before attempting to assemble, operate or install the

product. Save this manual when finished.

WARNING:

• Important: When using an existing outlet box, be sure the box is securely attached to the building

structure and can support the full weight of the fan. Failure to do so can result in serious injury or

death.

• Turn off circuit breakers and wall switch to the fan supply wire leads. Warning: Failure to

disconnect power supply prior to installation may result in serious injury or death.

• Warning - Connecting this fan to a light switch (on/off) has been known to cause damage to the

receiver. This fan must be wired to continually receive power. Failure to do so will drastically

reduce the lifespan of this fan.

• Do not install fan on a ceiling with a pitch greater than 20°.

• WARNING – To Reduce The Risk Of Fire, Electric Shock, Or Personal Injury, Mount To Outlet Box

Marked 'Acceptable for Fan Support of 15.9 kg (35 lbs) or less' And Use Mounting Screws

Provided With The Outlet Box and/or Support Directly From Building Structure. Most Outlet Boxes

Commonly Used For The Support of Luminaires Are Not Acceptable For Fan Support And May

Need To Be Replaced. Consult A Qualified Electrician If In Doubt."

• Important: Be sure wiring box is properly grounded or that a ground (green) wire is present.

• Make sure the installation site you choose allows a minimum of 7 feet from the floor to the end of

the blades.

Balance Kit

WARNING (continued)

CAUTION:

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and diagram. If any part is missing or damaged, do not attempt to assemble the product.

Contact customer service for replacement parts.

Estimated assembly time: 30 minutes to 1 hour.

Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers,

electrical tape, ladder, safety glasses.

A B C

ASSEMBLY INSTRUCTIONS

• WARNING-To reduce risk of fire, electric shock, or personal injury, mount to outlet box marked

“Acceptable for Fan Support of 15.9kg (35lbs) or less” and use mounting screws provided with the

outlet box and/or support directly from building structure. Most outlet boxes commonly used for

the support of luminaries are not acceptable for fan support and may need to be replaced.

Consult a qualified electrician if in doubt.

• Warning-Risk of fire, electric shock, or personal injury. Ceiling fans may be either directly

supported from a structural framing member of a building and (see examples in figures A & B) or

may be mounted to an outlet box marked acceptable for fan support of 31.8 kg (70 lbs) to 15.9kg

(35 lbs) (see example in figure C).

• To reduce the risk of fire or electrical shock, do not use this fan with any solid state fan speed

device or variable speed control.

• Do not touch hot LED

• The LED light output is strong enough to injure human eyes. Precautions must be taken to

prevent looking directly at the LEDs with unaided eyes for more than a few seconds.

• Read and understand all instructions and illustrations completely before proceeding with assembly

and installation of this fixture.

• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate

completely, please contact a qualified licensed electrical contractor.

• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts

out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate

the UL listing, C.S.A. certification, and/or UL listing of this fixture.

• This fixture is intended for installation in accordance with the National Electric Code (NEC) and all

local code specifications.

• Use ONLY the supplied LED driver to power fixture.

• Driver cable is not intended for use through or concealed behind walls, floors, or ceilings.

ASSEMBLY INSTRUCTIONS

Turn off the circuit breaker to the fan supply line

leads.

DANGER: Failure to disconnect power supply prior

to installation may result in serious injury or death.

3. Loosen the set screws found on the coupling on top

of the motor assembly (F). Then, remove the

preassembled hair and clevis pin and save for later

use.

2. Secure the hanging bracket (A) to the ceiling outlet

box using hanging bracket screws and hanging

bracket washers.

Important: If attaching the fan to a sloped ceiling,

make sure open end of mounting bracket is installed

facing the roof. Do not install fan on a ceiling with a

pitch greater than 20°.

Outlet Box

Hanging

Bracket

Washer

Hanging

Bracket

Screw

Clevis Pin

Hair Pin

20 20

OFF

OFF OFF

100

ASSEMBLY INSTRUCTIONS

4. Insert downrod (B) through canopy (C) and motor

coupling cover (E).

5. Feed wires from the motor assembly (F) through the

downrod (B), then insert the downrod (B) into the

coupling found on top of the motor assembly (F).

Motor

Coupling

ASSEMBLY INSTRUCTIONS

6. Pass the previously removed clevis pin through the

downrod (B) and coupling of motor assembly (F),

then secure with previously removed hair pin.

Re-tighten set screws on the coupling and lower the

motor coupling cover (E).

7. Carefully lift the fan and seat the ball of the downrod

(B) in the hanger bracket (A). Be sure the groove in

the ball is lined up with the tab on the hanger bracket

(A).

DANGER: Be careful when aligning the tab to

the groove in ball. If not fully engaged, there is a

possibility of the fan falling, which may result in

serious injury or death.

ASSEMBLY INSTRUCTIONS

8. For Canadian installation and for USA fans over 35

lbs, the safety cable must be installed into the house

structure beams using a 3” lag screw. Make sure

that when the safety cable is fully extended the lead

wires are longer than the cable and no stress is

placed on the lead wires.

Safety

Cable

Lag

Screw

Safety

Cable

Flat

Washer

Spring

Washer

Safety

Cable

REMOTE CONTROL

RECEIVER

9. In order to use this remote control the dip switches

must match on both the remote control and the

receiver. Make sure they both have the same

configuration.

Remove the battery cover from the remote control.

Slide dip switches up or down using a small screw

driver (not included). Then match the dip switches

on the receiver to the same position as the remote

control.

Install the battery (included) and replace the battery

cover you previously removed.

ASSEMBLY INSTRUCTIONS

10.Wiring the fan per wiring diagram and securely connect wires with wire connectors: Wrap

electrical tape (not included) around each wire connector and make sure no bare wire or wire

strands are visible after making connections.

• Connect WHITE wire from the fan to WHITE wire marked TO MOTOR N from the receiver.

• Connect BLUE wire from the fan to BLUE wire marked FOR LIGHT from the receiver.

• Connect BLACK wire from the fan to BLACK wire marked TO MOTOR L from the receiver.

• Connect BLACK wire from the outlet box to BLACK wire marked AC IN L from the receiver.

• Connect WHITE wire from the outlet box to WHITE wire marked AC IN N from the receiver.

• Connect GROUND (GREEN) wires from hanger bracket and downrod ball, to GROUND (GREEN

or BARE COPPER) from house.

GREEN or

GREEN

BARE COPPER

Receiver

BLUE (Light)

BLACK (Motor)

WHITE (Neutral)

BLUE

BLACK

WHITE

(Neutral) BLACK

(Live)

WHITE

(AC Input)

BLACK

(AC Input)

Outlet Box

ASSEMBLY INSTRUCTIONS

11.Once wiring step has been completed, slide the

wired remote receiver in between the hanging

bracket (A) and the top of the downrod ball (B) with

the flat side of the receiver facing the ceiling. Turn

lead wires upward and carefully push them into the

outlet box, with the white and green wires to one

side of the box and the black wires toward the other

side.

12.Loosen one of the shoulder screws without fully

removing it from the hanging bracket (A).

Completely remove the remaining shoulder screw

from the hanging bracket (A).

Assemble canopy (C) by rotating keyhole slot on

canopy (C) over shoulder screw in hanging bracket

(A). Loosely screw the previously removed shoulder

screw into the canopy and onto hanging bracket (A).

Tighten shoulder screws. Securely attach and tighten

the canopy hole cover over the shoulder screws in

the hanging bracket (A) utilizing the keyhole slot

twist-lock feature.

Blade

Screw

13.Attach blade iron (I) to blade (D) with blade screws.

Do not fully tighten blade screws until each screw

has been started. Then, tighten each blade screw

starting with the center screw. Repeat for remaining

blade irons (I) and blades (D).

Shoulder

Screw

Canopy

Hole

Cover

Shoulder

Screw
