Kichler Lighting FLYY 310700MWH User manual

60" FLYYTM LED

INSTRUCTION MANUAL

Product images may vary slightly from actual product.

60" FLYY TM LED | 3

TABLE OF CONTENTS

SAFETY RULES.......................................................................... 4

TOOLS REQUIRED....................................................................

PACKAGE CONTENTS.............................................................

MOUNTING OPTIONS.............................................................

HANGING THE FAN..................................................................

INSTALLATION OF SAFETY SUPPORT..........................

ELECTRICAL CONNECTIONS.............................................

FINISHING THE INSTALLATION........................................

ATTACHING THE FAN BLADES..........................................

INSTALLING THE GLASS SHADE....................................14

CONTROL SYSTEM SET-UP...............................................

BUTTON INSTRUCTION........................................................

INSTALLING THE WALL CONTROL

SYSTEM WALL PLATE............................................................

OPERATION INSTRUCTIONS.............................................

TROUBLESHOOTING.............................................................

4 | KICHLER.COM

SAFETY RULES

1. To reduce the risk of electric shock, insure electricity has been turned

o at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical Code and

local electrical codes. Electrical installation should be performed by a

qualified licensed electrician.

3. WARNING: Not suitable for use with solid-state speed controls.

4. WARNING: To reduce the risk of fire, electric shock, or personal

injury, mount to outlet box marked "acceptable for fan support of 15.8

kg (35 lbs.) or less" and use mounting screws provided with the outlet

box. Most outlet boxes commonly used for the support of light

fixtures are not acceptable for fan support and may need to be

replaced. Due to the complexity of the installation of this fan, a

qualified licensed electrician is strongly recommended.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR

PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED

"ACCEPTABLE FOR FAN SUPPORT".

5. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 50 pounds. Use only CUL

Listed outlet boxes marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum of 7 feet clearance from

the trailing edge of the blades to the floor.

7. To operate the reverse function on this fan, press the reverse button

while the fan is running.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan blades.

A dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

11. After marking electrical connections, spliced conductors should be

turned upward and pushed carefully up into outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box.

12. Electrical diagrams are reference only. Light kits that are not packed

with the fan must be CUL Listed and marked suitable for use with the

model fan you are installing. Switches must be CUL General Use

Switches. Refer to the Instructions packaged with the light kits and

switches for proper assembly.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT

BEND THE BLADE BRACKETS (ALSO REFERRED TO AS FLANGES)

DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT

OBJECTS IN THE PATH OF THE BLADES.

TOOLS REQUIRED

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

PACKAGE CONTENTS

Unpack your fan and check the

contents. You should have the

following items:

a. Fan blades (3)

b. Canopy & Ceiling mounting bracket

c. Ball/downrod assembly

d. Secure ring

e. Coupling cover

f. Fan motor assembly

g. Glass shade

h. Metal cover

i. Receiver

j. Wall Transmitter

k. Allen wrench

l. Part bag contents

1) Mounting hardware:

star washers (2), wire nuts (3),

machine screws (2), washers (2),

screws (2)

2) Blade attachment hardware:

screws (8),

fiber washers (8)

3) Safety cable hardware:

wood screw, lock washer, flat

washer

4) Balance Kit

60" FLYY TM LED | 5

6 | KICHLER.COM

If there isn't an existing UL (cUL for Canadian Installation) listed

mounting box, then read the following instructions. Disconnect the

power by removing fuses or turning o circuit breakers.

Secure the outlet box directly to the building structure. Use appropriate

fasteners and building materials. The outlet box and its support must be

able to fully support the moving weight of the fan (at least 50 lbs). Do not

use plastic outlet boxes.

Figures 1, 2 and 3 are examples of dierent ways to mount the outlet

box.

NOTE: If you are installing the ceiling fan on a sloped (vaulted) ceiling,

you may need a longer downrod to maintain proper clearance between

the tip of the blade and the ceiling. A minimum clearance of 12" is

suggested for optimal operation.

NOTE: Depending on the location you have selected for installation, you

may need to purchase and install a "Joist Hanger" for the support of the

outlet box. Make sure the joist hanger you purchase has been designed

for use with ceiling fans. (Fig. 4)

MOUNTING OPTIONS

Fig. 1

Outlet box

Fig. 2

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Fig. 3

ANGLED CEILING

MAXIMUM 20° ANGLE

Outlet box

Fig. 4

HANGING THE FAN

REMEMBER to turn o the power before you begin.

To properly install your ceiling fan, follow the steps below.

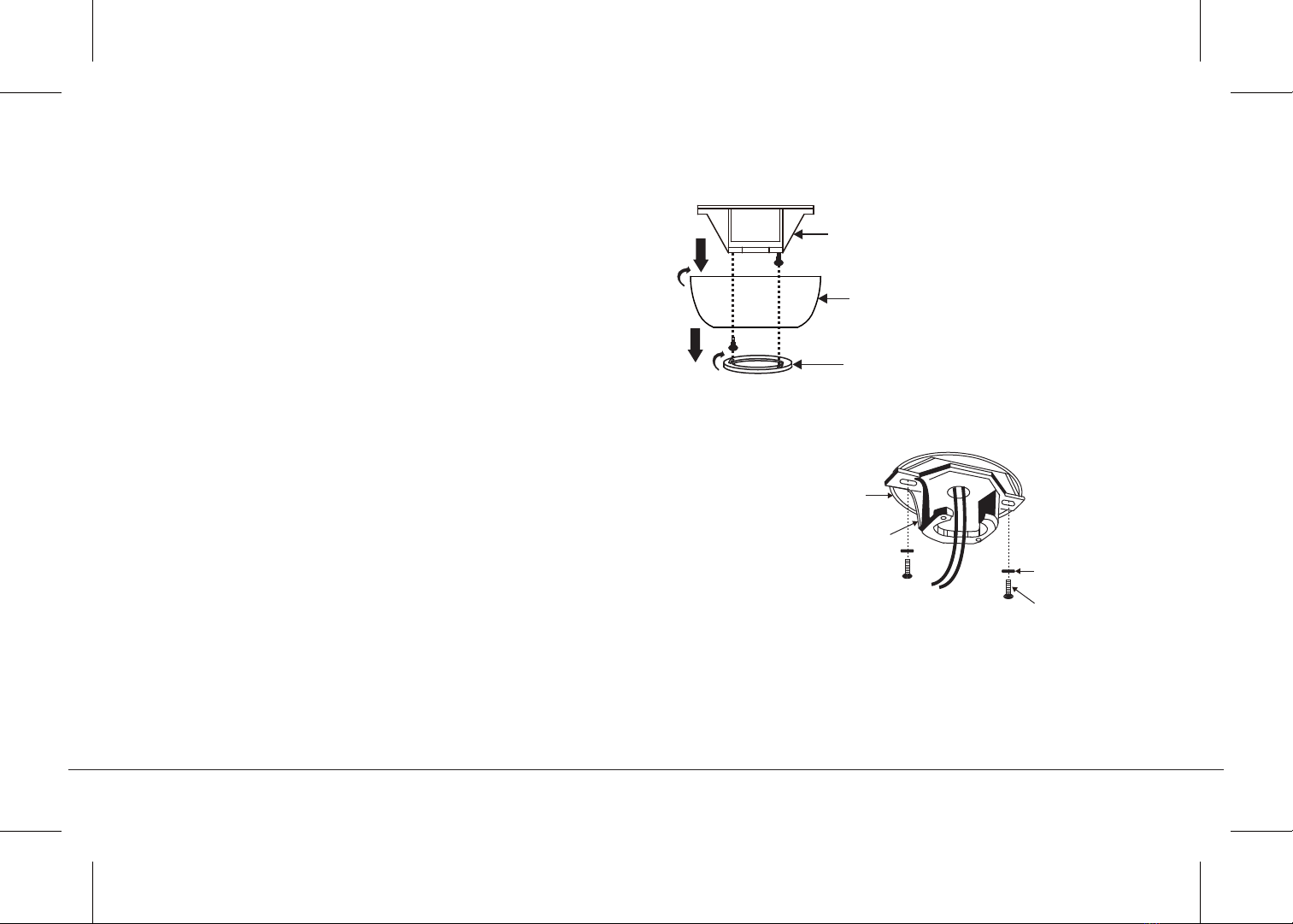

Step 1. Remove the decorative canopy bottom cover from the canopy

by turning the cover counter clockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket from the canopy by

removing (and save one of the two screws. Loosen the remaining screw

by a half turn. (Fig. 5)

Step 3. Pass the 120 volt supply wires from the ceiling outlet box through

the center of the ceiling mounting bracket. (Fig. 6)

Step 4. Attach the ceiling mounting bracket to the outlet box using the

screws and washers included with the outlet box. (Fig.6)

Fig. 5

Fig. 6

Hanger bracket

Ceiling

canopy

Canopy

cover

Ceiling

hanger

bracket

Mounting screws (supplied

with electrical box)

UL Listed

electrial

box

120V Wires

Washers

60" FLYY TM LED | 7

8 | KICHLER.COM

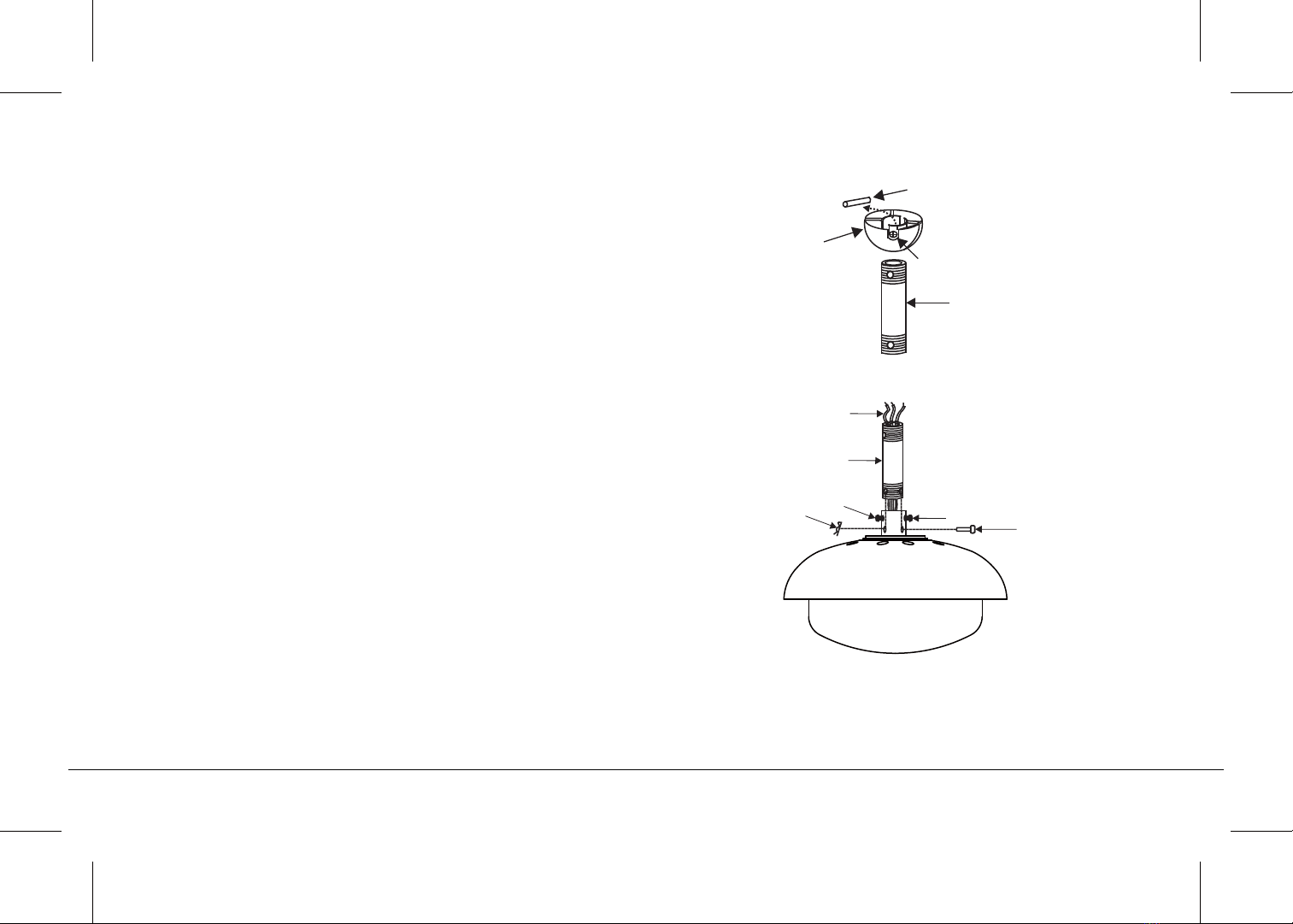

Step 5. Remove the hanger ball from the downrod assembly by

loosening the set screw, unscrewing and removing removing the cross

pin and unscrewing the ball o the rod. (Fig. 7)

Step 6. Loosen the two set screws and remove the hitch pin and

retaining clip from the coupling on top of the motor assembly. (Fig. 8)

Step 7. Carefully feed the electrical lead wires from the fan up through

the downrod. Thread

the downrod into the coupling until the Hitch pin holes are aligned.

Next, replace the hitch pin and retaining clip. Tighten both set screws.

(Fig. 8)

HANGING THE FAN(continued)

Fig. 7

Fig. 8

Downrod

Cross pin

Hanger

ball Set screw

Supply wires

Downrod

Hitch pin

Retaining clip Set screws

Set screws

Fig. 9

Fig. 10

HANGING THE FAN(continued)

Step 8. Slip the coupling cover, secure ring , canopy cover and canopy

onto the downrod. (Fig. 9)

Slide the secure ring, and fasten using the collar setscrew and Allen

wranch provided. (Fig. 9)

Thread the hanger ball onto the downrod, insert the cross pin through

the downrod and tighten. Now tighten the set screw. (Fig. 9)

Step 9. Lift the motor assembly into position and place the hanger ball

into the ceiling mounting bracket.

Rotate the entire assembly until the "Check Tab" has dropped into the

"Registration Slot" and seats firmly. (Fig. 10)

The entire motor assembly should not rotate (left or right) when seated

properly.

WARNING: Failure to reattach the cross pin and seat the "Check Tab"

can cause the fan to fall from the ceiling during operation. Take special

care to make sure this pin is reattached.

Registration slot

Downrod

Canopy

Canopy cover

Set screws

Hitch pin Retaining clip

Coupling cover

60" FLYY TM LED | 9

Secure ring

Collar setscrew

Allen wrench

10 | KICHLER.COM

A safety support cable is provided to help prevent the ceiling fan from

falling.

Step 1. Attach the provided wood screw and washers to the ceiling joist

next to the mounting bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to reach the screw and

washers by pulling the extra cable through the cable clamp until the

overall length is correct, put the end of the cable back through the cable

clamp, forming a loop at the end of the cable. Tighten the cable clamp

securely. Now, put the loop in the end of the safety cable over the wood

screw and under the washer. Tighten the wood screw securely.

NOTE: Although the safety support cable is required for Canadian

installations only. It's a good idea to make the attachment with any

installation.

Step3. Insert the receiver into the ceiling mounting bracket with the flat

side of the receiver facing the ceiling. (Fig. 12) For best performance,

make sure the Black Antenna, on the end of the receiver, remains

extended and not tangled with any of the electrical wires.

INSTALLATION OF SAFETY SUPPORT

(required for Canadian installation ONLY)

Fig. 11

Ceiling mounting

bracket

Attach

safety cable

to ceiling joist

with screw and

washer

Fig. 12

Receiver

Hanger

bracket

Table of contents

Other Kichler Lighting Fan manuals

Kichler Lighting

Kichler Lighting ELLYS User manual

Kichler Lighting

Kichler Lighting 300457 User manual

Kichler Lighting

Kichler Lighting 35153 Manual

Kichler Lighting

Kichler Lighting Spyn User manual

Kichler Lighting

Kichler Lighting Lucian II 330241 User manual

Kichler Lighting

Kichler Lighting Monarch II User manual

Kichler Lighting

Kichler Lighting Starkk User manual

Kichler Lighting

Kichler Lighting Crystal Bay User manual

Kichler Lighting

Kichler Lighting Meredith User manual

Kichler Lighting

Kichler Lighting Sterling Manor User manual

Kichler Lighting

Kichler Lighting 300395 User manual

Kichler Lighting

Kichler Lighting Cameron User manual

Kichler Lighting

Kichler Lighting Eads 310135 User manual

Kichler Lighting

Kichler Lighting Eris User manual

Kichler Lighting

Kichler Lighting Emerson HIGH COUNTRY User manual

Kichler Lighting

Kichler Lighting Harbour Walk Patio User manual

Kichler Lighting

Kichler Lighting Hatteras Bay Patio User manual

Kichler Lighting

Kichler Lighting 54 Meredith User manual

Kichler Lighting

Kichler Lighting SPYRA User manual

Kichler Lighting

Kichler Lighting Canfield User manual

Kichler Lighting

Kichler Lighting Pacific Edge 300157 User manual

Kichler Lighting

Kichler Lighting Decor Link User manual

Kichler Lighting

Kichler Lighting ERIS 337060 User manual

Kichler Lighting

Kichler Lighting Cameron 310204WH User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
