Kamstrup 66-99-279 Manual

Pulse tester

Type no.: 66-99-279

Kamstrup A/S

Industrivej 28, Stilling, DK-8660 Skanderborg

TEL: +45 89 93 10 00 · FAX: +45 89 93 10 01

info@kamstrup.com · www.kamstrup.com

OPERATOR’S GUIDE

Contents

English

1. Pulse tester 5

1.1 Introduction 5

1.2 Technical data for pulse tester 5

1.3 Hold function 6

1.4 Key functions 6

1.5 Using the pulse tester 7

1.6 Spare parts 7

1.7 Changing the battery 7

1.8 Connection examples 8

2. Verifying ULTRAFLOW®9

2.1 Installation 9

2.2 Technical data for ULTRAFLOW®9

Dansk

1. Impulsetester 11

1.1 Indledning 11

1.2 Tekniske data for impulstester 11

1.3 Hold funktionen 12

1.4 Trykknapfunktioner 12

1.5 Anvendelse af impulstester 13

1.6 Reservedele 13

1.7 Batteriskift 13

1.8 Tilslutningseksempler 14

2. Verifikation af ULTRAFLOW®15

2.1 Montage 15

2.2 Tekniske data for ULTRAFLOW®15

Deutsch

1. Impulsetestgreät 17

1.1 Einleitung 17

1.2 Technische Daten des

Impulstestgeräts 17

1.3 Haltefunktion 18

1.4 Druckknopffunktionen 18

1.5 Anwendung des

Impulstestgeräts 19

1.6 Ersatzteile 19

1.7 Batteriewechsel 19

1.8 Anschlußbeispiele 20

2. Beglaubigung von ULTRAFLOW®21

2.1 Montage 21

2.2 Technische Daten

von ULTRAFLOW®21

Русский

1. Импульсныйтестер 23

1.1 Введение 23

1.2 Техническиеданные

импульсноготестера 23

1.3 Функциязадержки 24

1.4 Функциикнопок 24

1.5 Применение

импульсноготестера 25

1.6 Запасныечасти 25

1.7 Заменабатареи 25

1.8 Примерыподключения 26

2. ПоверкаULTRAFLOW® 27

2.1 Монтаж 27

2.2 Техническиеданные

ULTRAFLOW® 27

Pulse tester1.

Introduction1.1

PULSE TESTER, type no. 66-99-279, is espe-

cially designed for use during the verifica-

tion process. The tester has the following

functions:

Galvanically separated pulse outputs•

Integral supply for ULTRAFLOW• ®

LC-Display with counter•

An externally managed “Hold” function•

Can be fitted directly onto MULTICAL• ®

base (Type 66-)

Technical data for pulse tester1.2

Pulse inputs (M1/M2)

Counter inputs Max. frequency: 128 Hz

Active signa Amplitude: 2.5 - 5 Vpp

Pulse duration >1 msec.

Passive signal Intern pull-up 680 kΩ

Internal supply 3.65 V lithium battery

Connection

(M1)

Red

10:

Yellow

11:

Blue

Connection

(M2)

Red

69:

Yellow

11:

Blue

NB: There are one or two pulse inputs/

outputs depending on the base unit.

Flow meter with transistor output1.

The transmitter is typically an opto

coupler with FET or transistor output.

This is connected to terminals 10 and

11 for water meter M1 or terminals 69

and 11 for water meter M2. The transi-

stors leak current must not exceed 1 µA

when switched OFF. UCE when switched

ON must not exceed. 0.5 VDC.

Flow meter with relay or reed switch2.

output

The transmitter is a reed switch,

typically on a vane wheel or Woltmann

meters, or relay output from MID-meter

or similar. This type of transmitter

should not be used, as the quick pulse

input may give rise to problems due to

bouncing.

Flow meter with active pulse output,3.

supplied by the pulse tester

This connection can be used with

either KAMSTRUP’s ULTRAFLOW®or

KAMSTRUP’s electronic pick-up for vane

wheel meters.

Flow meter with active output and own4.

supply

Flow meters with active signal output

should be connected as shown in fig. 1,

pt 4. The signal level must be between

3.5 and 5 V. Larger signal levels can be

connected via a passive voltage divider,

e.g. on 47 kΩ/10 kΩat 24 V signal

level.

English

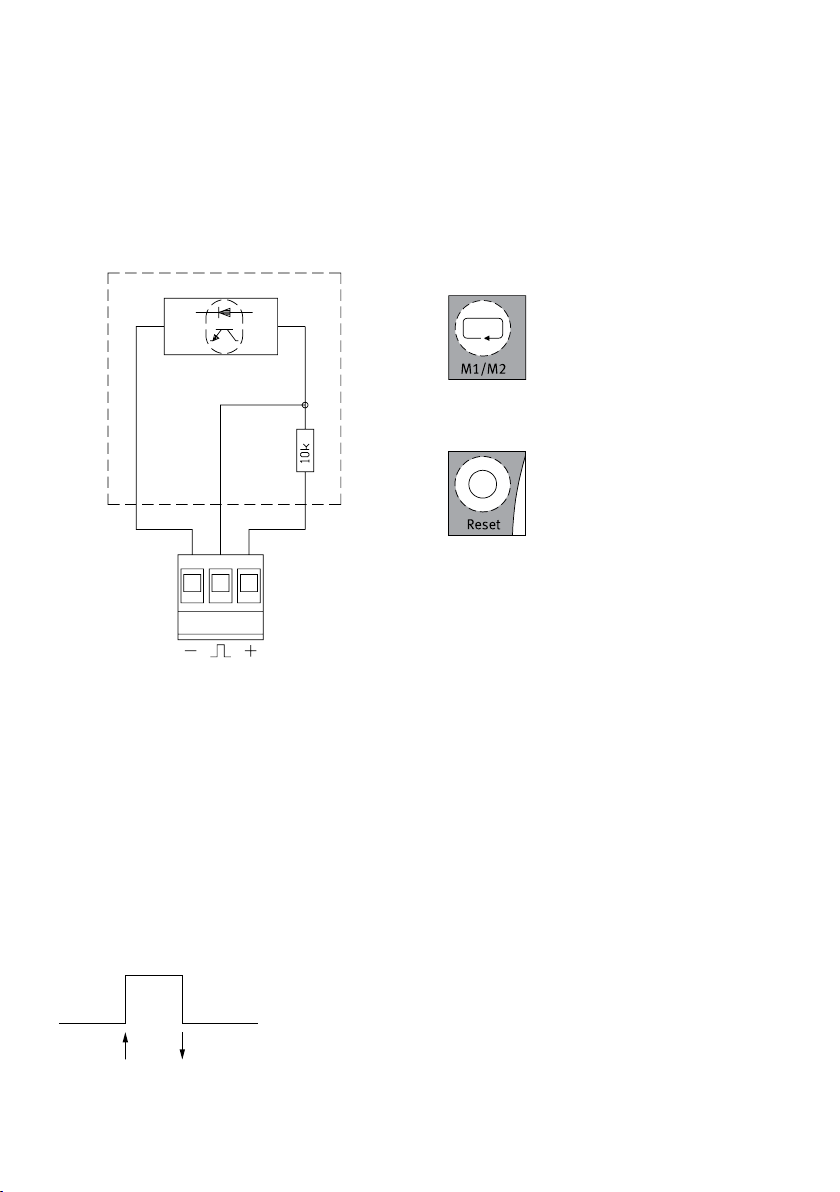

Pulse outputs (M1/M2)

Pulse duration >3.9 ms

Break 3.9 ms

Two wire connection:

Voltage <24 V

Load >1.5 kΩ

Three-wire connection:

Voltage 5...30 V

Load >5 kΩ

Figure 2

The outputs are galvanically isolated•

and protected against overvoltage and

reverse polarity.

Max. counter capacity prior to overflow is•

9.999.999 counts.

Hold input (HOLD)

Input Galvanically

isolated

Input protection Against reverse polarity

”Open input” Count (See fig. 3)

Figure 3

Hold function1.3

When the Hold-input is activated (input ad-

ded to high level), counting on the counted

pulses will stop.

When the Hold-signal is deactivated (input

added to low level), counting is restarted.

Counters can be reset by pressing the key

on the right hand side.

Key functions1.4

The left-hand key is used to

change between display/

counter for the two flow

meter inputs. The display

indicates with M1 or M2

which flow meter inputs/ counters are

currently displayed.

The right-hand key is used to

reset the two counters (M1

and M2).

Amplitude 1.5 - 30 VDC

Hold Count

Using the pulse tester1.5

The pulse tester can be used asfollows:

Standing Start/Stop of the flow meter•

using the integral pulse counters.

Standing Start/Stop of flow meters using•

pulse outputs to external test equipment.

Flying Start/Stop of flow meters using•

integral counters, controlled by external

equipment (Hold).

Flying Start/Stop of flow meters using•

pulse outputs controlled by external

equipment (Hold).

Spare parts1.6

Description Type no.

Battery D-cell 66-00-200-100

Cable retainer

(for the battery) 1650-099

2-pole plug (female) 1643-185

3-pole plug (female) 1643-187

PCB for pulse inputs (66-R) 5550-517

Changing the battery1.7

If the pulse tester is used continuously, we

would recommend that you replace the bat-

tery once a year.

The battery should be connected to the

terminals marked “batt.”. The red wire to +

and the black wire to -.

Power consumption:

Consumption with no meter

connected 400 µA

Max. power consumption with two

ULTRAFLOW®connected 1.5 mA

NB: The supply to the pulse tester must

be disconnected, if the connection bracket

is equipped with a battery or externally

supplied.

Connection examples1.8

Pulse input

Connection (M1) 9: Red 10: Yellow 11: Blue

Connection (M2) 9: Red 69: Yellow 11: Blue

Pulse output

Verifying ULTRAFLOW2. ®

Installation2.1

ULTRAFLOW®with flow range from 0.6 m³/h

to 2.5 m³/h (DN15 and DN20) can be fitted

without considering the inlet pipes.

All other ULTRAFLOW®sizes must be fitted

so that the inlet pipe is straight at min. 3...5

x DN.

Please consider the installation angle when

fitting ULTRAFLOW®. Please refer to the

restrictions stipulated in the installation

manual for ULTRAFLOW®

Technical data for ULTRAFLOW2.2 ®

[m³/h]

Pulse value

[pulses/

litre]

CCC-code

0.6 300 116

1.5 100 119

2.0 100 119

2.5 50 136

3.0 50 151

3.5 50 151

6.0 25 137

10 25 137

15 10 120

25 10 120

40 5 158

60 2.5 170

150 1 147

400 0.4 171

1000 0.25 172

Type: FET (open drain) with pull-up resi-

stance of 100 kΩ

Output impedance ~10 kΩ

Pulse duration 2...5 ms

Break Depends on the actual

water flow

Frequency 0 - 128 Hz, depending

on flow meter type and

approval range

Figure 4

Connection•

Via 3-wire cable

Yellow: Signal

Red: Supply

Blue: GND

Supply: 3.6 VDC ± 10%

From start-up until true flow reading is

attained and when commencing verifica-

tion, takes 16 seconds.

MEASURING FLOW•

To attain a correct flow measurement, ver-

ficiation should take at least 3 minutes.

Evacuation•

ULTRAFLOW®must not be evacuated

(subjected to vacuum).

Suggested test points•

(flying start/stop)

The table shows flow meters and related

test quantities and test times:

Nom. flow

Test point

Qn/Qmin/Qt

[m³/h]

Test quantity

[kg]

Test time

[min]

0.6 m³/h 0.6 / 0.006 / 0.036 30 / 2 / 3.6 3 / 20 / 6

1.5 m³/h 1.5 / 0.015 / 0.09 75 / 5 / 10 3 / 20 / 6.7

2.5 m³/h 2.5 / 0.025 / 0.015 125 / 10 / 20 3 / 24 / 6

3.5 m³/h 3.5 / 0.035 / 0.21 175 / 10 / 21 3 / 17 / 6

6.0 m³/h 6.0 / 0.06 /0.36 300 / 20 / 40 3 / 20 / 6.7

10 m³/h 10 / 0.1 / 0.6 500 / 20 / 60 3 / 12 / 6

15 m³/h 15 / 0.3 / 1.5 750 / 50 / 150 3 / 10 / 6

25 m³/h 25 / 0,5 / 2,5 1250 / 50 / 250 3 / 6 / 6

40 m³/h 40 / 0.8 / 4 2000 / 100 / 400 3 / 7.5 / 6

60 m³/h 60 / 1.2 / 6 3000 / 200 / 600 3 / 10 / 6

150 m³/h 150 / 3 / 15 7500 / 500 / 1500 3 / 10 / 6

400 m³/h 400 / 8 / 40 20,000 / 1250 / 4000 3 / 9.4 / 6

1000 m³/h 1000 / 20 / 100 50,000 / 2000 / 10,000 3 / 6 / 6

Test parametres are set up in accordance

with German regulations relating to accur-

acy class C.

The individual test time is selected on the

basis of:

Min test time of 3 min (Qn)

Water quanitity of at least 10% of water

quantity pr hour (Qtand Qmin)

Water quantity for Qt- corresponding to

min. 1000 pulses

Water quanity for Qmin corresponding to

min 500 pulses

These suggestions can be optimised for

each individual bench and, of course, with

consideration for the test objectives.
