PM-3033 series Quick Start

1. Shipping Package

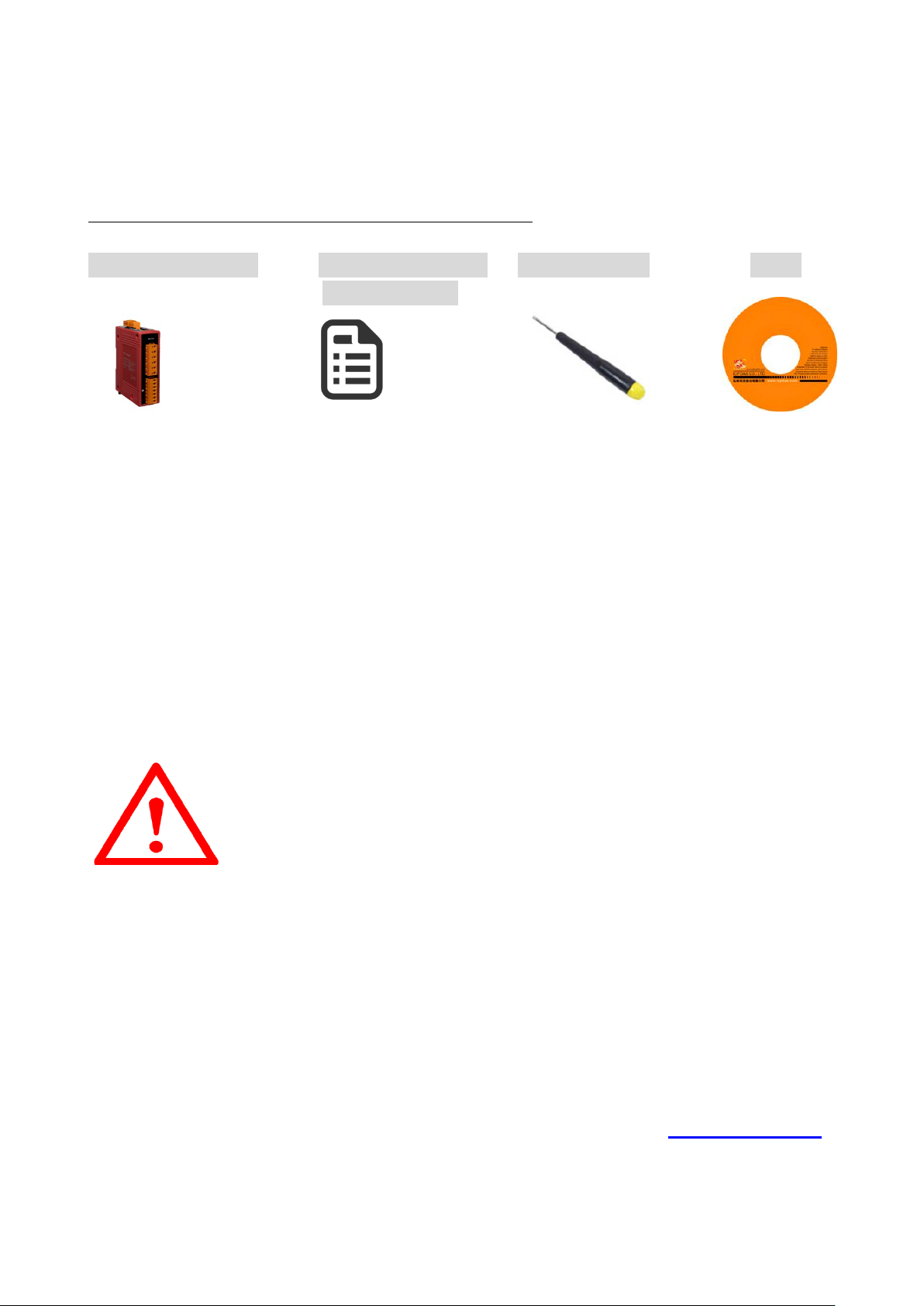

This shipping package contains the following items

1 x PM-3033 module 1 x Quick Start Screw Driver x 1 CD x 1

(This Document)

2. PM-3033 series introduction

ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3033 series that

gives you access to real-time electric usage for three-phase power measurement. With its high accuracy

(<0.5%, PF=1 ), the PM-3033 series can be applied to both low voltage primary side and/or medium/high

voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings

from the monitored equipments in real time under operation.

Direct input from “secondary side 1A/5A” type CTs. Dedicated CTs are no longer needed, which lowers the

cost of implementation.

It operates over a wide input voltages range 10 ~ 500 VAC which allows worldwide compatibility. It also

supports Modbus RTU, Modbus TCP or CANopen protocols for easy integration.

2.1. Caution & Warning

The meter contains hazardous voltages, and should never be disassembled. Failing to follow

this practice will result in serious injury or death. Any work on or near energized meters,

meter sockets, or other metering equipment could induce a danger of electrical shock. It is

strongly recommended that all work should be performed only by qualified industrial

electricians and metering specialist. ICP DAS assumes no responsibility if your electrical installer does not follow

the appropriate national and local electrical codes.

ICP DAS assumes no liability for any damage resulting from the use of this product. ICP DAS reserves the right to

change this manual at any time without notice. The information furnished by ICP DAS is believed to be accurate

and reliable. However, no responsibility is assumed by ICP DAS for its use, not for any infringements of patents or

other rights of third parties resulting from its use.

2.2. Product Warranty & Customer Support

ICP DAS warrants all products free from defects in material and workmanship for a period of one year from the

date of shipping. During the warranty period, we will, at our position, either repair or replace any product that

proves to be defective. To report any defect, please contact ：+886-3- 597-3366 or service@icpdas.com.

2.2.1. Limitation of Warranty

This warranty does not apply to defects resulting from unauthorized modification, misuse, or use for reason other

than electrical power monitoring. The supplied meter is not a user-serviceable product.

ICP DAS Co., LTD PM-3033 series Quick Start V1.10 Page 2

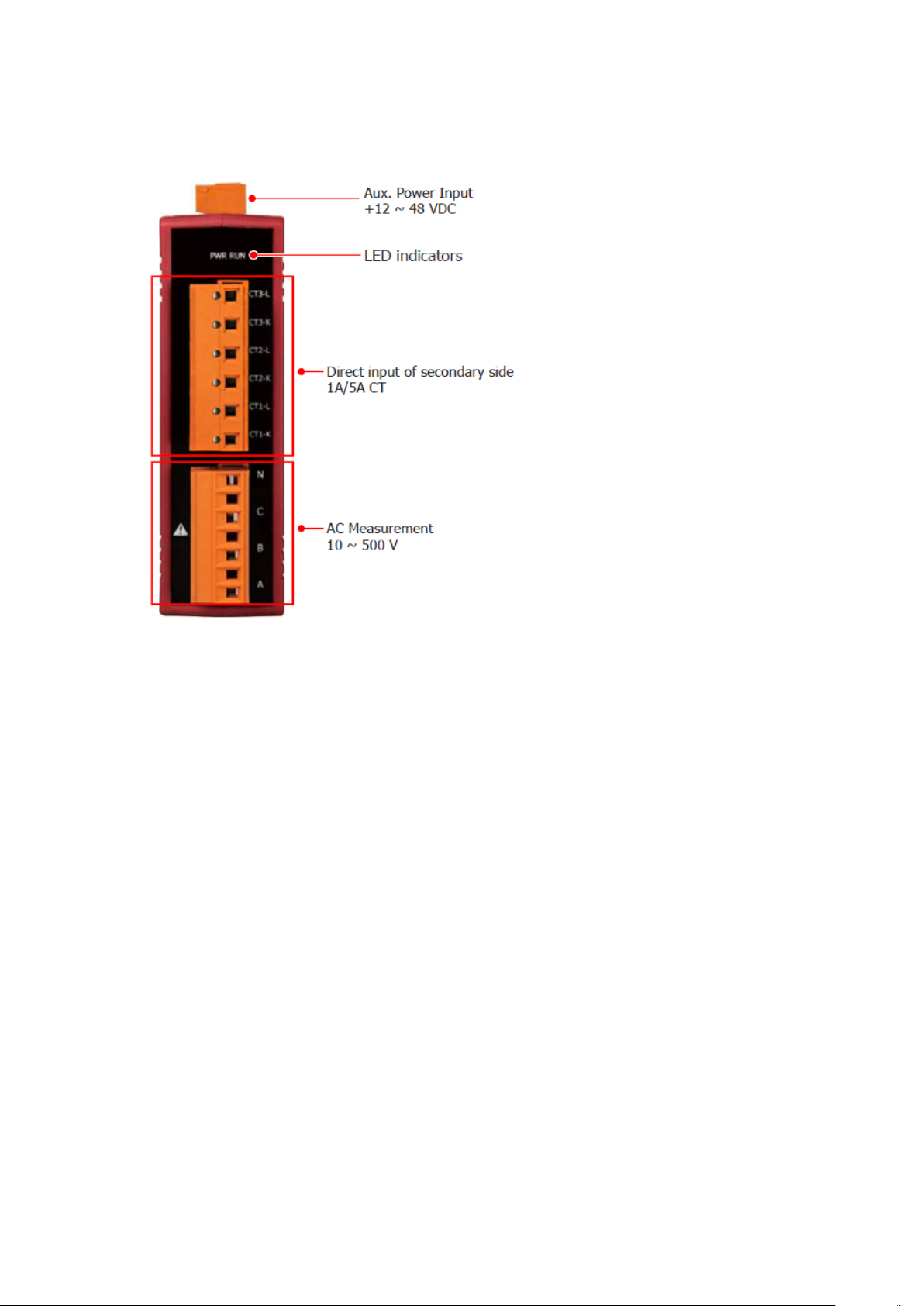

3. Installation

Please use the soft dry clothes to clean the instrument.

Please do not use any chemical or detergent or volatile solvents to clean the instrument, in order to avoid any

possibility of the cover damage.

Dimension: 127mm（length）× 33mm（wide）× 100mm（high）

Please read this operation manual carefully before using.

Please re-confirm the measure position.

Reconfirm the RST (ABC) phase sequence of the power system.

PM-3033 series can be installed as rail mounting mode or embedded, no need to drill a hole or screw to fix it

(rail mounting width can up to the length of 35 mm).

Meter auxiliary power for PM-3033 series is DC +12V ~+48V.

3.1. Voltage Input

1. PM-3033 series: Input Voltage up to 500V.

For any higher Input Voltage large than 500V, please add the PT (power transformer), and Change PT RATIO

setup.

2. Confirm the RST (ABC) phase sequence.

3.2. Current Input

1. CT with secondary side output 1A/5A can be connected directly.

2. The current direction must follow K-L marked on CT’s.

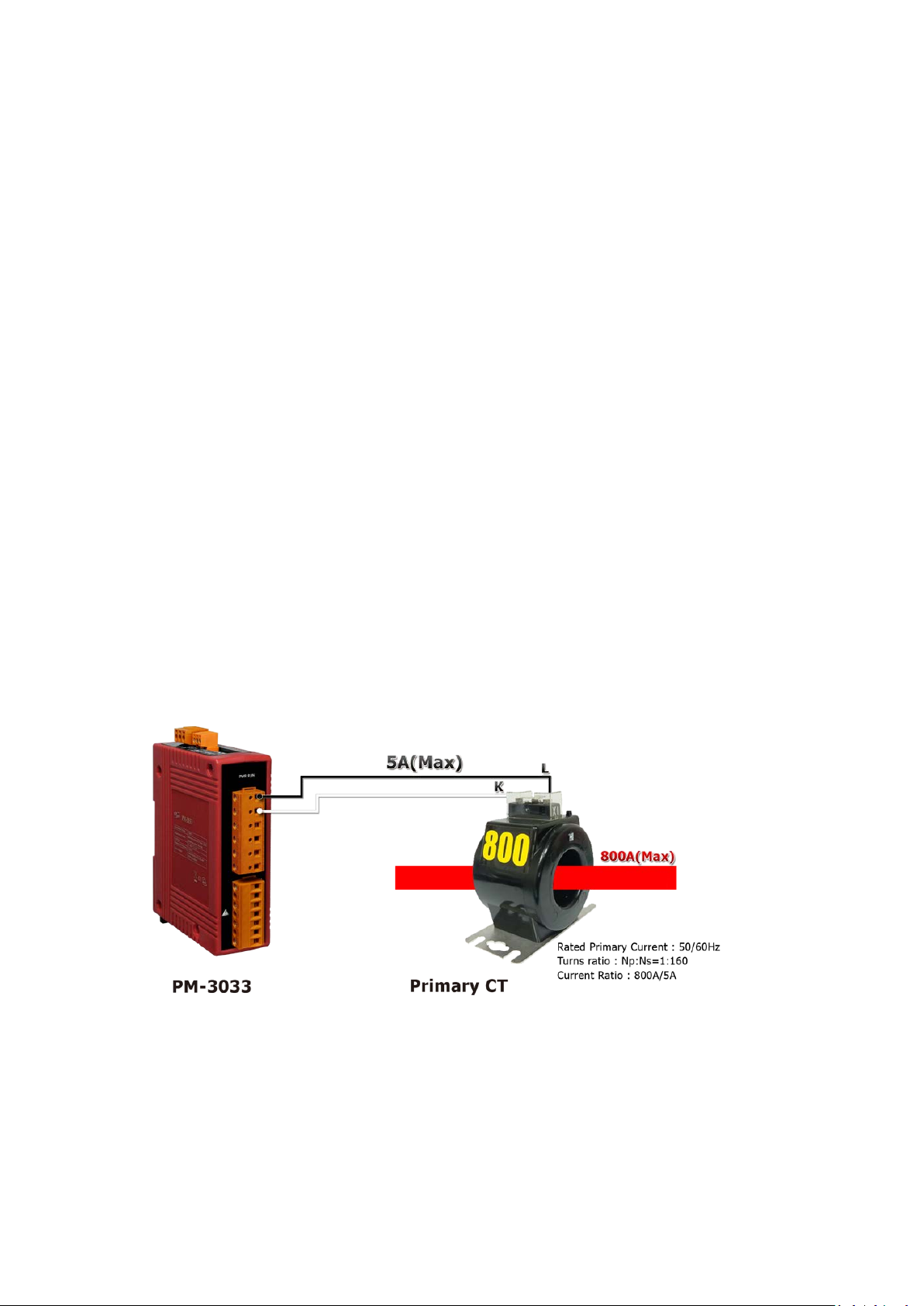

800A/5A Primary CT Installation and Wiring

ICP DAS Co., LTD PM-3033 series Quick Start V1.10 Page 3

3.3. Connection

Please firstly check the current input terminal.

Make sure the arrow direction sign on Primary CT’s follows current flow direction（K→L）.

Note: it must be in the same direction.

Connect the voltage input terminal N C B A. for PM-3033 series, in the three phase order as

follows on N C B A.

Attention please!! For 3P3W-2CT, connect in N C A phase sequence, do not connect phase B

(Check the diagram).

ICP DAS Co., LTD PM-3033 series Quick Start V1.10 Page 4

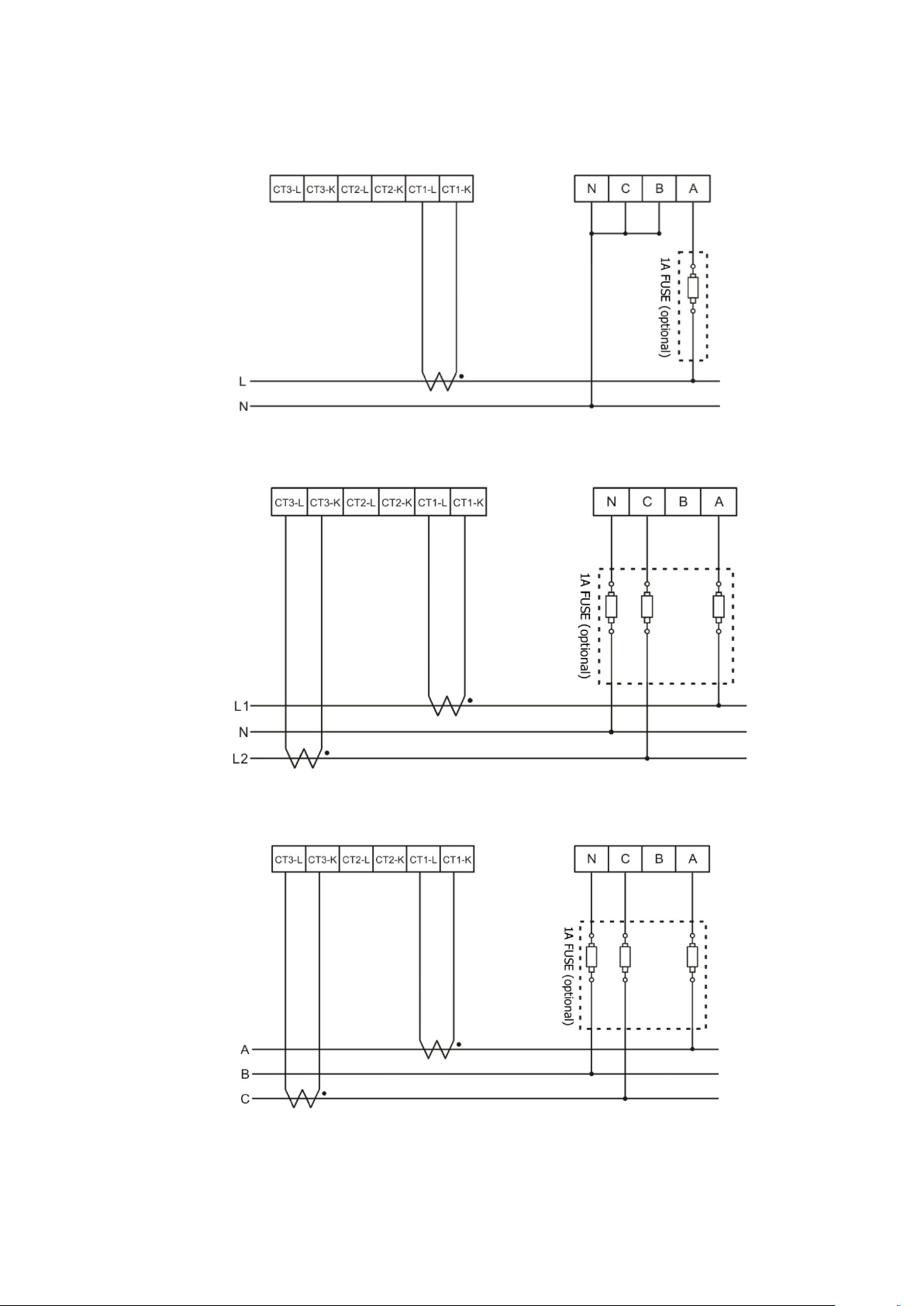

Wiring

1P2W-1CT (PM-3033 series)

1P3W-2CT (PM-3033 series)

3P3W-2CT (PM-3033 series)

ICP DAS Co., LTD PM-3033 series Quick Start V1.10 Page 5

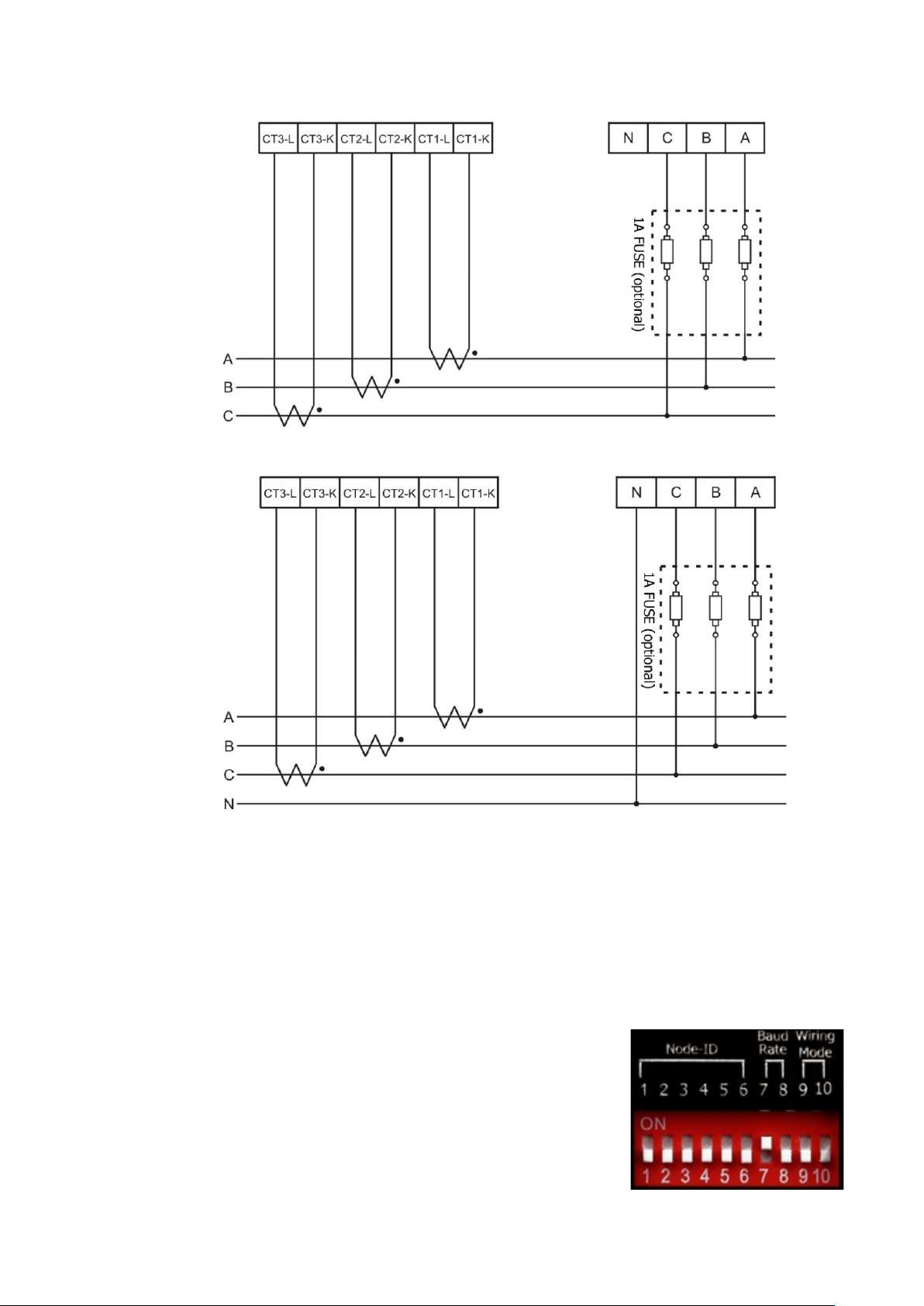

3P3W-3CT (PM-3033 series)

3P4W-3CT (PM-3033 series)

LED Indicator

The PM-3033 series has 2 LED to indicate the unit power status, communication, and

power data calculation.

RUN: Green, light up after communication ready. LED will flash when the unit is

processing communication.

PWR: Red, Power on LED always on.

3. Communication

RS-485 & CAN setting

Default setting for RS-485: 19200, n, 8, 1 ,for CAN:125K bps

DIP switch (SW1-SW6) is used for Modbus address(or CANopen Node

ID) setting, default is 1, i.e. all OFF

For example: Modbus address(or CANopen Node ID) is 10，find the

table of DIP switch 1-6 is ON, OFF, OFF, ON, OFF, OFF

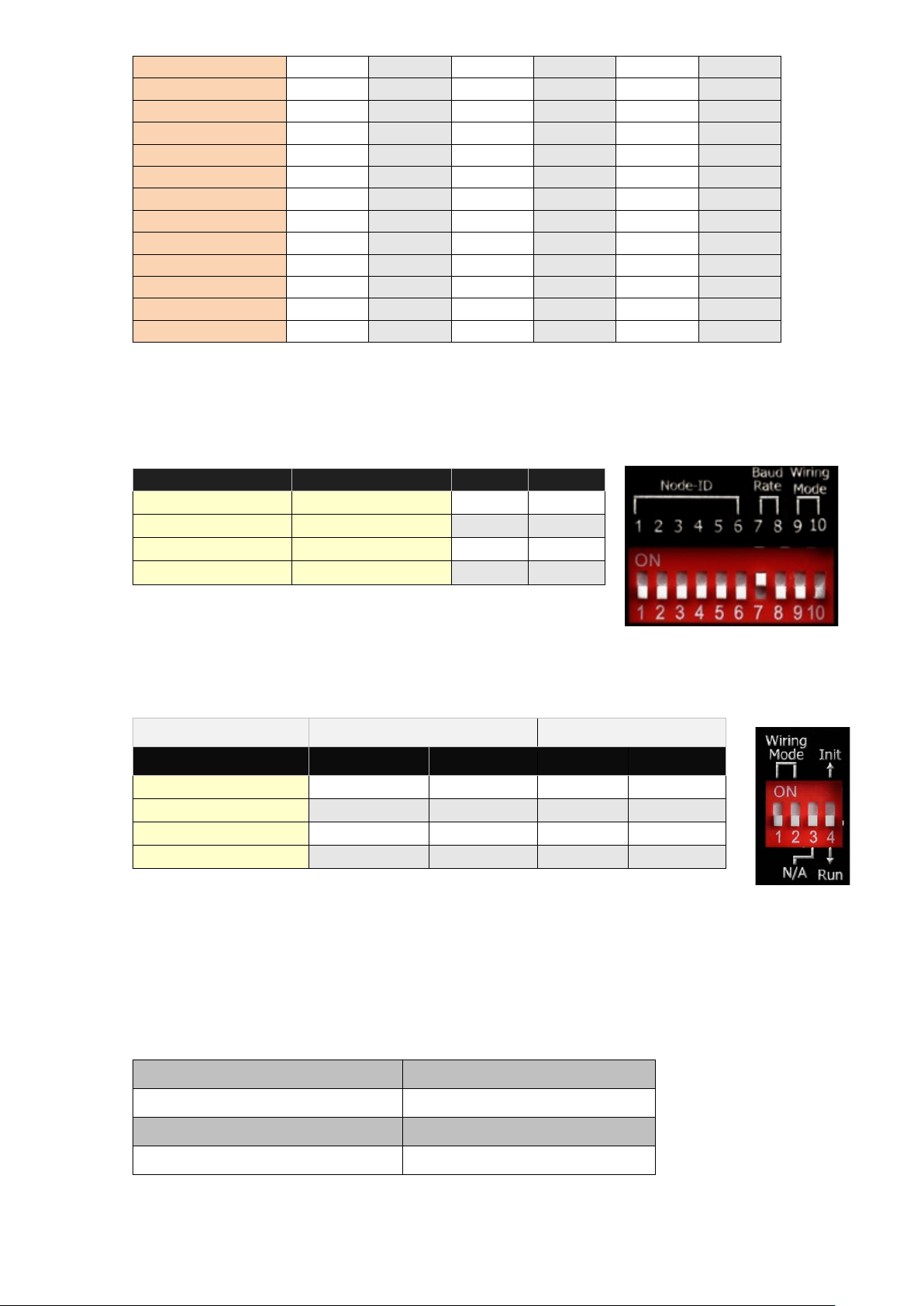

SW1－SW6 setting

Setting Modbus-RTU address / CANopen Node ID for communication (1-64)

ICP DAS Co., LTD PM-3033 series Quick Start V1.10 Page 6

Modbus Address

( Node ID)

SW 1 SW 2 SW 3 SW 4 SW 5 SW 6

OFF

ICP DAS Co., LTD PM-3033 series Quick Start V1.10 Page 7

OFF

SW7

－

SW8 setting

PM-3033 series：For Baud Rate Setting

RS-485

CAN

SW 7

SW8

9600 bps

125k(Default) bps

OFF

19200 (Default) bps

250k bps

OFF

38400 bps

500k bps

OFF

115200 bps

1M bps

PM-3033 series：Select the different wiring mode

(Please select the Software setting, if 1P2W-1CT or 1P3W-2CT is used)

Models PM-3033/ PM-3033-CPS PM-3033-MTCP

Wiring SW 9 SW 10 SW 1 SW 2

Software setting

OFF

3P3W-2CT

OFF

3P3W-3CT

OFF

3P4W-3CT

Add the Bias Resistor on RS-485 Network for stable signal

The RS-485 master is required to provide the bias for PM-31xx series. Otherwise, the tM-SG4 or SG-785

should be added to provide the bias. All ICP DAS controllers and converters provide the bias.

Ethernet setting

Ethernet default settings:

IPAddress

192.168.255.1

Subnet mask 255.255.0.0

Gateway 192.168.0.1

Port 502

ICP DAS Co., LTD PM-3033 series Quick Start V1.10 Page 8

Specifications

Model PM-3033 PM-3033-MTCP PM-3033-CPS

AC Power Measurement

Wiring 1P2W-1CT, 1P3W-2CT, 3P3W-2CT, 3P3W-3CT and 3P4W-3CT

Measurement Voltage 10 ~ 500 V (CAT III)

Measurement Current Secondary current: 1A or 5A

Measurement Frequency 50-60 Hz

W Accuracy Better than 0.5% (PF:1)

Power Parameter

Measurement

True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh),

Apparent Power (kVA), Apparent Energy (kVAh),

Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF),

Frequency(Hz)

Data Update Rate 1 Second

Communication

RS-485

Protocol Modbus-RTU -

Baud rate

9600,19200 (default), 38400, 115200;

DIP Switch Selectable

Data format

N,8,1 (default); N,8,2; E,8,1; E,8,2;

O,8,1; O,8,2

Isolation 3000 VDC -

Bias Resistor

No (Usually supplied by the RS-485

Master. Alternatively, add a tM-SG4

or SG-785)

Ethernet

Protocol - Modbus TCP

PoE - Yes, IEEE 802.3af

CANoepn

Protocol CANopen

Baud rate 125 k (default), 250 k, 500 k, 1 M;

Aux Power

Input Range +12 ~ 48 VDC

+12 ~ 48 VDC or PoE

+12 ~ 48 VDC

PoE Pin Assignments:

+ (Pin 1, 2), V- (Pin 3, 6)

Power Consumption 2 W

Dimensions (W x L x H) 127 mm x 100 mm x 33 mm

Environment

Operating Temperature -20 ~ +70 °C

Storage Temperature -25 ~ +80 °C
