ICP DAS USA I-7188XA User manual

Quick Start Guide for I-7188XA

July 2012, Version 1.0

Congratulations on purchasing I-7188XA. This Quick Start Guide will provide

information needed to get started. Please also consult the User Manual for detailed

information on the setup and use of I-7188XA.

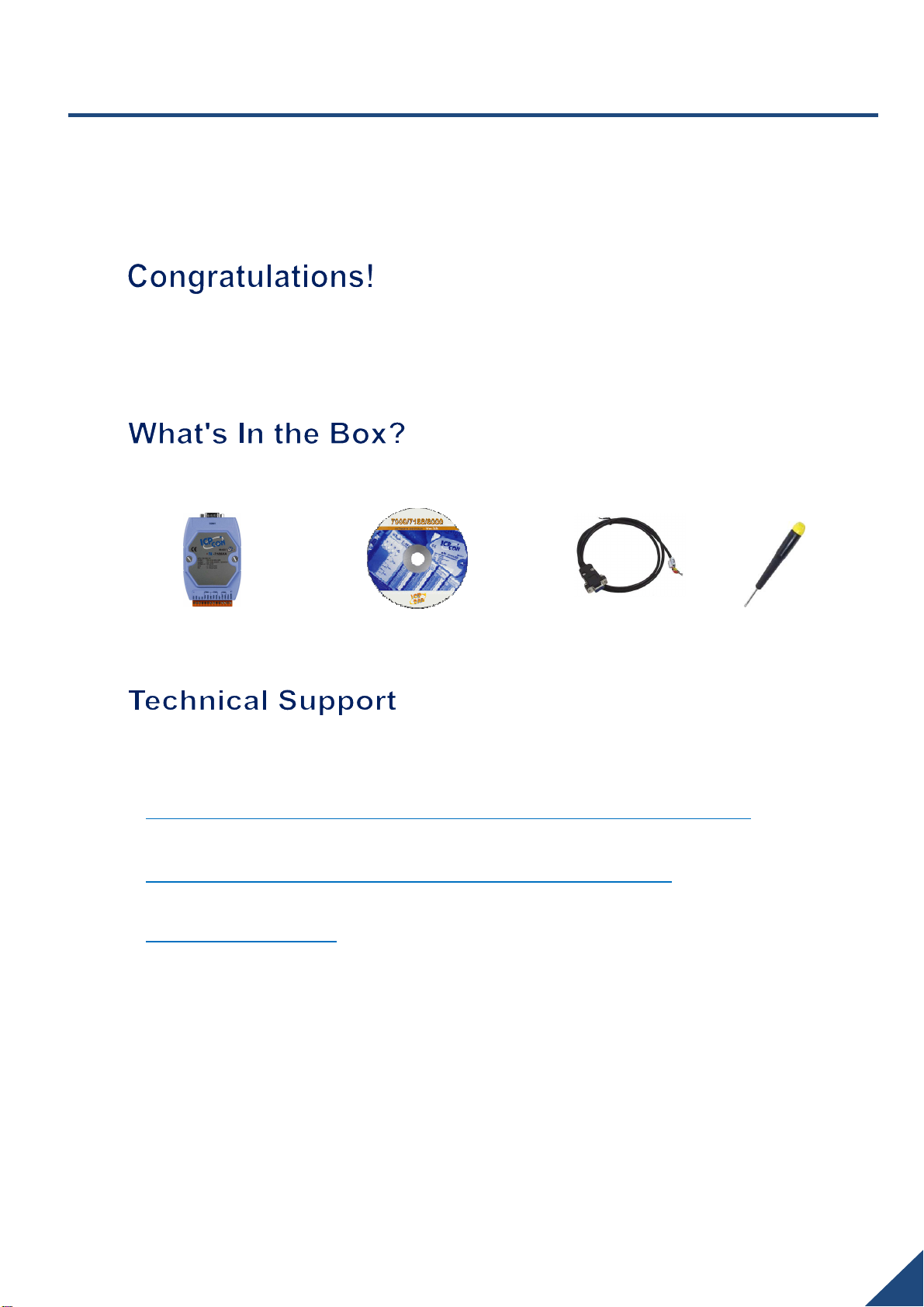

In addition to this guide, the package includes the following items:

I-7188XA Software Utility CD RS-232 Cable Screw

(CA-0910) (1C016)

7188XA_Manual_English.pdf/7188XA_Manual_Chinese.pdf

CD:\Napdos\7188XABC\7188XA\Document

http://ftp.icpdas.com/pub/cd/8000cd/napdos/7188xabc/7188xa/document/

I-7188XA Website

http://www.icpdas.com/products/PAC/i-7188_7186/i-7188xa.htm

ICP DAS Website

http://www.icpdas.com/

----------------------------------------------------------------------------------

Software Installation

Step 1: Insert the companion CD into the CD drive.

Step 2: Copy the 7188XA folder from CD:\Napdos\7188XABC\ to the Hard Drive of the

Host PC.

Step 3: Install the MiniOS7 Utility.

Locate and execute the minios7_utility_vXXX.exe file from

CD:\NAPDOS\MINIOS7\UTILITY\MiniOS7_utility\ folder or

http://ftp.icpdas.com/pub/cd/8000cd/napdos/minios7/utility/minios7_utility/

Step 4: Copy the 7188xw.exe file from the CD:\Napdos\MiniOS7\utility\ folder to the PATH

directory, for example C:\Windows\.

After all the software is copied to the Host PC, the content of 7188XA folder should be as

follows:

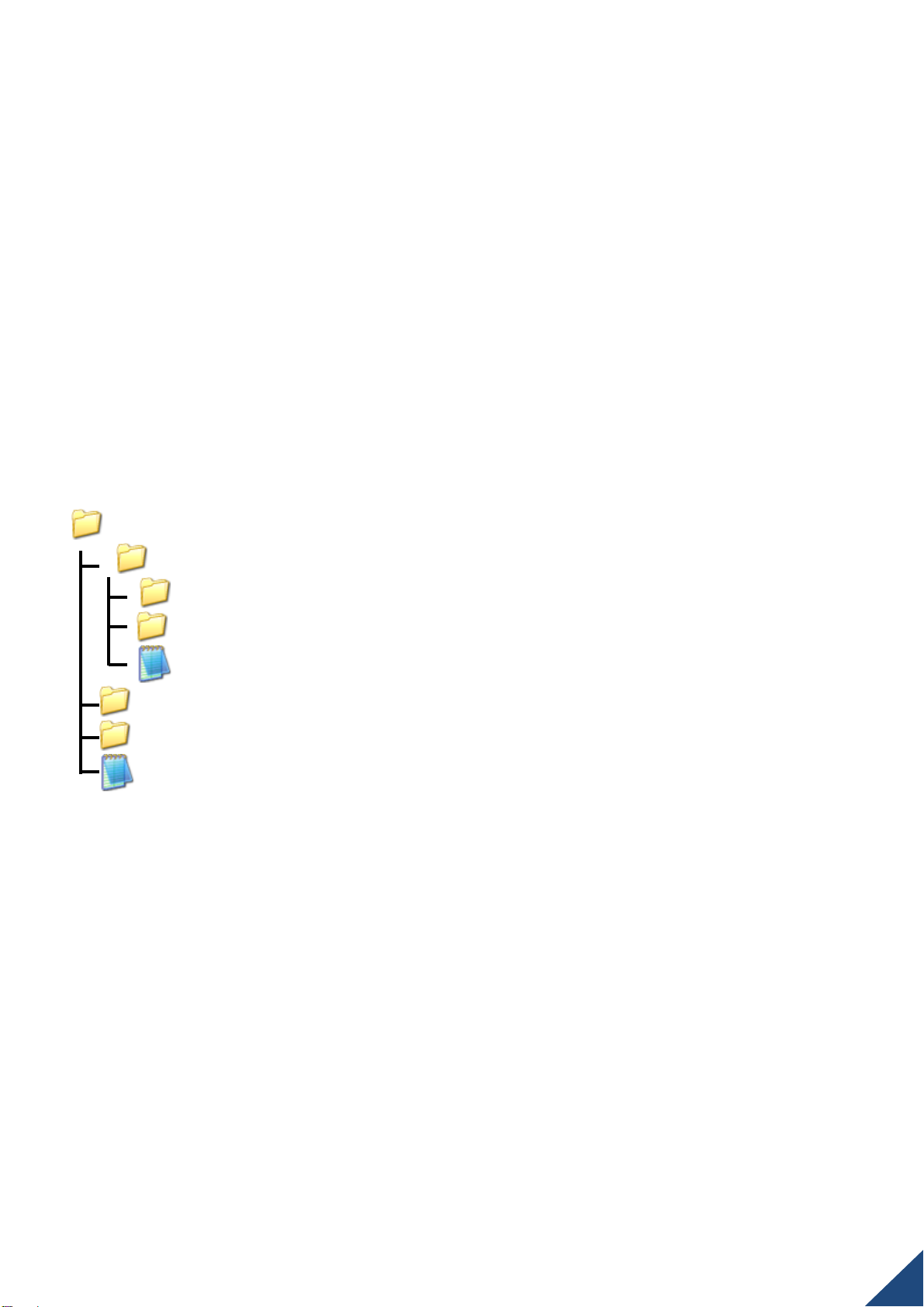

7188XA

Demo Demo programs for the I-7188XA(D)

BC_TC Demo programs for the BC++ and the TC++ compiler

MSC Demo programs for the MSC compiler

7188XA_DemoList.htm Demo list for the I-7188XA(D)

Document Documents related to the I-7188XA(D)

OS_image The MiniOS7 image file matches the demo programs

Readme.html The detailed description about the 7188XA folder

Note: The 7188xw.exe file is used as a bridge between the I-7188XA(D) and the Host PC.

Therefore, the 7188xw.exe file must be copied to the “C:\Windows\” folder to allow it to be

executed from any location.

----------------------------------------------------------------------------------

Connecting the Download Cable to the Host PC

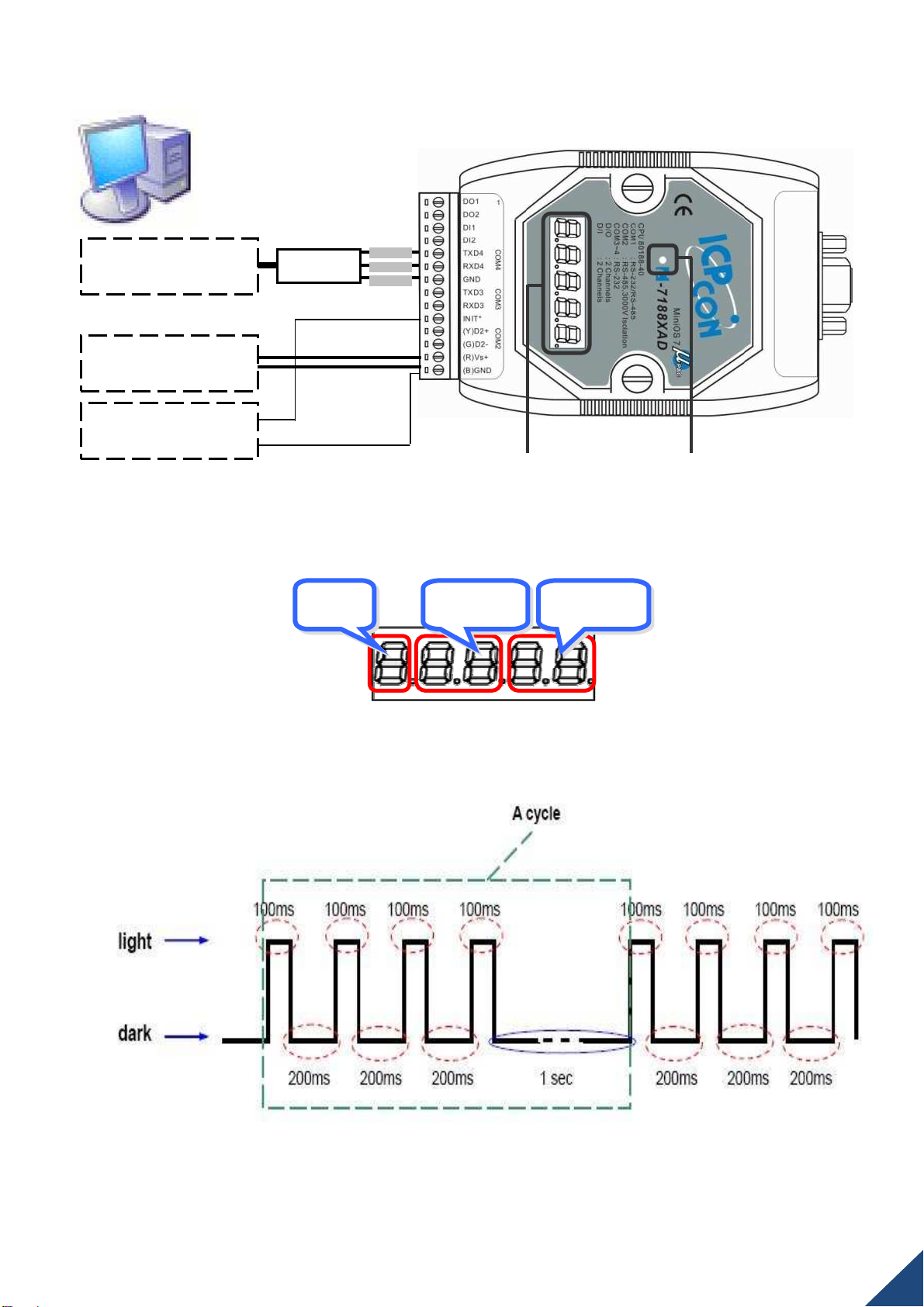

Step 1: Connect the CA0910 download cable between COM4 of the I-7188XA(D) and the

COM Port of the Host PC, as shown in the diagram below.

Step 2: Apply power (Vs+, GND) to the I-7188XA(D). Vs+ can be in a range from +10V to

+30V DC.

Step 3: After applying the power, the 5-digits of the 7-SEG LED will continuously show as

follows.

If the non-display version of module is being used, please continue to the next step.

Step 4: Check that the red LED continuously blinks four times and wait for one second to

next cycle. The diagram show as follows:

Note: Only the display version of the module will include a 5-digit 7-SEG LED.

Hour

Minute

Second

CA0910

Connect to the COM

Port of Host PC

Connect to the

Power supply

Vs+

GND

5-digit 7-SEG LED

Red LED

Connect

INIT*

with

GND

TXD

RXD

GND

----------------------------------------------------------------------------------

Downloading Programs to the I-7188XA(D)

Before using the MiniOS7 Utility, ensure that the download cable is connected from the Host

PC to the I-7188XA(D) and ensure that no other programs are running on the I-7188XA(D).

The program download procedure is as follows:

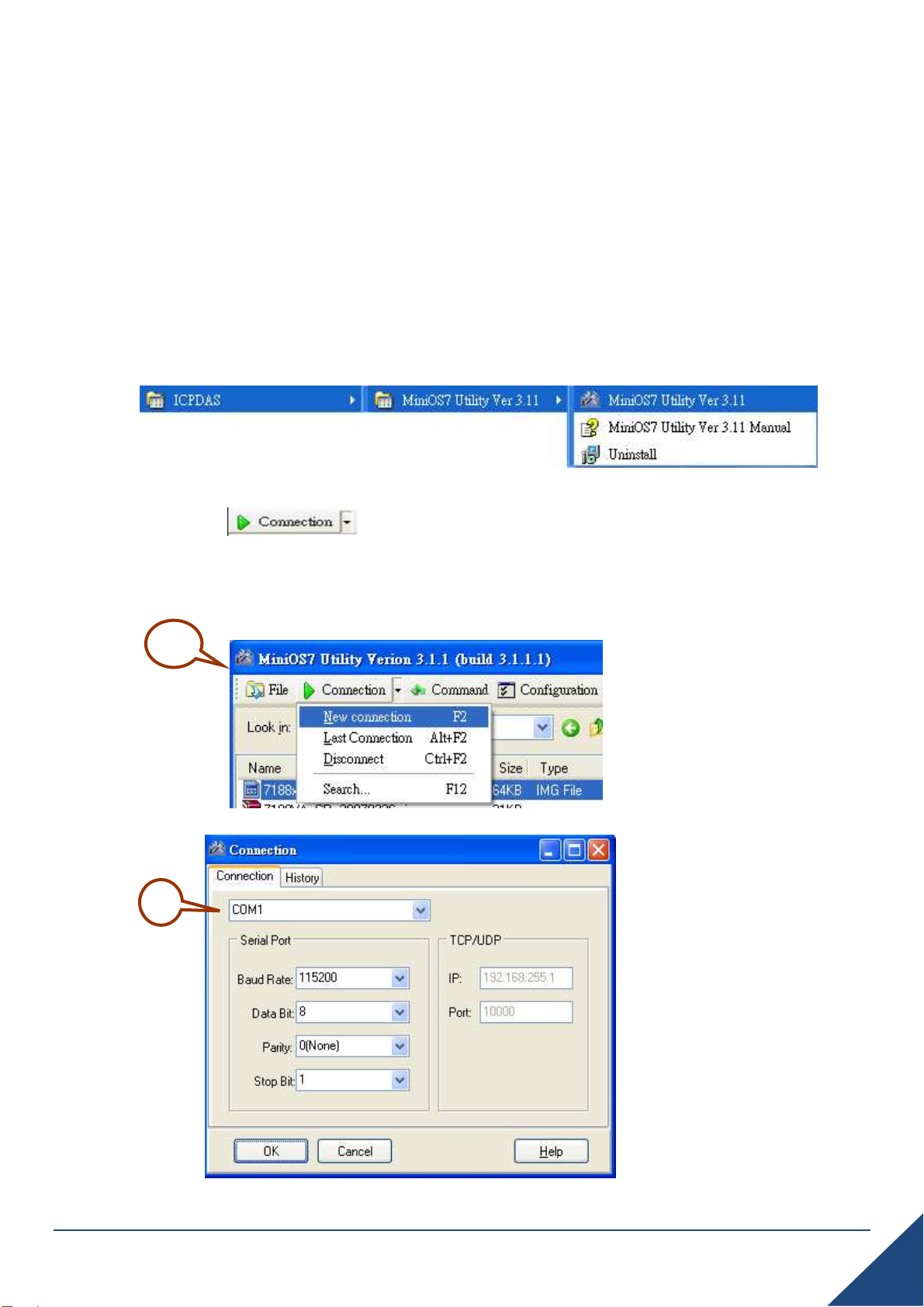

Step 1: From the Windows START menu, go to Programs/ICPDAS/MiniOS7 Utility Ver

XXX/and locate the MiniOS7 Utility Ver XXX.

Step 2: Press and Select “New connection”. Choose the right COM port

and set other parameters. Click OK button and the utility will search module

automatically.

Step 3: See if the MiniOS7 Utility connects with I-7188XA. The connected icon is . The

disconnected icon is .

Step 4: Select the file to load from left side and click to load file into module or

draw the file to the right side.

See here to know connection

status.

I-7188XA(D) file list

Host PC file list

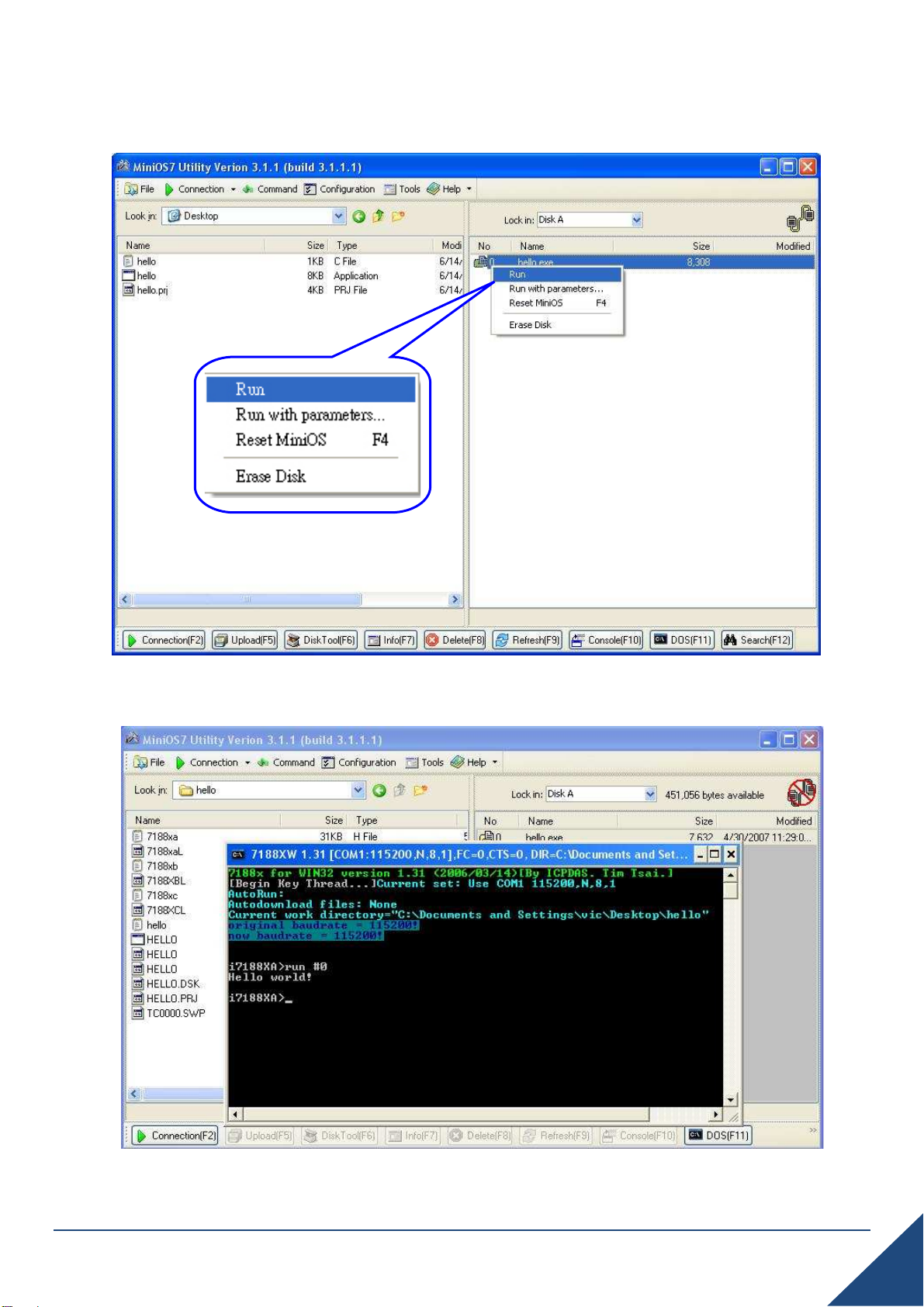

Step 5: Select the file and then press the right mouse button. Choose the Run and press to

execute the program.

Step 6: The result of the program will be shown in 7188xw window.

NOTE: The 7188xw window has to be closed and then the download operation (Step 4) could

be done.

The content of the Hello.c file is as follow:

#include “7188xa.h” /* Include the headers to use 7188xal.lib

functions */

void main(void)

{ InitLib(); /* Initiate the 7188xa library */

Print("Hello world!\r\n"); /* Print the message on the screen */

}
