PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

PET-7218Z

PoE Ethernet I/O Module with 10-ch Analog

Input, Thermocouple Inputs, 5-ch Digital

Output

Quick Start Guide



Congratulations!

This Quick Start will provide information needed to get started with PET-7218z. Please

also consult the User Manual for detailed information on the setup and use of

PET-7218z.

What’s In the Box?

In addition to this guide, the package includes the following items:

PET-7218z Module Software Utility CD Quick Start

Technical Support

 PET-7218z User Manual

CD:\NAPDOS\NAPDOS\ET7000_ET7200\Document\

 PET-7218z Website

https://www.icpdas-usa.com/pet_7218z.html

 ICP DAS Website

https://www.icpdas-usa.com

PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Init Mode: After booting, PET-7218z will not run the

default firmware and cannot surf the internet. Use this mode to

update MiniOS7 image.

Normal Mode: After booting, PET-7218z will run the default firmware and

can use all ET-7200 functions.

----------------------------------------------------------------------------------

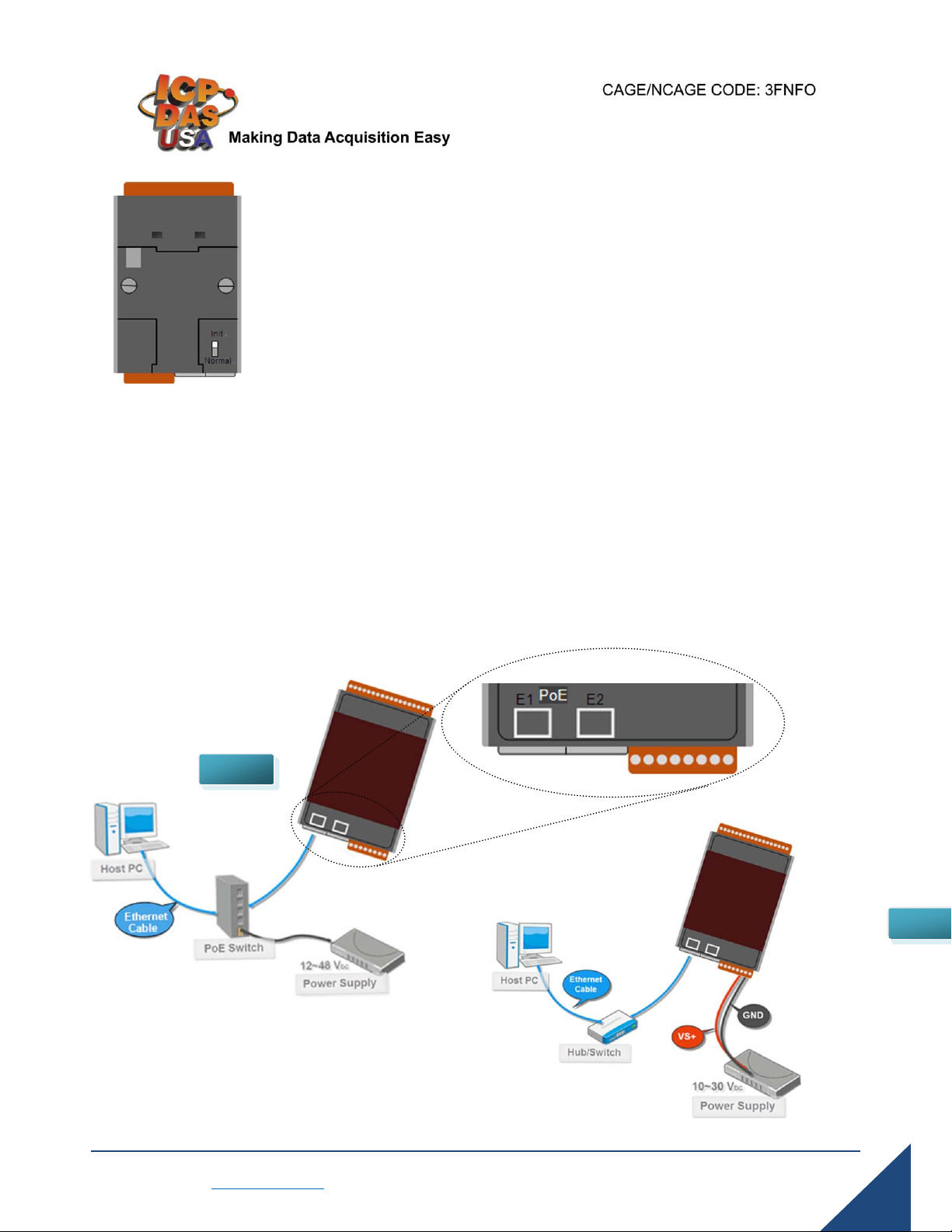

Connecting to Network, PC and Power

The PET-7218z is equipped with an RJ-45 Ethernet port for connection to an

Ethernet hub/switch and PC

---------------------------------------------------------

Configuring Boot Mode

PoE

PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

---------------------------------------------------------------------------------

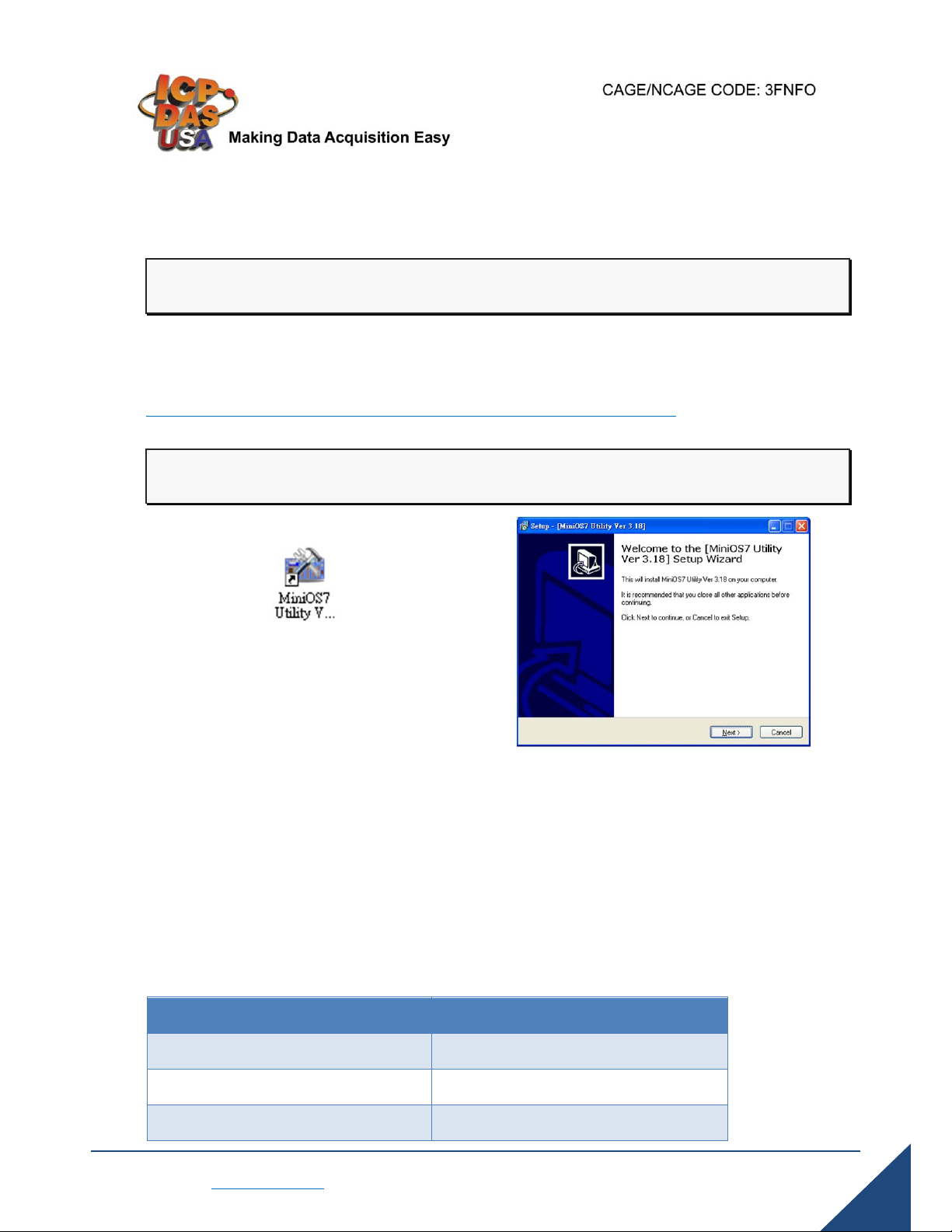

Installing the MiniOS7 Utility

Step 1：Get the MiniOS7 Utility tool

The MiniOS7 Utility can be obtained from companion CD or our FTP site:

CD:\Napdos\minios7\utility\minios7_utility\

http://ftp.icpdas.com/pub/cd/6000cd/napdos/software/minios7_utility/

Step 2：Follow the prompts to complete the installation

After the installation has been completed,

there will be a new shortcut for MiniOS7 Utility

on the desktop.

----------------------------------------------------------------------------------

Using MiniOS7 Utility to Assign a New IP

The PET-7218z are Ethernet devices, which comes with a default IP address, therefore,

you must first assign a new IP address to the PET-7218z

Item Default

IP Address 192.168.255.1

Subnet Mask 255.255.0.0

Gateway 192.168.0.1

PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

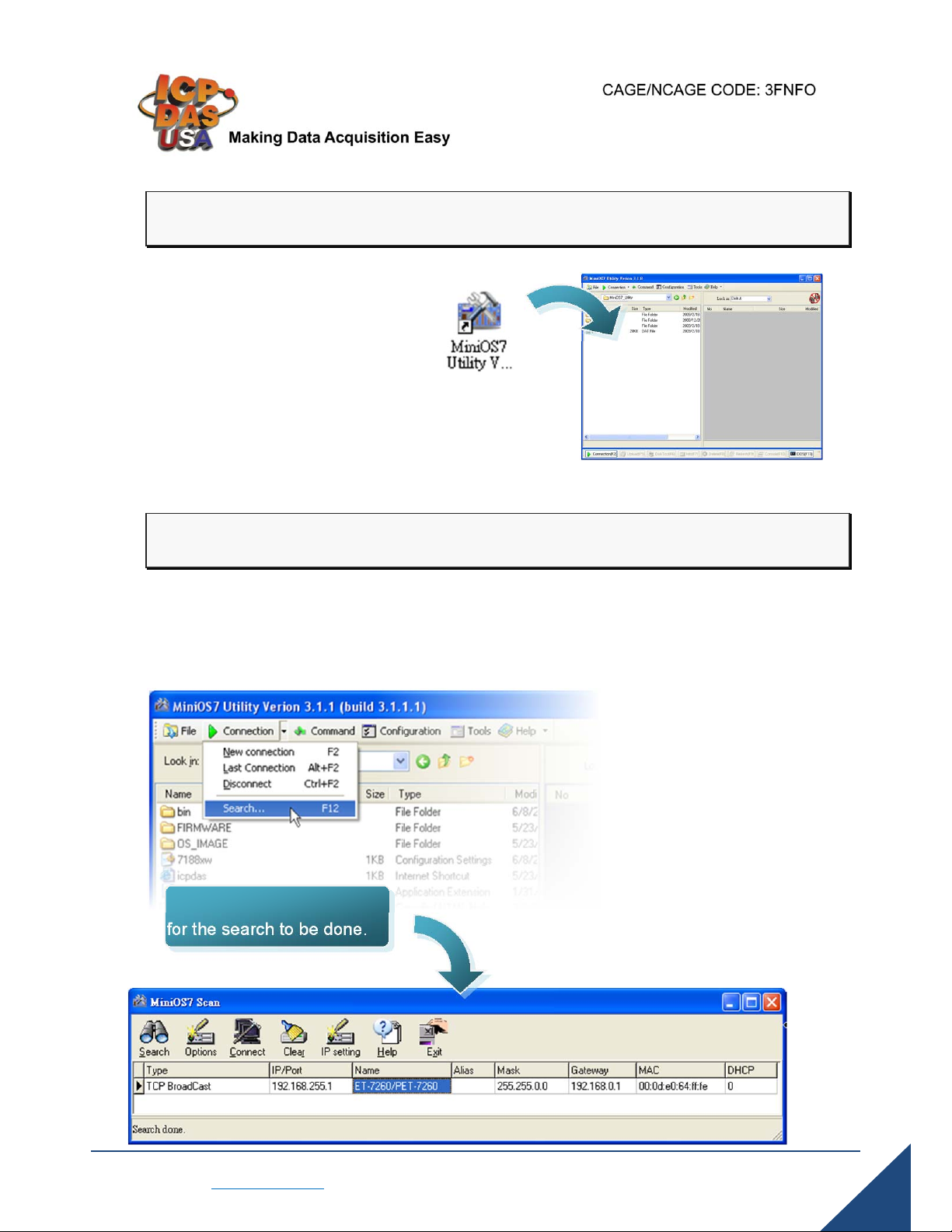

Step 1：Run the MiniOS7 Utility

Double-click the MiniOS7 Utility

shortcut on your desktop.

Step 2：Press“F12”or choose“Search”from the“Connection”menu

After pressing F12 or choosing Search from Connection menu, the MiniOS7 Scan

dialog will appear, that will display a list of all MiniOS7 modules on your network.

See the status tip, waiting

for the search to be done.

PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

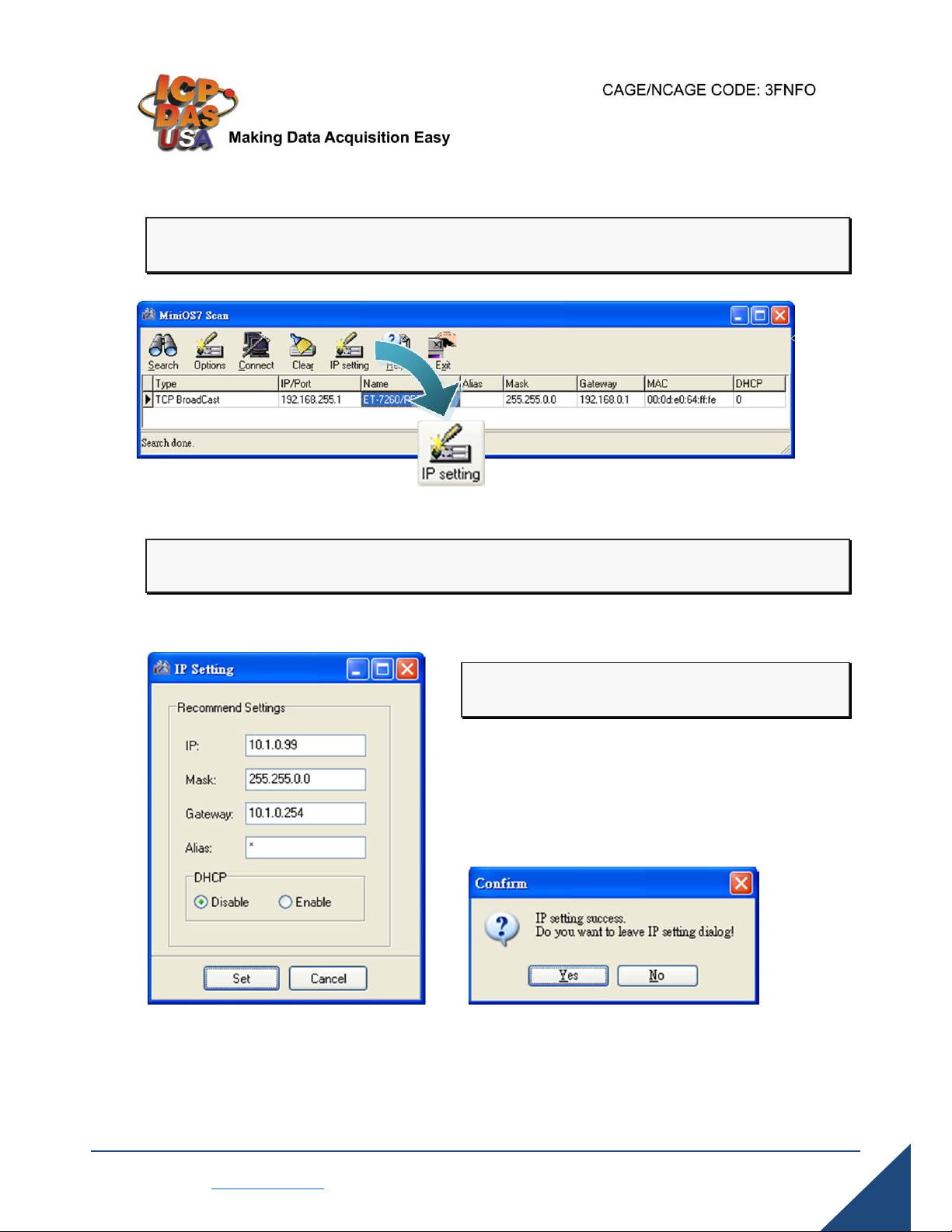

Step 3：Choose the module name and then choose“IP setting”from the toolbar

Step 4：Assign a new IP address and then choose “Set” button

Step 5：Choose “Yes” button

Press the Yes button in the Confirm dialog box

to exit the procedure.

PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Your browser must support Adobe Flash Player and have it enabled in order to use the

PET-7218z web site.

If you do not have it installed, please go to the following website and install it.

The Adobe Flash Player Download Center：

http://get.adobe.com/flashplayer/

----------------------------------------------------------------------------------

Go to the PET-7218z Web Site to Check out

Functions

The PET-7218z contains an advanced web configuration system that provides users

with access PET-7218z applications through a standard web browser.

Step 1

：

Start PET-7218z

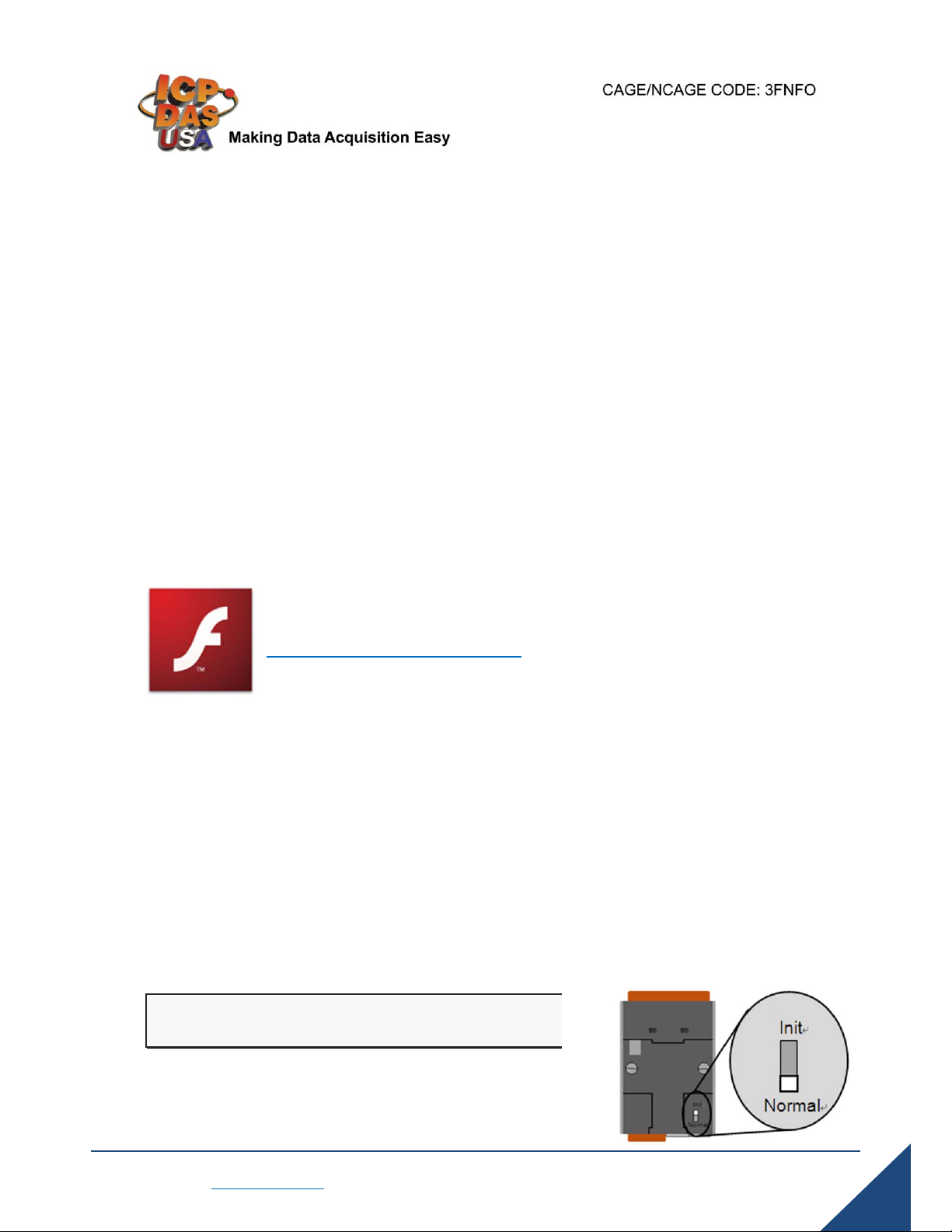

Make sure the switch placed in the “Normal”

position.

----------------------------------------------------------------------------------

Enabling Adobe Flash Player in Your Browser

PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Then reboot PET-7218z.

Step 2

：

Open a browser

Please use a standard internet browser to view the PET-7218z webpage, such as

Mozilla Firefox or Internet Explorer…etc.

Step 3

：

Type the URL address of PET-7218z

If you haven’t changed the default IP address of the PET-7218z, please refer to “4.

Using MiniOS7 Utility to Assign a New IP” to configure it.

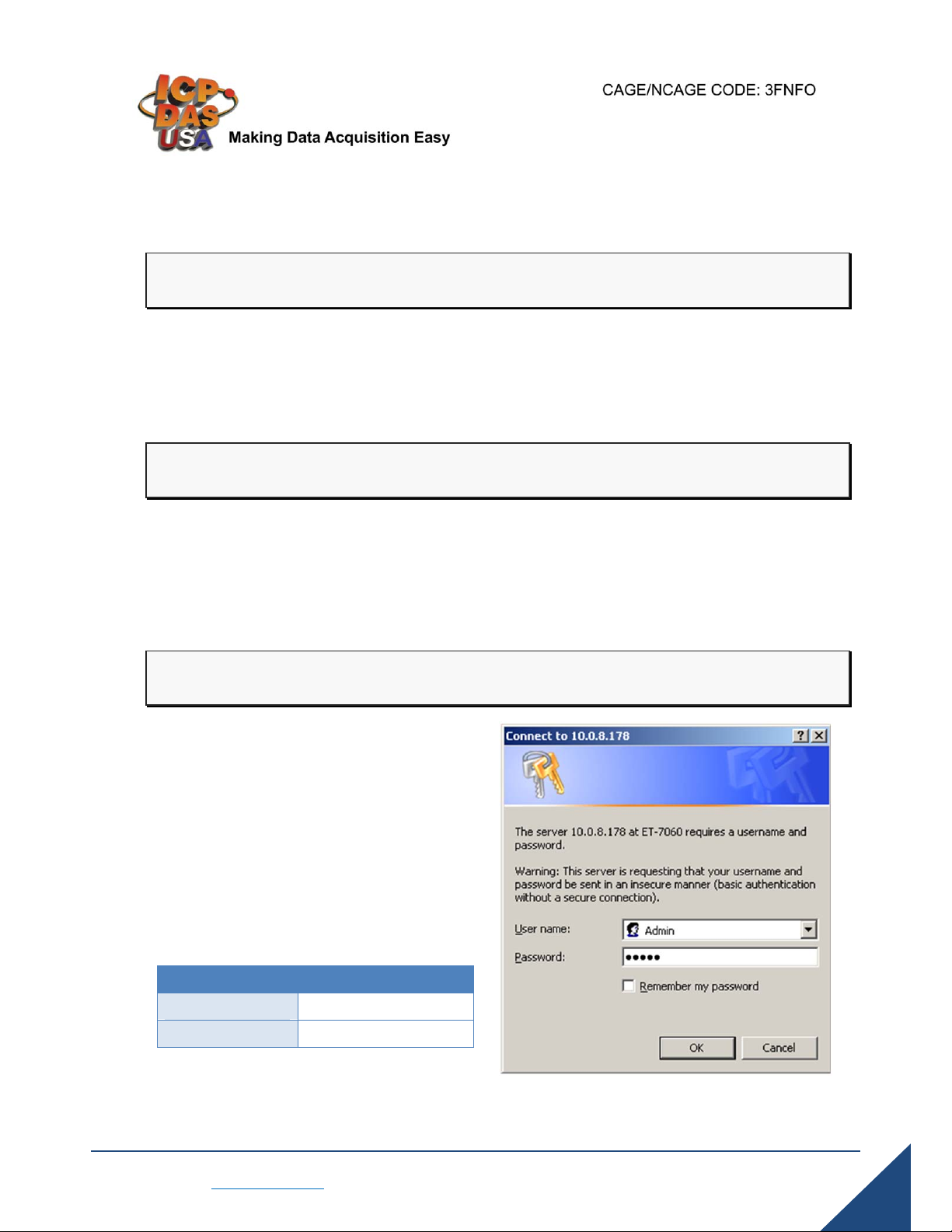

Step 4

：

Fill out the User name and Password

After entering the IP address, the login

dialog box will appear and prompt you to

enter your User name and Password.

The factory default User name and

Password are as follows:

Item Default

User name Admin

Password Admin

PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Step 5

：

Welcome to PET-7218z web site

After logging into the

ET-7000/PET-7200 web site, the

welcome page will appear.

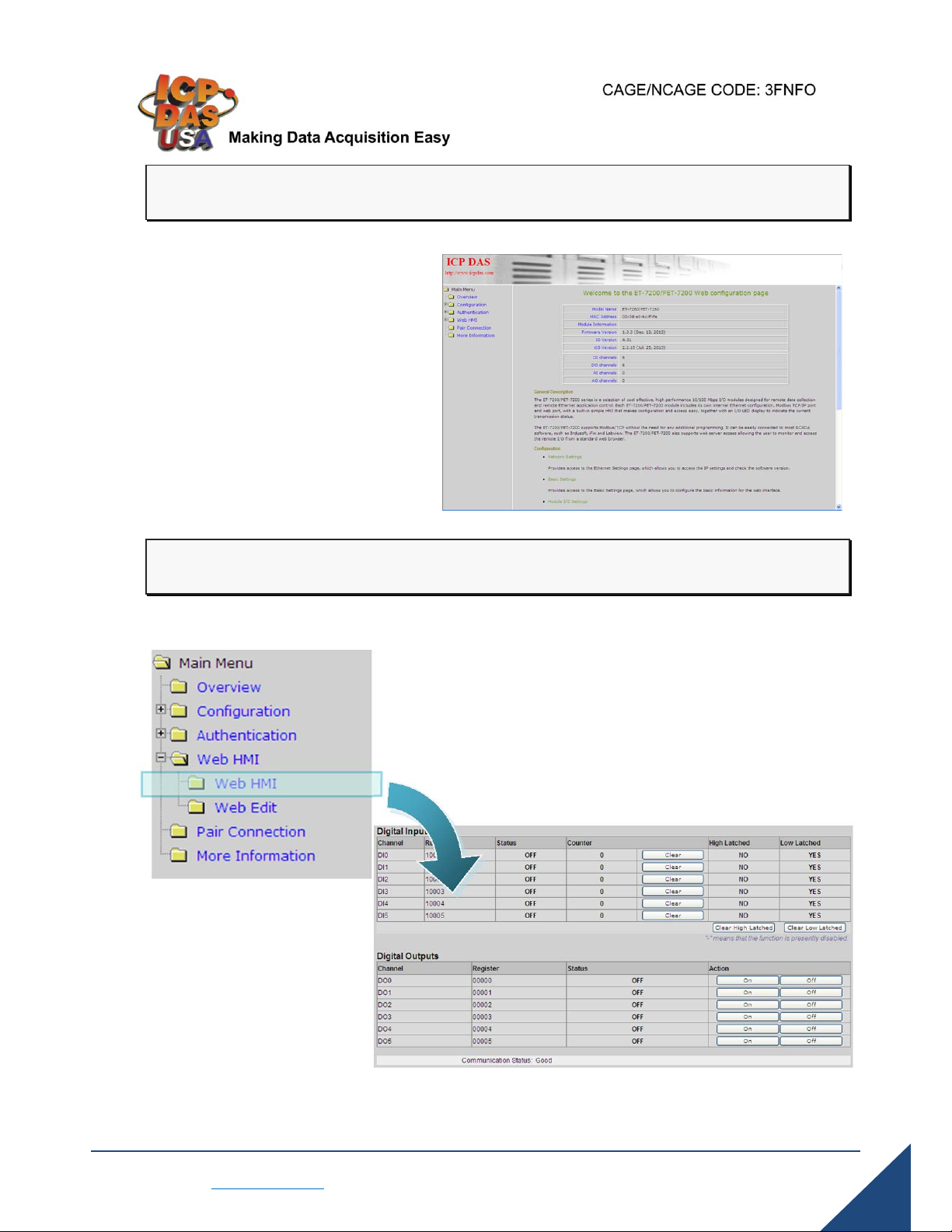

Step 6：Check out the data acquisition services

Under the Main Menu, expand the Web HMI, and then

select the Web HMI option to check the values of the

data acquisition.

PET-7218z 10-ch AI, thermocouple, 5-ch DO PoE DAQ module - QuickStart (Apr/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

----------------------------------------------------------------------------------

Reset to Factory Default Settings

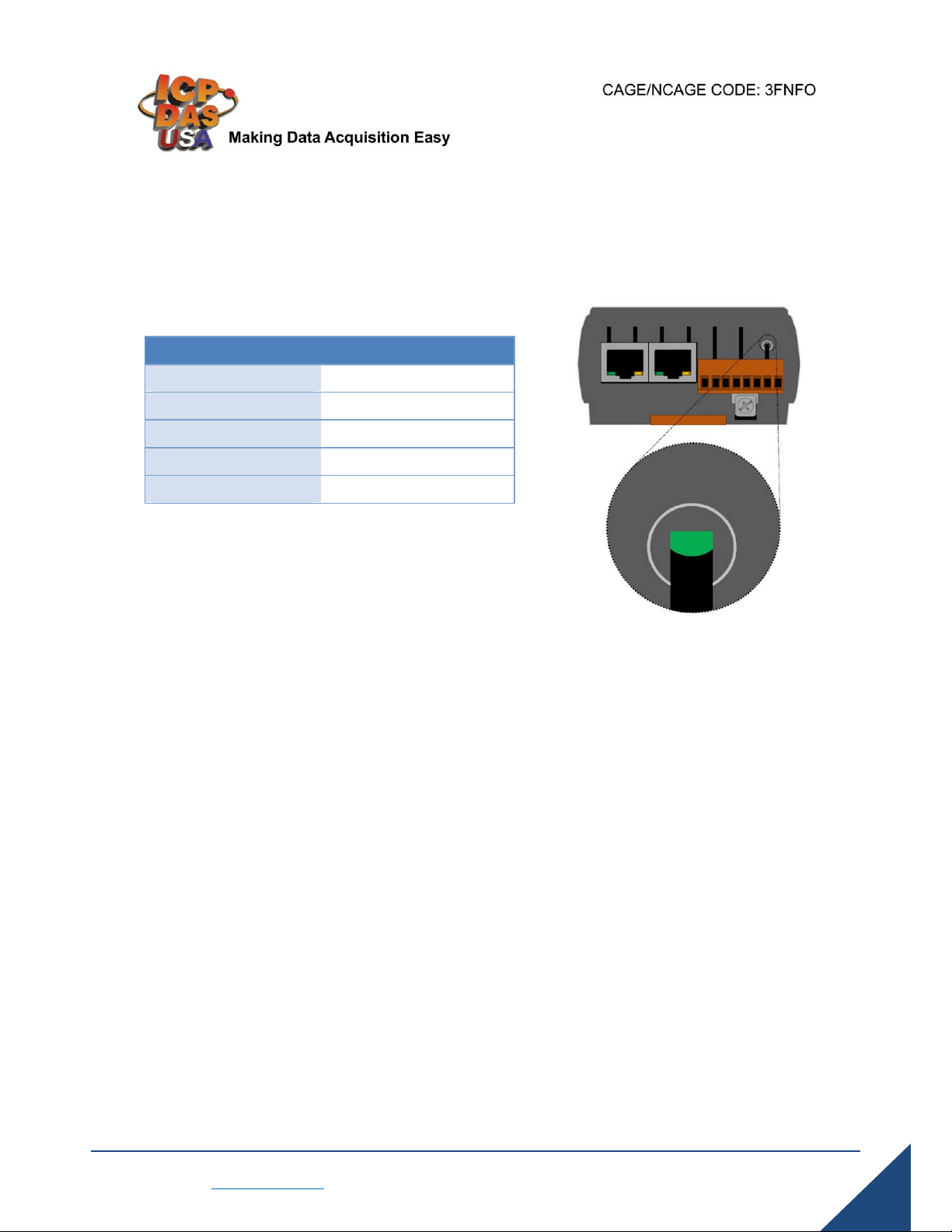

Press the reset button for 5 seconds in order to reset the PET-7218z to factory default

settings.

Item Default

IP Address 192.168.255.1

Subnet Mask 255.255.0.0

Gateway 192.168.0.1

Reset
