WINDRISE CEILING FAN

Harbor Breeze® is a registered trademark

ITEM #0593745

MODEL #E-TLEII44BNK5C1

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -

5 p.m., EST, Friday.

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

EB14741

Español p. 19

Lowes.com/harborbreeze

Federal regulations require ceiling fans with light kits manufactured or imported after

January 1, 2009, to limit total wattage consumed by the light kit to 190W. Therefore,

this fan is equipped with a wattage limiting device.

READ AND SAVE THESE INSTRUCTIONS

• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for

repairs, it must be shipped in its original packaging to ensure proper protection against damage that

might exceed the initial cause for return.

• Make sure all electrical connections comply with local codes, ordinances, the National Electrical

Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook

if you are unfamiliar with installing electrical wiring.

• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the

floor and at least 30 in. from the end of the blades to any obstruction.

• After you install the fan, make sure all connections are secure to prevent the fan from falling.

• The net weight of this fan including the light kit is: 16.53 lbs.

Safety Information ................................................................................................................2

Package Contents ................................................................................................................4

Hardware Contents

...........................................................................................................................

Preparation ...........................................................................................................................5

Initial Installation ...................................................................................................................6

Wiring ...................................................................................................................................8

Final Installation ...................................................................................................................9

Installing Fan Without Light Kit ...........................................................................................12

Operating Instructions ........................................................................................................14

Care and Maintenance .......................................................................................................15

Troubleshooting...................................................................................................................16

Warranty .............................................................................................................................17

Replacement Parts List ......................................................................................................18

TABLE OF CONTENTS

Lowes.com/harborbreeze

SAFETY INFORMATION

When using an existing outlet box, make sure the outlet box is securely attached to the building

structure and can support the full weight of the fan. Failure to do this can result in serious injury or

death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after

installation is complete.

DANGER

SAFETY INFORMATION

To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box

marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use

mounting screws provided with the outlet box. Most outlet boxes commonly used for the

support of lighting fixtures are not acceptable for fan support and may need to be replaced.

Consult a qualified electrician if in doubt.

When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a

plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its

support must be able to support the moving weight of the fan (at least 35 lbs.).

To avoid personal injury, the use of gloves may be necessary while handling fan parts with

sharp edges.

To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan

are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your

house wire is larger than 12-gauge or there is more than one house wire to connect to the

corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.

To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control

device or control fan speed with a full range dimmer switch.

To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when

installing them, balancing the blades or cleaning the fan. Do not insert objects between the

rotating fan blades.

To reduce the risk of personal injury, use only parts provided with this fan. The use of parts

OTHER than those provided with this fan will void the warranty.

Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid

electrical shock.

WARNING

3Lowes.com/harborbreeze

Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.

Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to

ensure that they are secured.

CAUTION

IMPORTANT: You must use the parts

provided with this fan for proper installation and

safety.

Downrod (preassembled) 1

Canopy (preassembled)

Mounting Bracket

D Motor Housing 1

Yoke Cover (preassembled) 1

F Light Kit Fitter 1

(preassembled)

Blade

Bulb

I Finial Plate 1

(preassembled)

J Blade Screw Post 15

(preassembled)

K Hex Nut 2

(preassembled)

L Lock Washer 1

(preassembled)

DESCRIPTIONPART QUANTITY M Switch Housing Cap 1

(preassembled)

N Switch Housing Cap Screw 3

(preassembled)

O Finial (preassembled) 1

P Glass Shade 1

Q Rubber Washer 1

(preassembled)

R Balancing Kit 1

S Blade Arm 5

T Blade Arm Screw 10

(preassembled) + 1 extra

U Washer 10

(preassembled) + 1 extra

V Safety Screw 5

(preassembled)

W Metal Tab 5

(preassembled)

DESCRIPTIONPART QUANTITY

PACKAGE CONTENTS

4Lowes.com/harborbreeze

PREPARATION

Lowes.com/harborbreeze

HARDWARE CONTENTS (shown actual size)

AA BB

Cap

Qty. 1 Three-C Clip*

Qty. 15

+ 1 extra

*US Patent Pending

Pull Chain

Extension

Qty. 2

Clip

(preassembled)

Qty. 3

Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on

foam to avoid damage to ﬁnish. Compare parts with package contents list and hardware contents list.

If any part is missing or damaged, do not attempt to install, operate or assemble the product.

Estimated Assembly Time: 60 minutes

Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety

Glasses, Stepladder and Wire Strippers

Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and

Wire Cutters

INITIAL INSTALLATION

Lowes.com/harborbreeze

Turn off circuit breakers or fuse and wall switch to

the fan supply line leads.

DANGER: Failure to disconnect power supply

prior to installation may result in serious injury or

death.

Check to make sure blades (G) will be at least

30 inches from any obstruction. Check downrod

(A) length to ensure blades (G) will be at least 7 ft.

above the floor.

OFF

2. Determine mounting method to use.

A. Standard mount

B. Angle mount

Note: Flushmount and closemount options are not

available for this fan.

IMPORTANT: If using the angle mount, ensure the

ceiling angle is not steeper than 19°.

7 ft.

min.

30 in.

min.

19° max.

INITIAL INSTALLATION

Lowes.com/harborbreeze

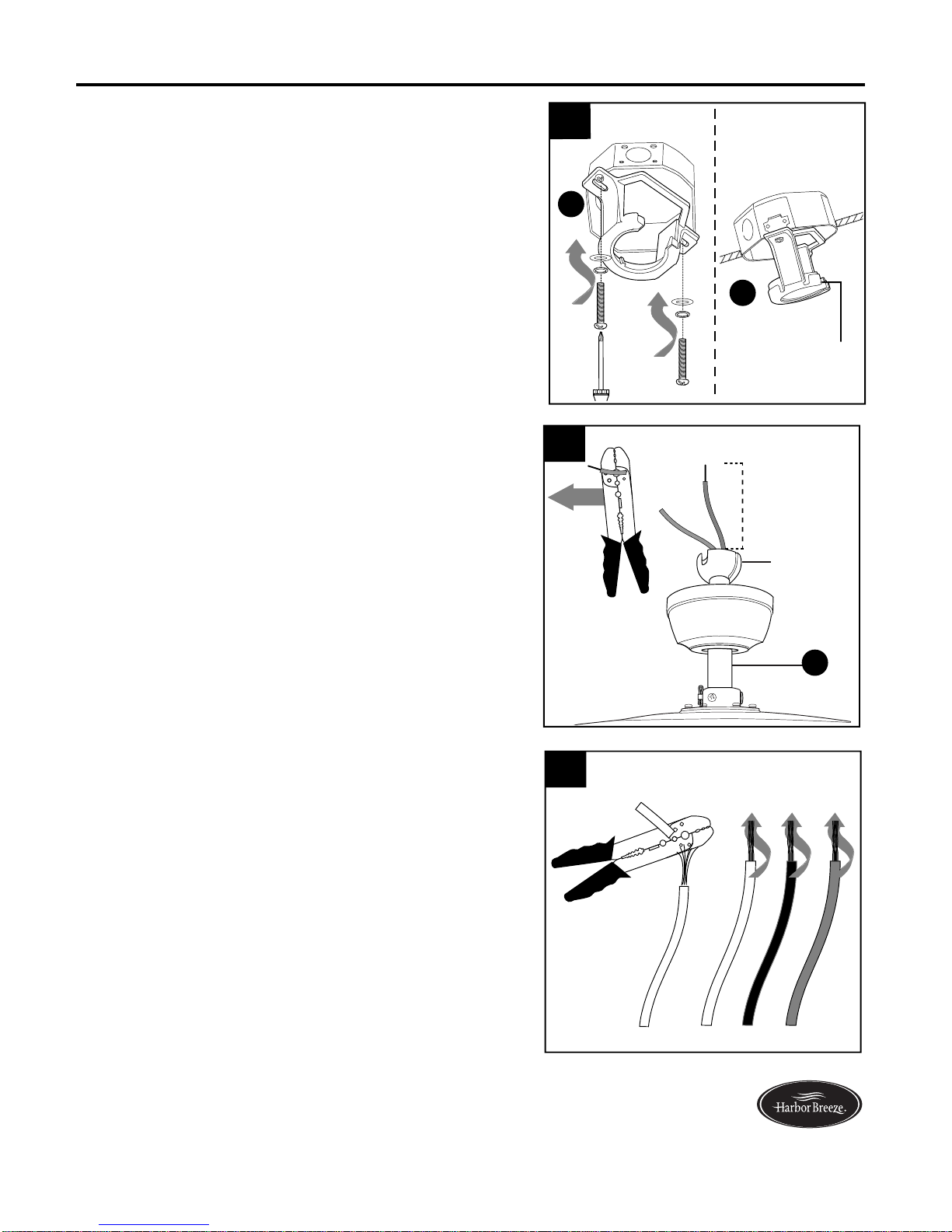

You may need to cut the lead wires back to simplify

the wiring. If you decide to cut back the lead wires, it

is suggested you do so in the following manner:

Take the lead wires and make sure you have pulled

them all the way through the top of the downrod.

Start at the TOP of the hanging ball on the downrod

and measure 8 in. of lead wire, and then cut the

excess wire off with wire cutters (not included).

NOTE: If you do not cut back the lead wires, Steps

5 and 6 are not necessary and you may proceed

to Step 7 instead.

If you cut back the lead wires in Step 5, strip 1/2 in.

of insulation from end of white wire. Twist stripped

ends of each strand of wire within the insulation

with pliers. Repeat Step 6 for black, blue (if

applicable) and green wires.

Hanging

Ball

8 in.

Secure mounting bracket (C) to outlet box (not

included) using screws, spring washers and flat

washers provided with the outlet box.

*NOTE: It is very important you use the proper

hardware when installing the mounting bracket

IMPORTANT: If using the angle mount, make

sure open end of mounting bracket (C) is installed

facing the higher point of the ceiling.

Open End

ANGLE MOUNTSTANDARD MOUNT

8Lowes.com/harborbreeze

INITIAL INSTALLATION

Install hanging ball of downrod (A) into opening of

mounting bracket (C). Align one of the slots in

hanging ball with the tab in mounting bracket (C).

DANGER: Failure to align one of the slots in

hanging ball with the tab in mounting bracket (C)

may result in serious injury or death.

WARNING: To reduce the risk of fire, electrical shock or personal injury, each quick connect

clip provided with this fan is designed to accept only one 12-gauge house wire and one lead wire

from the fan. If your house wire is larger than 12-gauge or there is more than one house wire to

connect to the corresponding fixture lead wires, consult an electrician.

CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is present.

WARNING: The wires from the outlet box must be connected to a corresponding color of the

fan's wires. Be sure wire colors match before making connections. If house wires are different

colors than referred to in the following steps, stop immediately. A professional electrician is

recommended to determine wiring.

WIRING

WARNING: Using a full range dimmer switch (not included) to control fan speed will cause

a loud humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full

range dimmer switch to control fan speed.

Connect WHITE wire from outlet box to WHITE wire

from fan using clip (DD). Connect BLACK

wire from outlet box to BLACK and BLUE wire from fan

using clip (DD). Connect BARE/GREEN ground wire

from outlet box to GREEN ground wire from downrod

(A) and mounting bracket (C) using clip (DD).

NOTE: Pull on each wire to make sure wires are

secure in the clip (DD).

Slot

Tab

WARNING: Never connect ground wire to

white or black power supply wires.

NOTE: To release a wire from clip (DD), twist

and pull the wire at the same time. This may

require some force.

120V POWER

FROM CEILING

GREEN

WHITE BLACK

BLUE

BLACK(POWER)

WHITE (NEUTRAL)

GROUND/GREEN (BARE)

DD Clip x 3

Hardware Used

NOTE: This fan is remote control adaptable (remote control not included).

Lowes.com/harborbreeze

WIRING

Wrap electrical tape (not included) around each

individual clip (DD) down to the wire.

WARNING: Make sure no bare wire or wire

strands are visible after making connections. Place

green and white connections on opposite side of box

from the black and blue connections.

Gently push wires and clips (DD) into outlet box.

DD DD

FINAL INSTALLATION

Raise canopy (B) toward ceiling and allow it to

attach to mounting bracket (C) using the magnets

mounted on each side of the mounting bracket (C). 1

Magnet

Insert the end of one blade arm (S) into the

keyhole slot on the motor housing (D). Twist blade

arm (S) clockwise to lock in place.

Repeat with remaining blade arms (S).

Keyhole

Slot

Lowes.com/harborbreeze

FINAL INSTALLATION

4. Align the preassembled blade screw posts (J) on

blade arms (S) with the holes on a blade (G).

Press up on the blade arm firmly so the blade screw

posts (J) come through the holes in the blade (G),

then slide a three-C clip (BB) onto each blade

screw post (J).

Repeat for each blade arm (S) and blade (G).

WARNING: To reduce the risk of personal

injury, make sure the friction detents on three-C clip

(BB) face down and recessed groove faces up.

Slide three-C clips (BB) completely under blade

screw posts (J) so edges of blade screw posts (J)

are captured by the recessed groove on the three-C

clips (BB).

Friction

Detents

Recessed

Groove

JBB

BB Three-C clip x 3

Hardware Used

NOTE: To install the fan without the light kit, proceed to INSTALLING FAN WITHOUT LIGHT KIT on

page 12.

Should it become necessary to remove blade arm (S)

from motor housing (D), follow these steps:

Remove blade arm screws (T) and washers (U) from

underside of motor housing (D) and remove blade arm

assembly. Remove safety screw (V) and metal tab (W)

from blade arm wall. Twist blade arm (S)

counterclockwise to remove from blade arm wall.

To reinstall blade arm (S), reattach metal tab (W) to

blade arm wall with safety screw (V). Reattach blade

arm wall to motor housing (D) with blade arm screws

(T) and washers (U). Refer to step 2 on previous page

to reinsert blade arm (S).

3. 3D

Table of contents

Languages:

Other Harbor Breeze Fan manuals

Harbor Breeze

Harbor Breeze 42299 User manual

Harbor Breeze

Harbor Breeze QUONTA CFH52BNK5L User manual

Harbor Breeze

Harbor Breeze SHREVEPORT E-NO52AB5C4 User manual

Harbor Breeze

Harbor Breeze TG44BNK3D1RC User manual

Harbor Breeze

Harbor Breeze POINT BREAK Instruction sheet

Harbor Breeze

Harbor Breeze L1901 User manual

Harbor Breeze

Harbor Breeze FLANAGAN User manual

Harbor Breeze

Harbor Breeze 40821 User manual

Harbor Breeze

Harbor Breeze CANTLEY 41557 User manual

Harbor Breeze

Harbor Breeze FREEPORT LP8079LAZ User manual

Harbor Breeze

Harbor Breeze L0982 User manual

Harbor Breeze

Harbor Breeze EUK60MBK10LR User manual

Harbor Breeze

Harbor Breeze URBANIA E-AR54BNK5C1 User manual

Harbor Breeze

Harbor Breeze CLASSIC STYLE BDB52LW5N User manual

Harbor Breeze

Harbor Breeze C-UT56TBC3M User manual

Harbor Breeze

Harbor Breeze PRESTWICK 42868 User manual

Harbor Breeze

Harbor Breeze CLASSIC STYLE BDB52LW5N User manual

Harbor Breeze

Harbor Breeze MONTCLAIR E-CM54RBZ5CRCI User manual

Harbor Breeze

Harbor Breeze Santa Ana LP8294LBN User manual

Harbor Breeze

Harbor Breeze C-BTH44ABZC5L User manual

Harbor Breeze

Harbor Breeze HTD20005 User manual

Harbor Breeze

Harbor Breeze CGR60WW3LR User manual

Harbor Breeze

Harbor Breeze 40016 User manual

Harbor Breeze

Harbor Breeze 40107 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
