Harbor Breeze 40016 User manual

11 8014 · 12/19/11

ITEM #0373684

BUILDER’S SERIES

CEILING FAN

MODEL #40016

Español p. 18

Harbor Breeze®is a registered trademark

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5

p.m., EST, Friday.

TABLE OF CONTENTS

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Hardware Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Final Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Light Kit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Care And Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Limited Lifetime Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

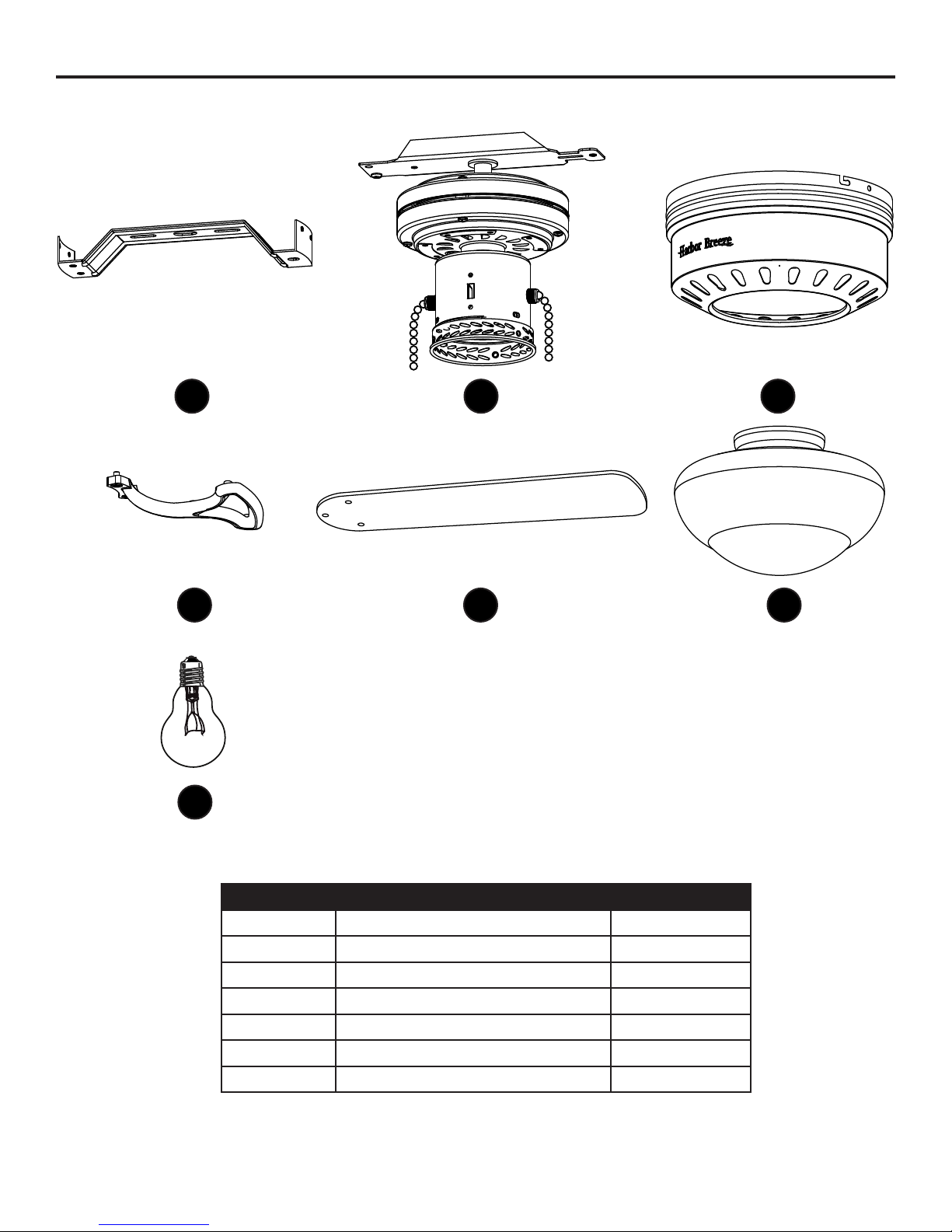

PACKAGE CONTENTS

A B C

D E F

PART DESCRIPTION QUANTITY

A Mounting Bracket 1

BMotor Assembly 1

CMotor Housing 1

DBlade Iron 4

EBlade 4

FGlass Shade 1

GBulb 1

Package Contents

HARDWARE CONTENTS (shown actual size)

AA BB CC DD

FF GGEE

PART DESCRIPTION QUANTITY

AA Blade Iron Screws 12 + 1 Extra

BB Blade Washer 12 + 1 Extra

CC Short Mounting Screw (preasssembled) 3

DD Pull Chain Extension 2

EE Wire Connector 4

FF Blade Isolator 4

GG Motor Screw 8 Preassembled + 1 Extra

Hardware Contents

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install

the product.

1. Before you begin installing the fan, disconnect the power by removing fuses or turning off circuit

Breakers.

2. CAUTION: Read all instructions and safety information before installing your new fan. Review

the accompanying assembly diagrams.

3. WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan

parts with sharp edges.

4. Make sure that all electrical connections comply with local codes, ordinances, the National

Electrical Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring

handbook, available at Lowe’s, if you are unfamiliar with installing electrical wiring.

5. Make sure the installation site you choose allows a minimum clearance of 7 feet from the blades to

the oor and at least 30 in. from the end of the blades to any obstruction.

6. The net weight of this fan is: 9.68 lbs. (4.50kg).

7. WARNING: Using a full range dimmer switch to control fan speed will cause aloud humming

noise from fan. To reduce the risk of re or electric shock., do NOT use a full range dimmer switch

to control.

DANGER: When using an existing outlet box, make sure the outlet box is securely

attached to the building structure and can support the full weight of the fan. Failure to do

this can result serious injury or death. The stability of the outlet box is essential in

minimizing wobble and noise in the fan after installation is complete.

1. WARNING: To reduce the risk of re, electric shock, or personal injury, mount fan to outlet

box marked: “ACCEPTABLE FOR FAN SUPPORT” and use mounting screws provided with

the outlet box. Most outlet boxes commonly used for the support of lighting xtures are not

acceptable for fan support and may need to be replaced. Consult a qualied electrician if in

doubt. Secure the outlet box directly to the building structure. The outlet box and its support

must be able to support the moving weight of the fan (at least 35 lbs.). Do NOT use a plastic

outlet box.

2. WARNING: To reduce the risk of re, electrical shock, or personal injury, wire connectors

provided with this fan are designed to accept only one 12-gauge house wire and two lead wires

from the fan. If your house wire is larger than 12 gauge or there is more than one house wire to

connect to the two fan lead wires, consult an electrician for the proper size wire connectors to

use.

DANGER

WARNING

Safety Information

3. WARNING: To reduce the risk of re or electric shock, do not use the fan with any solid state

speed control device or control fan speed with a full range dimmer switch.

4. WARNING: To reduce the risk of re, electric shock, or personal injury, do not bend the

blade arms when installing them, balancing the blades, or cleaning the fan. Do not insert

objects between the rotating fan blades.

5. WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The

use of parts OTHER than those provided with this fan will void the warranty.

1. CAUTION: Be sure outlet box is properly grounded or that a ground (green or bare) wire is

present.

After opening top of carton, remove mounting hardware package from foam inserts. Remove

motor from packing and place on carpet or on foam to avoid damage to nish.

2. CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure that

they are secured.

WARNING

CAUTION

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and hardware contents above. If any part is missing or damaged, do not attempt to

assembly the product. Contact customer service for replacement parts.

Estimated Assembly Time: 120 minutes

Tools required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety

Glasses, Step Ladder and Wire Strippers

Helpful tools (not included): AC Tester Light, Tape Measure, Wiring Handbook, and Wire Cutters

Preparation

ASSEMBLY INSTRUCTIONS

Assembly Instructions

1. Turn off circuit breakers and wall switch to the fan supply

line leads.

2. This fan can only be ushmounted to the ceiling;

downrod mount and angle mount is not available for this

fan.

3. Check to make sure blades (E) will be at least 30 in.

from any obstructions. Check and ensure blades (E)

are at least 7 ft. above the oor.

DANGER: Failure to disconnect power supply prior

to installation may result in serious injury or death.

Slot

“J” Hook

ASSEMBLY INSTRUCTIONS

4. Pass the 120-volt supply wires through the center hole in

the mounting bracket (A).

Install the mounting bracket (A) by raising it to a UL

listed electrical box (not included) and securing with

mounting screws and washers (not included).

Note: It is very important that you use the proper

hardware when installing the mounting bracket (A) as

this will support the fan.

Note: Remove the preassembled short mounting screws

(CC) from the mounting bracket (A) and motor assembly

(B) before continuing to the next step.

5. Carefully hang the motor assembly (B) onto the

mounting bracket (A) by inserting the “J” hook into a slot

on one side of the mounting bracket (A).

Note: See “Wiring” section for wiring the fan before

continuing to Step 6.

6. Lift motor assembly (B) to mounting bracket (A). Align

holes and secure motor assembly (B) with short

mounting screws (CC).

Short Mounting Screw x 3

Hardware Used

Mounting

Screws

L-Slots

Mounting

Screws

ASSEMBLY INSTRUCTIONS

8. Attach the motor housing (C) to the mounting bracket

(A) by aligning the two loosened screws into the two

L-slots of the motor housing (C). Then turn the housing

clockwise so the screws move toward the end of the

L-slots. The housing should now sit securely on the

screws preassembled on the mounting bracket (A).

7. There are 4 housing mounting screws preassembled

on the periphery of the mounting bracket (A).

Remove one pair of the screws that match the round

holes of the motor housing (C) opposite each other,

and loosen the remaining two screws.

FAN AND LIGHT CONTROLLED BY PULL CHAIN

WIRING

WARNING: To reduce the risk of re, electrical shock, or personal injury, wire connectors

provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from

the fan. If your house wire is larger than 12 gauges there is more than one house wire to connect to

the two fan lead wires, consult an electrician for the proper size wire connectors to use.

CAUTION: Be sure outlet box is properly grounded or that a ground (green or base) wire is

present.

WARNING: if house wires are different colors than refereed to in the following step, stop

immediately. A professional electrician is recommended to determine wiring.

EE Wire connector x 4

1. Choose wiring diagram that ts your situation and

make appropriate wiring connections as follows:

[NOTE: For each wire connection below, and on the

following page, use one of the wire connectors (EE),

making sure to screw wire connector (EE) on in a

clockwise direction.

1A. FAN AND LIGHT CONTROLLED BY PULL CHAINS:

connect BLACK and BLUE wire from fan to BLACK

wire from ceiling. Connect WHITE wire from fan

to WHITE wire form ceiling. Connect all GROUND

(GREEN) wires together from fan to BARE/GREEN

wire from ceiling. [Fig. 1A]

1B. FAN CONTROLLED BY PULL CHAIN, LIGHT BY

WALL SWITCH: If you intend to control the fan by pull

chains and light with a separate wall switch, connect

BLACK wire from fan to BLACK wire from ceiling.

Connect BLUE wire from fan to the BLACK wire from

the independent wall switch for the light. Connect

WHITE wire from fan to WHITE wire from ceiling.

Connect all GROUND (GREEN) wires together from

fan to BARE/GREEN wire form ceiling. [Fig. 1B]

Hardware Used

Wiring
