User's Guide

Extech 700 Series

800 Amp Clamp Meters

EX710 AC Clamp meter

EX720 True RMS AC Clamp meter

EX730 AC/DC True RMS Clamp meter

EX700 Series Version 3.0 1/05

Introduction

Congratulations on your purchase of the Extech 700 Series Clamp meter. The series

consists of the following models:

EX710 AC Current Clamp meter

EX720 True RMS AC Current Clamp with Temperature

EX730 True RMS AC/DC Current Clamp with Temperature & DC zero function

In addition to the parameters shown above in the individual model list, all models measure:

AC/DC Voltage

Resistance

Capacitance

Frequency

Continuity

Diode

The Extech 700 Series features:

Auto Power OFF

Data Hold

Peak Hold

Backlit LCD display

EX700 Series Version 3.0 1/05

Safety

International Safety Symbols

This symbol, adjacent to another symbol or terminal, indicates the user must refer

to the manual for further information.

This symbol, adjacent to a terminal, indicates that, under normal use, hazardous

voltages may be present

Double insulation

SAFETY NOTES

•Do not exceed the maximum allowable input range of any function.

•Do not apply voltage to meter when resistance function is selected.

•Set the function switch OFF when the meter is not in use.

•Remove the battery if meter is to be stored for longer than 60 days.

WARNINGS

•Set function switch to the appropriate position before measuring.

•When measuring volts do not switch to current/resistance modes.

•Do not measure current on a circuit whose voltage exceeds 600V.

•When changing ranges always disconnect the test leads from the circuit under test.

UL Note

A UL mark does not indicate that this product has been evaluated for accuracy.

CAUTIONS

•Improper use of this meter can cause damage, shock, injury or death. Read and

understand this user manual before operating the meter.

•Always remove the test leads before replacing the battery or fuses.

•Inspect the condition of the test leads and the meter itself for any damage before

operating the meter. Repair or replace any damage before use.

•Use great care when making measurements if the voltages are greater than 25VAC

rms or 35VDC. These voltages are considered a shock hazard.

•Always discharge capacitors and remove power from the device under test before

performing Diode, Resistance or Continuity tests.

•Voltage checks on electrical outlets can be difficult and misleading because of the

uncertainty of connection to the recessed electrical contacts. Other means should be

used to ensure that the terminals are not "live".

•If the equipment is used in a manner not specified by the manufacturer, the protection

provided by the equipment may be impaired.

Function Maximum Input

A AC, A DC (A DC on Model EX730 only) 800A DC/AC

V DC, V AC 600V DC/AC

Resistance, Capacitance, Frequency, Diode Test 250V DC/AC

Temperature (EX720 & EX730 only) 60V DC, 24V AC

EX700 Series Version 3.0 1/05

Description

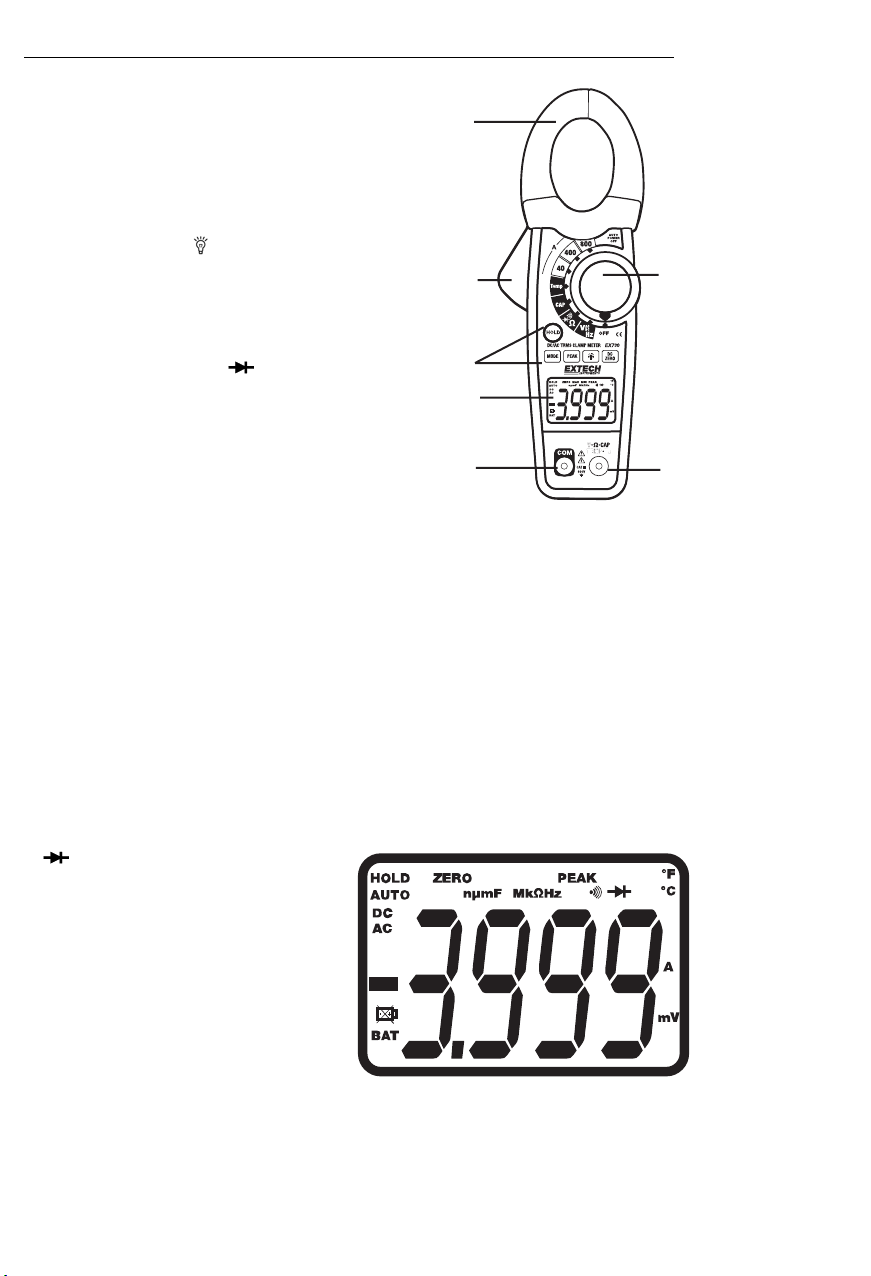

Meter Description (EX730 pictured)

1. Current clamp

2. Clamp opening trigger

3. Control buttons:

Data Hold

Mode

Peak

Backlight

DCA Zero (EX730 only)

4. Backlit LCD Display

5. COM negative input jack for black test lead

6. Rotary function switch

7. V·Ω·CAP·TEMP·Hz· positive input jack for red

lead

Display icons Description

HOLD Data Hold

Minus sign Negative reading display

0 to 3999 Measurement display digits

DC ZERO DCA Zero (Model EX730 only)

PEAK Peak capture

AUTO Auto Range mode

DC/AC Direct Current / Alternating Current

BAT Low battery

mV or V Milli-volts or Volts (Voltage)

ΩOhms (Resistance)

A Amperes (Current)

F Farad (Capacitance)

Hz Hertz (Frequency)

oF and oC Fahrenheit and Celsius units (Temperature)

n, m, µ, M, k Unit of measure prefixes: nano, milli, micro, mega, and kilo

•))) Continuity test

Diode test

EX700 Series Version 3.0 1/05

Specifications

Accuracy

(% of reading + digits)

Function Range &

Resolution EX710 EX720 EX730

40.00A AC ± (2.8% + 10d) ± (2.5% + 10d) ± (5% + 10d)

400.0A AC ± (2.8% + 8d) ± (2.5% + 8d) ± (5% + 10d)

AC Current

50/60 Hz

True RMS on

EX720 & EX730 800A AC ± (3.0% + 8d) ± (2.8% + 5d) ± (2.8% + 10d)

40.00A DC ± (5% + 10d)

400.0A DC ± (5% + 10d)

DC Current

EX730 only

800A DC

NA NA

± (2.8% + 10d)

400.0mV AC ± (1.5% + 10d) ± (1.0% + 10d) ± (1.0% + 10d)

4.000V AC

40.00V AC

400.0V AC

± (1.8% + 8d) ± (1.5% + 5d) ± (1.5% + 5d)

AC Voltage

50/60Hz

True RMS on

EX720 & EX730 600V AC ± (2.5% + 8d) ± (2.0% + 5d) ± (2.0% + 5d)

400.0mV DC ± (0.8% + 2d) ± (0.8% + 2d) ± (0.8% + 2d)

4.000V DC

40.00V DC

400.0V DC

± (1.5% + 2d) ± (1.5% + 2d) ± (1.5% + 2d)

DC Voltage

600V DC ± (2.0% + 2d) ± (2.0% + 2d) ± (2.0% + 2d)

400.0Ω± (1.0% + 4d) ± (1.0% + 4d) ± (1.0% + 4d)

4.000kΩ

40.00kΩ

400.0kΩ

± (1.5% + 2d) ± (1.5% + 2d) ± (1.5% + 2d)

4.000MΩ± (2.5% + 3d) ± (2.5% + 3d) ± (2.5% + 3d)

Resistance

40.00MΩ± (3.5% + 5d) ± (3.5% + 5d) ± (3.5% + 5d)

4.000nF ± (5.0% + 30d) ± (5.0% + 30d) ± (5.0% + 30d)

40.00nF ± (5.0% + 20d) ± (5.0% + 20d) ± (5.0% + 20d)

400.0nF

4.000µF

40.00µF

± (3.0% + 5d) ± (3.0% + 5d) ± (3.0% + 5d)

400.0µF ± (4.0% + 10d) ± (4.0% + 10d) ± (4.0% + 10d)

4.000mF ± (10% + 10d) ± (10% + 10d) ± (10% + 10d)

Capacitance

40.00mF unspecified unspecified unspecified

4.000kHz ± (1.5% + 2d) ± (1.5% + 2d) ± (1.5% + 2d)

Frequency Sensitivity: 100V (<50Hz); 50V (50 to 400Hz); 5V (401 to 4000Hz)

EX700 Series Version 3.0 1/05

Function Range and

Resolution Accuracy

(% of reading + digits)

EX710 EX720 EX730

-4 to 1400oF NA ± (3%rdg + 9oF) ± (3%rdg + 9oF)

Temperature -20 to 760oC NA ± (3%rdg + 5oC) ± (3%rdg + 5oC)

General Specifications

Clamp jaw opening 1.2" (30mm) approx.

Display 3-3/4 digits (4000 counts) backlit LCD

Continuity check Threshold 40Ω; Test current < 0.5mA

Diode test Test current of 0.3mA typical;

Open circuit voltage < 3VDC typical

Low Battery indication ‘BAT’ is displayed

Over-range indication ‘OL’ display

Measurement rate 2 readings per second, nominal

PEAK Captures peaks >1ms

Temperature sensor Type K thermocouple

Input Impedance 10MΩ(VDC and VAC)

AC bandwidth 50 to 400Hz (AAC and VAC)

AC response True rms (AAC and VAC) on EX720 & EX730

Crest Factor 3.0 in 40A and 400A ranges, 1.4 in 800A range (50/60Hz

and 5% to 100% of range)

Operating Temperature 41oF to 104oF (5oC to 40oC)

Storage Temperature -4oF to 140oF (-20oC to 60oC)

Operating Humidity Max 80% up to 87oF (31oC) decreasing linearly to 50% at

104oF(40oC)

Storage Humidity <80%

Operating Altitude 7000ft. (2000meters) maximum.

Battery One (1) 9V Battery

Auto power OFF After approx. 25 minutes

Dimensions & Weight 9.0 x 3.1 x 2.0" (229 x 80 x 49mm); 10.7 oz. (303g)

Safety For indoor use and in accordance with the requirements for

double insulation to IEC1010-1 (2001): EN61010-1 (2001)

Overvoltage Category III 600V and Category II 1000V,

Pollution Degree 2.

EX700 Series Version 3.0 1/05

Operation

NOTES:Read and understand all Warning and Caution statements in this operation manual prior to using

this meter. Set the function select switch to the OFF position when the meter is not in use.

AC/DC Current Measurements (DC Current on Model EX730 only)

WARNING: Ensure that the test leads are disconnected from the meter before making current clamp

measurements.

1. Set the Function switch to the 800A,

400A, or 40A range. If the approx.

range of the measurement is not known,

select the highest range then move to

the lower ranges if necessary.

2. Use the MODE button to select AC or

DC (EX730 only).

3. Press the DC ZERO button to zero the

meter display (EX730, DC only).

4. Press the trigger to open jaw. Fully

enclose only one conductor. For

optimum results, center the conductor in

the jaw.

5. The clamp meter LCD will display the

reading.

AC/DC Voltage Measurements

1. Insert the black test lead into the negative COM terminal and the

red test lead into the positive V·Ω·CAP·TEMP·Hz· terminal.

2. Set the function switch to the V Hz position.

3. Use the MODE button to select AC or DC Voltage.

4. Connect the test leads in parallel to the circuit under test.

5. Read the voltage measurement on the LCD display.

Correct Incorrect

EX700 Series Version 3.0 1/05

Resistance Measurements

1. Insert the black test lead into the negative COM terminal and the red

test lead into the V·Ω·CAP·TEMP·Hz· positive terminal.

2. Set the function switch to the Ω position.

3. Touch the test probe tips across the circuit or component under test.

4. Read the resistance on the LCD display.

Capacitance Measurements

WARNING: To avoid electric shock, discharge the capacitor under test before measuring.

1. Set the function switch to the CAP position.

2. Insert the black test lead banana plug into the negative COM jack and

the red test lead banana plug into the V·Ω·CAP·TEMP·Hz· positive

jack.

3. Touch the test probe tips across the part under test. If “dISC” appears

in the display, remove and discharge the component.

4. Read the capacitance value in the display.

5. The display will indicate the proper decimal point and value.

Note: For very large values of capacitance measurement it can take several

minutes before the final reading stabilizes.

Frequency Measurements

1. Insert the black test lead banana plug into the negative COM jack and

the red test lead banana plug into the V·Ω·CAP·TEMP·Hz· positive

jack.

2. Set the function switch to the VHz Position.

3. Press and hold the MODE button to select the Frequency (Hz)

function. “k Hz” will appear in the display.

4. Touch the test probe tips across the part under test.

5. Read the Frequency value on the display.

6. The display will indicate the proper decimal point and value.

7. Press and hold the MODE button again to return to the voltage mode.

CAP

EX700 Series Version 3.0 1/05

Temperature Measurements (Models EX720 and EX730 only)

1. Set the function switch to the TEMP position.

2. Insert the Temperature Probe into the negative COM and the

V·Ω·CAP·TEMP·Hz· positive jacks, observing polarity.

3. Touch the Temperature Probe head to the device under test.

Continue to touch the part under test with the probe until the

reading stabilizes.

4. Read the temperature on the display. The digital reading will

indicate the proper decimal point and value.

5. Use the MODE button to select oF or oC.

WARNING: To avoid electric shock, be sure the thermocouple probe has been

removed before changing to another measurement function.

Continuity Measurements

1. Insert the black test lead into the negative COM terminal and the red test lead into the

V·Ω·CAP·TEMP·Hz· positive terminal.

2. Set the function switch to the •)))position.

3. Use the MODE button to select continuity “•)))”. The display icons will change when

the MODE button is pressed.

4. Touch the test probe tips across the circuit or component under test.

5. If the resistance is < 40Ω, a tone will sound.

Diode Test

1. Insert the black test lead banana plug into the negative COM jack and the red test

lead banana plug into the V·Ω·CAP·TEMP·Hz· positive jack

2. Turn the function switch to position. Use the MODE button to select the diode

function if necessary (diode symbol will appear on the LCD when in Diode test mode)

3. Touch the test probe tips to the diode or semiconductor junction under test. Note the

meter reading

4. Reverse the test lead polarity by reversing the red and black leads. Note this reading

5. The diode or junction can be evaluated as follows:

If one reading displays a value (typically 0.400V to 0.900V) and the other

reading displays OL, the diode is good.

If both readings display OL the device is open.

If both readings are very small or ‘0’, the device is shorted.

EX700 Series Version 3.0 1/05

Data Hold

To freeze the LCD reading, press the HOLD button. While data hold is active, the HOLD

icon appears on the LCD. Press the HOLD button again to return to normal operation.

DC ZERO (Relative) (EX730 only)

The DC ZERO is a relative feature and can be used in any function.

1. Press the DC ZERO button to zero the display. “ZERO” will appear in the display. The

displayed reading is now the actual value less the stored “zero” value.

2. Press the DC ZERO button to view the stored value. “ZERO” will flash in the display.

3. To exit this mode, press and Hold the ZERO button until “ZERO” is no longer in the

display.

Peak Hold

The Peak Hold function captures the peak AC or DC voltage or current. The meter can

capture negative or positive peaks as fast as 1 millisecond in duration.

1. Turn the function switch to the A or V position.

2. Use the MODE button to select AC or DC (ADC EX730 only).

3. Allow time for the display to stabilize.

4. Press and Hold the PEAK button until “CAL” appears in the display. This procedure

will zero the range selected.

5. Press the PEAK button, Pmax will display.

6. The display will update each time a higher positive peak occurs.

7. Press the PEAK button again, Pmin will display. The display will now update and

indicate the lowest negative peak.

8. To return to normal operation, press and hold the PEAK button until the Pmin or

Pmax indicator switches off.

Note: If the Function switch position is changed after a calibration the Peak Hold

calibration must be repeated for the new function selected.

LCD Backlight Button

The LCD is equipped with backlighting for easier viewing, especially in dimly lit areas.

Press the backlight button to turn the backlight on. Press again to turn the backlight off.

Note that the meter does have an auto power off feature as described below.

Automatic Power OFF

In order to conserve battery life, the meter will automatically turn off after approximately 25

minutes. To turn the meter on again, turn the function switch to the OFF position and then

to the desired function position.

This manual suits for next models

Table of contents

Other Extech Instruments Measuring Instrument manuals

Extech Instruments

Extech Instruments 407510 User manual

Extech Instruments

Extech Instruments AN300 User manual

Extech Instruments

Extech Instruments 445580 User manual

Extech Instruments

Extech Instruments MA430T User manual

Extech Instruments

Extech Instruments 380940 User manual

Extech Instruments

Extech Instruments 380460 User manual

Extech Instruments

Extech Instruments EN510 User manual

Extech Instruments

Extech Instruments CT-3060 User manual

Extech Instruments

Extech Instruments 850 OWL User manual

Extech Instruments

Extech Instruments DO210 User manual

Extech Instruments

Extech Instruments BT100 User manual

Extech Instruments

Extech Instruments MA3110 User manual

Extech Instruments

Extech Instruments 407227 User manual

Extech Instruments

Extech Instruments 380580 User manual

Extech Instruments

Extech Instruments RH520B User manual

Extech Instruments

Extech Instruments ExStik DO600 User manual

Extech Instruments

Extech Instruments 475055 User manual

Extech Instruments

Extech Instruments SDL100-NIST User manual

Extech Instruments

Extech Instruments SL510 User manual

Extech Instruments

Extech Instruments MO257 User manual

Extech Instruments

Extech Instruments UV510-NIST User manual

Extech Instruments

Extech Instruments TKG100 User manual

Extech Instruments

Extech Instruments 461891 User manual

Extech Instruments

Extech Instruments AN310-NIST User manual

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Endress+Hauser

Endress+Hauser Deltabar FMD71 technical information

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Endress+Hauser

Endress+Hauser Proline Promag 50 Brief operating instructions

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual
