Extech Instruments TH10 User manual
Model TH10
Software Help Guide
Page 1 of 11
8/30/2021
mhtml:mk:@MSITStore:C:\Program%20Files%20(x86)\Extech%20Instruments\TH10A\H...
Software Introduction
The TH10 software allows the user to program the logger to record temperature in Fahrenheit or
Celsius and to download the data for viewing and graphing.
This version of software operates with the TH10 model that has a serial number starting with “A”.
System Requirements:
Windows 7, Windows 8.1, and Windows 10
Minimum Hardware Requirements:
PC Desktop or Laptop Computer with Pentium 90MHz minimum 32 MB RAM,
USB Port, 4 MB hard disk space to install Software.
Recommended display resolution 1024 x 768 with High Color (16 bit)
Page 2 of 11
8/30/2021
mhtml:mk:@MSITStore:C:\Program%20Files%20(x86)\Extech%20Instruments\TH10A\H...
Install Datalogger Software
Install the supplied Windows PC Datalogger Software by placing the supplied program disk in the PC CD-ROM
drive, or by downloading the program from the Extech.com web site.
If the installation program does not automatically open and provide on-screen prompts, double click the
ExtechInstaller.exe program located in the root folder.
Follow the on-screen prompts to complete the installation.
Page 3 of 11
8/30/2021
mhtml:mk:@MSITStore:C:\Program%20Files%20(x86)\Extech%20Instruments\TH10A\H...
Main Menu

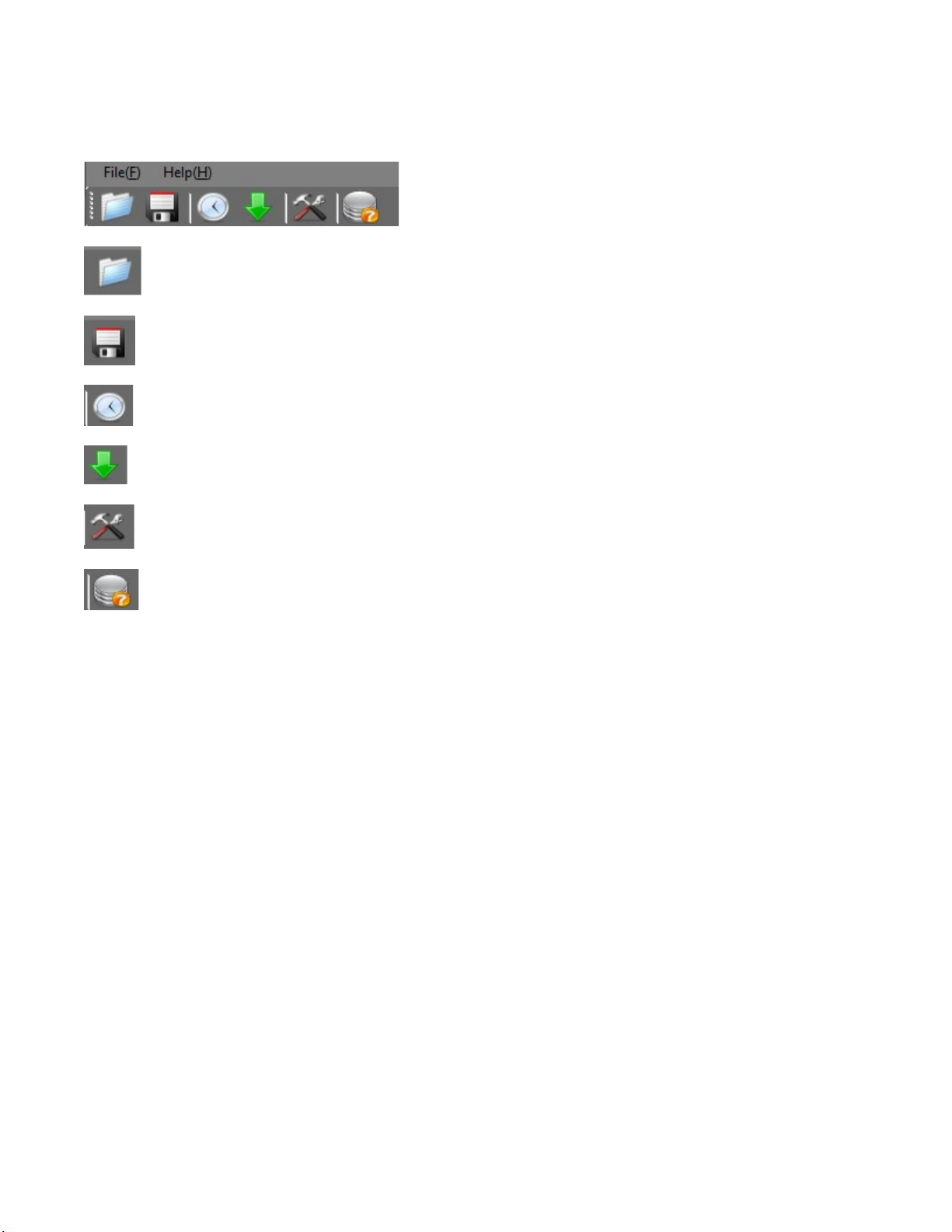

The main menu bar for the software appears as follows:
Open a saved graph file
Save recorded data (Real Time or Saved Data) as a IMTR (graph) or CSV (Data) file
Real time measurement (Click to Start and Click to Stop)
Download the recorded data from the logger
Datalogger Setup (Real Time and Datalogger)
Help
All of these functions are described in the following paragraphs.
Operation
Page 4 of 11
8/30/2021
mhtml:mk:@MSITStore:C:\Program%20Files%20(x86)\Extech%20Instruments\TH10A\H...
Datalogger Setup and Recording
This setup will program the TH10 logger for a logger recording operation.
Click on the Datalogger Setup icon or select Datalogger setup from the File menu.

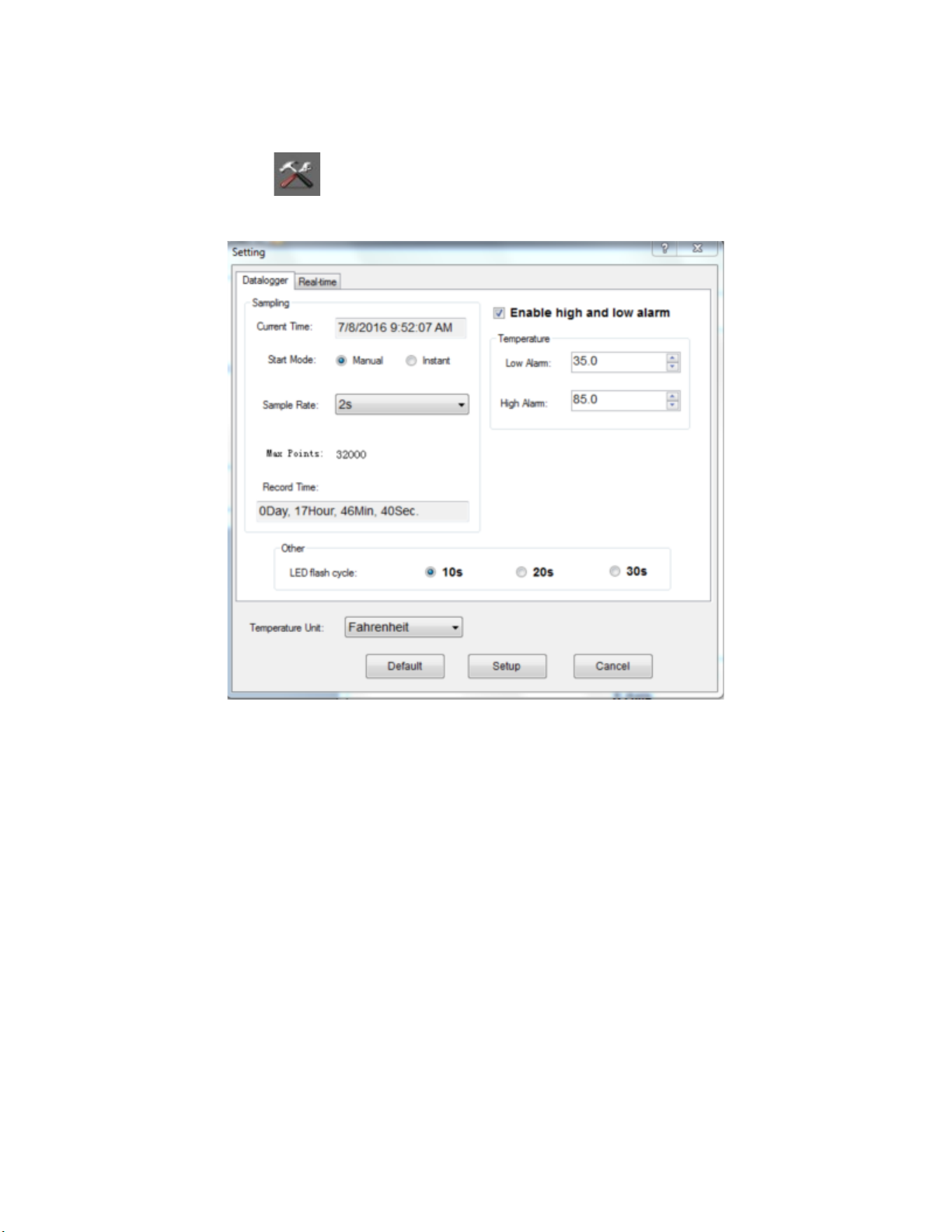

Choose the Datalogger tab. The setup menu will appear as shown below.
§CURRENT TIME: This field will automatically synchronize with the PC date and time setting.
§Start Mode: The MANUAL and INSTANT select buttons allow the user to start data logging immediately when the Setup
window is exited (INSTANT), or at a later time (MANUAL).
§SAMPLE RATE: This pull-down menu instructs the TH10 to log readings at a specific interval rate.
Settings: 2s to 30s, 1m, 5m, 15m, 30m, 1hr, 5hr, 12hr, 24hr
§MAX POINTS: This field instructs the TH10 to take a fixed number of readings (32,000).
§RECORD TIME: This field displays the amount of time the datalogger will run based on Sample rate and Max points.
§LED Flash Cycle: Indicates how often the Record LED (Green) will flash. longer cycle times help to extend the battery
life.
§Enable High and Low alarm: Check the box to enable LED alarm indication. User can set High and Low temperature
alarm settings. Uncheck the box to disable the flashing of the LEDs, to conserve battery power.
§TEMPERATURE UNIT: Selects the Temperature units of Celsius or Fahrenheit.
Click the SETUP button to save the settings and erase previously recorded data from the TH10.
Press the DEFAULT button to set the TH10 back to factory default settings.
Press the CANCEL button to abort the setup.
Note: Any stored data will be permanently erased when the user clicks on Setup. To save the data before creating a
new setup, click Cancel and then download the data.
Note: The battery may run out before the TH10 has finished collecting a specified number of sample points.
Page 5 of 11
8/30/2021
mhtml:mk:@MSITStore:C:\Program%20Files%20(x86)\Extech%20Instruments\TH10A\H...
When in doubt, we recommend that you always install a fresh battery before logging critical data.
If INSTANT was selected in the SETUP window, the TH10 begins logging at the instant the SETUP button is pressed. If
MANUAL was selected, the TH10 must be manually started by pressing the unit’s orange button once until the Record LED
(Green) flashes.
Logging will continue at the programmed sample rate until the number of readings (sample points) specified in the Setup
window is reached or the User terminates the logging session by clicking on the software’s download button.
The green LED flashes once per sample point and the yellow LED flashes when user programmed alarm limits are exceeded.
See LED status in the TH10 User’s manual.
Real-Time Setup
Click the Datalogger Setup icon or select Datalogger setup from the File pull-down menu.
Select the Real-Time tab. The setup menu will appear as shown below
§SAMPLE RATE: This field instructs the TH10 to log readings at a specific interval rate.
§MAX POINTS: This field instructs the TH10 to take a set number of readings.
§TEMPERATURE UNIT: Selects the Temperature units of Celsius or Fahrenheit.
Once the changes have been made, click on the SETUP button to save them. Press the DEFAULT button to set the TH10
back to factory default conditions. Press the CANCEL button to abort the setup.
Page 6 of 11
8/30/2021
mhtml:mk:@MSITStore:C:\Program%20Files%20(x86)\Extech%20Instruments\TH10A\H...
Real-Time Measurements
Set up for Real-Time recording in the logger setup prior to running the unit in Real-Time mode.
Click the Real-Time icon on the menu bar to Start logging in Real time while the logger is attached to the PC.
Click the Real-Time icon again to Stop the logging session.

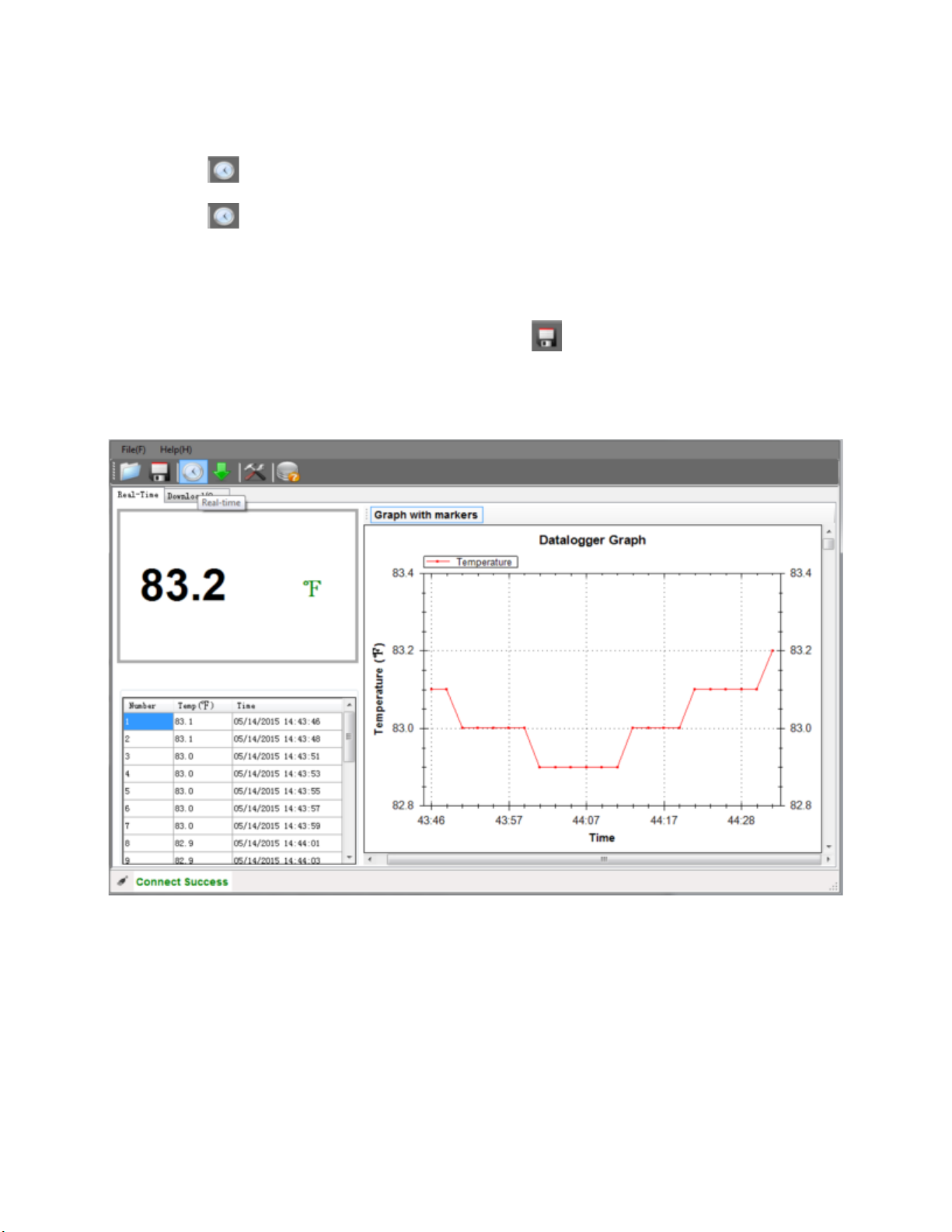

The current reading (top left), the sequence of measurements (bottom left table) and the Datalogger Graph of the readings
is displayed.
To save your Real-Time data, Stop the recording and click the File Save icon.
Page 7 of 11
8/30/2021
mhtml:mk:@MSITStore:C:\Program%20Files%20(x86)\Extech%20Instruments\TH10A\H...
Data Download
To download the stored readings from the TH10 logger memory to the PC.
A. Connect the TH10 to the PC’s USB port.
B. Open the TH10 Temperature Datalogger software program.
C. Click the Download icon on the menu bar.
D. The Window shown below will appear
E. Click the Save to file icon.
F. Choose file type .IMTR for the binary graphing data file or choose type .CSV for a file in a CSV formatted table
file that can be opened with Excel.
Note: The data recorded by the TH10 logger is always saved in Degrees C.
If you want the data to be printed and saved as a file to the PC in Degrees F, the Logger setup setting
for temperature must be set to Fahrenheit.

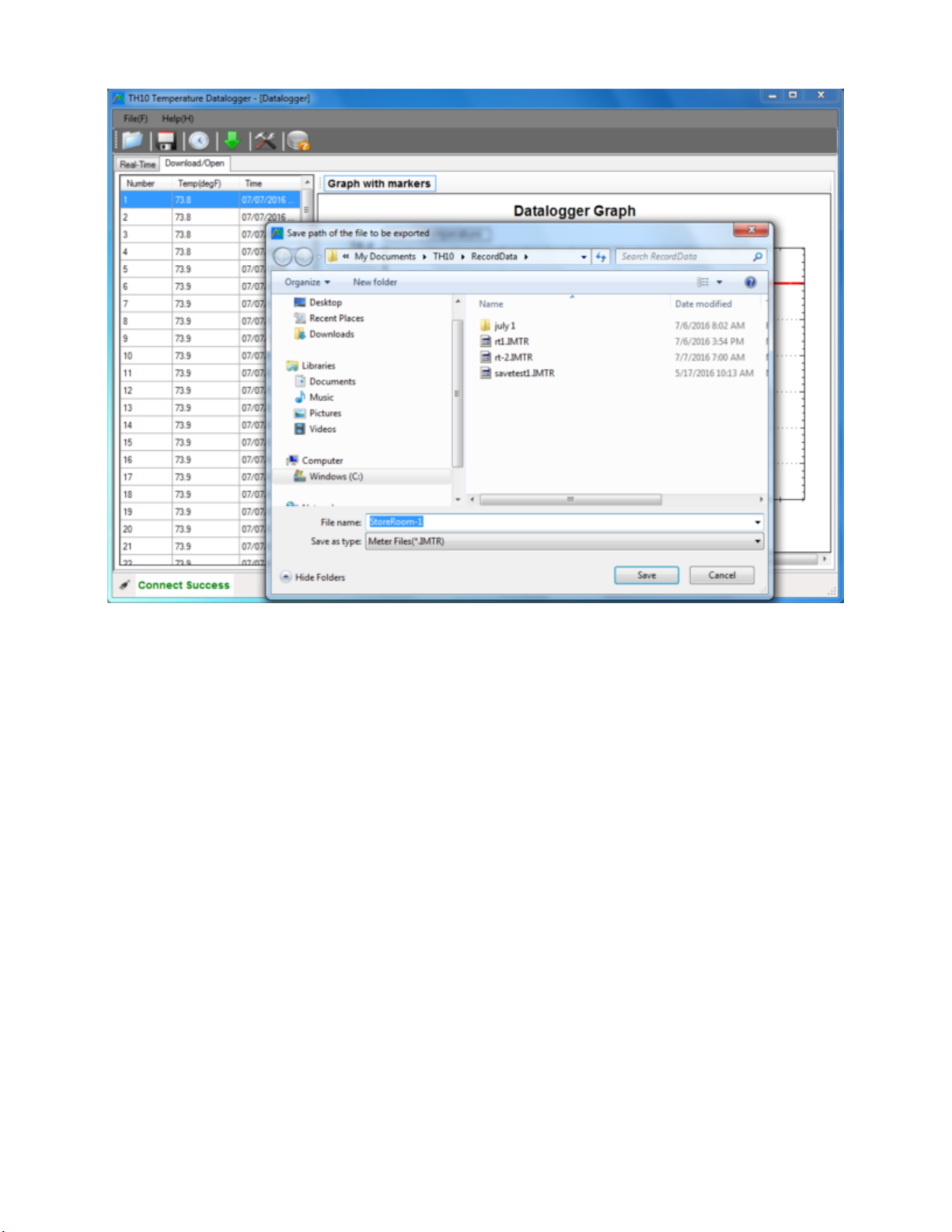

Save Data to the PC
Click the SAVE icon on the menu bar to save the data.
Enter the file name and click “Save as type” to select either the binary Graph File (.IMTR) or select the CSV formatted table
file(.CSV). Select SAVE to save the file to the desired location.
Page 8 of 11
8/30/2021
mhtml:mk:@MSITStore:C:\Program%20Files%20(x86)\Extech%20Instruments\TH10A\H...
Page 9 of 11
8/30/2021
mhtml:mk:@MSITStore:C:\Program%20Files%20(x86)\Extech%20Instruments\TH10A\H...
Open A Saved Data File

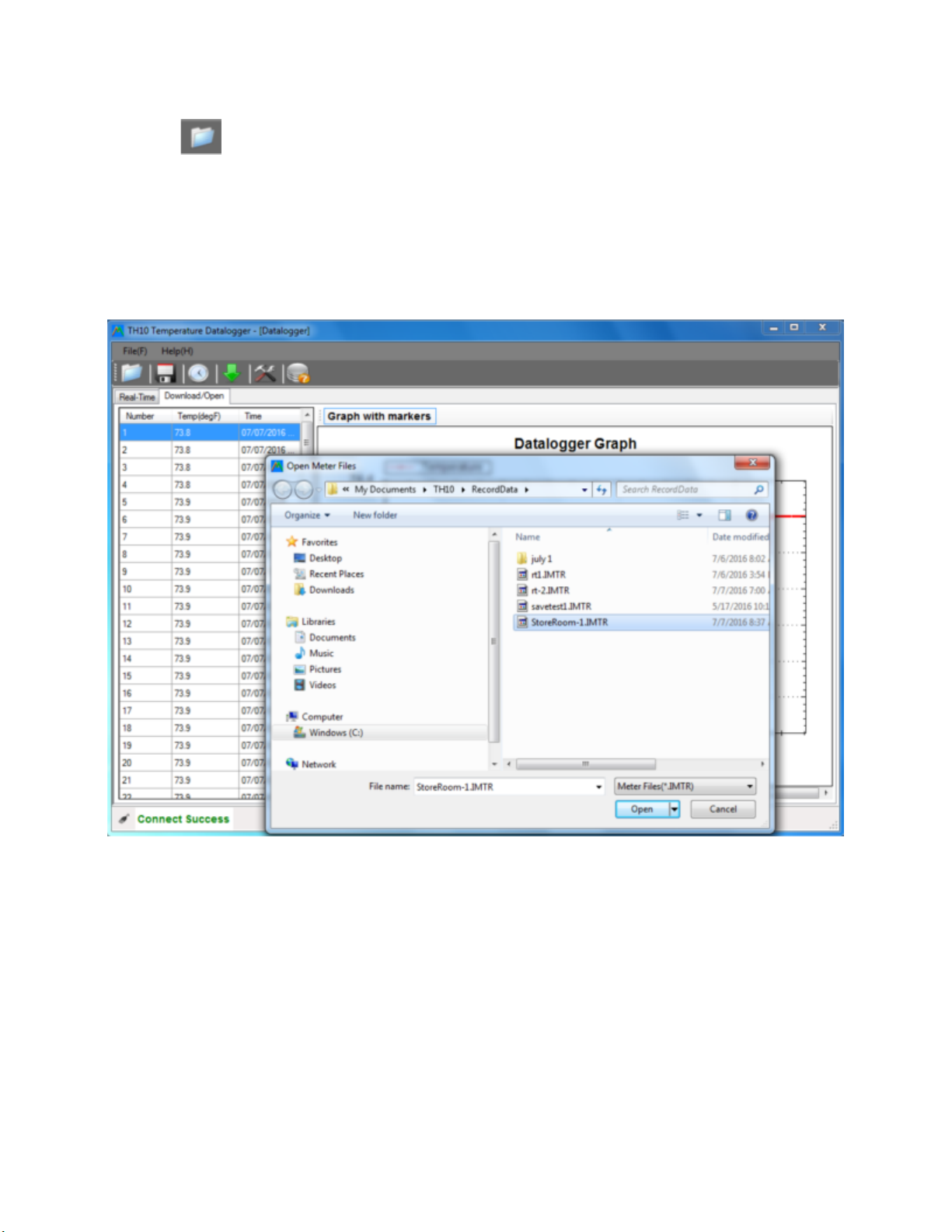

Click the OPEN icon on the menu bar to open a previously saved data log file.
The software will only open a binary IMTR formatted file for viewing within the datalogging software.
To Open a saved CSV formatted file, Use Windows Explorer to locate the file and open with Excel or Notepad.
Note: The data recorded by the TH10 logger is always saved in Degrees C.
If you want the data to be printed and saved as a file to the PC in Degrees F, the Logger setup setting
for temperature must be set to Fahrenheit.
Page 10 of 11
8/30/2021
mhtml:mk:@MSITStore:C:\Program%20Files%20(x86)\Extech%20Instruments\TH10A\H...
