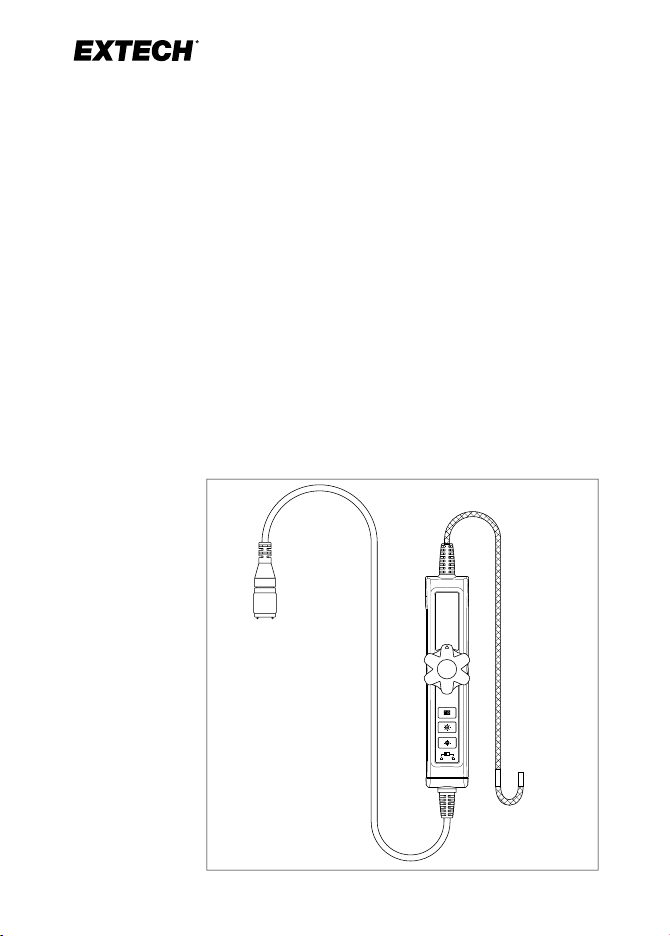

Extech Instruments HDV7C-A2-39-HD-1 User manual
User Manual
Two-Way
Articulating Probe
Model HDV7C-A2-39-HD-1. For use with
HDV700 VideoScope.
Introduction
Thank you for selecting the Extech two-way articulation probe with
High Definition (HD) camera. The probe is intended for use with the
HDV700 VideoScope. Obtain the HDV700 user manual and addi-
tional translations of this user manual on the support site:
https://support.flir.com
Safety
Please read and understand all safety cautions before use.
CAUTION
• Do not insert the probe into flammable liquid or gas.
• Before inspecting a vehicle, shut off the engine. Allow the metal and liquids
in the vehicle to cool before inspection.
• This product is designed for industrial use only. It is not intended for use in
human or other biological inspection.
• Do not disassemble the product, damage to the product and electrical
shock may occur.
• Do not allow the camera head to come in contact with acidic, corrosive or
heated material, serious damage to the equipment can occur.
#NAS100125; r. AB/88002/88004; en-US 1
Description
1. Probe
2. Articulating neck
3. Camera head
4. Articulation control dial
5. Image and video recording button
6. Brightness increase button
7. Brightness decrease button
8. Button lock/unlock button
9. Connecting cable to HDV700
10. HDV700 connector
#NAS100125; r. AB/88002/88004; en-US 2
Connecting the Probe
The steps below explain how to safely connect the probe to the
HDV700 monitor. Always turn the HDV700 power off before replac-
ing the probe.
1. Align the white dot on the probe connector with the white dot on
the monitor connector.
2. Plug the probe into the monitor unit, ensuring proper alignment
and full insertion.
3. Tighten the collar nut to secure the connection. Do not
overtighten.
Operation
Controlling Articulation
Turn the control dial (4) clockwise to bend the probe neck to the
right; turn the dial counter-clockwise to bend the neck to the left, as
shown in the image below. The articulation range is 180° maximum.
CAUTION
Do not use excessive force when turning the control dial, damage to the cam-
era probe can result. Do not attempt to force the flexible neck past its maxi-
mum angle. Stop turning the control dial when the maximum angle is reached.
Use caution when removing the probe from an inspection area; if the neck is
at an angle, it may bind and become difficult to remove. Straighten the neck
before removing the probe from the inspection area.
#NAS100125; r. AB/88002/88004; en-US 3
Image and Video Capture Button
Short press the Image and Video Capture button (5) to capture a
still image. Long press to start or stop video recording. Images and
videos are stored on the micro SD card.
The HDV700 user manual provides detailed information regarding
media management. Obtain the user manual from the support web-
site (see Support section below).
Brightness Control Buttons
Use the brightness controls (6, 7) to increase and decrease
the brightness of the camera images.
Control Button Lock Switch
Use the locking switch (8) to disable the three control buttons (5, 6,
7).
Measurement Considerations
• The probe contains small circuitry that controls the optics and
electronics of the camera. To ensure reliability, do not bend the
probe more than 90°.
• Do not coil the probe < 6 in. (15 cm) in diameter in use.
• To avoid camera damage, please straighten the neck before re-
moving it from the inspection area. Failure to do so may cause
the camera to become stuck in the inspection area.
• The neck, near tip of the probe, is particularly sensitive to exces-
sive force. Never bend the neck by hand; use only the control
dial.
• Please keep the probe’s alignment as straight as possible while
in use.
• Do not force the control dial when resistance to movement is felt;
Damage to the camera can result.
• Do not allow the probe to forcefully impact an object.
• Do not put excessive weight on any area of the probe.
• Never use the probe as a hammer, hook, or other tool.
• Never use the probe tip to clear pathways or to unclog a pipe.
#NAS100125; r. AB/88002/88004; en-US 4
Storage and Maintenance
• To clean the probe, wipe with a soft cloth dampened with a mild
detergent and clean water. Do not use abrasive detergents. Do
not use corrosives or solvents to clean the probe. Use a high
quality lens cleaning fluid and a lint-free swab to clean the cam-
era and worklight lenses.
• To protect the camera, keep the lens cap, and other supplied
protective coverings, attached when not in use. Store in the origi-
nal case.
• Straighten the neck angle before placing in storage.
• Avoid direct sun exposure. Store in a cool, dry, and well-venti-
lated area.
• Do not coil the probe < 6 in. (15 cm) in diameter when storing,
damage to the probe may result.
Specifications
HD Camera resolution 1280(H) x 720(V) pixels
Frame rate 30 frames per second (fps)
Probe diameter 0.15 in. (3.9 mm)
Probe head diameter 0.2 in. (4.5 mm)
Probe head length 0.5 in. (17 mm)
Probe length 3.3 ft (1 m)
Articulation angle 180° maximum (the angle may decrease if
the probe is looped)
Probe head material Stainless steel
Probe body material Braided mesh stainless steel
Worklights LED lamps encircle the camera lens
Field of View (FOV) 90°
Depth of Field (DOF) 0.4 to 4.0 in. (1 to 10 cm)
Operation and Storage
temperature
14℉to 140℉(–10℃to 60℃)
#NAS100125; r. AB/88002/88004; en-US 5
Liquids approved for probe
submersion
Brake and transmission fluid, diesel fuel, un-
leaded gasoline, engine oil, and CPC hy-
draulic oil (46AWS)
Ingress protection Probe tip and body: IP 67 (IEC 60529)
Protected from submersion in water up to 3.3
ft (1 m) for 30 minutes maximum. In use: rain,
splashes, and accidental submersion
Two-Year Warranty
FLIR Systems, Inc. warrants this Extech brand instrument to
be free of defects in parts and workmanship for two years from
date of shipment (a six-month limited warranty applies to sensors
and cables). To view the full warranty text please visit:
http://www.extech.com/support/warranties.
CUSTOMER SUPPORT
Customer Support Telephone List:
https://support.flir.com/contact
Technical Support:https://support.flir.com
#NAS100125; r. AB/88002/88004; en-US 6
#NAS100125; r. AB/88002/88004; en-US 7
last page
Publ. No.: NAS100125
Release: AB
Commit: 88002
Head: 88004
Language: en-US
Modified: 2022-11-04
Formatted: 2022-11-04
Website
http://www.flir.com
Customer support
http://support.flir.com
Copyright
© 2022, FLIR Systems, Inc. All rights reserved worldwide.
Disclaimer
Specifications subject to change without further notice. Models and accessories
subject to regional market considerations. License procedures may apply.
Products described herein may be subject to US Export Regulations. Please
