OPERATOR’S MANUAL

GAC® 2500

11001-1505B-201011

Safety Notices ..................................................................................................... 1

Introduction ......................................................................................................... 3

Accessories ....................................................................................................................... 3

Unit Overview .................................................................................................................... 3

Features ............................................................................................................................ 4

Specifications .................................................................................................................... 4

Declaration of Conformity ................................................................................................. 4

External Communication Connections .............................................................................. 5

Printer ............................................................................................................................... 6

Installation ........................................................................................................... 7

Unit Positioning ................................................................................................................. 7

Connecting AC Power ...................................................................................................... 7

Grain Drawer .................................................................................................................... 8

Optional Bottomless Grain Drawer ................................................................................................... 8

Navigation ............................................................................................................ 9

Using External Devices ..................................................................................................... 9

Touch Screen Button Functions ...................................................................................... 10

Home .............................................................................................................................................. 10

Power Off ....................................................................................................................................... 10

Initiate.............................................................................................................................................. 10

Print................................................................................................................................................. 10

Back ................................................................................................................................................ 10

Abort................................................................................................................................................ 10

Enter ............................................................................................................................................... 10

USB ................................................................................................................................................ 10

User ................................................................................................................................................ 10

Instrument Information ................................................................................................................... 11

LCD Display Touch Screen Calibration .......................................................................................... 11

Keypad ........................................................................................................................................... 11

Password Restrictions ..................................................................................... 13

Setup .................................................................................................................. 15

Product ............................................................................................................................ 15

Edit Existing Product ...................................................................................................................... 15

Edit Product .................................................................................................................................... 17

Create Product ............................................................................................................................... 18

Delete Product ............................................................................................................................... 19

Load New Product .......................................................................................................... 20

Administrative Settings ................................................................................................... 22

To Change a Known User Name/Password .................................................................................. 22

To Reset a User Name/Password .................................................................................................. 22

System Setup .................................................................................................................. 23

Printer Setup .................................................................................................................................. 23

OPERATOR’S MANUAL

GAC® 2500

11001-1505B-201011

II /

Setup continued ................................................................................................. 25

Printer/Scale Setup ......................................................................................................... 25

Printer Setup ................................................................................................................................... 25

Language Settings .......................................................................................................................... 27

Locale Setting ................................................................................................................................. 28

Time ................................................................................................................................................ 29

Result Settings ............................................................................................................................... 30

Export Data Format ........................................................................................................................ 31

Units ............................................................................................................................................... 32

Sample Setup ................................................................................................................................. 33

Owner Data .................................................................................................................................... 34

Service Data ................................................................................................................................... 35

LCD Display Touch Screen Calibration .......................................................................................... 36

Startup ............................................................................................................... 37

Power Down ................................................................................................................... 38

Analyzing Grain ................................................................................................ 39

User Login (Optional) ..................................................................................................... 39

User Login ...................................................................................................................................... 40

User Log Off ................................................................................................................................... 40

Selecting Product ........................................................................................................... 40

Results .............................................................................................................. 45

Refine Query Options ..................................................................................................... 46

Print Only Last Number of Records ................................................................................................ 46

All Products .................................................................................................................................... 46

Product Like .................................................................................................................................... 46

User Like ........................................................................................................................................ 47

Sample ID Like ............................................................................................................................... 47

Data Storage Capacity ................................................................................................... 48

Audit Trail ....................................................................................................................... 49

View Products ................................................................................................................. 51

Grain Calibrations ............................................................................................ 53

Maintenance ...................................................................................................... 55

External Cleaning ........................................................................................................... 55

Internal Cleaning ............................................................................................................ 55

LCD Display .................................................................................................................... 56

Troubleshooting ............................................................................................... 57

Error Messages .............................................................................................................. 58

Warranty.............................................................................................................. 61

OPERATOR’S MANUAL

GAC® 2500

11001-1505B-201011

SAFETY NOTICES / 1

SAFETY NOTICES

Safety notices are one of the primary ways to call attention to potential

hazards. An absence of specific alerts does not mean that there are no

safety risks involved.

This Safety Alert Symbol identifies important safety

messages in this manual. When you see this symbol,

carefully read the message that follows. Be alert to

the possibility of personal injury or death.

Use of the word WARNING indicates a potentially hazardous

situation which, if not avoided, could result in death or serious

injury.

Use of the word CAUTION with the Safety Alert Symbol indicates a

potentially hazardous situation which, if not avoided, may result in

minor or moderate injury.

Use of the word CAUTION without the safety alert symbol

indicates a potentially hazardous situation which, if not avoided,

may result in equipment damage.

OPERATOR’S MANUAL

GAC® 2500

11001-1505B-201011

2 / SAFETY NOTICES

OPERATOR’S MANUAL

GAC® 2500

11001-1505B-201011

INTRODUCTION / 3

INTRODUCTION

The DICKEY-john Grain Analysis Computer GAC®2500 quickly tests grain

and automatically calculates moisture content, temperature, and test weight

(density) of the sample. The unit prompts for sample loading, tests the

sample, and displays the results.

ACCESSORIES

The following list of components are included with the unit and can be

ordered as replacement parts:

• 110V power cord p/n 203150002

• 220V power cord p/n 203150005 (international optional/not currently

available)

• Operator’s manual p/n 11001-1505

• Cleaning brush p/n 206410003

• Grain drawer p/n 468071541

• Grain drawer bottomless (optional) p/n DRAWEROPGAC2500

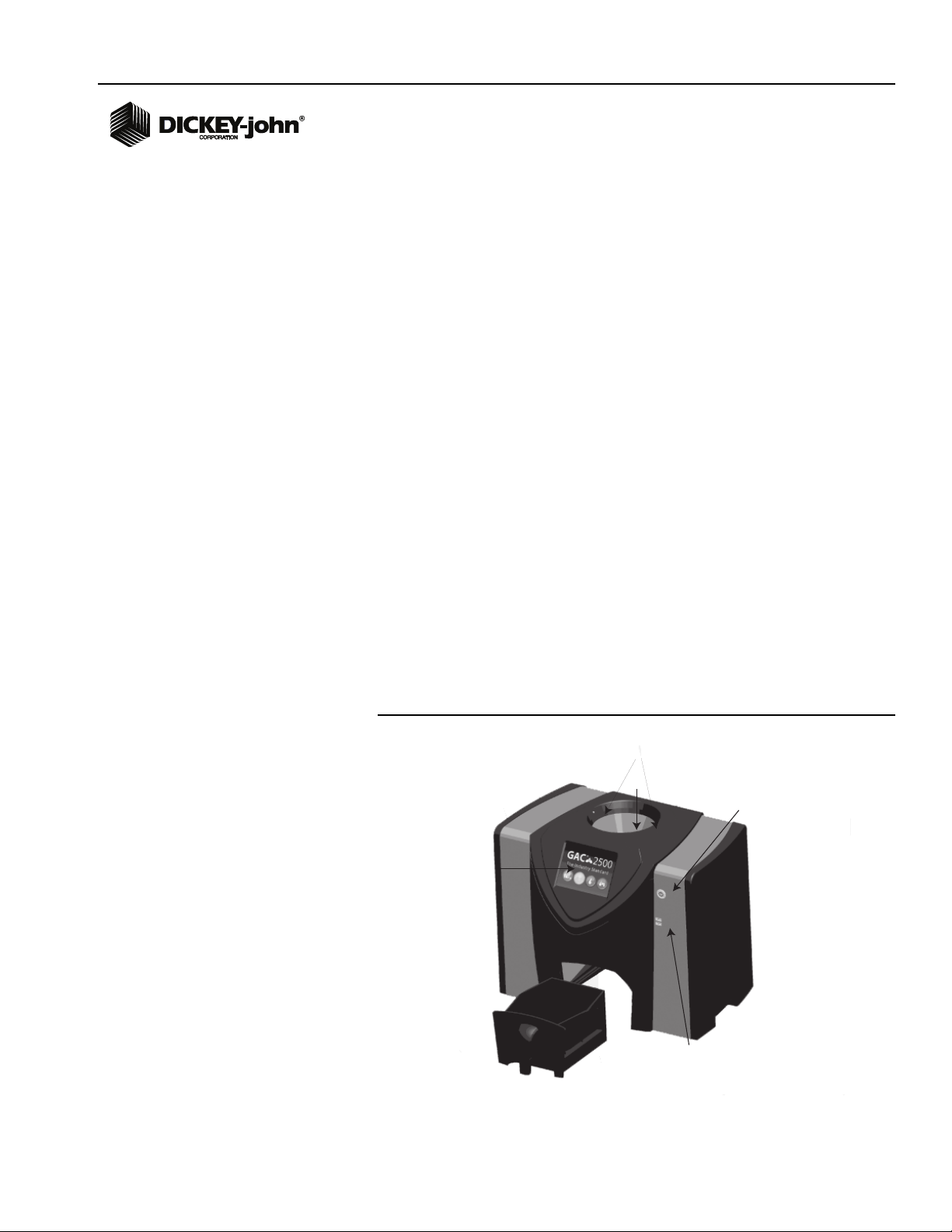

UNIT OVERVIEW

1. Power (on/off) button

2. Hopper

3. Hopper full sensors

4. Touch screen display

5. USB connections (2) front (2) back

6. Sample drawer

Figure 1

GAC2500 Overview (Front of Unit)

OPERATOR’S MANUAL

GAC® 2500

11001-1505B-201011

4 / INTRODUCTION

FEATURES

• Color touch screen display guides users through testing and setup

• Easy-to-use user interface

• Fast, accurate grain analysis

• One core calibration for all grains

• Alpha/numeric sample identification with the ability to add an optional

extended keyboard or bar code reader via USB

• Error messages display when out-of-limits moisture, grain weight, or

grain temperature occur

• Customizable work environment

• Optional password protection

• Storage of 30,000 grain tests

• Large storage to handle complete grain calibration library

• Internal memory capacity to handle future upgrades

• Printing capabilities

• A variety of external communication options

• English language capability (additional languages to be added)

SPECIFICATIONS

• Operating temperature: 36 to 113 degrees F (2 to 45 degrees C)

• Power: 110/220V, 50/60 Hz, 30/35 VA

• Humidity: 20 to 90% noncondensing

• Grain temperature: 32 to 113 degrees F (0 to 45 degrees C)

• Storage/transit temperature: -4 to +140 degrees F

(-20 to +60 degrees C)

• Moisture range: 5 to 45% (grain dependent)

• Approximate Weight: 25 lbs.

• Approximate dimensions: 17”H x 19”W x 14”D

DECLARATION OF CONFORMITY

The GAC®2500 is in conformity with the provisions of the following

directives and regulations:

• EN2006/95/EC Low Voltage Directive

• EN2004/108/EC EMC Directive

• EN61010-1 Safety requirements for electrical equipment for

measurement, control, and laboratory use operating at a maximum

altitude of 6562 feet (200 meters)

• CAN/CSA - C22.2 NO. 61010-1 and ISA - 82.02.01 (IEC 61010-1

MOD) and UL61010-1

• NTEP GRAIN ANALYZE (NCWM publication 14 and NIST Handbook

44)

OPERATOR’S MANUAL

GAC® 2500

11001-1505B-201011

INTRODUCTION / 5

EMC

EMC conformity to EN 61326-1:2006 (Electrical Equipment for

Measurement, Control, and Laboratory use) as follows:

Immunity

• Radiated RF field EN 61000-4-3 (2002)

• Conducted RF voltage EN 61000-4-6 (1996) + A1 (2001)

• Fast transient/burst EN 61000-4-4 (2004)

• Electrostatic discharge (ESD) EN 61000-4-2 (1995) + A1 (1998) + A2

(2001)

• Surge EN 61000-4-5 (1995) + A1 (2001)

• Voltage dips and interruptions EN 61000-4-11 (2004)

Emission

• Radiated emission CISPR II:2003 + A1: 2004

• Conducted emission CISPR II:2003 + A1: 2004

EXTERNAL COMMUNICATION CONNECTIONS

• 4 USB connections (2 in front, 2 in back) allow for a keyboard, mouse,

printer or flash drive to be connected.

• 1 USB connection to connect the GAC®2500 to a PC for downloading

of software to the device, installing calibrations, or remotely accessing

data from the instrument.

• 1 RS232 serial port printer connection

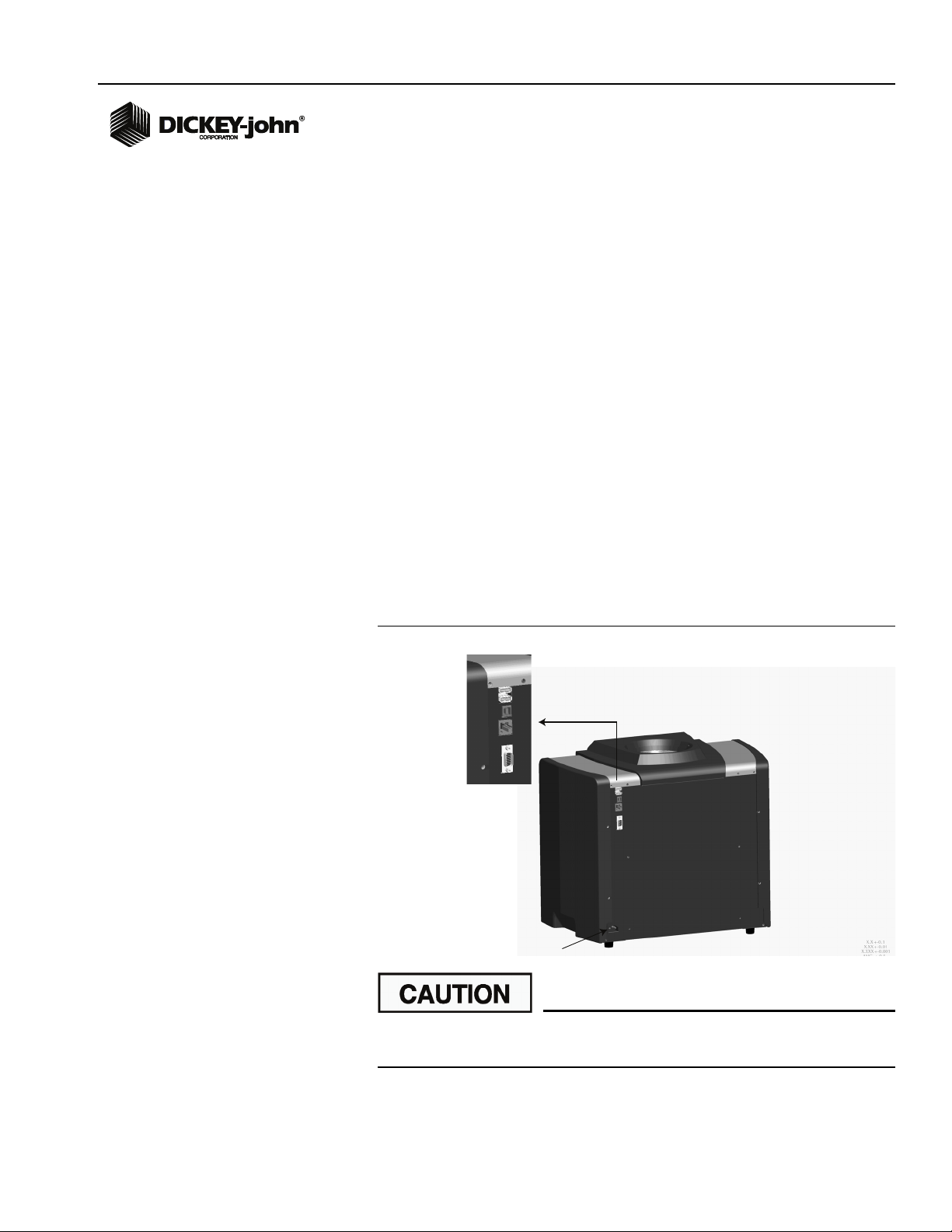

Figure 2

External Communication Connections (Back of Unit)

Appropriate space must be left around the input power connector

to allow easy disconnection at the unit.

Power Cord

Connection

(2) USB

(1) LAN

(1) RS232

Serial Port

Printer

Connection

(1) USB (B)

OPERATOR’S MANUAL

GAC® 2500

11001-1505B-201011

6 / INTRODUCTION

PRINTER

An optional printer that is RS232 compatible or a USB printer that supports

Printer Control Language (PCL) can connect to the GAC®2500 to print test

data results to a ticket. The ticket can be setup to include the facility name

and address, product, date and time, sample ID, customer ID, grain

calibration date, percent moisture, grain temperature, test weight, and

errors. The data can be automatically printed at the end of each

measurement cycle or manually initiated by pressing the Printer button.

Figure 3

Printer

OPERATOR’S MANUAL

GAC® 2500

11001-1505B-201011

INSTALLATION / 7

INSTALLATION

The GAC®2500 unit requires minimal setup. The unit is fully assembled

and ready for operation after attaching the AC power cord and inserting the

grain drawer.

NOTE: After unpacking, visually

inspect for damage occurring

during transit. Save all packing

materials until inspection is

complete. If damage is found,

file a claim with the carrier

immediately and notify your

DICKEY-john sales

representative.

Figure 4

Unit Dimensions

UNIT POSITIONING

Place the unit in a clean environment that is protected from rapid changes

in ambient temperature and vibration. Avoid a hazardous (classified)

location as defined in Article 500 of the NFPA Handbook of the National

Electrical Code.

CONNECTING AC POWER

1. Securely connect power cord into the AC plug connection (Figure 2)

located on the back of the unit.

2. Plug the male end into an appropriate 3-wire (grounded) outlet.

16.9”

18.6”

10.5”

16.2”

18.6” 13.9”

SIDE VIEW

FRONT VIEW

TOP VIEW

OPERATOR’S MANUAL

GAC® 2500

11001-1505B-201011

8 / INSTALLATION

The grounding pin on the line cord connects directly to the

GAC®2500 frame. When using an adapter ensure the

grounding wire is connected properly to a good earth ground

to prevent a shock hazard.

GRAIN DRAWER

The unit is equipped with a standard grain drawer with handle. An optional

bottomless grain drawer is available for purchase from DICKEY-john.

OPTIONAL BOTTOMLESS GRAIN DRAWER

Part Number: DRAWEROPGAC2500

A bottomless grain drawer is used with a flow-through work counter that

allows the tested grain samples to fall through to a larger container below.

The size of the hole must be at least equal to the drawer dimension and

located directly beneath the grain sample drawer.

NOTE: Contact DICKEY-john Technical

Support at 1-800-637-3302 for

additional information on grain

drawers.

Figure 5

Flow Through Work Counter

Bottomless

Grain Drawer

Other manuals for GAC 2500

Table of contents

Other Dickey-John Measuring Instrument manuals

Dickey-John

Dickey-John C-2000 User manual

Dickey-John

Dickey-John gac 2100 agri User manual

Dickey-John

Dickey-John GAC 2700-UGMA User manual

Dickey-John

Dickey-John INSTALAB 700 User manual

Dickey-John

Dickey-John Dj F-2000 User manual

Dickey-John

Dickey-John gac 2100 blue User manual

Dickey-John

Dickey-John GAC500XT User manual

Dickey-John

Dickey-John MINI GAC 2500 NBT User manual

Dickey-John

Dickey-John GAC500XT User manual

Dickey-John

Dickey-John Seed Manager SE User manual

Dickey-John

Dickey-John GAC 2500-AGRI User manual

Dickey-John

Dickey-John GAC 2500 User manual

Dickey-John

Dickey-John Instalab 700 NIR User manual

Dickey-John

Dickey-John mini GAC User manual

Dickey-John

Dickey-John GAC 2500 User manual

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Endress+Hauser

Endress+Hauser Deltabar FMD71 technical information

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Endress+Hauser

Endress+Hauser Proline Promag 50 Brief operating instructions

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual
