AEMC instruments FlexProbe 24-3001 User manual
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
1.4.1 Accessories and Replacement Parts............................2
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
Read the instruction manual completely and follow all the safety
information before attempting to use or service this instrument.
Wear protective clothing and gloves as required.
Use caution on any circuit: potentially high voltages and currents
may be present and may pose a shock hazard.
probe. Never exceed the maximum voltage ratings given.
Safety is the responsibility of the operator. The FlexProbe® must be
ALWAYS de-energize the circuit before wrapping the FlexProbe®
around bare conductors, bus bars, or near live parts. Do not wrap on
live conductors.
ALWAYS connect the electronic module to the display device before
wrapping the FlexProbe® around the sample being tested.
ALWAYS inspect the module, sensor, sensor cable, and output termi-
nals prior to use. Replace any defective parts immediately. Use only
factory parts.
NEVER use the FlexProbe® on electrical conductors rated above
1000V CAT III and 600V CAT IV.
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
CAT II: For measurements performed on circuits directly connected to
the electrical distribution system. Examples are measurements
on household appliances or portable tools.
CAT III: For measurements performed in the building installation at
installation and circuit breakers.
CAT IV: For measurements performed at the primary electrical supply
(<1000V) such as on primary overcurrent protection devices,
ripple control units, or meters.
Upon receiving your shipment, make sure that the contents are consistent
with the packing list. Notify your distributor of any missing items. If the
carrier and notify your distributor at once, giving a detailed description of
any damage. Save the damaged packing container to substantiate your
claim.
FlexProbe
®
24-3001
(300/3000A
AC
, 24", 10mV/A/1mV/A, with lead)
.... Cat. #2120.81
Banana (Female) / BNC (Male) Adapter............................. Cat. # 2118.46
For connection of FlexProbe® to BNC terminals on scopes and other
displaying instruments.
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

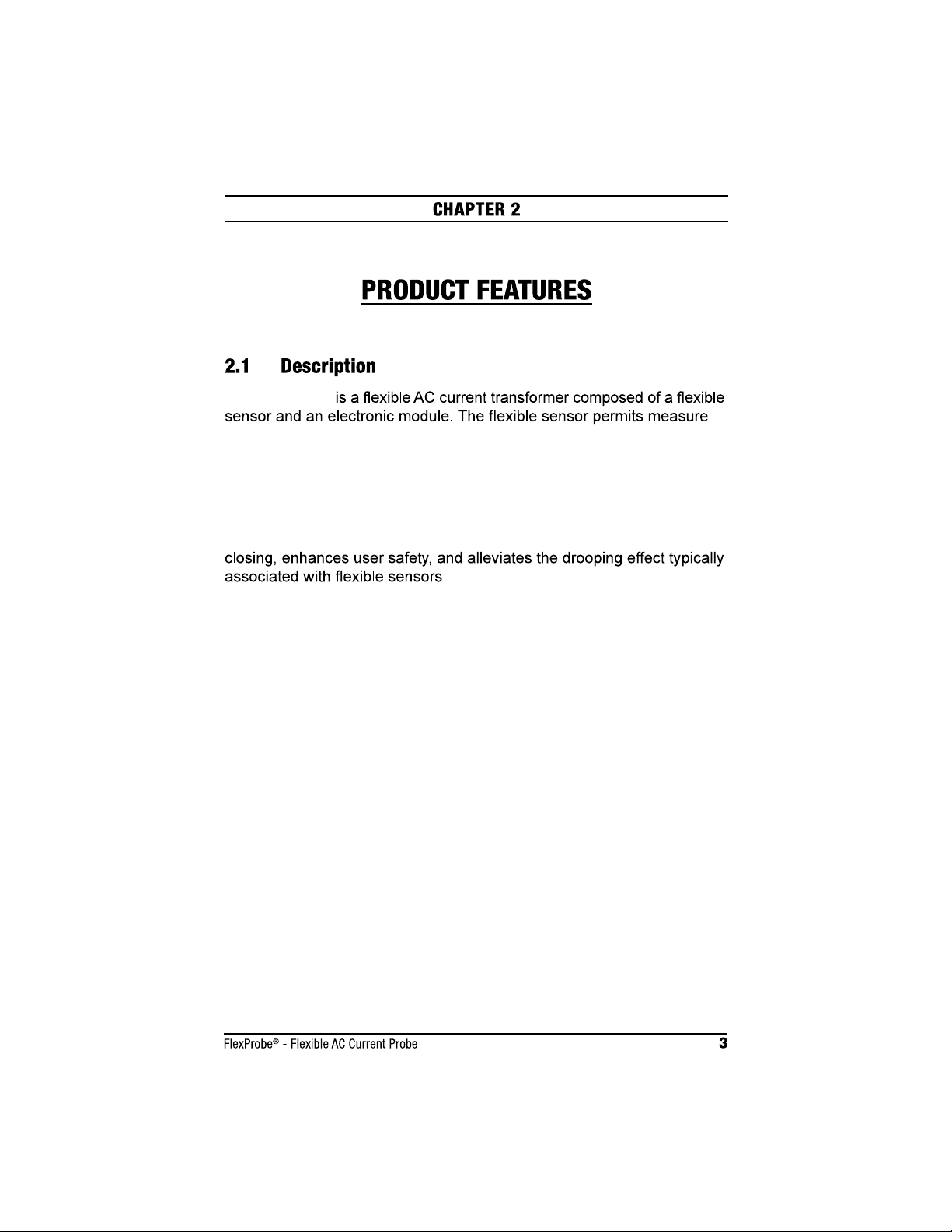

The FlexProbe
®
-
ments on conductors where standard clamp-on probes could not be
used. In particular, it can be installed in tight spaces, around breaker
panels, around cable bundles, around wide or large bus bars, or even
wrapped around irregular shapes.
The Shape Memory feature enables the user to “pre-shape” the sensor
before inserting it between or around conductors. This feature facilitates
The FlexProbe
®
is lightweight. It does not use magnetic cores like standard
transformers. The transformation principle is based on an air core. It
presents virtually no load to the system under test, has a low phase shift
and excellent frequency response, and cannot be damaged by overloads.
The sensor assembly is waterproof and insulated for 1000V CAT III;
600V CAT IV. The FlexProbe® meets EN 61010-1 and is CE marked.
The FlexProbe® has a mV output proportional to the current measured
for direct readings on DMMs, data loggers, oscilloscopes, and power or
harmonic meters. TRMS measurements are taken when connected to a
TRMS meter. The FlexProbe
®
is insensitive to DC currents and only the AC
component of the measured signal is measured. The sensor length is 24".
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
Models to measure from 0.5 to 3000Arms
Accuracy 1% of Reading ± 500mA
TRMS measurements when connected to a TRMS instrument
No core saturation or damage if overloaded
Overrange LED for measurement circuitry
EN 61010; 1000V CAT III; 600V CAT IV
Waterproof sensor
9V battery for typical 150 hour continuous operations
Shape Memory™ for custom pre-shaping of sensor before use
(no drooping)
High frequency response
Low phase shift for power measurements
Insensitive to DC, measures only AC component on DC + AC
signals
Excellent linearity
Lightweight
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
1. Flexible sensor (Ø 0.5", 12.5mm)
2. Range selection switch
3. Power ON indicator (Green LED)
4. Overload indicator (Red LED)
5. Electronic module
6. Double insulated 14" (36cm) lead with 4mm safety banana plugs
7. FlexProbe® connector/latch
8. Sensor lead
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
Current Range: 300/3000AAC
Output Signal: mV output (4000mV peak max)
Three position slide switch: 10mV/A 5A to 300Arms
1mV/A 50A to 3000Arms
ON/OFF
AC Current Accuracy (after calibration and for one year):
1% of Reading ± 500mA
Crest Factor: 4.5
Phase Shift: < 0.7° at 50 or 60Hz
Frequency Range: 40 to 5kHz
Residual Noise When I Measured = 0: 200mArms
Working Voltage: 1000Vrms CAT III; 600V CAT IV
Common Mode Voltage: 600Vrms max
Add 1% to the reference accuracy between 40
and 2000Hz, and up to 5% at 5kHz
<2%
<4%
Power Source: 9V alkaline (NEDA 1604A, IEC 6LR61)
Battery Life: 150 hours typical (continuous use)
300 hours with Lithium battery
Low Battery:
Overload Indication:
Red LED indicates input greater than selected range
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
Operating Temperature Range: 14° to 131°F (-10° to +55°C)
Storage Temperature Range: -40° to 158°F (-40° to +70°C)
Sensor: -14° to 212°F (-10° to 100°C); <0.5% per 10°C
Module: -14° to 131°F (-10° to 55°C); <0.5% per 10°C
Operating Relative Humidity:
50° to 86°F (10° to 30°C); 85 ± 5% RH (without condensation)
104° to 122°F (40° to 50°C); 45 ± 5% RH (without condensation)
Altitude: Operating: 0 to 2000m
Non-operating: 0 to 12000m
Dimensions (Sensor): 24" ± 1" (610 x 25mm)
Color (Sensor): Red with black connector
Dimensions (Electronic Module): 4.9 x 2.5 x 1.1" (124 x 64 x 28mm)
Color (Electronic Module): Dark gray
Weight: 1.1 lb (0.5kg)
Output:
Double insulated 14" (355Mm) lead with 4mm safety banana plugs
Maximum Cable Diameter: 7.6" (193mm)
Cable Length from Sensor to Module: 6.5 ft (2m)
Drop Test:
1.0m on 38mm of Oak on concrete. Test according to EN 61010.
Case Protection: Sensor: IP65 Electronic Module: IP40
Vibration: Test Per IEC 68-2-6
Frequency Range: 10 to 55Hz
Amplitude: 0.15mm
Mechanical Shock: 100G, Test Per IEC 68-2-32
Material: Module: Polycarbonate UL 94V1
Cable Assembly: Polyurethane UL94V0
