SIM-CB6 User Manual
Version 3 May 3rd 2010

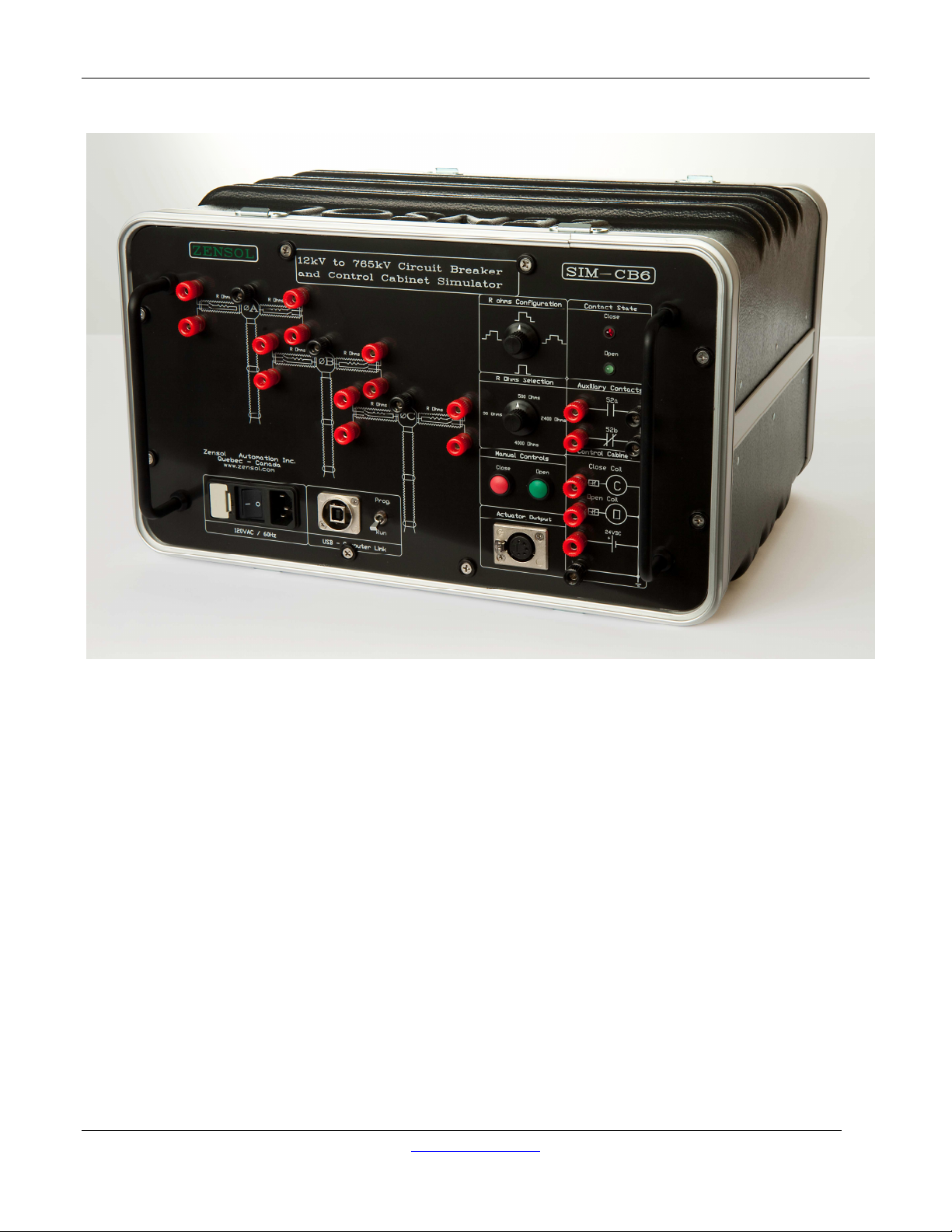

SIM-CB6 User Manual
Tél : +1 (514) 333-3488 www.zensol.com
2
SIM-CB6 User Manual
Tél : +1 (514) 333-3488 www.zensol.com
3
1. Power the simulator with 120V AC 60 Hz.
2. Connect the actuator extension cable between the three pin connector in the center of the front
panel (fig 1) and the connector at the end of the actuator.
1
Fig. 1 Fig. 1a
Actuator connector.
SIM-CB6 User Manual
Tél : +1 (514) 333-3488 www.zensol.com
4
3. Connect the simulated breaker contacts to the timing device.
For simulated SF6 or air blast breakers, use terminals A1, A2, B1, B2, C1, C2 as shown in fig. 2.
Figure 2
SIM-CB6 User Manual
Tél : +1 (514) 333-3488 www.zensol.com
5
4. Contact type selection and insertion resistor value.
The rotary switch allows the activation or deactivation of contact resistance.
The resistive states of the closing and opening contacts are independent, which makes for great
flexibility in configuring tests.
Fig. 4 – Insertion resistor switch.
fig 4 – a : Insertion resistor
Fig 4 – b : Insertion resistor value selection
SIM-CB6 User Manual
Tél : +1 (514) 333-3488 www.zensol.com
6
Configuration example using
closing and opening resistors
(fig. 5 and 6).
Fig. 5
Fig. 6
Configuration example without closing resistors (fig. 7 and 8).
Fig. 7
Fig. 8
SIM-CB6 User Manual
Tél : +1 (514) 333-3488 www.zensol.com
7
5. Connect the close and open coils as well as the 24 VDC power supply (actually around 28 VDC) to
the timing device.
Fig. 9 – Command cable connections on the simulator.
SIM-CB6 User Manual
Tél : +1 (514) 333-3488 www.zensol.com
8
Pin 2
Signal
Pin 1
+10 V
Pin 3
Ground
6. Connect the output of the TLH-225 transducer to the displacement input of the timing device. The
three wires function exactly like a three-terminal potentiometer.
Fig. 10 Fig. 11
Fig. 12
Pin 1
10 V
Pin 3
Pin 2
GND
Pin 3
Ground
Pin 1
+10 V
Pin 4
Pin 2
Signal
SIM-CB6 User Manual
Tél : +1 (514) 333-3488 www.zensol.com
9
7. Manual close and open tests.
-To close, press the Close button (fig. 13). The actuator produces a physical displacement, and
the contact state indicator becomes red (fig. 14).
Fig. 13 Fig. 14
SIM-CB6 User Manual
Tél : +1 (514) 333-3488 www.zensol.com
10
-To open, press the Open button (fig. 15 The actuator produces a physical displacement, and the
contact state indicator becomes green.
Fig. 15.
