DRYER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately_

follow instructions.

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

WARNING -"Risk of Fire"

- Clothes dryer installation must be performed by aqualified installer,

-install the clothes dryer according to the manufacturer's instructions and local codes.

-Do not install aclothes dryer with flexible plastic venting materials, if flexible metal

(foil type) duct is installed, it must be of aspecific type identified by the appliance

manufacturer as suitable for use with clothes dryers. Flexible venting materials are

known to collapse, be easily crushed, and trap lint, These conditions will obstruct

clothes dryer airflow and increase the risk of fire.

-To reduce the risk of severe injury or death, follow all installation instructions.

-Save these instructions.

WARNING: For your safety, the information in this manual must be followed to minimize

the risk of fire or explosion, or to prevent property damage, personal injury, or death.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance.

- WHAT TO DO iF YOU SMELL GAS:

=Do not try to light any appliance.

=Do not touch any electrical switch; do not use any phone in your building.

=Clear the room, building, or area of all occupants.

=Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

•if you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency, or

the gas supplier.

WARNING: Gas leaks cannot always be detected by smell.

Gas suppliers recommend that you use a gas detector approved by UL or CSA.

For more information, contact your gas supplier.

If a gas leak is detected, follow the "What to do if you smell gas" instructions.

iMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas

Code, ANSi Z223.1/NFPA 54 or the Canadian Natural Gas and Propane installation Code, CSA B149.1.

The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National

Electrical Code, ANSI/NFPA 70 or Canadian Electrical Code, CSA C22.1.

in the State of Massachusetts, the following installation instructions apply:

m installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by

the State of Massachusetts.

m if using a ball valve, it shall be a T-handle type.

m A flexible gas connector, when used, must not exceed 3 feet.

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read

and follow the instructions provided with any tools listed here.

For All Installations:

• Flat-blade screwdriver • Caulking gun and compound

(for installing new exhaust

• #2 Phillips screwdriver vent)

• Adjustable wrench that

opens to 1" (25 mm) or • Tin snips (new vent

hex-head socket wrench installations)

(for adjusting dryer feet) • 1¼,nut driver

• Level (recommended)

• Vent clamps • Tape measure

• Pliers

Gas Installations:

• 8" or 10" pipewrench • Pipe-joint compound

resistant to LP gas

• 8" or 10" adjustable wrench

(for gas connections)

Parts supplied

Non-SteamModels

4 Leveling legs

Steam Models

A B EC D

A. Leveling legs (4)

B. "Y" connector

C. Short inlet hose

D. Inlet hose with right-angle

connector

E.Rubber washer

Remove parts package from dryer drum. Check that all parts

are included.

NOTE: Do not use leveling legs supplied with dryer if installing

on a pedestal.

Parts needed

Check local codes. Check existing electrical supply and venting.

See "Electrical Requirements" and "Venting Requirements" before

purchasing parts.

Mobile home installations require metal exhaust system hardware

available for purchase from the dealer from whom you purchased

your dryer. For further information, please refer to the "Assistance

or Service" section in your Use and Care Guide.

Optional Equipment

Refer to your Use and Care guide for information about the

accessories available for your dryer.

Location Requirements

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from dryer,

Place dryer at least 18 inches (460 ram) above the floor

for a garage installation,

Failure to do so can result in death, explosion, or fire,

You will need

• A location that allows for proper exhaust installation.

See "Venting Requirements."

• Aseparate 30-amp circuit.

• If you are using a power supply cord, a grounded electrical

outlet located within 2 ft (610 mm) of either side of the dryer.

See "Electrical Requirements."

• A sturdy floor to support the total dryer weight of 200 Ibs

(90.7 kg). The combined weight of a companion appliance

should also be considered.

A level floor with a maximum slope of 1" (25 mm) under entire

dryer. Ifslope is greater than 1" (25 mm), install Extended Dryer

Feet Kit, Part Number 279810. Clothes may not tumble properly

and automatic sensor cycles may not operate correctly if dryer is

not level.

• For a garage installation,you will need to place the dryer at least

18" (460 mm) above the floor. If using a pedestal, you will need

18" (460 mm) to the bottom of the dryer.

• Steam models only: Cold water faucets located within

4 ft (1.2 m) of the dryer, and water pressure of 20-100 psi

(137.9-689.6 kPa). You may use the cold water supply from

your washer using the "Y" connector provided.

Do not operate your dryer at temperatures below 45°F (7°C). At

lower temperatures, the dryer might not shut off at the end of an

automatic sensor cycle. This can result in longer drying times.

The dryer must not be installed or stored in an area where it will be

exposed to water and/or weather.

Check code requirements. Some codes limit, or do not permit,

installation of the dryer in garages, closets, mobile homes, or

sleeping quarters. Contact your local building inspector.

Installation clearances

The location must be large enough to allow the dryer door to

open fully.

DryerDimensions Custom undercounter installation -Dryer only

B\ C

Steam Non-Steam

(Electric or Gas) (Electric or Gas)

A38" (9652 mm) 38" (9652 mm)

B32 9/16"(686 mm) 31 1/2"(800 mm)

C27" (686 mm) 27" (686 mm)

D52 9/16"(1335 mm) 51 1/2"(1308 mm)

NOTE: Most installations require a minimum 5" (127 mm)

clearance behind the dryer for the exhaust vent with elbow.

See "Venting Requirements."

Installation spacing for recessed area or closet installation

The following spacing dimensions are recommended for this dryer.

This dryer has been tested for spacing of 0" (0 mm) clearance on the

sides and rear.Recommended spacing should be considered for the

following reasons:

• Additional spacing should be considered for ease of installation

and servicing.

• Additional clearances might be required for wall, door, and floor

moldings.

• Additional spacing should be considered on all sides of the dryer

to reduce noise transfer.

For closet installation, with a door, minimum ventilation openings

in the top and bottom of the door are required. Louvered doors

with equivalent ventilation openings are acceptable.

Companion appliance spacing should also be considered.

D- ll ÷ E*

Steam Non-Steam

(Electric or Gas) (Electric or Gas)

A0" (0 mm) 0" (0 mm)

B 38" (9652 mm) 38" (9652 mm)

C* 1" (25 mm) 1" (25 mm)

D27" (686 mm) 27" (686 mm)

E* 1" (25 mm) 1" (25 mm)

*Required spacing

NOTE: Some models are not recommended for undercounter

installation.

Closet installation -Dryer only

Itl . ,

T-_, 14 max.

I 18"min.*

-_qA*_-

48"2*

(310crn2)"--_

B _c**_ (76 ram)

-f

Side view Closet door with vents

Steam Non-Steam

(Electric or Gas) (Electric or Gas)

A* 1" (25 mm) 1" (25 mm)

B 32 9/16"(686 mm) 31 lh" (800 mm)

C** 5" (127 mm) 5" (127 mm)

*Required spacing

**For side or bottom venting, 0" (0 mm) spacing is allowed.

Recessed or closet installation -Dryer on pedestal

I-.,--B--q c D4 IF**

Steam Non-Steam

(Electric or Gas) (Electric or Gas)

A1" (25 mm) 1" (25 mm)

B 27" (686 mm) 27" (686 mm)

C 1" (25 mm) 1" (25 mm)

D* 1" (25 mm) 1" (25 mm)

E 32 9/16"(686 mm) 31 1/2"(800 mm)

F** 5" (127 mm) 5" (127 mm)

*Required spacing

**For side or bottom venting, 0" (0 mm) spacing is allowed

NOTE: Some models are not recommended for recessed or closet

installation.

Recommended installation spacing for cabinet

installation

NOTE: Some models are not recommended for cabinet installation.

For cabinet installation, with a door, minimum ventilation

openings in the top of the cabinet are required.

F* GHI

Steam Non-Steam

(Electric or Gas) (Electric or Gas)

A* 7" (178 mm) 7" (178 mm)

B* 7" (178 mm) 7" (178 mm)

C* 9" (229 mm) 9" (229 mm)

D** 5" (127 mm) 5" (127 mm)

E32 9/16"(686 mm) 31 1/2"(800 mm)

F* 1" (25 mm) 1" (25 mm)

G 1" (25 mm) 1" (25 mm)

H 27" (686 mm) 27" (686 mm)

I 1" (25 mm) 1" (25 mm)

*Required spacing

**For side or bottom venting, 0" (0 mm) spacing is allowed.

Recommended installation spacing for recessed or

closet installation, with stacked washer and dryer

Thedimensionsshown arefor therecommendedspacing.

48 in.2 *

(310cm2)

3"* (76 ram)

24 in? *

(155cm2)

¸¸¸!¸_ !:

1"* (25 ram)

Mobile home -Additional installation requirements

This dryer is suitable for mobile home installations.The installation

must conform to the Manufactured Home Construction and Safety

Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for

Mobile Home Construction and Safety, Title 24, HUD Part 280) or

Standard CAN/CSA-Z240 MH.

Mobile home installations require:

All Dryers

•Metal exhaust system hardware, which is available for purchase

from your dealer.

• Special provisions must be made in mobile homes to introduce

outside air into the dryer. The opening (such as a nearby

window) should be at least twice as large as the dryer exhaust

opening.

For gas dryers

• Mobile Home Installation Kit Part Number 346764. See "Tools

and Parts" section for information on ordering.

6"* (;52 mm)

! \__J/

I \% ......................J::

._- 1" _ _- 27"-_

{25mm) (686mm) (25 ram)

Steam Non-Steam

(Electric or Gas) (Electric or Gas)

A* 5 1/2"(140 mm) 5" (127 mm)

*Required spacing

NOTE: Some models arenot recommended for stacked recessed or

closet installation.

ELECTRIC DRYER POWER HOOKUP- CANADA ONLY

Electrical Requirements

Electrical Shock Hazard

Plug into agrounded 4 prong outlet.

Failure to do so can result in death or electrical shock.

It is your responsibility

• To contact a qualified electrical installer.

• To be sure that the electrical connection is adequate and in

conformance with the Canadian Electrical Code, C22.1-1atest

edition and all local codes. A copy of the above codes standard

may be obtained from: Canadian Standards Association, 178

Rexdale Blvd., Toronto, ON M9W 1R3 CANADA.

• To supply the required 4 wire, single phase, 120/240 volt,

60 Hz., AC only electrical supply on aseparate 30-amp circuit,

fused on both sides of the line. A time-delay fuse or circuit

breaker is recommended. Connect to an individual branch

circuit.

This dryer is equipped with a CSA International Certified Power

Cord intended to be plugged into a standard 14-30R wall

receptacle. The cord is 5 ft (1.52 m) in length. Be sure wall

receptacle is within reach of dryer's final location.

For further information, please reference the service numbers

located in the "Assistance or Service" section.

GROUNDING iNSTRUCTiONS

[] For a grounded, cord-connected dryer:

This dryer must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock

by providing a path of least resistance for electric current.

This dryer is equipped with a cord having an

equipment-grounding conductor and a grounding plug. The

plug must be plugged into an appropriate outlet that is

properly installed and grounded in accordance with all local

codes and ordinances.

WARNING: Improper connection of the

equipment-grounding conductor can result in a risk of

electric shock. Check with a qualified electrician or service

representative or personnel if you are in doubt as to

whether the dryer is properly grounded. Do not modify the

plug provided with the dryer: if it will not fit the outlet, have

a proper outlet installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

4-wire receptacle 14-30R

If using a replacement power supply cord, it is recommended that

you use Power Supply Cord Replacement Part Number 9831317.

GAS DRYER POWER HOOKUP

Gas Supply Requirements

Explosion Hazard

Use anew CSA International approved gas supply line.

Install ashut=off valve,

Securely tighten all gas connections.

If connected to LP, have aqualified person make sure

gas pressure does not exceed 13" (330 ram) water

column.

Examples of aqualified person include:

licensed heating personnel,

authorized gas company personnel, and

authorized service personnel.

Failure to do so can result in death, explosion, or fire.

Gas Type

Natural gas:

This dryer is equipped for use with Natural gas. It is design-certified

by CSA International for LP (propane or butane) gases with

appropriate conversion.

• Your dryer must have the correct burner for the type of gas in

your home. Burner information is located on the rating plate in

the door well of your dryer. If this information does not agree

with the type of gas available, contact your dealer or call the

phone numbers referenced in the "Assistance or Service"

section.

LP gas conversion:

Conversion must be made by a qualified technician.

No attempt shall be made to convert the appliance from the gas

specified on the model/serial rating plate for use with a different gas

without consulting your gas company.

Gas supply line

• Lengths over 20 ft (6.1 m) should use larger tubing and a

different size adapter fitting.

• If your dryer has been converted to use LP gas, 3/8"LP

compatible copper tubing can be used. If the total length of the

supply line is more than 20 ff (6.1 m), use larger pipe.

NOTE: Pipe-joint compounds that resist the action of LP gas

must be used. Do not use TEFLON_1 tape.

• Must include a shutoff valve:

In the U.S.A.:

An individual manual shutoff valve must be installed within six (6)

feet (1.8 m) of the dryer in accordance with the National Fuel

Gas Code, ANSI Z223.1. The location should be easy to reach

for opening and closing.

The location should be easy to reach for opening and closing.

A C E

B D

A. 3/8" flexible gas connector C. 1/8"NPT minimum plugged

B. 3/8"pipe to flare adapter tapping

fitting D. 1/2"NPTgas supply line

E. Gas shutoff valve

Gas supply connection requirements

Use an elbow and a 3/8"flare x 3/8"NPT adapter fitting between

the flexible gas connector and the dryer gas pipe, as needed to

avoid kinking.

Use only pipe-joint compound. Do not use TEFLON <eltape.

This dryer must be connected to the gas supply line with a

listed flexible gas connector that complies with the standard

for connectors for gas appliances, ANSI Z21.24 or CSA 6.10.

Burner input requirements

Elevations above 10,000 ft (3,048 m):

• When installed above 10,000 ff (3,048 m) a 4% reduction of the

burner Btu rating shown on the model/serial number plate is

required for each 1,000 ft (305 m) increase in elevation.

Gas supply pressure testing

• The dryer must be disconnected from the gas supply piping

system during pressure testing at pressures greater than 1/2psi.

• Must include 1/8"NPT minimum plugged tapping accessible

for test gauge connection, immediately upstream of the gas

connection to the dryer. See illustration.

• 1/2"IPS pipe is recommended.

• 3/8"approved aluminum or copper tubing is acceptable for

lengths under 20 ft (6.1 m) if local codes and gas supplier

permit.

• If you are using Natural gas, do not use copper tubing.

1®TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.

Dryer gas pipe

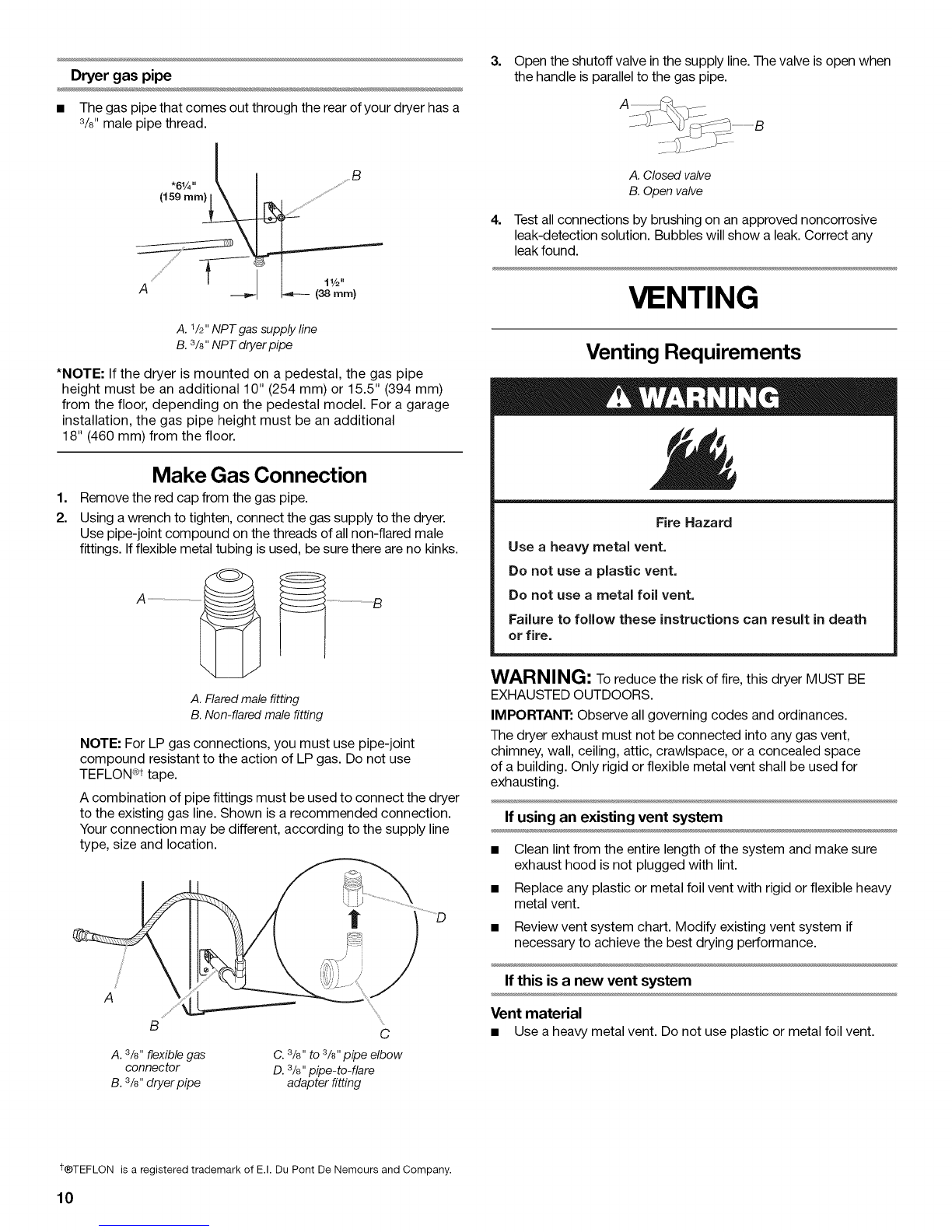

• The gas pipe that comes out through the rear of your dryer has a

3/8"male pipe thread.

3. Open the shutoff valve in the supply line. The valve is open when

the handle is parallel to the gas pipe.

........ _ 1½"

A(38 ram)

A. 1/2" NPT gas supply line

B. 3/8" NPT dryer pipe

*NOTE: If the dryer is mounted on a pedestal, the gas pipe

height must be an additional 10" (254 mm) or 15.5" (394 mm)

from the floor, depending on the pedestal model. For a garage

installation, the gas pipe height must be an additional

18" (460 mm) from the floor.

Make Gas Connection

Remove the red cap from the gas pipe.

Using a wrench to tighten, connect the gas supply to the dryer.

Use pipe-joint compound on the threads of all non-flared male

fittings. If flexible metal tubing is used, be sure there are no kinks.

................... g

A. Flared male fitting

B. Non-flared male fitting

NOTE: For LP gas connections, you must use pipe-joint

compound resistant to the action of LP gas. Do not use

TEFLON°t tape.

A combination of pipe fittings must be used to connect the dryer

to the existing gas line. Shown is a recommended connection.

Your connection may be different, according to the supply line

type, size and location.

B\C

A.3/8"flexiblegas C.3/8"to 3/8"pipe elbow

connector D.3/8"pipe-to-flare

B.3/8"dryerpipe adapter fitting

A. Closed valve

B. Open valve

Test all connections by brushing on an approved noncorrosive

leak-detection solution. Bubbles will show a leak. Correct any

leak found.

VENTING

Venting Requirements

Fire Hazard

Use a heavy metal vent.

Do not use aplastic vent.

Do not use ametal foil vent.

Failure to follow these instructions can result in death

or fire.

WARNING: Toreduce the risk of fire, this dryer MUST BE

EXHAUSTED OUTDOORS.

IMPORTANT: Observe all governing codes and ordinances.

The dryer exhaust must not be connected into any gas vent,

chimney, wall, ceiling, attic, crawlspace, or a concealed space

of a building. Only rigid or flexible metal vent shall be used for

exhausting.

If using an existing vent system

• Clean lint from the entire length of the system and make sure

exhaust hood is not plugged with lint.

• Replace any plastic or metal foil vent with rigid or flexible heavy

metal vent.

Review vent system chart. Modify existing vent system if

necessary to achieve the best drying performance.

If this is a new vent system

Vent material

• Use a heaw metal vent. Do not use plastic or metal foil vent.

t®TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.

Table of contents

Languages:

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool YLER5636PQ1 User manual

Whirlpool

Whirlpool LER3422AW0 User manual

Whirlpool

Whirlpool WGD6400SW0 User manual

Whirlpool

Whirlpool WED5100HW1 Operation manual

Whirlpool

Whirlpool Duet Sport W10151581A User manual

Whirlpool

Whirlpool CEM2940TQ User manual

Whirlpool

Whirlpool WED6600VU - 29-in Electric Dryer User manual

Whirlpool

Whirlpool Duet WGD9300VU User manual

Whirlpool

Whirlpool LE8600XW User manual

Whirlpool

Whirlpool Duet Steam User manual

Whirlpool

Whirlpool LGC6848AQ2 User manual

Whirlpool

Whirlpool Cabrio W10164159A User manual

Whirlpool

Whirlpool AWZ8377 User manual

Whirlpool

Whirlpool WGD4985EW User manual

Whirlpool

Whirlpool WED5900SB User manual

Whirlpool

Whirlpool W10224610A User manual

Whirlpool

Whirlpool W10678945D User manual

Whirlpool

Whirlpool 8578902A User manual

Whirlpool

Whirlpool AWZ 8812 User manual

Whirlpool

Whirlpool LER3622PQ1 User manual

Whirlpool

Whirlpool 3RLER5437 User manual

Whirlpool

Whirlpool MGDC465HW User manual

Whirlpool

Whirlpool GLE5700XS User manual

Whirlpool

Whirlpool LGR7620LQ0 User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
