Cycle control knob

Temperature selector

Start button

Lint screen

LARGECAPACITY

AUTOMATICDRYERS

LE8600xw LG86owv

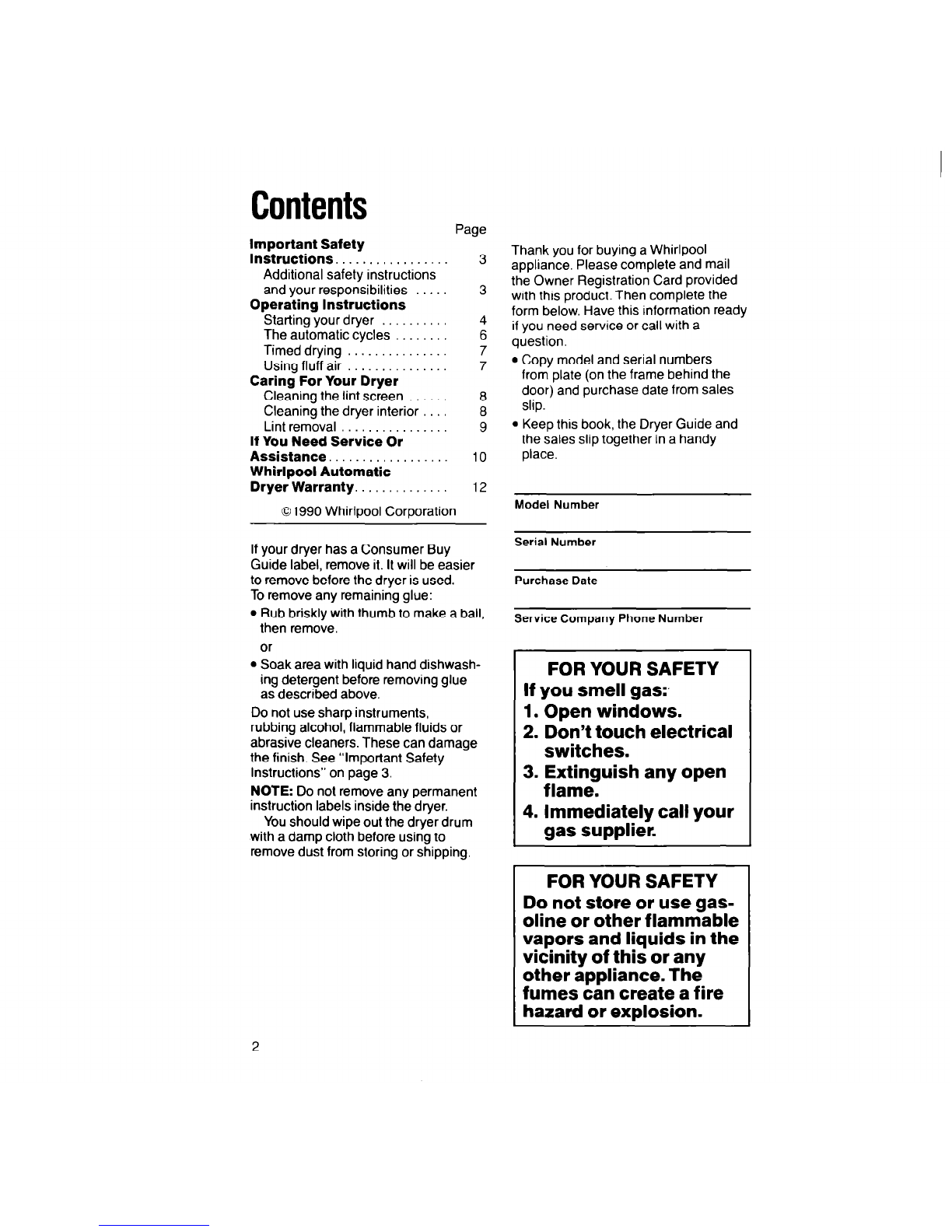

Contents

Page

Important Safety

Instructions. . . . .

Additional safety instructions

and your responsibilities

Operating Instructions

Starting your dryer

The automatic cycles

Timed drying

Using fluff air . .

Caring For Your Dryer

Cleaning the lint screen . .

Cleaning the dryer interior

Lint removal

If You Need Service Or

Assistance. .

Whirlpool Automatic

Dryer Warranty.

01990 Whirlpool Corporation

If your dryer has a Consumer Buy

Guide label, remove it. It will be easier

to remove before the dryer is used.

To remove any remaining glue:

Rub briskly with thumb to make a ball,

then remove.

Soak area with liquid hand dishwash-

ing detergent before removing glue

as described above.

Do not use sharp instruments,

rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage

the finish. See “Important Safety

Instructions” on page 3.

NOTE: Do not remove any permanent

instruction labels inside the dryer.

You should wipe out the dryer drum

with a damp cloth before using to

remove dust from storing or shipping.

Thank you for buying a Whirlpool

appliance. Please complete and mail

the Owner Registration Card provided

with this product. Then complete the

form below. Have this information ready

if you need service or call with a

question.

Copy model and serial numbers

from plate (on the frame behind the

door) and purchase date from sales

slip.

Keep this book, the Dryer Guide and

the sales slip together in a handy

place.

Model Number

Serial Number

Purchase Date

Service Company Phone Number

FOR YOUR SAFETY

If you smell gas:’

1. Open windows.

2. Don’t touch electrical

switches.

3. kFeguish any open

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and liquids in the

vicinity of this or any

other appliance. The

fumes can create a fire

hazard or explosion.

ImportantSafetyInstructions

To reduce the risk of fire, electrical shock, or

injury to persons when using your dryer, follow

basic precautions, including the following:

Read all instructions before

using the dryer.

You are responsible for mak-

ing sure that your dryer is in-

. NEVER dry items cleaned, stalled, repaired and has parts

washed, soaked in or spotted with replaced by a qualified person.

wax, paint, gasoline or flammable

fluids in the dryer. The fumes can

Use only fabric softeners specifi-

create a FIRE HAZARD or cally labeled as not being harmful

EXPLOSION. ALWAYS hand to the dryer.

launder and air dry fabrics contain- . FIRE HAZARD and DAMAGE to

ing these materials. materials can result from:

NEVER allow children to operate, -drying rubber, rubber-like and

play with or crawl inside the dryer. heat sensitive materials with heat.

Close supervision of children is -allowing lint build-up inside the

necessary when the dryer is used dryer or exhaust system. Clean-

near children. ing should be done periodically

DO NOT reach into a dryer if the by a qualified person.

drum is moving.

Clean lint screen before or after

each load.

When discarding an old dryer,

ALWAYS remove the door to

DO NOT let dust, lint, paper, rags,

prevent accidental entrapment. chemicals, etc. pile up around or

DO NOT install or store dryer under the dryer.

where it will be exposed to the

Dryer must be electrically

weather. grounded. See the Installation

Instructions.

DO NOT tamper with the controls.

- SAVE THESE INSTRUCTIONS -

Additionalsafetyinstructionsandyourresponsibilities

NEVER operate the dryer if: - is properly installed and leveled

- it is not working right (i.e. noisy, too hot). on a floor that can support the

- it is damaged. weight in a well ventilated room.’

-parts are missing (i.e. door latch). - is located in an area where the

-all panels are not in place. temperature is above 45°F (7.2%).

-the lint screen is loose, damaged - is connected to the proper outlet

or missing. and electrical supply.*

ALWAYS shut off the gas valve - is properly connected to fuel and

before leaving on vacation if you have exhaust systems.’

a qas dryer. -is not installed against drapes or

ALWAYS unplug the power supply

cord or turn off electrical power before

attempting to service the dryer. Shut

off GAS VALVE if you have a gas dryer.

You are responsible for making

sure that your dryer:

-is properly maintained.

curtains.’

- is used only for jobs normally

expected of home clothes dryers.

- is not used by anyone unable to

operate it properly.

*See the Installation Instructions for

complete information.

OperatingInstructions

Startingyourdryer

Be sure to refer to the chart below and the Dryer Guide for proper sorting, loading

and control setting information before starting it.

SUGGESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

Cottons and linens

EXTRA HEAVY - Bedspreads, mattress

pads, quilts

HEAVYWEIGHT-Towels, jeans,

corduroys, work clothes

MEDIUMWEIGHT - Sheets, pillowcases,

cotton, underwear, diapers

LIGHTWEIGHT - Batistes, organdies,

lingerie

AUTOMATIC PERM’T PRESS

REGULAR HEAVY HIGH

Permanent press, synthetics

and blends

HEAVYWEIGHT-Work clothes, jackets, AUTOMATIC PERM’T PRESS

raincoats PERMANENT PRESS HEAVY HIGH

MEDIUMWEIGHT- Shirts, play clothes,

sheets, slacks

LIGHTWEIGHT - Lingerie, blouses,

dresses

Knits

HEAVYWEIGHT-Cottons, rayons,

blends, T-shirts, slacks, shirts

LIGHTWEIGHT - Synthetic (polyester,

acrylic, etc.) and blends, lingerie,

blouses, dresses

AUTOMATIC PERM’T PRESS

PERMANENT PRESS HEAVY HIGH

KNITS GENTLE

LOW

Delicate fabrics

Sheer curtains (2 or 3 panels), gauze, AUTOMATIC KNITS GENTLE

Rubber, plastic,

heat-sensitive fabrics

FOAM RUBBER-Pillows, bras,

stuffed toys

PLASTIC - Shower curtains, tablecloths

RUBBER-BACKED RUGS

TIMED DRYING

20-30

MIN.?. FLUFF AIR

20-30

MIN.?.

40-50

MINS.

OLEFIN. POLYPROPYLENE, 15-20 MINS

SHEER NYLON

DO NOT OVERDRY. Overdrying can cause shrinkage, static cling, and damage

some fabrics.

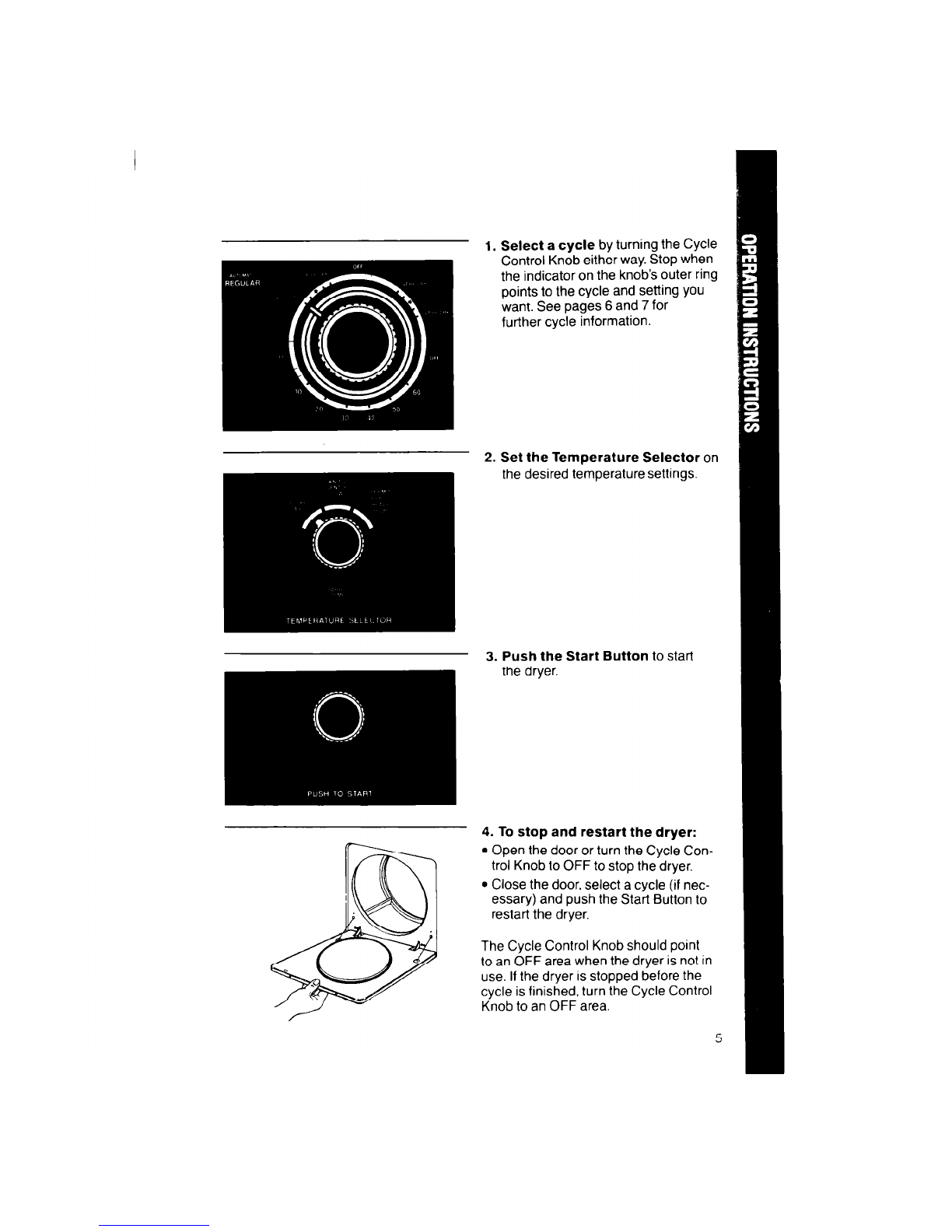

1. Select a cycle

by turning the Cycle

Control Knob either way. Stop when

the indicator on the knob’s outer ring

points to the cycle and setting you

want. See pages 6 and 7 for

further cycle information.

2. Set the Temperature Selector

the desired temperature settings.

3. Push the Start Button

to start

the dryer.

4. To stop and restart the dryer:

Open the door or turn the Cycle Con-

trol Knob to OFF to stop the dryer.

Close the door, select a cycle (if nec-

essary) and push the Start Button to

restart the dryer.

The Cycle Control Knob should point

to an OFF area when the dryer is not in

use. If the dryer is stopped before the

cycle is finished, turn the Cycle Control

Knob to an OFF area.

Operating Instructions

Continued

Theautomaticcycles

The automatic cycles allow you to

select the degree of dryness you prefer

for the clothes being dried.

The automatic DRY-MISER@ control

is a thermostat that senses the air

temperature. The dryer automatically

shuts off when the selected dryness is

reached.

The Cycle Control Knob will not move

until the clothes load is almost dry, or

the Cool-Down portion of the cycle has

been reached. After the Cool-Down

portion is complete, the Cycle Control

Knob automatically moves to an OFF

area and tumbling stops.

to handle.

For the first few loads, set the Cycle

Control Knob to point to the * in either

automatic cycle. When the dryer stops,

feel the dried items.

If items are drier than you like, use a

setting to the right of the * the next

time you dry a similar load.

If items are not as dry as you like, use

a setting to the left of the * the next

time you dry a similar load.

NOTE: Overdrying can cause

shrinkage, static cling and damage to

some fabrics.

Timeddrying

Use the TIMED DRYING cycle for any

load you want to dry by time. This cycle

is designed for small loads, large bulky

items or items to be fluffed or dusted

with the FLUFF AIR heat setting.

Turn the Cycle Control Knob to the

number of minutes you want from

10 to 60.

For a damp dry, turn the Cycle Control

Knob to 30 minutes or less.

The last 5 minutes of this cycle

are without heat to help make the load

easier to handle.

UsingFLUFFAIR

he dryer does not heat when the

Temperature Selector is set on FLUFF

AIR. This setting can be used to fluff

or air dry bedding, plastic tablecloths,

foam rubber pillows, stuffed toys,

sneakers, etc.

Fire Hazard

Do not dry plastic or rubber items

with heat. Use FLUFF AIR setting,

or line dry. Failure to do so could

result in fire or damaged items.

1. Turn the Temperature Selector to

FLUFF AIR.

2. Turn the Cycle Control Knob to the

number of minutes you want in the

TIMED DRYING cycle.

3. Push the Start Button.

CaringForYourDryer

Cleaningthelintscreen

The lint screen is located under a lid on top of the dryer. Clean it before each

load. A screen blocked by lint can increase drying time.

Electric Shock Hazard

Unplug the power supply cord

or turn off the electrical power

before cleaning the interior.

Failure to do so could result in

electrical shock or injury.

1. Open the lid and pull the lint screen

straight out.

2. Roll lint off the screen with your

fingers. Do not rinse or wash the

screen. Wet lint is hard to remove.

3. Push the lint screen firmly back into

place and close the lid.

Cleaningthedryerinterior

Garments which contain unstable dyes,

such as denim blue jeans or brightly

colored cotton items, may discolor the

dryer interior. If the interior is discolored,

clean with one of the following methods

to avoid staining later load items.

Powdered laundry detergent

Make a paste with detergent and very

warm water. Apply paste to a soft cloth

and scrub area until all excess dye is

removed. Wipe thoroughly with a damp

cloth. Tumble a load of rags to dry.

-OR-

Liquid household cleaner

Apply to stained area. Rub with a cloth

until all excess dye is removed. Tumble

a load of rags to dry.

To clean dryer exterior, wipe with a

sol-l, damp cloth.

Electric dryer

Igniter _ Funnel ~-

Lintremoval

Lint can gather inside the dryer and

create a FIRE HAZARD. This lint

should be removed at least every

2 to 3 years, or more often,

depending on dryer usage.

Electrical Shock and

Personal Injury Hazard

Unplug the power supply cord

or turn off the electrical power

before removing lint.

Do not put hands inside the

cabinet.

Make sure the dryer is cool.

Failure to do so could result in

electrical shock, injury or

damage.

Gas dryer

Cleaning should be done only by a

qualified person.

1. Remove back panel (electric) or

lower access panel (gas).

2. Avoid damaging wires, thermostats,

funnel or igniter.

3. Remove lint from boxed-in area with

a sofl brush or vacuum cleaner.

4. Replace panel; reconnect and

relevel the dryer.

IfYouNeedServiceOrAssistance

Wesuggestyoufollow

thesesteps:

1. Before calling for assistance...

Performance problems often result from

little things you can find and fix yourself

without tools of any kind.

If your dryer does not run:

Is the power supply plugged into a live

circuit with the proper voltage?

Is the door closed tightly?

Did you push the Start Button?

Have you checked your home’s main

fuses or circuit breaker box?

If your dryer does not heat:

The FLUFF AIR cycle ISwithout heat.

The last minutes of heat settings are

without heat.

Is the gas turned on? If not, turn the

Cycle Control Knob to OFF Turn on

gas. Wait 5 minutes. Reset controls

and star-t.

An electric dryer circuit uses 2 break-

ers or 2 fuses. If one breaker is tripped

or one fuse is blown, the dryer may

run, but not heat.

If drying time seems too long.

Is the lint screen clean? See page 8

for cleaning instructions.

See the Dryer Guide.

2. If you need assistance:..

Call Whirlpool COOL-LINE@

service assistance telephone

number. Dial free from anywhere

in the U.S.:

l-800-253-1301

and talk with one of our trained consul-

tants The consultant can instruct you in

how to obtain satisfactory operation

from your appliance or, if service is nec-

essary, recommend a qualified service

company in your area.

If you prefer, write to:

Mr. Donald Skinner

Director of Consumer Relations

Whirlpool Corporation

2000 M-63

Benton Harbor, Ml 49022

Please include a daytime phone

number in your correspondence.

3. If you need service’...

%&I 46^

Whirlpool has a

9~ nationwide network

of authorized

sEnvrcE WhirlpoolSM service

companies.

Whirlpool service technicians are trained

to fulfill the product warranty and provide

after-warranty service, anywhere in the

United States. To locate the authorized

Whirlpool service company in your area,

call our COOL-LINE@ service assistance

telephone number (see Step 2) or look in

your telephone directory Yellow Pages

under:

APPLIANCES - HOUSEHOLD - ELECTRICAL APPLIANCES -

MAJOR-SERVICE A REPAIR MAJOR-REPAIRING A PARTS

WASHING MAWINES. DRYERS

A IRONENS - SERVICING

This manual suits for next models

Table of contents

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool CGM2751KQ User manual

Whirlpool

Whirlpool LE7000XP User manual

Whirlpool

Whirlpool SDRY60 User manual

Whirlpool

Whirlpool W10184516C User manual

Whirlpool

Whirlpool WGD7300DW User manual

Whirlpool

Whirlpool LEB6400KQ1 User manual

Whirlpool

Whirlpool HybridCare WED9290F User manual

Whirlpool

Whirlpool WED9600TA - 27" Electric Steam Dryer User manual

Whirlpool

Whirlpool YLEV4634JQ1 User manual

Whirlpool

Whirlpool CGM2745FQ User manual

Whirlpool

Whirlpool LEV4634JQ0 User manual

Whirlpool

Whirlpool LI._7681XM User manual

Whirlpool

Whirlpool LEQ8000JQ0 User manual

Whirlpool

Whirlpool DRYER User manual

Whirlpool

Whirlpool WGD4700Y Manual

Whirlpool

Whirlpool LE3300XPWO User manual

Whirlpool

Whirlpool Gold GGW9868KL5 User manual

Whirlpool

Whirlpool CEM2940TQ0 User manual

Whirlpool

Whirlpool Duet WED9600T Parts list manual

Whirlpool

Whirlpool MAYTAG MLG-52 User manual

Whirlpool

Whirlpool W10259190B - SP User manual

Whirlpool

Whirlpool W10054070A User manual

Whirlpool

Whirlpool ELECTRIC DRYER User manual

Whirlpool

Whirlpool WED6600VU - 29-in Electric Dryer User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
