Whirlpool LGR7620LQ0 User manual

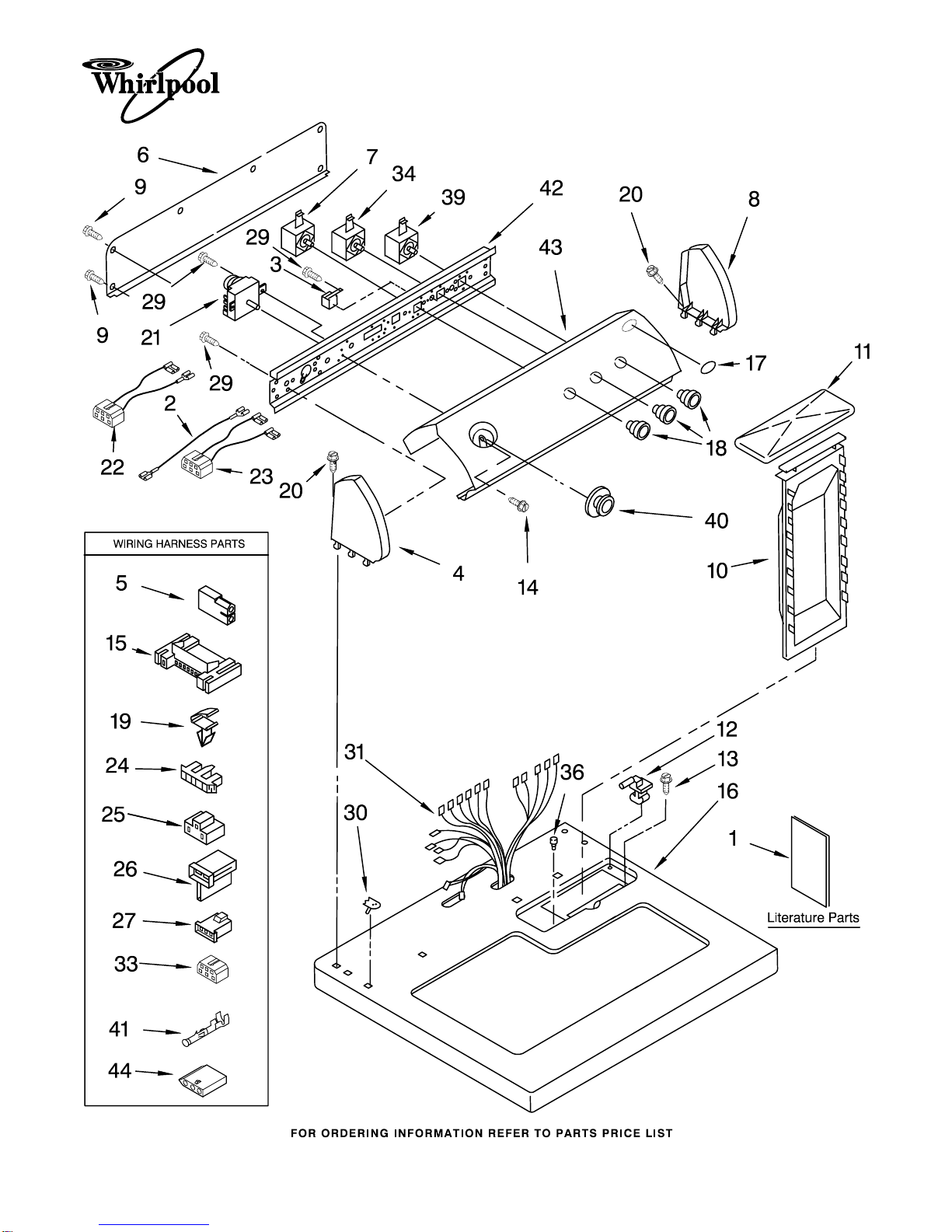

TOP AND CONSOLE PARTS
1
For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0
(Designer White) (White/Grey) (Biscuit/Gold)
10−02 Litho in U.S.A. (djc) Part No. 8179902
29"GAS DRYER
TOP AND CONSOLE PARTS
2
OPTIONAL PARTS (NOT INCLUDED)
For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0
(Designer White) (White/Grey) (Biscuit/Gold)
8179902
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT8535830
Instructions,
Installation
LIT8522243
Use & Care Guide
LIT3979703
Wiring Diagram
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT677818
Dryer
2 3401684 Wire, Jumper
(Black)
3 694419 Buzzer, Mini
4 Cap, End (L.H.)
8271365 White
8271368 Biscuit
5 717252 Plug, 2−Way
Terminal
6 8274261 Panel, Rear
Console
7 3399639 Switch,
Temperature
8 Cap, End (R.H.)
8271359 White
8271362 Biscuit
9 693995 Screw, Hex
Washer Head
10 349639 Handle & Lint
Screen Assembly
11 Cover, Lint Screen
8283378 White
8283380 Biscuit
12 3978605 Hinge, R.H.
3978606 Hinge, L.H.
13 688983 Screw, 8−18 x 5/8
14 3400859 Screw, Grounding
15 3395683 Connector
(Motor)
16 Top
8271390 White
8271392 Biscuit
17 3955775 Medallion
18 Knob, Control (3)
8271339 LGR7620LQ0
8316540 LGR7620LW0
8316545 LGR7620LG0
19 3394427 Clip−Harness
20 388326 Screw, Console
21 8299766 Timer Assembly
(60 Hz.)
22 3397695 Wire, Jumper
(Guard On/Off)
23 3396029 Wire, Jumper
(Temperature)
24 3397269 Connector−Timer
25 3401144 Connector,
(PTS Relay)
26 3403499 Connector,
2−Position
(Gas Valve)
27 3403498 Connector,
3−Position
(Gas Valve)
29 3390646 Screw, 8−18 x 5/16
30 357213 Nut, Push−In (2)
31 8299879 Harness, Wiring
33 3347243 Connector
6−Circuit
34 3405156 Switch,
Wrinkle Shield
36 297535 Bumper, Lint Lid
39 3398095 Switch,
Push−To−Start
40 Timer Knob
Assembly
8312687 LGR7620LQ0
8316538 LGR7620LW0
8316549 LGR7620LG0
41 94614 Terminal, Female
42 8271418 Bracket, Control
43 Panel, Control
(Includes
Illus. 17)
8532614 White
8532615 Grey
8532616 Gold
44 3936144 Connector
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
3406839 Dry Rack
279948 Dryer Repair
Kit
346764 Kit, Hold−Down
(Gas Dryer Mobile
Home Installation)
8522199 Kit, Dryer
Vent Testing
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit (Uncut)
CABINET PARTS
3
For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0
(Designer White) (White/Grey) (Biscuit/Gold)
8179902
CABINET PARTS
4
For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0
(Designer White) (White/Grey) (Biscuit/Gold)
8179902
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 697776 Screw, 10−32 x 5/8
(External Ground)
2 343641 Screw, 10−16 x 1/2
3 693995 Screw, Hex Head
5 3396795 Cover, Block
6 3404162 Clamp, Motor
(W/Shield)
7 3396805 Panel, Rear
10 3406107 Door Switch
Assembly
11 697773 Screw, 6−20 x 7/8
13 3357011 Screw, 10−16 x 1/2
14 692495 Spring, Door (2)
16 3392100 Foot, Dryer
279810 Foot−Optional
(Extended Length)
(Package of 2)
(Not Included.)
17 342043 Screw, 10−32 x 3/8
18 Cabinet
8530603 White
8530606 Biscuit
19 98234 Clip, Ground (2)
20 690363 Lock, Front Top (2)
21 Panel Front
3395197 White
3977243 Biscuit
23 685203 Clip, Felt Pad (2)
24 3389441 Catch, Door
Assembly
25 3390731 Seal, Door
26 337189 Clip, Hinge (2)
27 694091 Screw, 8−18 x 3/8
28 8066056 Hinge, R.H.
8066057 Hinge, L.H.
33 696144 Strike, Panel
35 695737 Door, Rear
36 Door, Front
3393549 White
3977241 Biscuit
37 Handle, Door
690270 White
3977242 Biscuit
38 3406129 Seal & Bearing
Assembly
39 Plug, Front Panel
3394975 White
3394978 Biscuit
45 344020 Cord, Power
48 3394083 Clip, Front Panel
51 238088 Hinge, Top (2)
53 3394332 Idler & Slide
Assembly
56 8066065 Belt, Drive
57 348780 Base, Motor
58 3400500 Bolt, 5/16−18 x 3/4
59 3394341 Pulley, 60 Hz.
62 661654 Motor Assembly
60 Hz.
63 660658 Clamp, Motor
67 8318272 Burner Assembly,
60 Hz.
(See Pages 7 &
8 For Further
Burner Breakdown)
68 341029 Clamp, Pipe
BULKHEAD PARTS
5
For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0
(Designer White) (White/Grey) (Biscuit/Gold)
8179902
BULKHEAD PARTS
6
For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0
(Designer White) (White/Grey) (Biscuit/Gold)
8179902
Illus. Part
No. No. DESCRIPTION
1 348368 Lint Chute
Assembly
2 489463 Screw, 8−18 x 5/8
3 3388703 Washer−Support
4 347139 Seal, Lint
Chute
5 90767 Screw, 8−18 x 3/8
6 487909 Screw, 8−15 x 1/2
7 3392519 Fuse, Thermal
8 8066086 Drum Hole
Plug
9 3387134 Thermostat,
Internal−Bias
10 694089 Wheel, Blower
(Includes
Illus. 21)
11 3405016 Housing, Blower
12 3398161 Clip
13 343641 Screw, 10−16 x 1/2
14 8530285 Box, Heater
15 3403140 Thermostat, 205 F
(96 C)
16 3390647 Screw, 8−18 x 1/2
17 280010 Kit, Thermal Cut−Off
(Includes
Illus. 15)
18 8066049 Funnel, Burner
19 3403634 Socket Assembly
20 3406124 Bulb
21 3394196 Seal, Blower
22 3977373 Bracket, Drum
Light
23 3406022 Bracket, Bulkhead
24 690997 Ring, Tri
25 3399506 Shaft, L.H.
26 3399507 Shaft, R.H.
27 3397588 Roller, Support
28 348197 Washer, Support
29 3359452 Nut, 3/8−16
30 3403413 Bulkhead
31 338906 Sensor, Radiant
32 3402841 Lens, Drum Light
33 692526 Ring, Bearing
34 97787 Screw, 11−16 x 3/4
35 3406130 Seal, Rear Drum
36 695587 Drum Assembly
37 692490 Baffle, Drum (2)
38 3976434 Bracket, Support
39 90296 Clip
40 3403636 Baffle, Drum (1)
41 339956 Seal
42 696302 Shield, Exhaust
43 3401707 Wire, Jumper
BA−150
8318272 BURNER ASSEMBLY
USE WITH TYPE 1 − NATURAL
AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES
7
For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0
(Designer White) (White/Grey) (Biscuit/Gold)
8179902
Illus. Part
No. No. DESCRIPTION
BA−150
8318272 BURNER ASSEMBLY
USE WITH TYPE 1 − NATURAL
AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES
1 8318272 Burner Assembly
60 Hz.
(Type 1)
(White Rodgers)
2 688617 Tube, Burner
3 694298 Bracket, Ignitor
4 686590 Ignitor
5 3393909 Screw & Washer
(8−32 x 5/8)
6 343641 Screw, 10−16 x 1/2
7 693986 Base, Burner
8 3387057 Screw, 8−18 x 3/8
9 Orifice, Burner
234826 Type 1
229742 Type 4 (Butane)
234868 Type 4 (Propane)
10 8318277 Valve, 60 Hz.
(Includes Pipe &
Illus. #7)
11 694421 Screw,
8−32 x 1/2 (2)
12 694538 Bracket, Coil
13 694540 Coil, 60 Hz.
(2 Terminal)
(Main)
14 694539 Coil, 60 Hz.
(Split)
(3 Terminal)
(Pilot Position)
15 694424 Leak Limiter
16 694423 Screw, Regulator
Adjustment
17 694422 Spring, Regulator
20 239822 Plug, Pipe
25 341029 Clamp, Pipe
694572 Conversion Kit
(Type 1)
to Type (4) L.P.G.
Following Parts Not Illustrated
8
For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0
(Designer White) (White/Grey) (Biscuit/Gold)
8179902
