Volt VPL-1039-BXX User manual

VOLT®Low Voltage Landscape Lighting

VOLT® Brass ShadowMaster™ LED Path & Area Light

VPL-1039-BXX

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

reserved. [email protected] • 813.978.3700

- 1 -

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT®Brass ShadowMaster™ LED Path & Area Light

VPL-1039-BXX

Important: Please Read Before Installation

Important Safety Instructions

INSTALLATION INSTRUCTIONS

www.voltlighting.com [email protected] • 813.978.3700

Package Contents

A. ( 1 ) F i x t u r e B o d y

B. ( 1 ) S t e m

Product Dimensions

34.5”

11”

- 2 - - 3 -

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with wire connectors that are suitable

for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

7. If additional lengths of low voltage cable are required, please contact

www.voltlighting.com or call 1-813-978-3700.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

A. (1) XL Hammer Stake

B . ( 1 ) L E D P u c k L i g h t ( p r e - i n s t a l l e d )

INSTALLATION INSTRUCTIONS

[email protected] • 813.978.3700

www.voltlighting.com

- 4 - - 5 -

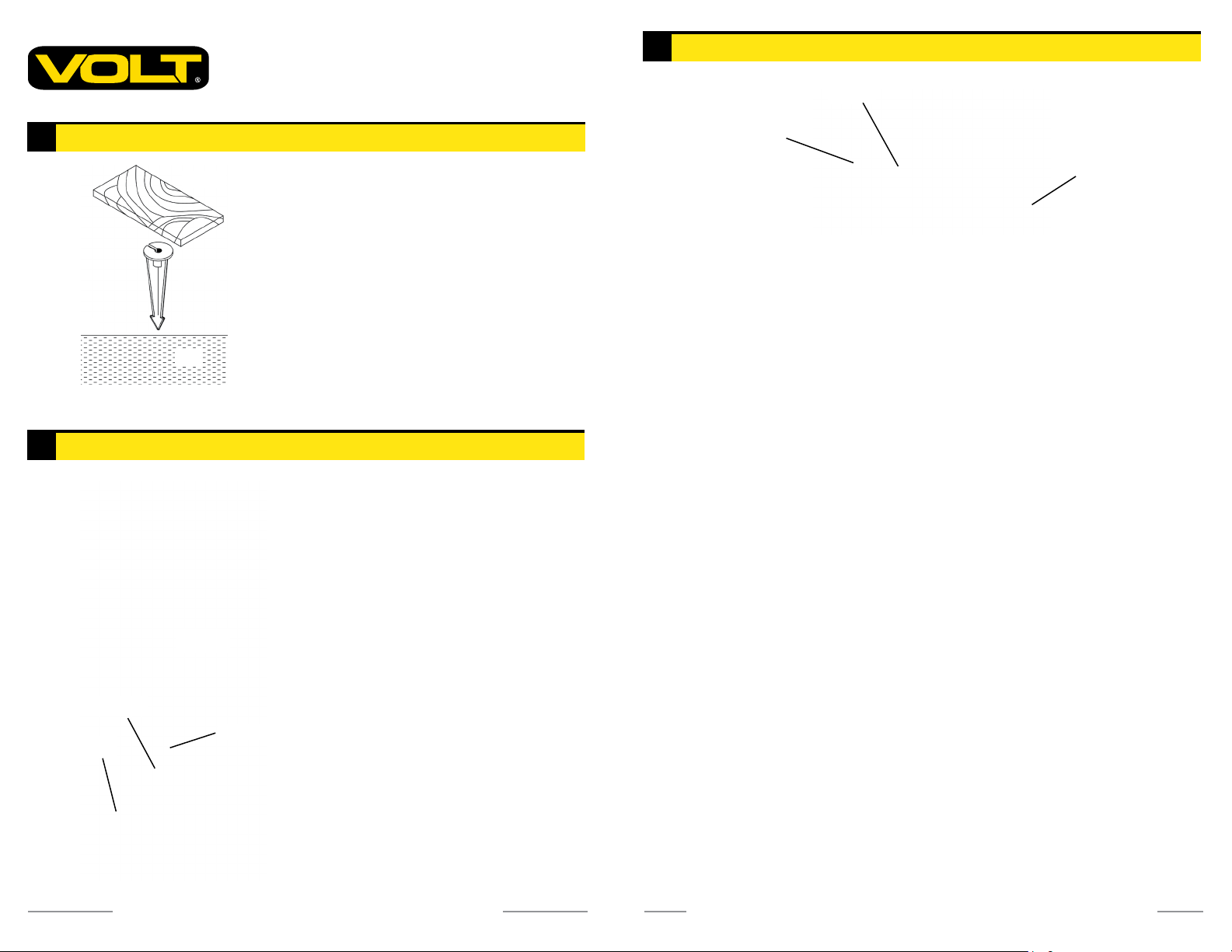

Install Stake

Board

Stake

Soil

Ground

Determine the desired location for

mounting the xture. Hammer the stake

into the ground until ange of stake is

ush to grade. To avoid damage to the

stake, place a board on top of the stake

while hammering.

NOTE: If the ground is hard and the stake

is difcult to install, make a crosscut in

the ground using a at shovel.

Wire Connections

Strip both leads from the luminaire pigtail. Using two wire

connectors (sold seperately), connect the leads from the luminaire

to the main supply cable leads.

Pigtail

Main Supply Cable

Wire Connectors

Clear away an area in the ground at

the wireway slot on top of the stake.

Lay the luminaire pigtail into the

wireway slot and thread the xture

onto the stake.

Thread the lock nut at the bottom

end of the xture against the stake

and hand tighten.

Install Fixture to Stake

Pigtail

Wireway Slot

Lock Nut

Fixture

VOLT®Brass ShadowMaster™ LED Path & Area Light

VPL-1039-BXX

IS-VPL-1039-ver7.pdf

Specications and product details subject to change without notice.

reserved. [email protected] • 813.978.3700

www.voltlighting.com

- 6 -

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
