VOLT® Low Voltage Landscape Lighting
VOLT® RGBW BuddyPro™ Brass LED Puck Light
VHS-6726-8-BRB
INSTALLATION INSTRUCTIONS
- 1 -
VOLT® RGBW BuddyPro™ Brass LED Puck Light
VHS-6726-8-BRB
INSTALLATION INSTRUCTIONS
www.voltlighting.com
Important: Please Read Before Installation
IMPORTANT SAFETY INFORMATION
!
!
- 2 -
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
Lighted lamp is HOT!
WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.
1. Turn off/unplug and allow to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch the hot lens, guard or enclosure.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may
damage lamp.
6. Do not operate the luminaire tting with a missing or damaged shield.
SAVE THESE INSTRUCTIONS
This luminaire is intended for installation in accordance with local codes
and the National Electric Code (NEC). Failure to adhere to these codes
and instructions may result in serious injury, property damage and void
the warranty.
These instructions do not intend to cover all variations in installation,
operation maintenance or mounting situations.
1. Make sure that the power is turned OFF before installing or servicing
this luminaire.
2. WARNING: risk of electrical shock. Install all luminaires 10 feet
(3.05M) or more from pool, spa or fountain.
3. This luminaire is intended to be used only with a power supply
(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.
4. Wiring connections must be made with UL listed wire connectors
that are suitable for outdoor use.
5. Position the low voltage wire and wire connector so that it is located
within 6 inches (15.2 cm) from a building structure, a luminaire or
tting.
6. The main low voltage cable is intended for shallow burial - less than
6 inches (152 mm).
Package Contents
Product Dimensions
1
- 3 -
A. (1) Puck Light
Parts Required (Sold Separately)
A. (1) Transformer
1.5”
0.75”
*** NOTE***
PUCK LIGHT MUST BE MOUNTED IN AN INVERTED POSITION
- FACING DOWNWARD
Surface Mounted
Anchor (Optional)
Puck Light
SURFACE
Lock Screw
Attach the puck light to the at
surface (under railings, shelves,
counters, benches, or any other niche
location). Secure with lock screws.
Note: Wall anchors are required for
certain installation conditions (brick
and/or concrete surfaces). Place a
mark on the surface where the holes
are located on the puck light. Remove
the puck light and drill proper holes
on the at surface, then insert the
anchors.
INSTALLATION INSTRUCTIONS
www.voltlighting.com
2
3
- 4 -
VOLT® RGBW BuddyPro™ Brass LED Puck Light
VHS-6726-8-BRB

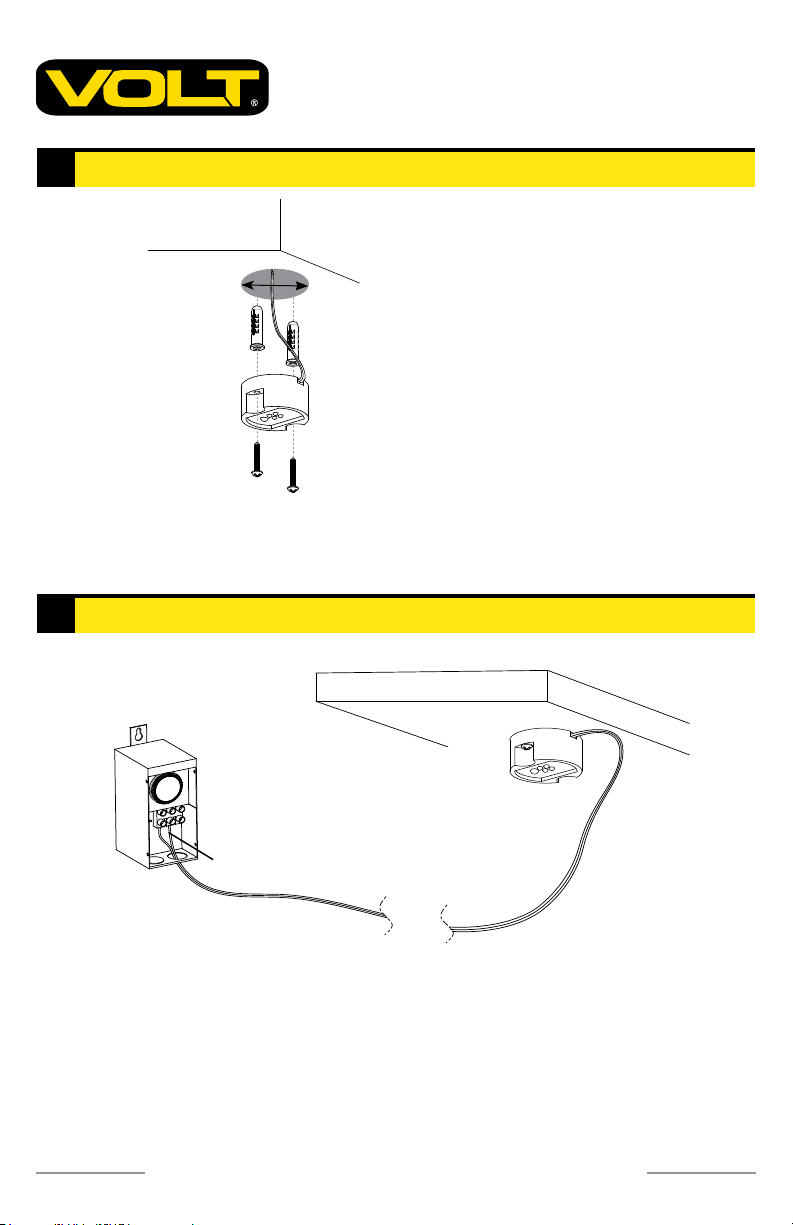

Recessed Mounted
1.5”D Hole
Lock Screw
Using a 1.5” core drill bit, drill a hole
in the desired at surface. Attach the
puck light into the drilled hole and
secure with lock screws.
Note: Wall anchors are required for
certain installation conditions (brick
and/or concrete surfaces). Place a
mark on the surface where the holes
are located on the puck light. Remove
the puck light and drill proper holes
on the at surface, then insert the
anchors.
Puck Light
Anchor (Optional)
SURFACE
Wire Connections
Lay the supply cable out from the transformer. Strip both leads from
the luminaire pigtail. Connect the leads from the luminaire supply
cable to the transformer (sold separately).
Pigtail
Transformer
(Sold Separately)
Supply Cable
Puck Light
- 5 -
IR Remote (Optional)
An IR Remote is optional for this xture. The IR remote requires two AAA
batteries.
1
Remove the Battery compartment Cover
1
2
3
Press the tab and lift the battery
compartment cover to remove it
from the IR Remote.
Ta b
Cover
Backing
IR Remote
2
Install Two AAA Batteries
+
-
+-
Place two AAA batteries into the
battery compartment properly.
AAA Battery Battery
Compartment
Backing
IR Remote
3
Install the Battery compartment Cover
1
2Place the battery compartment
cover back onto the IR Remote.
Ta b
Cover
Backing
IR Remote
www.voltlighting.com
- 6 -
4
IR Remote Functions
OFF ON
R B
W
G
FLASH
FADE
SMOOTH
STROBE
2
3
4
1
5
6
7
8
1. On
2. Off
3. Brightness Control
4. 16 color selections
5. Flash
A. Mode 1: Repeats Red,
Green, Blue + color cycle for
1 second duration of each of
the seven colors within this
mode.
A. Mode 2: Hit ash a second
time and this mode slowly
blends the same seven col-
ors from mode one, mixing
them together.
6. Strobe
A. Mode 1: Pick any color on the remote, then press strobe and that
color will strobe every second alternating between on and off.
A. Mode 2: Hit strobe a second time and this mode will strobe a
blended white color at the same speed as before.
7. Fade
A. Mode 1: Pick any color on the remote, then press fade and that
color will slowly fade on and off every second.
A. Mode 2: Hit fade a second time and it will fade a blended white
color on and off at the same speed as before.
8. Smooth
A. Mode 1: Repeats a ash cycle of Red, Green, and Blue only.
A. Mode 2: Hit smooth a second time and this mode slowly blends
Red, Green, and Blue only; on and off at the same speed.
B.
B.
B.
B.
IS-VHS-6726-8-BRB-ver1.pdf
Specications and product details subject to change without notice.
© Copyright 2023, VOLT® Lighting, Lutz FL USA 33549 • All rights
reserved. [email protected] • 813.978.3700
www.voltlighting.com
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- 8 -
