Vivo STAND-V002P User manual
Dua Monito Stand
Instruction Manual
Email: [email protected]
Live chat: www.vivo-us.com
Call: 1-800-371- 6 4
-Mode STAND V002P
Too Requied
phillips screwdriver
Package Content
1
Scan the QR code with your mobile device or follow the link
to helpful videos and specifications related to this product.
A (x1)
C (x1)
D (x2) E (x1)
F (x1)
3mm
G (x1)
5mm
(x1)
6mm
-M C (x4)
D5
-M A (x4)
M4x12
- M ! (x4)
M5x12
- -http//vivo u.com/poduct/tand v002p
! (x1)

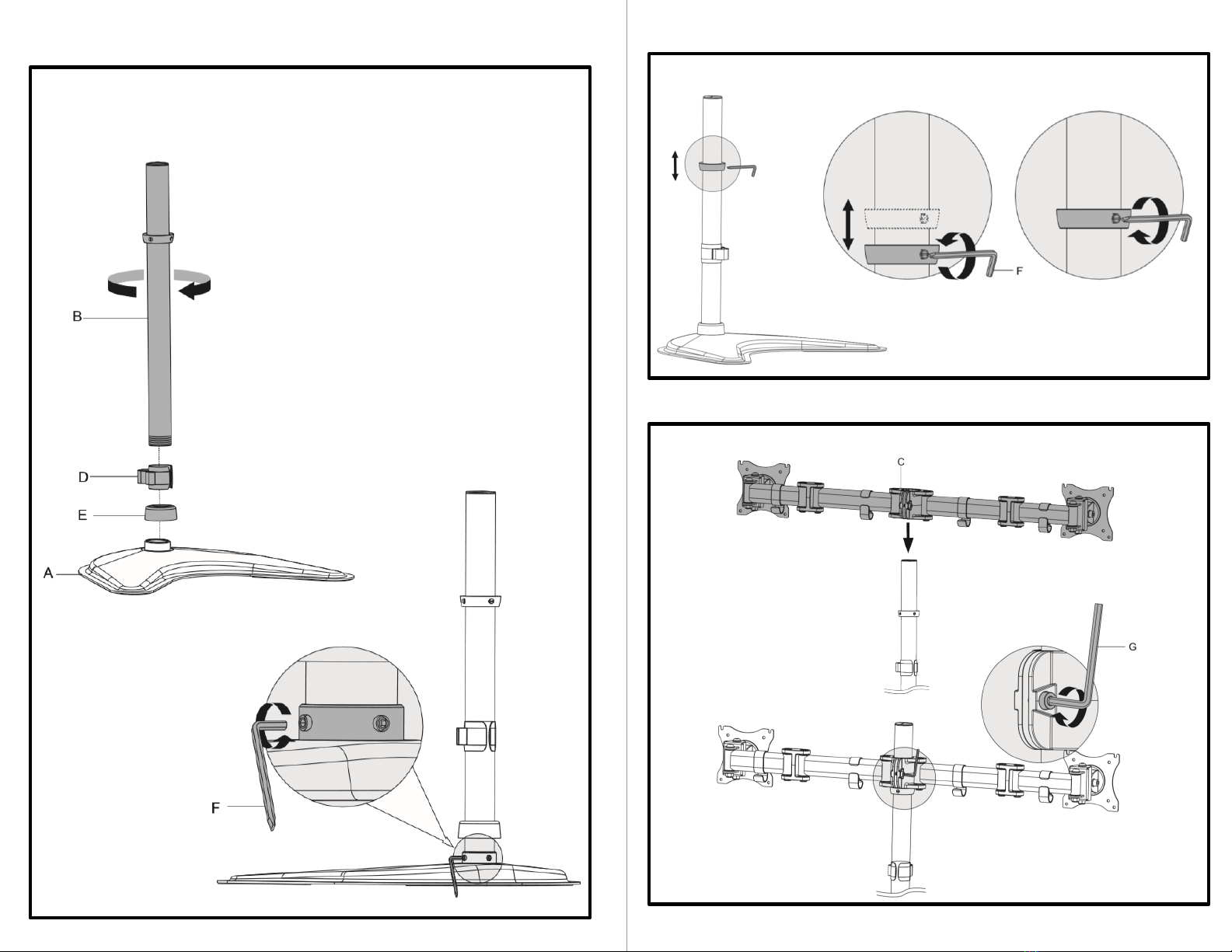

Aemb) Step
Step 1
Slide cable management clip (D) and base cover (E) on to bottom of
pole (B). Thread pole onto base (A). Tighten grub screws in bottom of
base (A) using 3mm allen key (F).
2
Step 2
Step 3
Slide arm (C) over top of pole and tighten using mm allen key (G).
Adjust bracket supporter using 3mm allen key (F).
Step 4
Attach two bolts (M-A or M-B) and washers (M-C) to top mounting
holes of monitor, making sure to leave 3mm of threads exposed.
Align bolts (M-A, M-B) in VESA plate. Secure using two more bolts (M-
A or M-B) and washers (M-C) in the bottom two holes. Tighten all four
bolts using phillips screwdriver.
3
Step 5
Step 6
Adjust tension in monitor bracket with 6mm allen key (H) as shown
in diagram.
Store allen keys (H, G) in cable management clip (D) for future
adjustment.
If you do not understand these directions, or if you have any
doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no
missing or defective parts. Improper installation may cause
damage or serious injury. Do not use this product for any
purpose that is not explicitly specified in this manual. We
cannot be liable for damage or injury caused by incorrect
assembly or inappropriate use.
Email: help@vivo-us.com
Live chat: www.vivo-us.com
Call: 1-800-371- 6 4
For more VIVO products, check out our
website at
www.vivo-us.com.
If any parts are received damaged or defective, please contact
us. We are happy to replace parts to ensure you have a fully
functioning product.
Safet) Waning
Contact u at
Last updated: 04/30/18
Step 7
Do not move monitors past center point of gravity. This could result in
tipping.
Adjust monitor height using mm allen key (G) as shown in diagram.
Step 8
4
