Vivo STAND-RACE1TV User manual
TV Mount for STAND-RACE1B
Scan the QR code with your mobile device or follow the link
for helpful videos and specications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-race1tv
SKU: STAND-RACE1TV
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

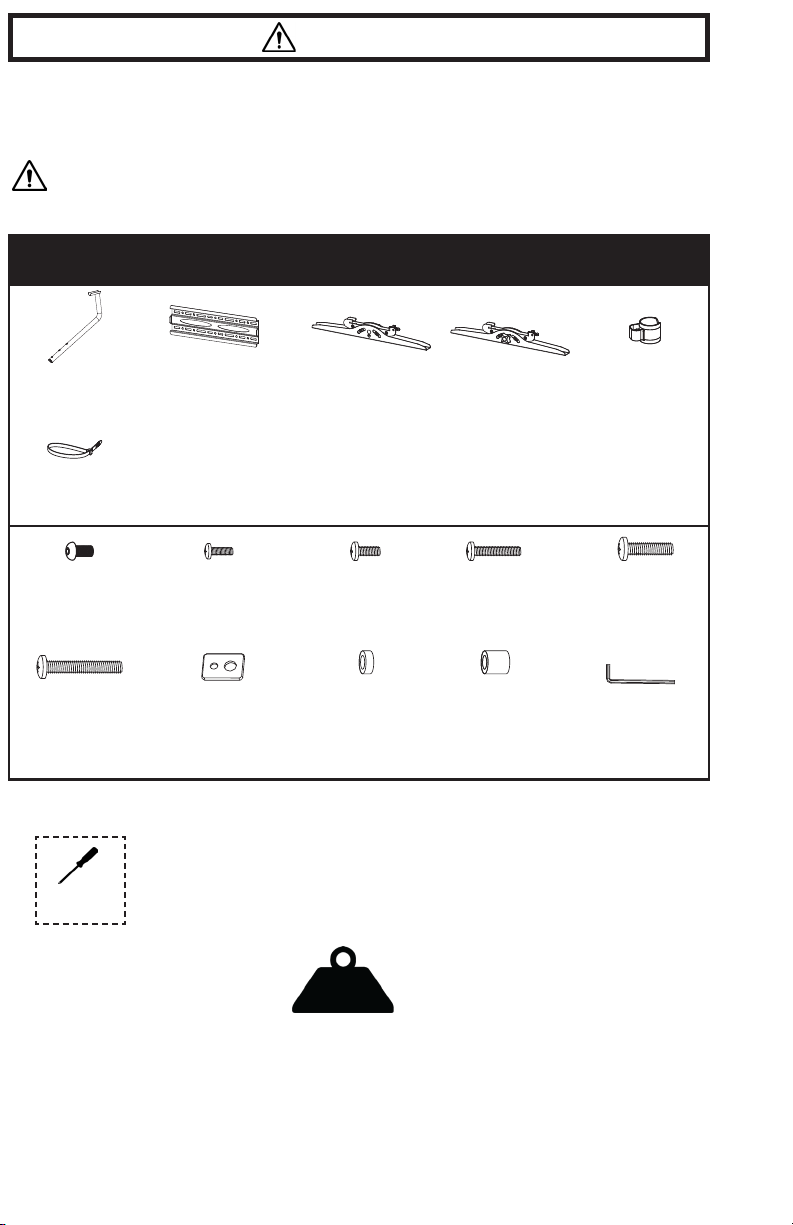

TOOLS NEEDED
77lbs
(35kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING!
Phillips
Screwdriver
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualied technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specied in this manual. Do
not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly
or inappropriate use.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
NOTE: SOME HARDWARE MAY NOT BE USED
A (x2)
Support Bar
B (x1)
Support Plate
C (x1)
Right VESA
Bracket
M-C (x4)
M6x30mm
Screw
D (x1)
Le VESA
Bracket
E (x2)
Cable Clip
F (x4)
Cable Ties
S-A (x4)
M8x16mm
Screws
M-A (x4)
M5x14mm
Screw
M-B (x4)
M6x14mm
Screw
M-D (x4)
M8x30mm
Screw
M-E (x4)
M8x50mm
Screw
M-F (x4)
Square
Washer
M-G (x8)
Small Spacer
M-H (x8)
Larger Spacer
PACKAGE CONTENTS
T-A (x1)
5mm Allen
Wrench
3
ASSEMBLY STEPS

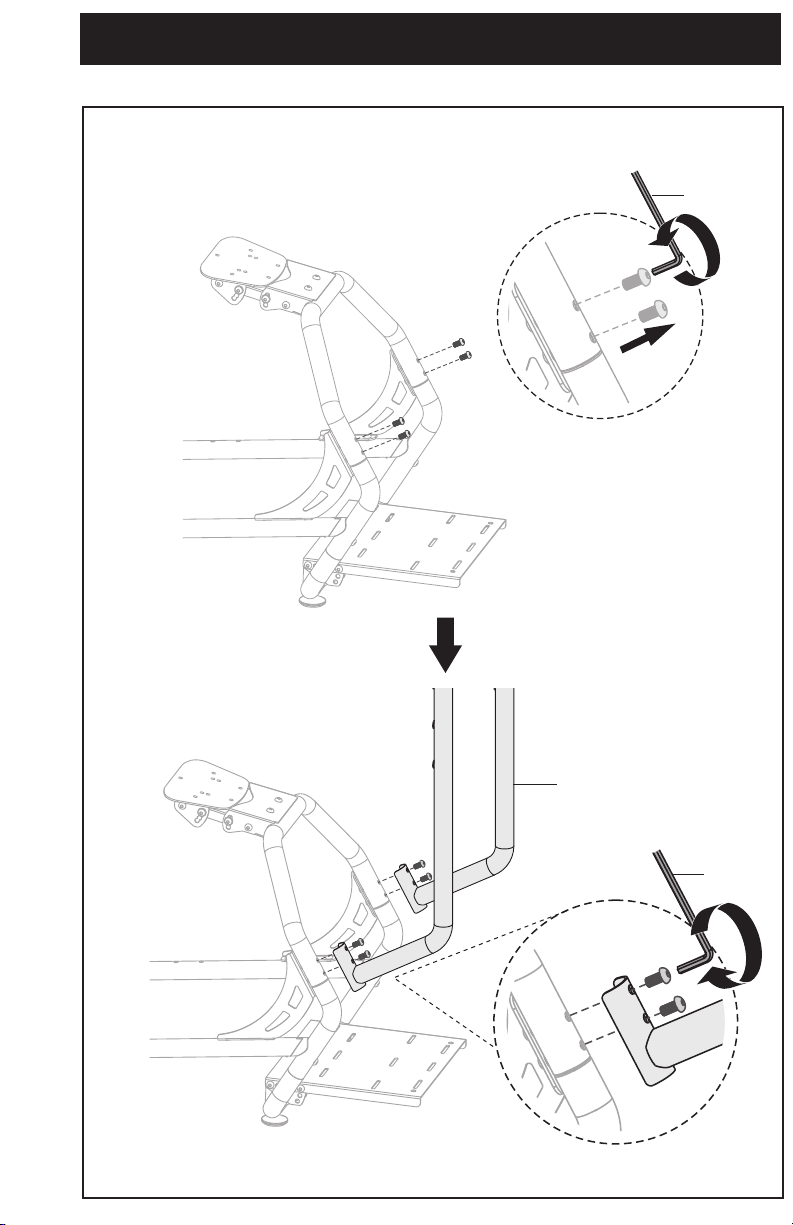

STEP 1
Remove existing four screws from STAND-RACE1B front frame support as shown below
using 5mm Allen Wrench (T-A). Install Support Bars (A) to the front frame support using
the previously removed screws.
A
T-A
T-A
4

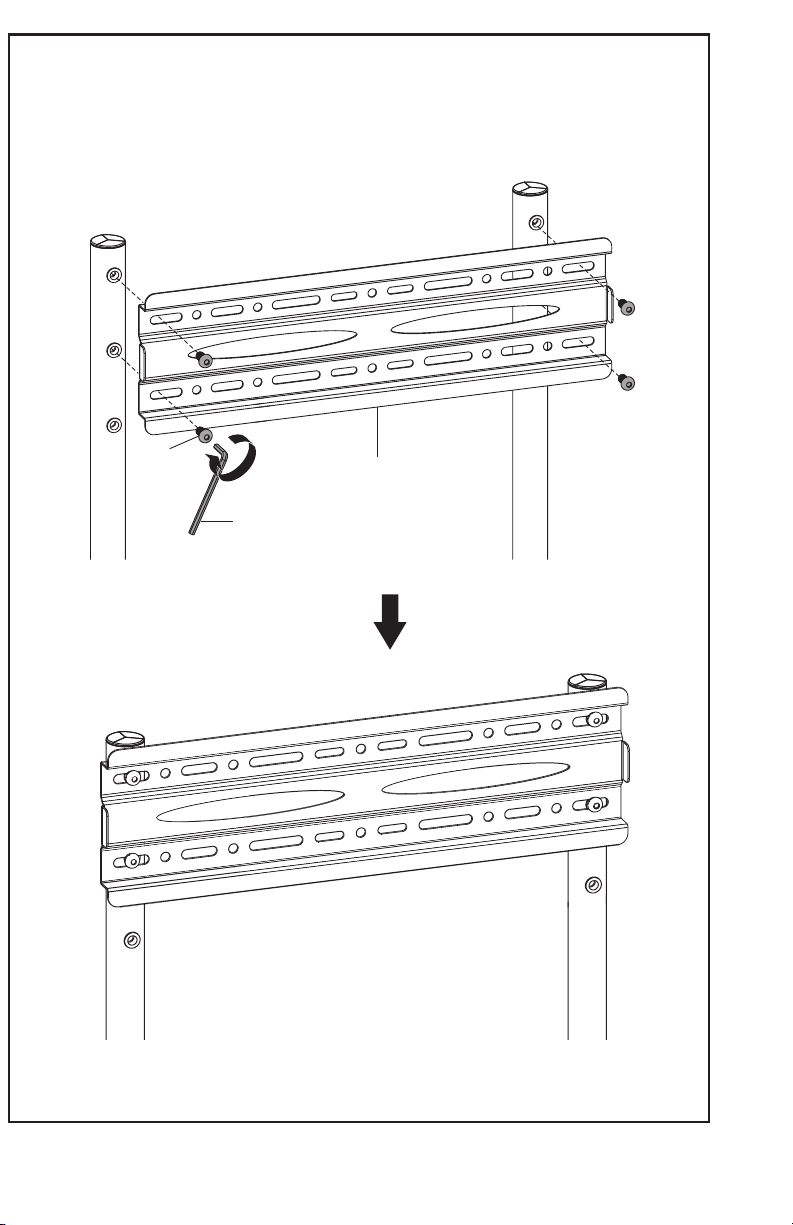

STEP 2
Assemble Support Plate (B) to Support Bars (A) using M8x16mm Screws (S-A) and
provided 5mm Allen Wrench (T-A).
S-A B
T-A
5

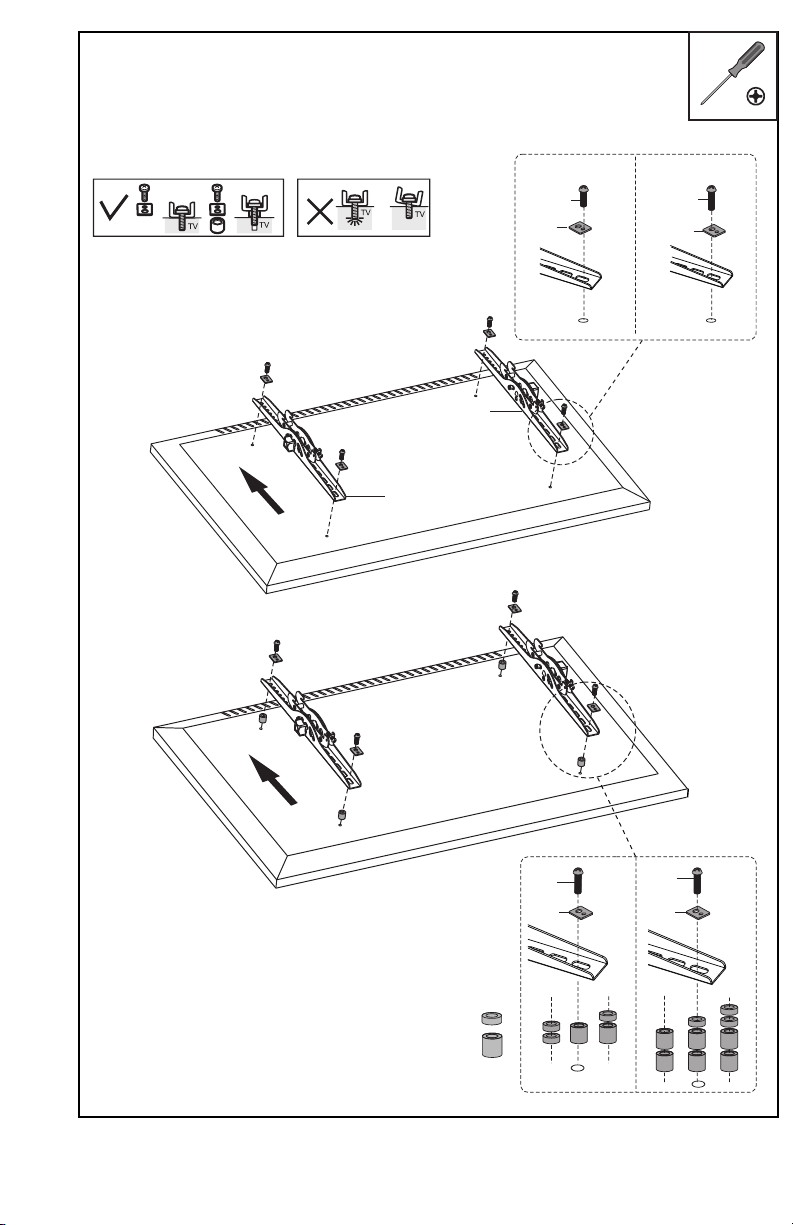

STEP 3
Assemble Le TV Bracket (D) and Right TV Bracket (C) to the back of the
television using Screws (M-A through M-E) with Washers (M-F) and Spacer
(M-G, M-H).
M-A
M-F
M-F
M-B
M-C
M-D M-E
M-FM-F
D
C
M-G
M-H
6

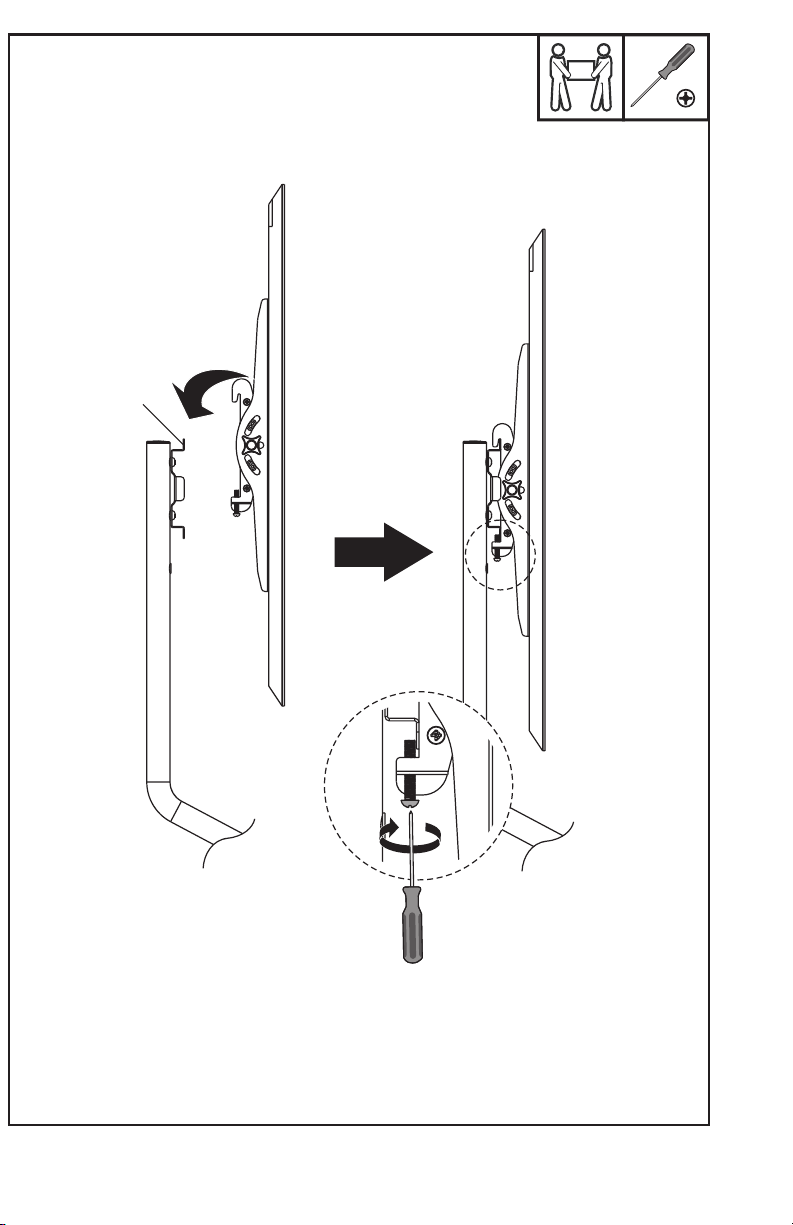

STEP 4
Hang Le TV Bracket (D) and Right TV Bracket (C) with display onto
Support Plate (B). Turn the security screws on the underside of the
brackets clockwise to secure them in place.
B
7

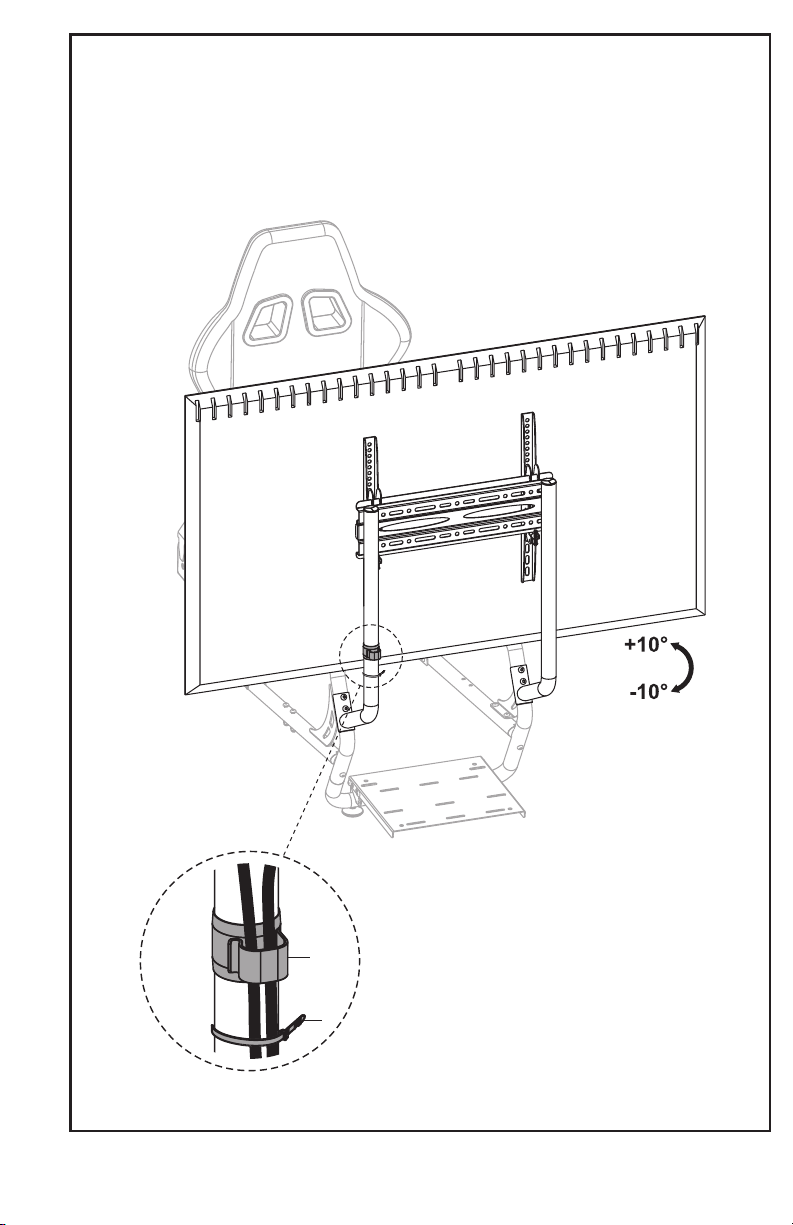

STEP 5
Secure cables using Cable Clips (E) and Cable Ties (F).
E
F
LAST UPDATED: 06/20/2022
REV1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
