Introduction

We want you to be completely satisfied with your

new product, so feel free to contact your local

Authorized Service Dealer for help with service,

genuine replacement parts, or other information you

may require.

Whenever you contact your Authorized Service

Dealer or the factory, always know the model and

serial numbers of your product. These numbers will

help the Service Dealer or Service Representative

provide exact information about your specific

product. You will find the model and serial number

plate located in a unique place on the product as

shown below

m–3469

1. Model

and Serial Number Plate

For your convenience, write the product model and

serial numbers in the space below.

Model No:

Serial No.

The warning system in this manual identifies

potential hazards and has special safety messages that

help you and others avoid personal injury, even death.

DANGER, WARNING and CAUTION are signal

words used to identify the level of hazard. However,

regardless of the hazard, be extremely careful.

DANGER signals an extreme hazard that will cause

serious injury or death if the recommended

precautions are not followed.

WARNING signals a hazard that may cause serious

injury or death if the recommended precautions are

not followed.

CAUTION signals a hazard that may cause minor or

moderate injury if the recommended precautions are

not followed.

Two other words are also used to highlight

information. “Important” calls attention to special

mechanical information and “Note” emphasizes

general information worthy of special attention.

The left and right side of the machine is determined

by sitting on the seat in the normal operator’s

position.

Contents

Page

Safety and Instruction Decals 2.

. . . . . . . . . . . . .

Installation 3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Loose Parts 3

. . . . . . . . . . . . . . . . . . . . . . . . .

Mower Preparation 3

. . . . . . . . . . . . . . . . . . .

Installing the Mower 4

. . . . . . . . . . . . . . . . .

Attach the PTO Drive Belt 6

. . . . . . . . . . . . .

Adjusting the Mower 8

. . . . . . . . . . . . . . . . .

Removing the Mower 11

. . . . . . . . . . . . . . . . .

Operation 14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side Discharge 14

. . . . . . . . . . . . . . . . . . . . . .

Operating the Power Take Off (PTO) 14

. . . .

Attachment Lift Lever 15

. . . . . . . . . . . . . . . .

Adjusting the Two Front Wheels 16

. . . . . . . .

Check for Debris 16

. . . . . . . . . . . . . . . . . . . .

Tips for Mowing Grass 16

. . . . . . . . . . . . . . .

Page

Maintenance 18

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Interval Chart 18

. . . . . . . . . . . . . . . .

Cutting Blade

. . . . . . . . . . . . . . . . . . . . . . .

Greasing and Lubrication 20

. . . . . . . . . . . . . .

Checking PTO Drive Belt Tension 21

. . . . . .

Extending PTO Drive Belt Life 21

. . . . . . . . .

Blade Drive Belt 22

. . . . . . . . . . . . . . . . . . . . .

Storage 22

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Washing the Underside of the Mower 23

. . . .

Troubleshooting 24

. . . . . . . . . . . . . . . . . . . . . . . . .

Safety

and Instruction Decals

Safety decals and instructions are easily visible to the operator and are located near

any area of potential danger. Replace any decal that is damaged or lost.

ON MOWER RIGHT SIDE

(Part No. 98–3481)

ON MOWER REAR T

(Part No. 98–3480)

ON DISCHARGE CHUTE

(Part No. 93–7316)

ON MOWER LEFT SIDE

AND DISCHARGE

CHUTE

(Part No. 93–7317)

UNDER DISCHARGE CHUTE

(Part No. 93–7009)

(2) ON LEVELER BAR

(Part No. 93–9367)

NEXT T

O FRONT WHEELS

(Part No. 93–7282)

Installation

Loose

Parts

Note: Use the chart below to identify parts used for assembly.

DESCRIPTION QTY. USE

Discharge chute

Spring

Bolt 3/8–24 x 3–1/2”

Lock nut 3/8”

Install discharge chute

O drive belt

Install PT

O drive belt

Pulley box

Install pulley box

Operator’

s Manual

Read before operating

Mower

Preparation

Install the Discharge Chute

1. Place the springs into the brackets on the mower

with the hooked ends over the raised back of the

bracket (Fig. 1).

2. Align the discharge chute with the holes in the

brackets and the spring straight ends in the space

under the hinge and above the chute (Fig. 1).

3. Secure the chute to the bracket with bolts

through the discharge chute, springs and

brackets. Secure with lock nuts (Fig. 1).

4. Lift the discharge chute and check that it is

spring loaded and pivots freely to the full down

position.

IMPORTANT: Discharge chute must be

spring loaded in the down position. Lift the

chute up to test that it snaps to the full down

position.

m–3484

Figure 1

1. Bracket

2. Spring

hook end

Space for spring

Discharge chute

5. Bolt

Lock nut

Installation

POTENTIAL

HAZARD

•Without the discharge chute or complete

grass catcher assembly mounted in place,

you and others are exposed to blade contact

and thrown debris.

WHAT CAN HAPPEN

•Contact with rotating mower blade(s) and

thrown debris will cause injury or death.

HOW TO AV

OID THE HAZARD

•

NEVER r

emove the discharge chute from

the mower because the discharge chute

routes material down toward the turf. If

the discharge chute is ever damaged,

replace it immediately. Never put your

hands or feet under the mower.

•Never try to clear the discharge area or

mower blades unless you move the power

take off (PTO) to “OFF” and turn the

ignition key to “STOP.” Also remove the

ignition key and pull the wire(s) off the

spark plug(s).

Mower Belt Routing

1. Route the mower belt as shown in Fig. 2. Be

sure to install the belt on the lower mower deck

pulley.

m–3472

Figure 2

op V

iew

1. Mower

belt

Mower deck pulley

Installing

the Mower

Initial Preparation

The mower is most easily installed when done on a

level concrete surface. Rougher dirt or lawn surfaces

make installation more difficult.

1. Position the tractor and mower side by side, with

the mower on the right–hand side of the tractor.

2. Set the parking brake, raise the attachment lift,

and turn the ignition key to “STOP” to stop the

engine. Remove the ignition key.

3. If you have previously had a snowthrower, blade

or tiller attached to the attachment lift, remove

the two clevis pins on each side of the

attachment lift (Fig. 3).

m–3433

Figure 3

1. Clevis

Hairpin cotter

4. Attach the pulley box if it is not already on the

tractor. Make sure the latches on the tractor’s

front Attach–A–Maticare open (Fig. 4). Then

slide the pulley box into the Attach–A–Matic

latches and seat it. Close the latches.

Installation

m–3463

Figure 4

1. Attach–A–Matic

latches

Pulley box

Idler pulley

Belt tension release arm

Belt tension adjustment

knob

Belt tension indicators

(one on each side)

7. Attach–A–Matic

buttons

(one on each side)

Attach the Mower

1. Make sure the mower wheels are set for low

height of cut.

2. Make sure the attachment lift is in the full up

position.

3. From the driver’s right–hand side of the tractor,

slide the mower under the tractor.

4. After sliding the mower under the tractor,

position it so that the slots in the side of each of

the mower’s mounting brackets (Fig. 5) are

aligned directly below the tractor’

s attachment

lift arm.

m–3468

Figure 5

1. Slots

in the side mounting

brackets (2)

Belt guide

Front–to–rear adjustment

rod

5. Start the tractor.

6. Lower the attachment lift arm fully and adjust

the deck’s position until you can pull out on the

J–pin of the lift arm and slide it into the slot in

the mounting bracket of the mower (Fig. 6).

7. On the driver’s left–hand side, pull out the

attachment lift J–pin and slide it into the slot on

the other mower mounting bracket.

m–3456

Figure 6

Left Side of Tractor Shown

1. J–pin 2. Mower

slot in side

mounting bracket.

Installation

8. After the two J–pins are seated through the

mower’s mounting brackets, using the

attachment lift and your hand on the right front

adjustable mower wheel bracket (Fig. 7),

position the mower so its attachment bar fits into

the mid Attach–A–Maticmount.

POTENTIAL HAZARD

•The “scissor” formed by the mower

mounting brackets and the attachment lift

arm is dangerous.

WHAT CAN HAPPEN

•Hands and fingers can get caught between

the mower parts and the tractor and be

injured.

HOW TO AV

OID THE HAZARD

•Keep hands away from moving parts while

operating the attachment lift.

•Always position the mower with your hand

on the right front mower wheel bracket.

•Never try to position the mower with your

hands on the mower mounting brackets or

below the mower housing.

m–3500

Figure 7

1. Place

hand here

9. Turn the lever of the Attach–A–Matic

counterclockwise to lock the mower to the

tractor (Fig. 8).

10. Set the parking brake, lower the attachment lift,

and turn the ignition key to “STOP” to stop the

engine. Then remove the ignition key.

m–3611

Figure 8

1. Attach–A–Matic

button

2. Attach–A–Matic

lever

3. Lock

Attach

the PT

O Drive Belt

1. Hang the belt over the mower, then thread it

forward through the belt guide (Fig. 9) on the

mower.

m–3457

Figure 9

1. Belt 2. Belt

guide

2. Extend the belt through the center of the pulley

box, between the two pulleys.

Installation

3. Release the belt tension release arm on the

pulley box housing and swing it out toward you

(Fig. 13).

4. Remove the tractor’s front grill by raising the

hood and unscrewing the two screws and

washers securing it in place (Fig. 10). Close the

hood and remove the grill by pulling it out

toward you.

m–3558

Figure 10

1. Grill

screw (1 of 2)

POTENTIAL

HAZARD

•Components under the hood will be hot if

the tractor has been running.

WHAT CAN HAPPEN

•Touching hot components can cause burns.

HOW TO AV

OID THE HAZARD

•Allow the tractor to cool before performing

maintenance or touching components

under the hood.

5. Position the end of the belt into the grooves of

the PTO pulley (Fig. 11), making sure it is also

under the pulleys in the pulley box.

m–4231 1

Figure 1

1. Pulley

box pulley

2. PT

O pulley

3. PT

O drive belt

6. Loop the other end of the belt over the drive

pulley of the mower. Additional belt slack can

be obtained (if needed) by turning the belt

tension adjustment knob (Fig. 13).

7. Make certain that the wide side of the PTO drive

belt is toward the outside diameter of all (four)

pulleys (Fig. 12).

m–4230

ÉÉÉÉ

Figure 12

1. Pulley

outside diameter

Wide side of belt

8. Now adjust the belt tension.

A. Push the belt tension release arm back

toward the pulley box to tension the belt.

Installation

B. Check the tension indicators on each side of

the pulley box.

C. If the tension indicators are not in the same

position on both the left and right sides,

release the belt tension, turn the adjustment

knob and repeat steps A and B until the

indicators move to the same position (Fig.

13).

D. Once the indicators are in the same position

on both sides, swing the tension release arm

into the pulley box and seat it by moving it

into the position shown in Figure 13.

m–3458

Figure 13

1. Belt

tension release arm

Belt tension indicator (2)

Belt tension adjustment

knob

Seating position for

tension arm

Belt tension released

9. Loosen the belt guide bolt (Fig. 14).

10. Adjust the belt guide so that it just touches the

belt on the inside arm of the guide (toward the

center of the deck) (Fig. 14).

m–3465

Figure 14

1. Belt

guide

2. Belt 3.

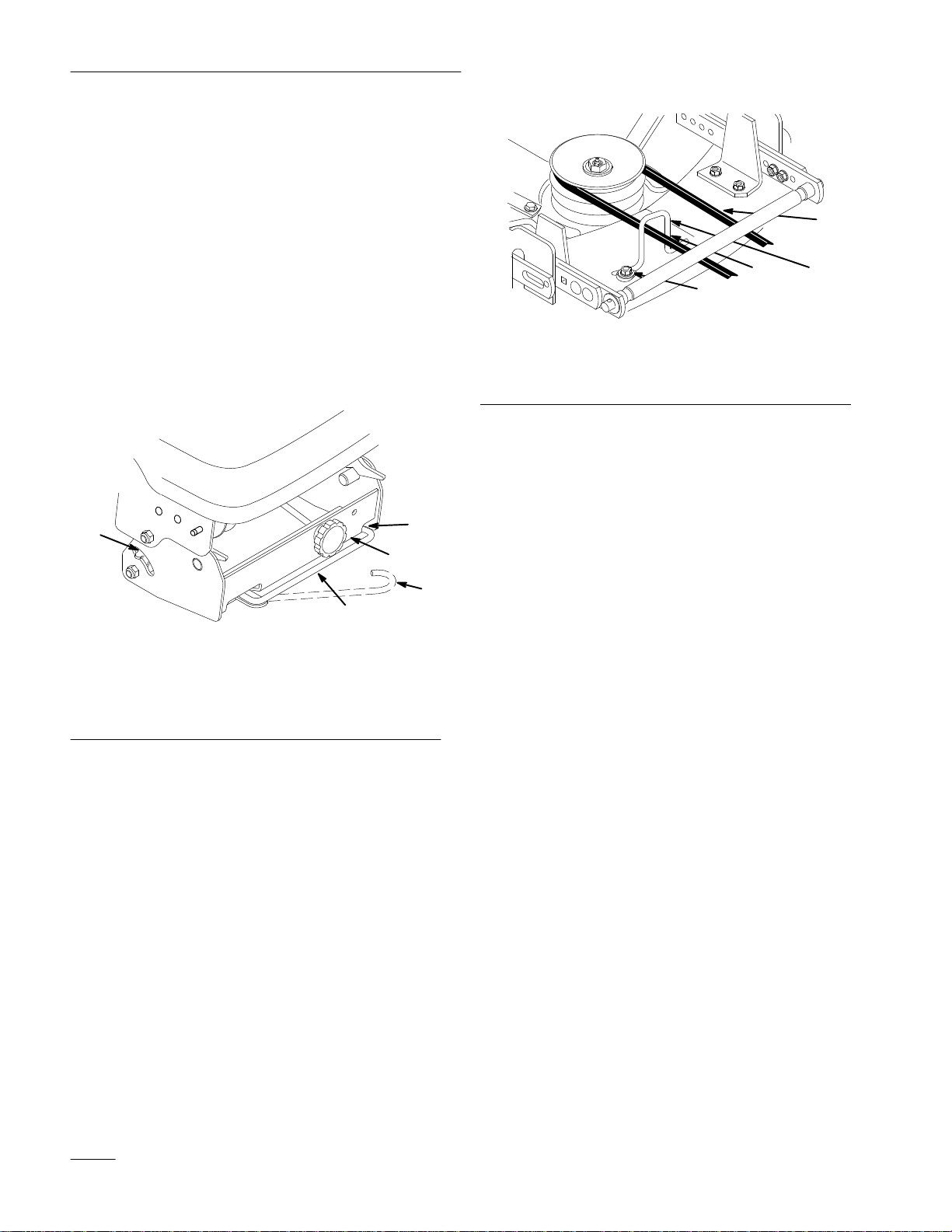

Belt touches here

Belt guide bolt

11. Tighten the belt guide bolt.

12. Replace the front grill of the tractor, securing it

with the two previously removed screws and

washers (Fig. 10).

Adjusting

the Mower

Adjusting the Height of Cut

The rear support wheels are adjusted in different hole

locations for 1-1/2—4-1/2” (4–11 cm) heights of cut.

1. Start the tractor, apply the parking brake, and

raise the deck. Get off the tractor.

2. Pull the height-of-cut lever out to disengage it

from the quadrant.

3. Adjust the height-of-cut to the desired level.

4. Release the lever inward to lock into the

quadrant (Fig. 15).

Note: The two front wheels must be adjusted

to match the mower height-of-cut

position; refer to Adjusting the Two

Front Wheels,

page 16

This manual suits for next models

Table of contents

Other Toro Lawn Mower manuals

Popular Lawn Mower manuals by other brands

RHINO

RHINO 1958 parts manual

Wolf Garten

Wolf Garten Compact plus 40 B instruction manual

Cub Cadet

Cub Cadet LTX 1045 brochure

Craftsman

Craftsman 917.378461 owner's manual

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Operator's manual

Challenge

Challenge CH18V2 Original manual

TALEN TOOLS

TALEN TOOLS AVR HGM30 manual

DEWEZE

DEWEZE ATM-725 Operation and service manual

Weed Eater

Weed Eater 180083 owner's manual

Husqvarna

Husqvarna Poulan Pro PP185A42 Operator's manual

Better Outdoor Products

Better Outdoor Products Quick Series Operator's manual

Cub Cadet

Cub Cadet 23HP Z-Force 60 Operator's and service manual

MTD

MTD 795, 792, 791, 790 Operator's manual

Dennis

Dennis FT 610 instruction manual

AIRFORCE

AIRFORCE F-15 Gen 3 owner's manual

MTD

MTD 126-220-000 owner's guide

Stihl

Stihl RMA 443 PV instruction manual

Yard-Man

Yard-Man 3700-0 Operating manual and parts list
